How It Fits Into Your System

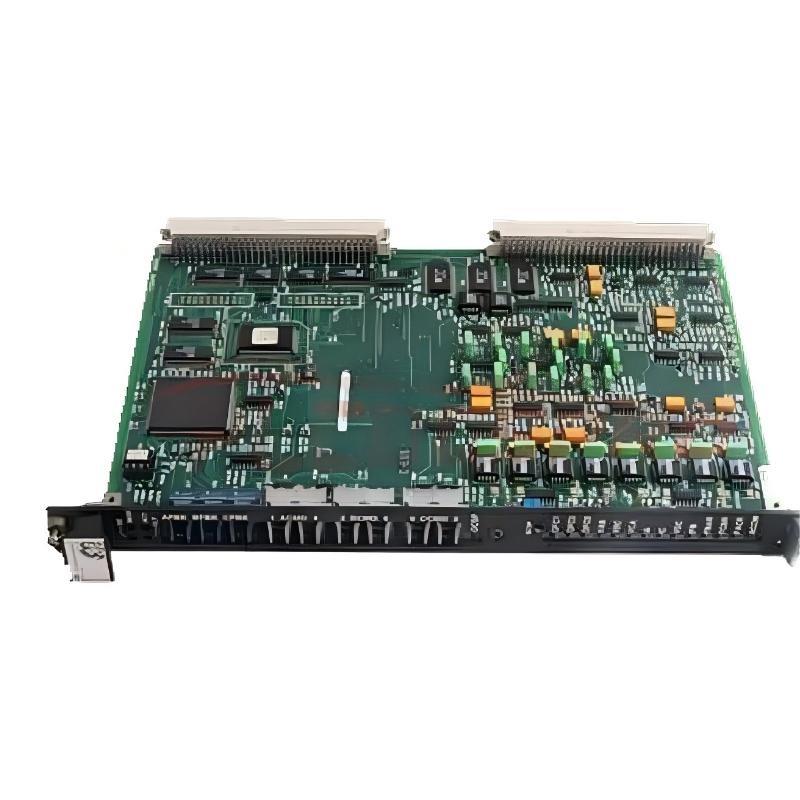

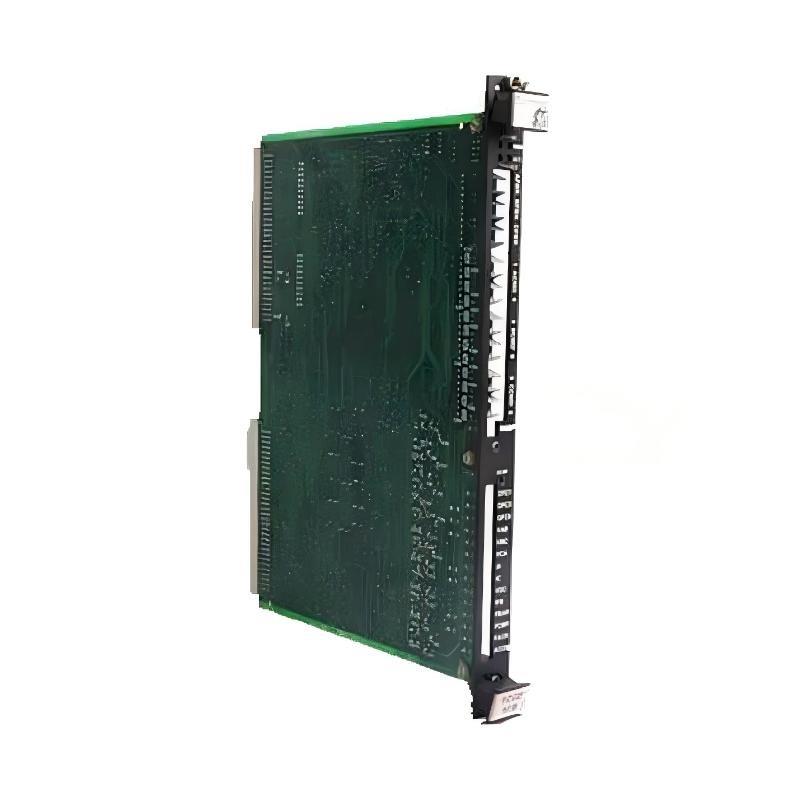

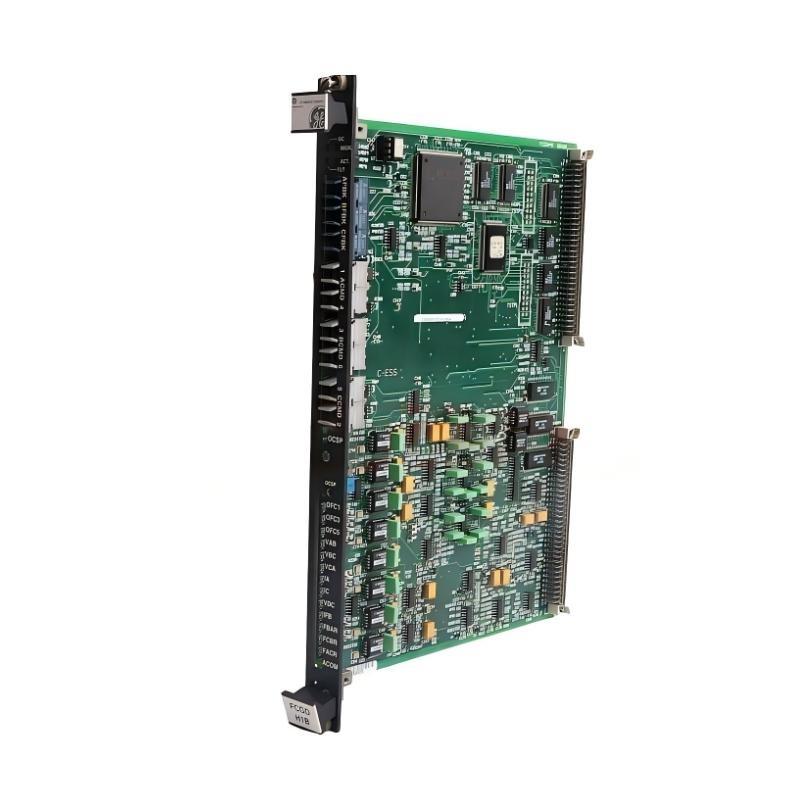

The GE DS200FCGDH1BAA is a purpose-built gate drive board for GE DS200 series frequency converters and motor control systems. Its primary role is to generate and condition precise gate drive signals for power switching devices—ensuring reliable, efficient control / motor drives and inverter stages under demanding industrial conditions.
Engineered for high throughput and signal fidelity, this board is ideal for system upgrades, legacy replacements, and any application where drive performance and long-term stability are required.
Technical Pr/ile & Physical Details
| Specification | Details |
|---|---|
| Module Type | Frequency Converter Gate Drive Board |
| Compatible Platforms | GE DS200 Drive & Control Systems |
| Primary Function | Generates high-speed gate drive signals |
| Signal 状态ing | Low-noise, high-integrity output routing |
| Isolation | Electrical isolation for safe interfacing |
| Mounting Format | Rack or panel integration |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Humidity | 5–90% RH, non-condensing |
| Dimensions (H × W × D) | 175 mm × 60 mm × 140 mm |
| 重量 | Approx. 0.70 kg |
| Build Quality | Industrial PCB with reinforced connectors |
Typical Uses in the Field
-
Gate drive signal generation for frequency converters
-
Industrial motor speed and torque control applications
-
Drive system retr/its and modernization projects
-
Legacy DS200 drive controller replacements
-
High-performance power electronics switching environments
-
Electrical drives requiring accurate and repeatable gate control
Operational Highlights — Why It Matters
-
Precision Output: Delivers accurate gate drive pulses for optimal device switching.
-
Robust Construction: Built to tolerate heat, vibration, and continuous duty.
-
Interference-Resistant Design: High signal integrity even in noisy environments.
-
Seamless Integration: Compatible with DS200 drive racks and system layouts.
-
Maintenance-Friendly: Straightforward replacement with clear terminal access.
Connect With Our Team for Purchasing & 支持
Need to source GE DS200 drive modules or find an immediate replacement? Our team /fers 24/7 technical support, rapid response, and worldwide delivery to keep your systems running without interruption.
Sales and Business Development
-
Phone: +86 13666033393
-
Email: [email protected]
-
WhatsApp: +86 13666033393
-
营业时间: 7×24
-
Address: Room 1004, 序号 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China
Reach out for pricing, stock availability, or system compatibility guidance—our experts are ready to help.
