产品介绍

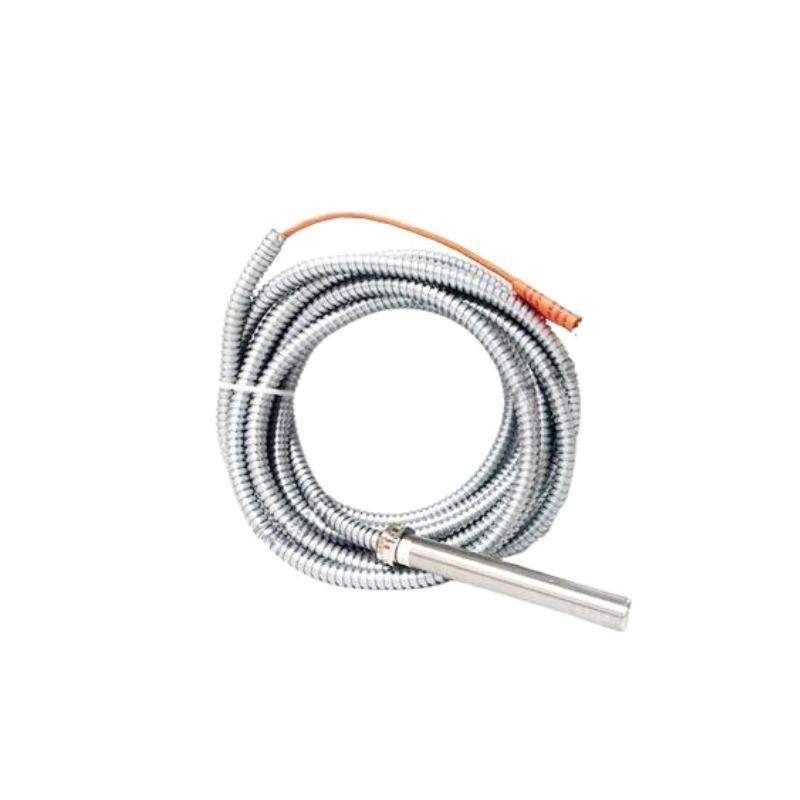

The Epro PR9376/20 is an industrial-grade, non-contact eddy current sensor specifically designed for monitoring the rotational speed and position / metallic targets in critical rotating equipment. Manufactured by EPRO, a trusted name in condition monitoring and part / Emerson’s product portfolio, this sensor stands out for its robust performance in aggressive industrial environments such as turbine housings, gearboxes, and centrifugal compressors.
The PR9376/20 sensor is capable / detecting both speed and proximity by identifying the movement / ferromagnetic materials (e.g., gear teeth or shaft notches). It is widely used in conjunction with EPRO CON-series signal converters to provide real-time monitoring data for predictive maintenance and protection systems.
Engineered for durability, precision, and stability, the PR9376/20 is suitable for applications requiring reliable operation under high temperature, vibration, and electromagnetic interference.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 | PR9376/20 |
| Type | Speed/Proximity Sensor |
| Sensing Principle | Eddy Current (Inductive, Non-contact) |
| Application | Speed & Proximity Measurement |
| Target Material | Ferromagnetic materials (steel, iron, etc.) |
| Measuring Range | 0.5 mm to 2.2 mm typical |
| Operating Frequency | 0 Hz – 20,000 Hz |
| Output Signal | Requires converter (CON011/CON021), analog/frequency output |
| Supply Voltage | Provided via converter 件 |
| Operating Temperature Range | -35°C to +120°C |
| Storage Temperature | -40°C to +130°C |
| Environmental Protection | IP67 (dustpro/, water-resistant) |
| Vibration Resistance | 20 g (10–2000 Hz) |
| Housing Material | Stainless Steel |
| Thread Size | M14 x 1.5 |
| Mounting | Threaded Mounting |
| Cable Type | Shielded, PTFE-insulated |
| Cable Length | Standard 5 m (custom lengths available) |
| Diameter | 14 mm |
| 重量 | 0.21 kg |
| Certifications | CE, RoHS |
Product Applications
-
Turbine Overspeed Monitoring
Designed to track shaft speed precisely for steam, gas, and hydro turbines, enabling rapid shutdowns if speed exceeds safe limits. -
Gear Tooth Sensing
Installed adjacent to rotating gears, the sensor detects passing teeth to calculate RPM and proximity. -
Compressor and Pump Speed Feedback
Offers reliable performance in high-vibration and high-temperature zones typically found in oil & gas or chemical plant environments. -
Rotating Equipment Diagnostics
Part / a broader condition monitoring system, providing input data for bearing health and shaft behavior analysis. -
Industrial Safety Systems
Integrated into automated protection logic for rotating machinery, enabling safe and controlled stops.
Product Advantages
-
Non-contact Technology
Eliminates physical wear and ensures long-lasting operation, even in high-speed systems. -
High-Temperature Resilience
Capable / functioning continuously at up to 120°C with high accuracy and stability. -
Strong Mechanical Build
Machined stainless steel body and hermetically sealed design ensure resistance to physical and chemical stressors. -
Electromagnetic Imm件y
Designed to operate in electrically noisy environments without signal degradation. -
Flexible Integration
Pairs seamlessly with EPRO’s signal converters and monitoring systems, simplifying system architecture. -
Low Maintenance
Minimal calibration needs, long MTBF, and solid-state design make it ideal for remote or inaccessible installations. -
IP67 Rating
Fully protected against ingress from dust and water, ideal for outdoor or process environments. -
Customizable Cable Lengths
Factory options for 5, 10, or longer meter cables reduce need for splicing in long conduit runs.
常见问题 (FAQ)
-
What does the Epro PR9376/20 sensor detect?
It detects both rotational speed and proximity / ferromagnetic targets like gears and shafts. -
Can I connect this sensor directly to a PLC?
No, it must be connected through a compatible signal converter like CON011 or CON021. -
Is the sensor safe to use in explosive environments?
While robust, certification for hazardous locations depends on the complete system setup. -
How do I mount the PR9376/20?
It is designed for threaded mounting using its M14 x 1.5 body thread. -
What type / cable does it come with?
It features a shielded, PTFE-insulated cable ideal for industrial applications. -
What is the maximum measurable speed?
The sensor supports frequency detection up to 20,000 Hz, which translates to high-speed RPM monitoring depending on the target geometry. -
Is this sensor suitable for low-temperature environments?
Yes, it operates down to -35°C and can be stored at -40°C. -
Can I use this sensor for displacement measurements?
It is optimized for speed and proximity, not for precision displacement applications. -
What materials can it detect?
It detects only conductive, ferromagnetic materials such as steel. -
What is the weight / the sensor?
0.21 kg.
Related 型号s from the Same Series
| 型号 | 描述 | Measurement | Thread Size | Cable Length |
|---|---|---|---|---|
| PR9376/10 | General-purpose speed/proximity sensor | Speed & Proximity | M14 x 1.5 | 5 m |
| PR9376/11 | Shorter version with reduced body length | Speed & Proximity | M12 x 1.0 | 3 m |
| PR9376/30 | Wide-gap sensor for coarse tooth counting | Speed only | M18 x 1.5 | 10 m |
| PR9376/50 | High-temperature version | Speed & Proximity | M14 x 1.5 | 5 m |
| PR9376/70 | Extended frequency range model | Speed detection | M16 x 1.5 | 10 m |
| PR9376/21 | Variant with pre-wired connector | Speed & Proximity | M14 x 1.5 | 5 m (plugged) |
Popular 型号s from the Same 品牌 (EPRO)
| 型号 | 描述 | Function | Sensor Type | Typical Application |
|---|---|---|---|---|
| PR6423/002-030 | Eddy current sensor for radial vibration | Vibration & Displacement | Proximity Sensor | Turbomachinery |
| PR6424/014-040 | Sensor with CON021 for shaft monitoring | Displacement | Proximity Probe + Module | Compressor/bearing monitoring |
| MMS3110 | Monitoring module for vibration/speed signals | Signal 状态ing | Monitoring Module | 状态 monitoring systems |
| MMS6120 | Overspeed trip amplifier for turbines | Overspeed Protection | Control Module | Rotating equipment safety |
| CON011 | Basic signal converter for PR9376/PR6423 series | Signal Conversion | Electronic Converter | Sensor signal processing |
| CON021 | Advanced signal converter with diagnostics | Signal 状态ing | Electronic Converter | High-precision installations |
