Product Overview

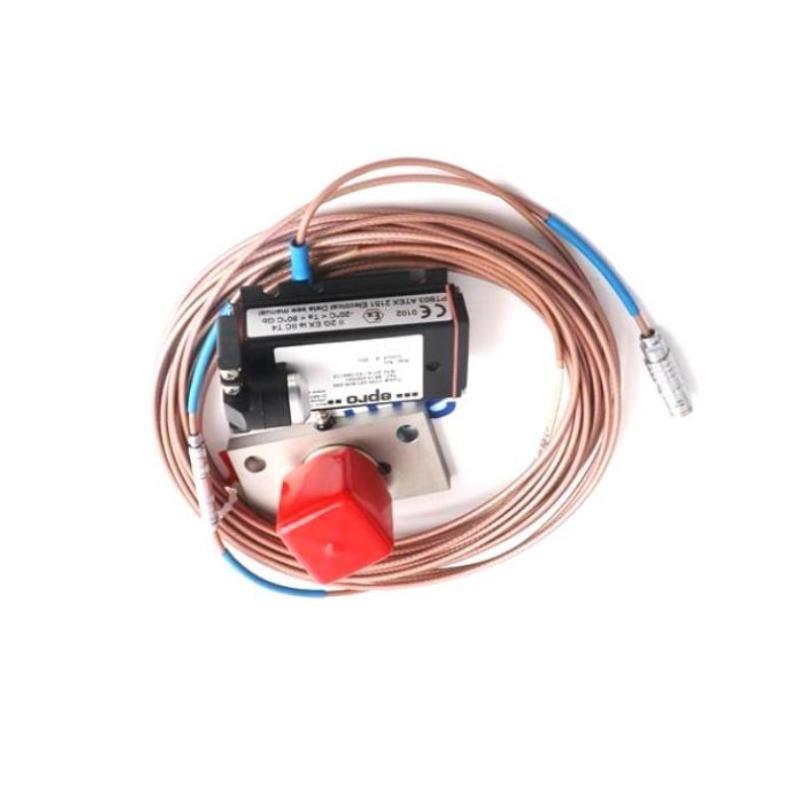

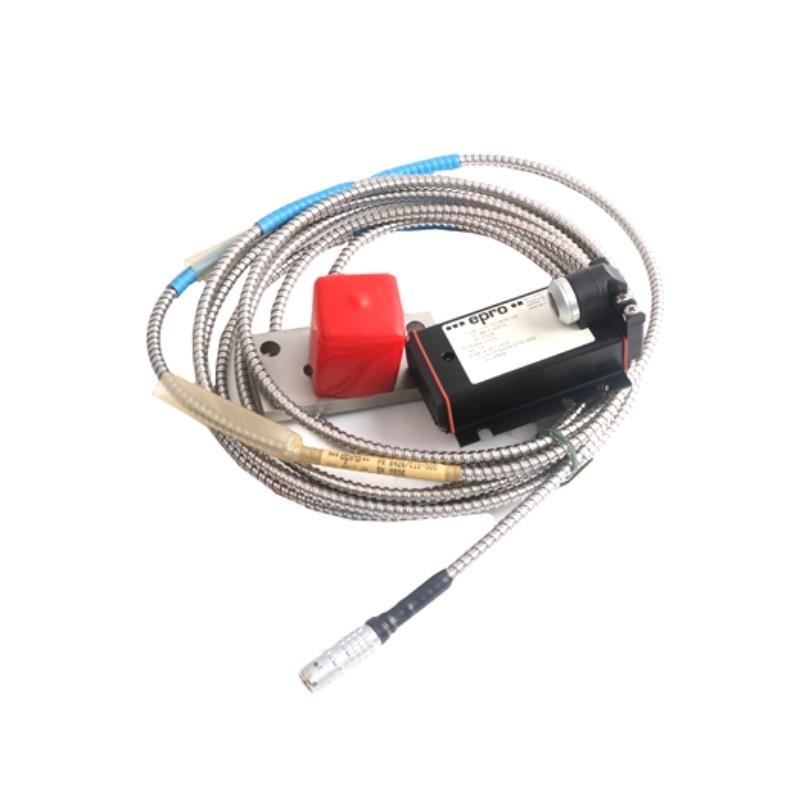

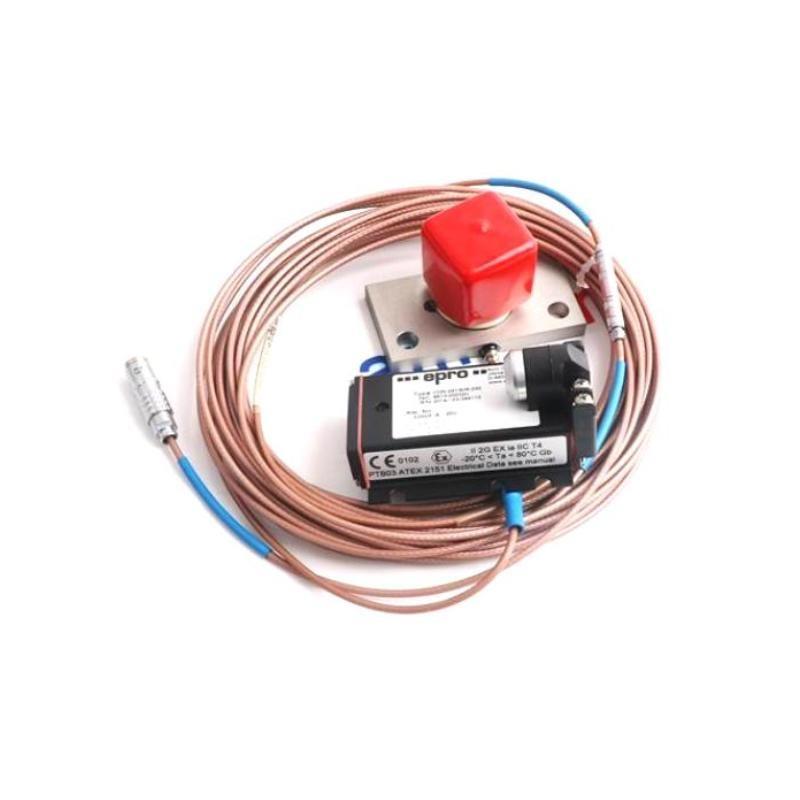

The Epro PR6426/010-131+CON031 32 mm Eddy-Current Sensor is a precision system designed for non-contact measurement / shaft vibration and position in large rotating machinery. This system combines the PR6426/010-131 32 mm probe with the CON031 signal converter, delivering highly accurate and reliable outputs for condition monitoring and protection applications. Its rugged construction ensures stable operation in harsh industrial environments, making it ideal for turbines, compressors, generators, and other heavy-duty equipment.
Key Features
-
Complete 32 mm eddy-current sensor system (sensor + converter)
-
High precision, non-contact measurement / shaft vibration and position
-
Robust and durable for oil, dust, and industrial contaminants
-
Compatible with Epro CON031 signal converter
Technical Specifications
| Item | Specification |
|---|---|
| 制造商 | Epro (Emerson) |
| 零件号 | PR6426/010-131+CON031 |
| Product Type | Eddy-Current Sensor System |
| Probe Type | PR6426 32 mm Proximity Probe |
| Converter Type | CON031 |
| Measurement Range | 0–4.0 mm (0–160 mils) |
| Sensitivity | 4 mV/μm (100 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Power Supply | ±15 V DC |
| Output Signal | -2 V to -18 V (proportional to gap) |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Dimensions | Sensor head diameter 32mm |
| 重量 | 0.92 kg |
| Applications | Shaft vibration and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Large compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and petrochemical industries
-
Power generation and condition monitoring systems
常见问题 (FAQ)
Q1: What does the PR6426/010-131+CON031 system measure?
It measures shaft vibration and position using non-contact eddy-current technology.
Q2: What is included in this model?
The system includes the PR6426/010-131 32 mm sensor and CON031 converter.
Q3: What is the probe diameter?
The probe has a 32 mm diameter.
Q4: What type / signal output does the converter provide?
It provides a linear voltage output proportional to shaft displacement.
Q5: What is the operating temperature range?
It operates between –35 °C and +180 °C.
Q6: What is the measurement range?
The range is 0–4.0 mm (0–160 mils).
Q7: Is the system suitable for harsh industrial environments?
Yes, it is resistant to oil, dust, and contaminants.
Q8: What is the frequency response?
The system supports DC to 10 kHz.
Related Epro Modules
| 型号 | 描述 |
|---|---|
| PR6426/010-110+CON021/916-160 | 32 mm Eddy-Current Sensor System |
| PR6426/010-120+CON021 | 32 mm Eddy-Current Sensor System |
| PR6426/010-111+CON031 | 32 mm Eddy-Current Sensor System |
| PR6426/010-125+CON041 | 32 mm Eddy-Current Sensor System |
| PR6426/010-150 | 32 mm Eddy-Current Sensor |
| PR6426/010-140 | 32 mm Eddy-Current Sensor |
Popular Epro Modules
| 型号 | 描述 |
|---|---|
| PR6423/000-030+CON021 | 8 mm Eddy-Current Sensor |
| PR6424/000-000+CON021 | 16 mm Eddy-Current Sensor |
| PR6425/010-121+CON041 | 25 mm Eddy-Current Sensor |
| PR6426/010-110+CON021/916-160 | 32 mm Eddy-Current Sensor System |
| PR6426/010-120 | 32 mm Eddy-Current Sensor |
| CON041 | Signal Converter Module |
