Product Overview

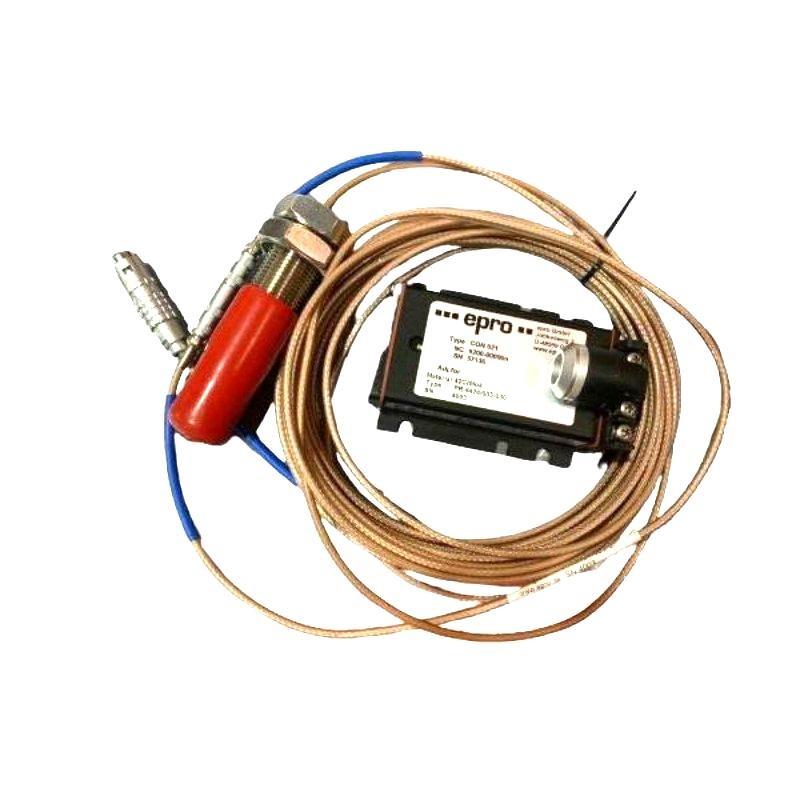

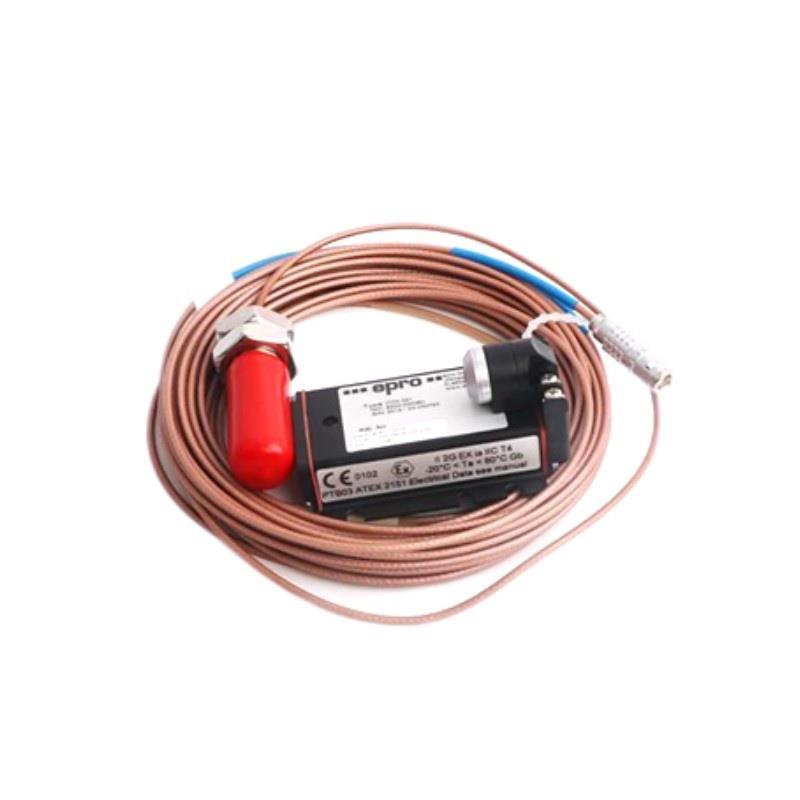

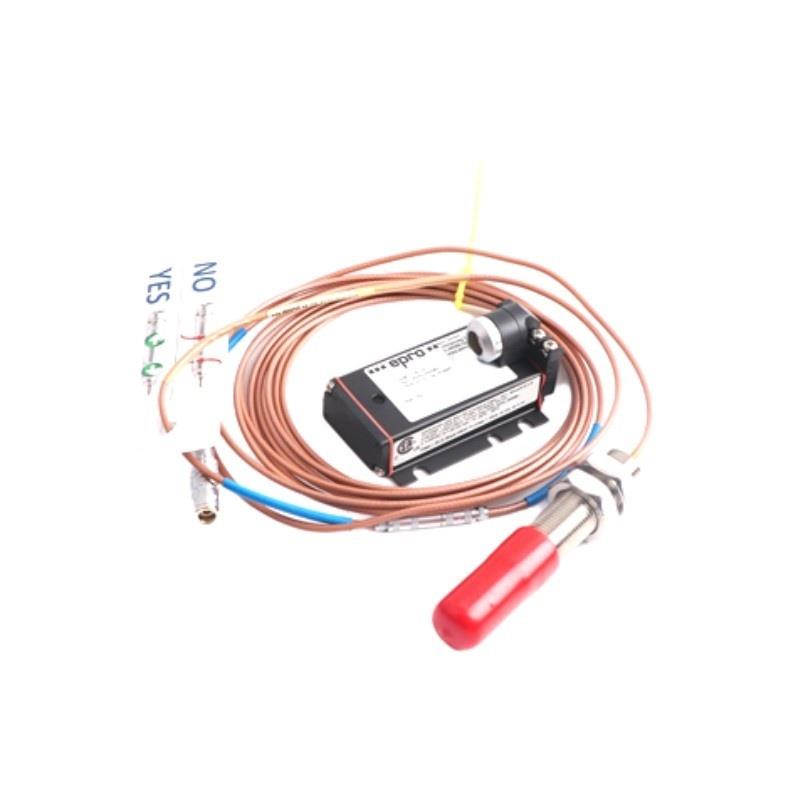

The Epro PR6424/117-021 is a non-contact eddy current displacement sensor designed for precise vibration and position monitoring in industrial rotating machinery. It is widely used in condition monitoring systems, especially in harsh environments such as turbines, compressors, and motors.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Eddy Current Displacement Sensor |
| 型号 Number | PR6424/117-021 |
| Measuring Range | 2 mm (Typical) |
| Sensitivity | 7.87 mV/μm (Standard) |
| Frequency Range | DC to 10 kHz |
| Temperature Range | -35°C to +180°C |
| Linearity | ≤ ±1% / Full Scale |
| Sensor Tip Diameter | 16 mm |
| Probe Material | Stainless Steel |
| 重量 | Approx. 0.2 kg |
| Mounting Thread | M14x1.5 |
| Cable Type | Integrated Coaxial |
| Typical Applications | Turbines, Compressors, Pumps |
Applications
-
Vibration monitoring / turbines, compressors, and large motors
-
Axial and radial shaft displacement detection
-
Bearing and rotor dynamic analysis
-
Integrated in machine protection systems
Product Advantages
-
High precision in harsh industrial conditions
-
Wide temperature range for demanding applications
-
Rugged stainless steel housing ensures durability
-
Compatible with PR6423 and PR6422 series proximity systems
-
Easy integration into existing monitoring systems
-
Reliable signal quality with integrated coaxial cable
FAQ – 常见问题
Q1: What is the typical measuring range / PR6424/117-021?
A1: It typically measures up to 2 mm / displacement.
Q2: Can this sensor operate in high-temperature environments?
A2: Yes, it supports operation from -35°C up to +180°C.
Q3: Is the sensor suitable for turbine monitoring?
A3: Yes, it is widely used in turbines and similar rotating machinery.
Q4: What is the sensor’s output sensitivity?
A4: The output sensitivity is approximately 7.87 mV/μm.
Q5: What materials are used in the probe construction?
A5: The probe housing is made / stainless steel for corrosion resistance.
Q6: Is it compatible with Epro signal converters?
A6: Yes, it is compatible with PR6423/PR6422 converter systems.
Q7: How is the sensor mounted?
A7: It is mounted using an M14x1.5 threaded connection.
Q8: What type / cable is integrated?
A8: It features an integrated coaxial cable for signal transmission.
Q9: Can this sensor detect both radial and axial displacement?
A9: Yes, it is designed for both types / displacement detection.
Q10: What is the weight / the sensor?
A10: The sensor weighs approximately 0.2 kg.
Related 型号s in the Same Series
| 型号 Number | Sensor Tip Diameter | Measuring Range | Temperature Range | 重量 |
|---|---|---|---|---|
| PR6424/010-000 | 5 mm | 0–1 mm | -35°C to +180°C | 0.1 kg |
| PR6424/012-000 | 8 mm | 0–1.5 mm | -35°C to +180°C | 0.15 kg |
| PR6424/015-000 | 11 mm | 0–2 mm | -35°C to +180°C | 0.18 kg |
| PR6424/116-021 | 16 mm | 0–2 mm | -35°C to +180°C | 0.2 kg |
| PR6424/118-010 | 18 mm | 0–3 mm | -35°C to +180°C | 0.25 kg |
| PR6424/144-121 | 25 mm | 0–4 mm | -35°C to +180°C | 0.3 kg |
Popular 型号s from Epro
| 型号 Number | Product Type | Application | 重量 |
|---|---|---|---|
| PR6423/10R-010 | Eddy Current Converter | Vibration Monitoring Systems | 0.45 kg |
| CON021 | Eddy Current Signal 状态er | 状态 Monitoring | 0.25 kg |
| MMS6110 | Vibration Monitor | Rotating Machinery | 1.2 kg |
| PR6422/000-030 | Proximity Sensor Probe | Axial Position Sensing | 0.15 kg |
| CON041 | Signal Converter | Compatible with PR642x Series | 0.35 kg |
| MMS6120 | Dual Channel Vibration Monitor | Machine Protection Systems | 1.5 kg |
