Product Overview

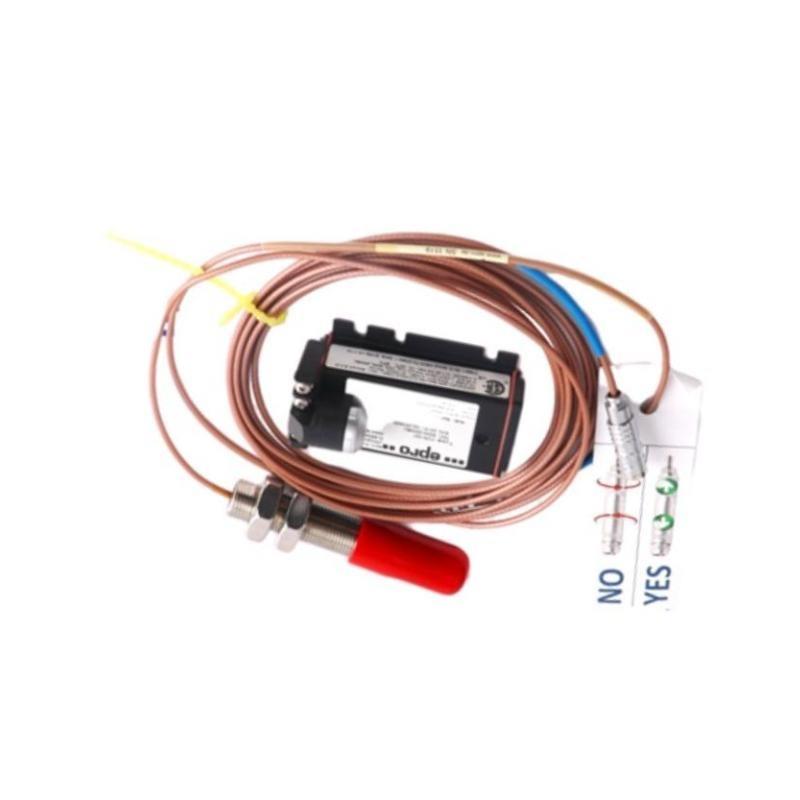

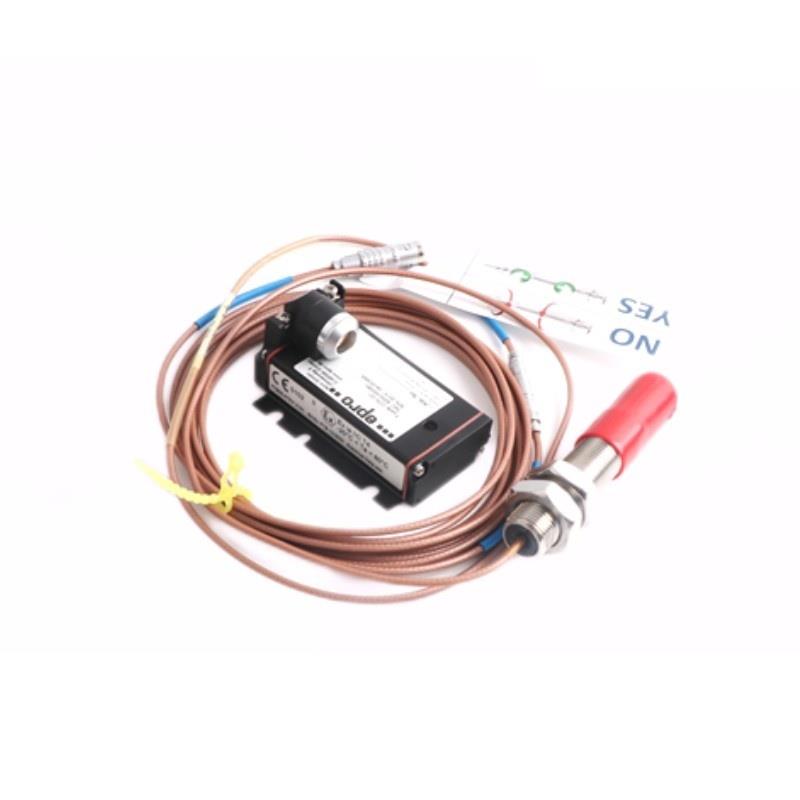

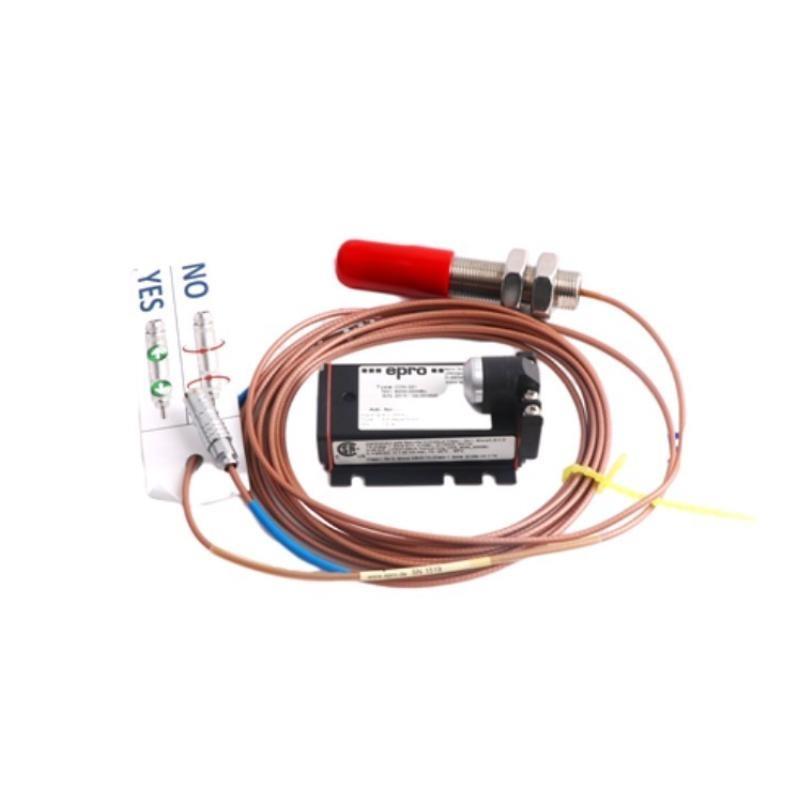

The Epro PR6424/001-021 16mm Eddy-Current Sensor is a high-precision displacement sensor designed for shaft vibration and position monitoring in industrial machinery. Its 16 mm probe diameter allows for installation in confined spaces while providing accurate, real-time measurements. This sensor is ideal for condition-based monitoring and protection systems in equipment such as turbines, compressors, motors, and other rotating machinery.
Key Features
-
High-precision 16 mm eddy-current probe for shaft vibration and position monitoring
-
Compact design suitable for tight installation spaces
-
Resistant to oil, dust, and industrial contaminants
-
Provides reliable analog output for real-time monitoring
Technical Specifications
| Item | Specification |
|---|---|
| 制造商 | Epro |
| 零件号 | PR6424/001-021 |
| Product Type | 16 mm Eddy-Current Sensor |
| Dimensions | Sensor head diameter 16mm |
| 重量 | 0.2 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 5.0 V/mm typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve or clamp installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and industrial rotating machinery
-
Oil, gas, and power generation industries
-
状态-based monitoring systems
常见问题 (FAQ)
Q1: What is the primary purpose / this sensor?
It measures shaft vibration and position in industrial machinery.
Q2: What is the probe diameter?
16 mm.
Q3: What is the operating temperature range?
–35 °C to +177 °C.
Q4: Can it operate in harsh industrial environments?
Yes, it is resistant to oil, dust, and other contaminants.
Q5: What is the linear measurement range?
0–1.0 mm (0–40 mils).
Q6: What type / output does it provide?
Analog voltage proportional to displacement.
Q7: Where is it typically installed?
On turbines, compressors, motors, and gearboxes in confined spaces.
Q8: What is the total length / the sensor?
0.3 meter.
