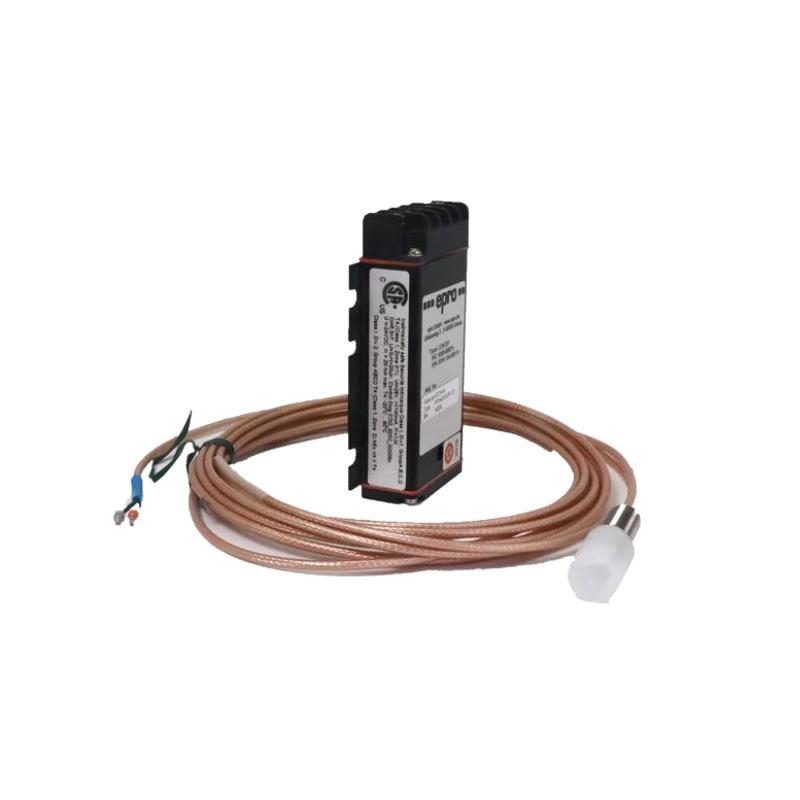

The Epro PR6424/000-130+CON021/914-080 16mm Eddy Current Sensor is a high-precision vibration and displacement monitoring sensor designed for industrial rotating machinery. This sensor is part / the trusted Epro PR6424 series, which is widely recognized for reliability, robustness, and compatibility with various monitoring systems. With its 16mm probe diameter and CON021/914-080 converter integration, it ensures accurate signal conditioning and stable output under challenging industrial environments.
The sensor is optimized for critical applications in turbines, compressors, pumps, and motors where precise shaft vibration and displacement measurements are crucial for predictive maintenance and machinery protection. Its rugged design ensures durability in harsh conditions such as high temperatures, electromagnetic interference, and vibration-intensive environments.
Product Parameters
| Parameter | Value |
|---|---|
| 型号 Number | PR6424/000-130+CON021/914-080 |
| Sensor Type | Eddy Current Displacement/Vibration Sensor |
| Sensor Head Diameter | 16 mm |
| 重量 | 0.32 kg |
| Measurement Range | Up to 2 mm (typical), configurable with CON021/914-080 |
| Frequency Range | DC to 10 kHz |
| Sensitivity | 8 mV/µm (typical, depending on configuration) |
| Linearity | ≤ ±1% / full-scale |
| Temperature Range | -35°C to +180°C (probe), electronics up to +85°C |
| Probe Material | Stainless steel housing |
| Connection Interface | Compatible with CON021/914-080 converter |
| Mounting Thread | M16 × 1.5 (standard for 16mm probe) |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Output Signal | Proportional voltage output (dependent on converter calibration) |
Product Applications
The PR6424/000-130+CON021/914-080 is widely applied in industries requiring real-time monitoring and protection / rotating equipment.
-
Power Generation – Monitoring shaft vibration in gas turbines, steam turbines, and hydro turbines.
-
Oil & Gas – Used in compressors, pumps, and expanders for predictive maintenance.
-
Petrochemical Industry – Provides reliable condition monitoring for refinery rotating assets.
-
Steel & Metal Industry – Ensures machine stability in rolling mills, blowers, and fans.
-
Process Industries – Applied in high-speed machinery where unplanned downtime can cause production losses.
-
Research & Development – Used in test benches for machinery vibration analysis.
Product Advantages
-
High Measurement Accuracy – Ensures precise shaft vibration and displacement data for reliable diagnostics.
-
Wide Compatibility – Fully compatible with CON021/914-080 converters and MMS6000/VM600 monitoring systems.
-
Robust Construction – Stainless steel probe housing ensures durability in harsh environments.
-
优秀 Temperature Resistance – Suitable for use in high-temperature machinery zones.
-
Low Noise Output – Stable signal with minimal interference, ensuring data integrity.
-
Predictive Maintenance 支持 – Helps operators implement proactive monitoring strategies.
-
Proven Reliability – Backed by years / field-proven performance in critical industries.
FAQ
-
What is the typical sensitivity / the PR6424/000-130 sensor?
The typical sensitivity is around 8 mV/µm, but it depends on the converter calibration. -
Can the sensor be used with other converters besides CON021/914-080?
Yes, it is compatible with other Epro CON021 versions, but CON021/914-080 provides optimized performance. -
What is the maximum cable length supported without signal degradation?
Standard lengths range from 5 m to 9 m, but extended lengths may require calibration adjustments. -
Does the sensor support both vibration and displacement measurements?
Yes, it can measure both displacement and dynamic vibration signals depending on the monitoring setup. -
What is the recommended mounting method for this sensor?
The sensor is typically mounted using an M16 × 1.5 threaded connection directly into the machine casing. -
How does the temperature range affect sensor accuracy?
The sensor maintains stable performance across -35°C to +180°C; beyond this, calibration drift may occur. -
Can this sensor be integrated into third-party monitoring systems?
Yes, it provides proportional voltage output, making it compatible with most monitoring platforms. -
What kind / shielding is used for noise reduction?
The sensor uses coaxial cables with shielding to minimize electromagnetic interference. -
Is recalibration necessary after changing the cable length?
Yes, calibration is required to ensure measurement accuracy when cable length changes. -
What is the linearity error / this model?
The linearity error is typically within ±1% / the full-scale measurement range.
