Product Overview:

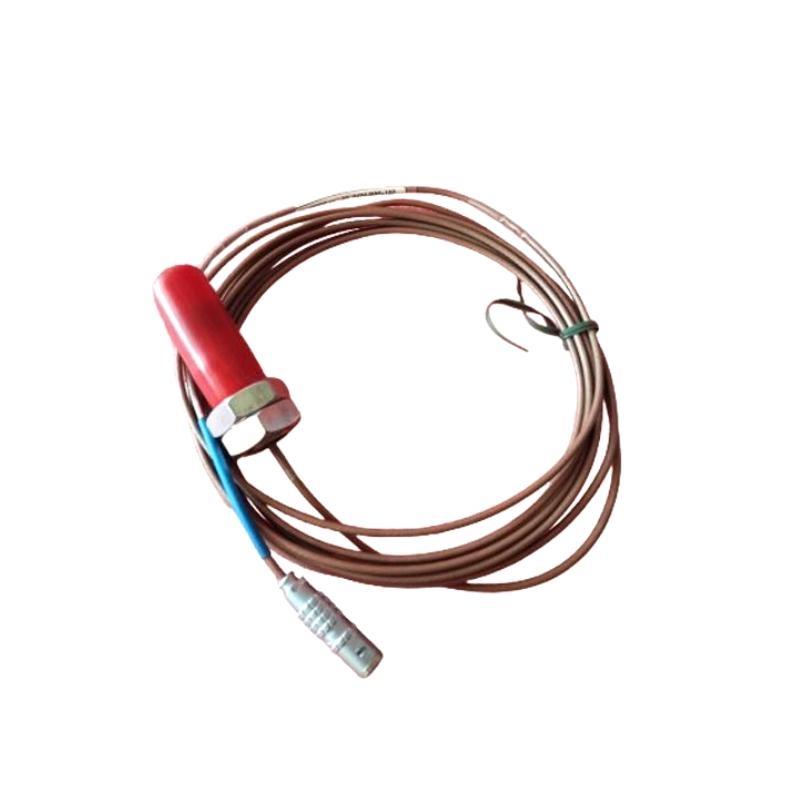

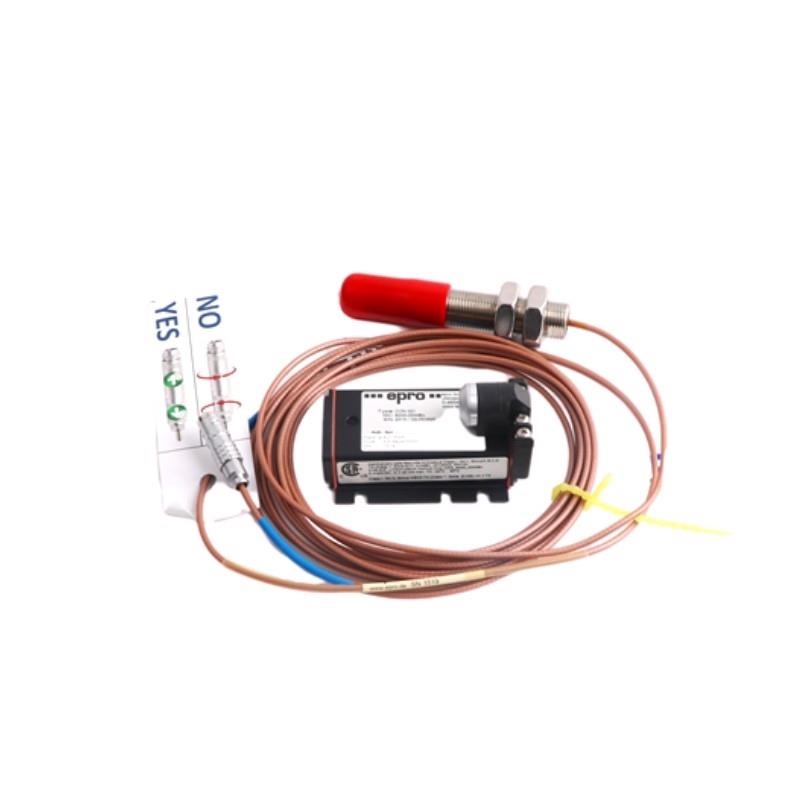

The Epro PR6424/000-010 16mm Eddy Current Sensor is designed for highly accurate displacement and position measurement in industrial applications. Utilizing advanced eddy current technology, this sensor provides precise non-contact measurement, making it ideal for environments where traditional mechanical measurement systems are impractical or undesirable.
Eddy current sensors like the PR6424 series are known for their robustness and precision, delivering consistent performance even in harsh industrial conditions such as high temperatures, vibrations, and electromagnetic interference. The 16mm version /fers an optimal balance between size, sensitivity, and versatility, making it suitable for a wide range / applications, from manufacturing processes to monitoring critical equipment in various industries.
Specifications:
| Parameter | Value |
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 16 mm |
| Output Type | Analog (Voltage, Current), Digital (Frequency) |
| Accuracy | ±0.001 mm |
| Resolution | 0.1 µm |
| Operating Temperature | -20°C to +80°C |
| Supply Voltage | 10 VDC to 30 VDC |
| Housing Material | Stainless Steel |
| Mounting Type | Flush or Non-Flush |
| 重量 | 0.2 kg |
| Signal Output | 4-20 mA or 0-10 V (depending on model) |
| Response Time | <1 ms |
| Protection Class | IP67 |
Applications:
The Epro PR6424/000-010 16mm Eddy Current Sensor is used in a variety / industrial applications where precise measurement and displacement detection are critical. Some key applications include:
-
Motor Shaft Monitoring: Ensures accurate monitoring / motor shaft displacement and vibration, providing real-time feedback for predictive maintenance.
-
Position Sensing: Ideal for measuring the position / components in manufacturing processes, such as CNC machines or automated assembly lines.
-
Vibration Monitoring: In turbines, generators, or other rotating machinery, it helps detect early signs / mechanical failure by monitoring vibrations.
-
Automation: Used in automated systems for precise measurement in robotic arms, conveyors, and material handling.
-
Quality Control: Ensures quality consistency in manufacturing processes by monitoring dimensional accuracy during production.
-
Testing & Calibration: Employed in labs for testing and calibrating measurement equipment, /fering precise, reliable results.
Advantages:
-
Non-联系我们 Measurement: The eddy current technology eliminates wear and tear issues associated with contact-based sensors, making it ideal for high-speed or harsh environments.
-
High Accuracy: With an accuracy / ±0.001 mm and a resolution / 0.1 µm, the PR6424/000-010 ensures precise measurements in critical applications.
-
Wide Temperature Range: It operates efficiently in temperatures ranging from -20°C to +80°C, making it suitable for various industrial settings.
-
Compact and Robust Design: The stainless steel housing and small dimensions (60 mm x 22 mm x 24 mm) ensure durability while taking up minimal space in installations.
-
Flexible Output Options: Offers both analog and digital output options, providing versatility for integration into different systems.
-
Long Lifespan: The sensor’s robust construction and non-contact measurement method contribute to a long operational lifespan with minimal maintenance.
常见问题 (FAQ):
-
What is the maximum measuring range / the Epro PR6424/000-010 Eddy Current Sensor?
-
The maximum measuring range / this sensor is 16 mm.
-
-
What output signals does this sensor provide?
-
The sensor provides analog output (4-20 mA or 0-10 V) and digital output (frequency), depending on the specific model.
-
-
Can the PR6424/000-010 be used in extreme temperatures?
-
Yes, it operates in temperatures from -20°C to +80°C, making it suitable for various industrial environments.
-
-
Is the sensor resistant to electromagnetic interference (EMI)?
-
Yes, the PR6424/000-010 is designed to be resistant to electromagnetic interference, ensuring reliable performance even in electrically noisy environments.
-
-
What is the response time / the sensor?
-
The sensor has a fast response time / less than 1 millisecond, providing real-time measurements.
-
-
Can this sensor be used in automotive applications?
-
Yes, it is suitable for automotive applications such as shaft monitoring, vibration testing, and positioning systems.
-
-
How accurate is the Epro PR6424/000-010 sensor?
-
It has an accuracy / ±0.001 mm, ensuring precise displacement measurements.
-
-
Can the sensor be installed on rotating machinery?
-
Yes, the sensor is ideal for use in rotating machinery such as motors, turbines, and generators for vibration and displacement monitoring.
-
-
What are the mounting options for the PR6424/000-010?
-
The sensor can be mounted flush or non-flush depending on the specific installation requirements.
-
-
What is the weight / the sensor?
-
The sensor weighs 0.2 kg.
-
Related 型号s:
| 型号 | Measuring Range | Output Type | Accuracy | Dimensions (L x W x H) | 重量 |
|---|---|---|---|---|---|
| Epro PR6424/000-020 | 20 mm | Analog & Digital | ±0.002 mm | 75 mm x 30 mm x 25 mm | 200 g |
| Epro PR6424/000-005 | 5 mm | Analog & Digital | ±0.001 mm | 50 mm x 20 mm x 22 mm | 120 g |
| Epro PR6424/000-015 | 15 mm | Analog & Digital | ±0.001 mm | 65 mm x 22 mm x 24 mm | 140 g |
| Epro PR6424/000-030 | 30 mm | Analog & Digital | ±0.001 mm | 85 mm x 35 mm x 30 mm | 250 g |
| Epro PR6424/001-010 | 10 mm | Analog & Digital | ±0.002 mm | 60 mm x 22 mm x 26 mm | 160 g |
| Epro PR6424/001-015 | 15 mm | Analog & Digital | ±0.002 mm | 70 mm x 30 mm x 28 mm | 180 g |
Popular 型号s from Epro:
| 型号 | Measuring Range | Output Type | Accuracy | Dimensions (L x W x H) | 重量 |
|---|---|---|---|---|---|
| Epro PR6423/000-010 | 10 mm | Analog & Digital | ±0.001 mm | 50 mm x 25 mm x 24 mm | 130 g |
| Epro MMS3120/022-100 | 100 mm | Analog & Digital | ±0.01 mm | 120 mm x 60 mm x 40 mm | 450 g |
| Epro MMS3125/022-020 | 200 mm | Analog & Digital | ±0.02 mm | 130 mm x 65 mm x 45 mm | 500 g |
| Epro PR6424/001-020 | 20 mm | Analog & Digital | ±0.002 mm | 75 mm x 30 mm x 25 mm | 220 g |
| Epro PR6424/003-030 | 30 mm | Analog & Digital | ±0.001 mm | 85 mm x 35 mm x 30 mm | 260 g |
| Epro PR6424/005-050 | 50 mm | Analog & Digital | ±0.003 mm | 100 mm x 40 mm x 35 mm | 300 g |
