Product Overview

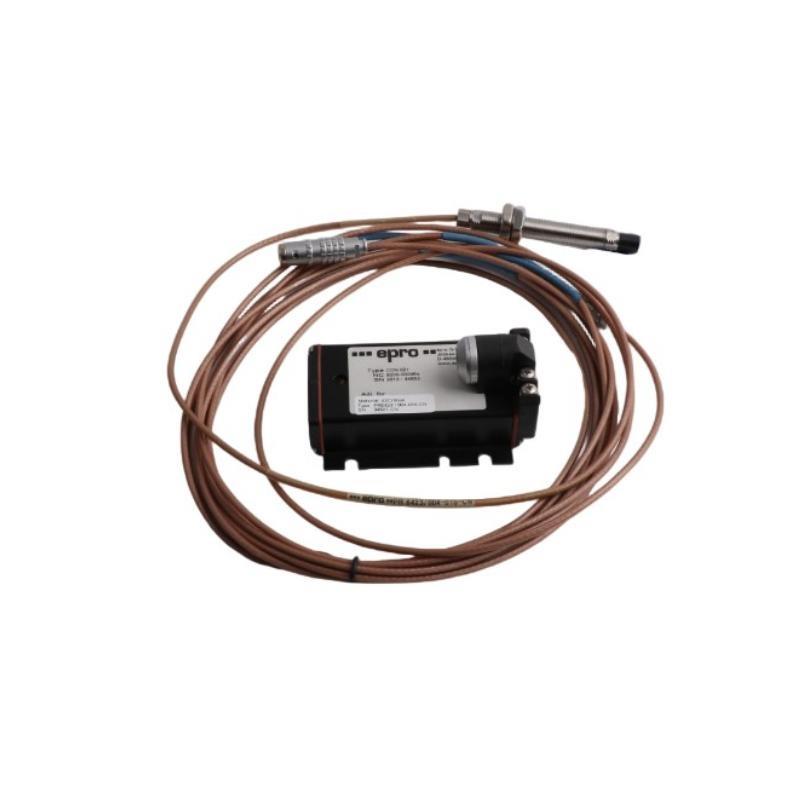

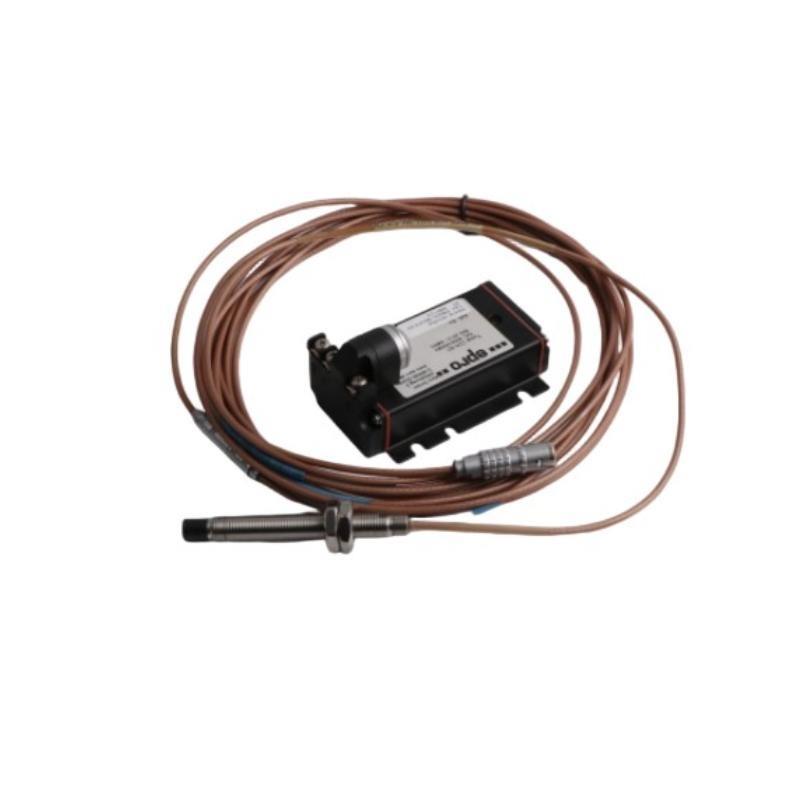

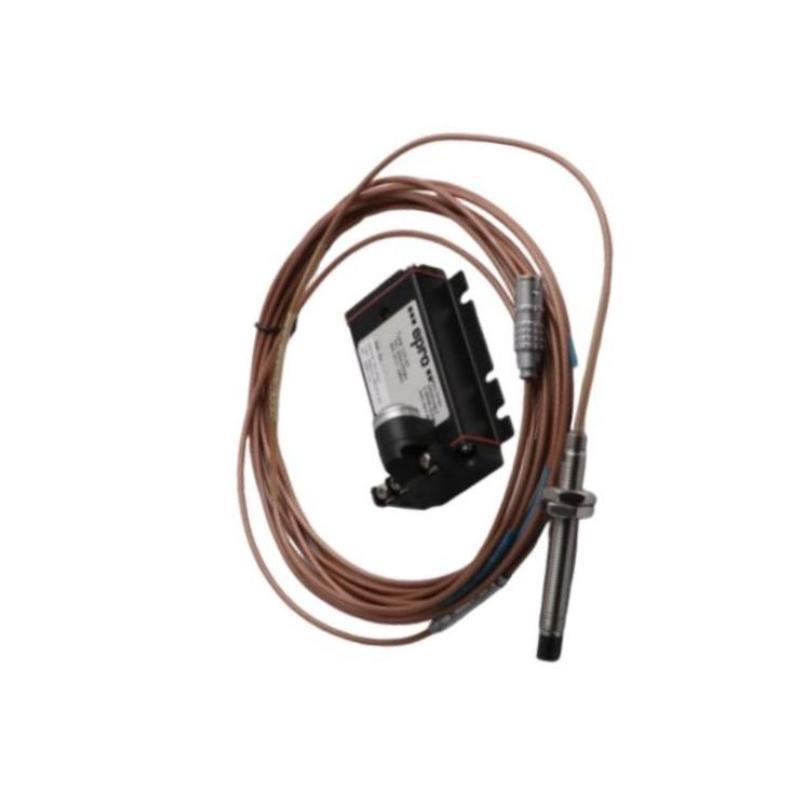

The Epro PR6423/019-111+CON031 8mm Eddy-Current Sensor is a precision monitoring device engineered for high-performance machinery vibration and displacement measurements. Designed for robust industrial use, it ensures accurate, non-contact measurements even in harsh operational conditions. Combined with the CON031 preamplifier, the sensor delivers stable and reliable signals that support predictive maintenance and critical machinery protection systems.
Key Features
-
8mm tip diameter for versatile measurement applications
-
Non-contact measurement / shaft vibration and axial displacement
-
Optimized with CON031 preamplifier for signal accuracy
-
优秀 linearity across the operating range
-
Resistant to contaminants such as oil, dirt, and dust
-
Wide operating temperature range to suit industrial environments
-
Compact and durable construction for long service life
-
Ideal for rotating machinery monitoring and protection
Technical Specifications
| Item | Specification |
|---|---|
| 制造商 | Epro |
| 零件号 | PR6423/019-111+CON031 |
| Product Type | Eddy-Current Sensor |
| Tip Diameter | 8 mm |
| Measurement Range | Up to ±2 mm (depending on setup) |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 7.87 mV/µm (typical with CON031) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | Sensor head diameter 8 mm |
| 重量 | 0.22 kg |
| Compatible Driver | CON031 Preamplifier |
| Applications | Shaft vibration, axial displacement, and machinery monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Electric motors and generators
-
Industrial pumps and fans
-
Gearboxes and heavy-duty rotating equipment
-
Oil, gas, and power generation sectors
常见问题 (FAQ)
Q1: What is the function / the PR6423/019-111+CON031 sensor?
A: It measures shaft vibration and displacement without physical contact.
Q2: What is the sensor’s tip diameter?
A: It features an 8mm tip diameter.
Q3: Which preamplifier does this model work with?
A: It is designed for use with the CON031 preamplifier.
Q4: What is the typical sensitivity / this sensor?
A: The typical sensitivity is 7.87 mV/µm with the CON031 preamplifier.
Q5: Can this sensor operate in harsh environments?
A: Yes, it is resistant to oil, dust, and other industrial contaminants.
Q6: What is the operating temperature range?
A: The sensor operates from -35 °C to +180 °C.
Q7: What are the physical specifications / the sensor?
A: Sensor head diameter 8 mm.
Q8: In which industries is it most commonly applied?
A: It is widely used in turbines, compressors, pumps, and power generation machinery.
