产品介绍

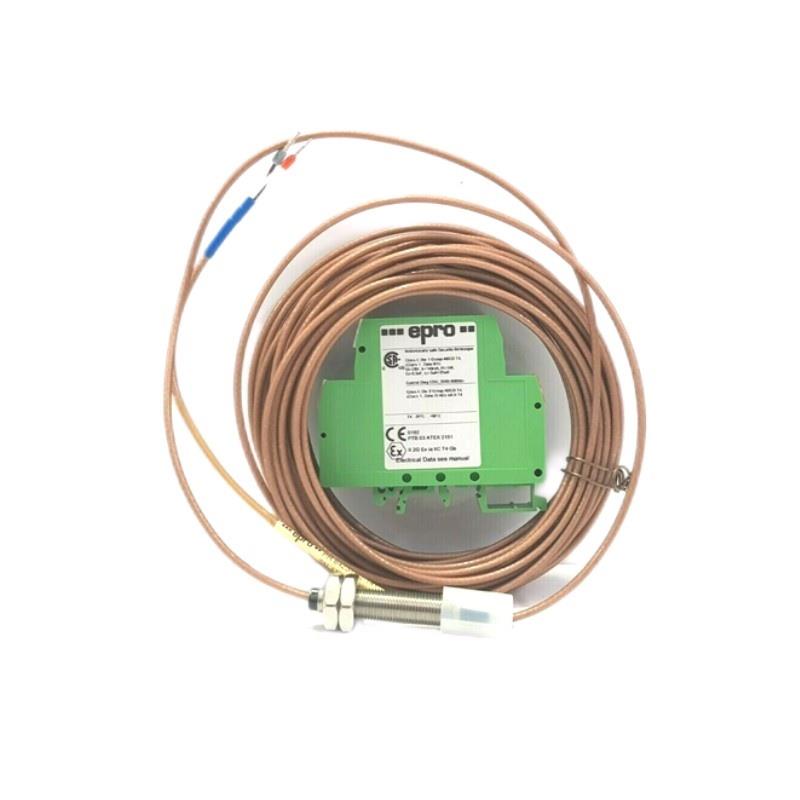

The Epro CON041+PR6423/00R-111 8mm Eddy Current Sensor is a precision sensor designed for displacement and vibration measurement in industrial machinery. Using eddy current technology, it provides accurate, non-contact measurement / metallic targets, making it ideal for monitoring rotating equipment and critical machinery.
This sensor is widely used in turbines, compressors, pumps, and other high-performance industrial systems. Its compact design and robust construction ensure reliable operation under harsh conditions, including vibration, temperature changes, and electromagnetic interference. The sensor delivers real-time data essential for condition monitoring, predictive maintenance, and process optimization.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | CON041+PR6423/00R-111 |
| Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Measurement Range | 0–1.0 mm |
| Output Type | Differential voltage signal (mV) |
| Linearity | ±1% / full scale |
| Frequency Response | 0–10 kHz |
| Temperature Range | –20 °C to 120 °C |
| Operating Voltage | 18–30 V DC |
| Signal 状态ing | Integrated signal conditioning 件 |
| 重量 | 0.16 kg |
| Connector Type | M12 or compatible industrial connector |
| Housing Material | Stainless steel or high-strength alloy |
| Mounting | Threaded or flange mounting options available |
Applications
The CON041+PR6423/00R-111 sensor is commonly used for:
-
Rotating Machinery Monitoring: Measures displacement and vibration / turbines, pumps, and compressors.
-
Predictive Maintenance: Detects early signs / wear, misalignment, or imbalance in machinery.
-
Process Control: Provides high-precision feedback for automated control systems.
-
Industrial Equipment Testing: Used in labs and test benches for machinery performance evaluation.
-
High-Speed Rotating Equipment: Monitors shaft vibration and radial displacement in fast-rotating components.
Advantages
-
High Accuracy: Eddy current technology ensures precise measurement / displacement and vibration.
-
Non-联系我们 Measurement: Reduces wear and maintenance requirements.
-
Wide Frequency Response: Captures both low and high-frequency vibration signals.
-
Durable Industrial Design: Resistant to temperature changes, vibration, and electromagnetic interference.
-
Integrated Signal 状态ing: Delivers stable and accurate output signals compatible with industrial systems.
-
Flexible Mounting Options: Threaded or flange interfaces allow secure and adaptable installation.
-
Compact and Lightweight: 8 mm sensor head and 0.16 kg weight facilitate easy installation in tight spaces.
FAQ
1. What is the primary function / the CON041+PR6423/00R-111 sensor?
It measures displacement and vibration / metallic targets using eddy current technology, providing precise data for industrial monitoring.
2. What is the sensor head diameter?
The sensor head diameter is 8 mm, suitable for installation in compact machinery areas.
3. What measurement range does this sensor support?
It measures displacements from 0 to 1.0 mm, suitable for precise monitoring / machinery components.
4. What type / output signal does the sensor generate?
The sensor outputs a differential voltage signal in millivolts compatible with industrial monitoring systems.
5. How linear is the sensor?
It has ±1% full-scale linearity, ensuring accurate proportional measurement / displacement.
6. What is the frequency response / the sensor?
It responds to frequencies from 0 to 10 kHz, capturing both low and high-frequency vibrations.
7. What temperature range can the sensor operate within?
It operates reliably from –20 °C to 120 °C in industrial environments.
8. What is the required operating voltage for the sensor?
The sensor operates on 18–30 V DC for stable performance.
9. Can it be used for high-speed rotating machinery?
Yes, it is designed for monitoring shaft vibration and radial displacement in fast-rotating equipment.
10. What mounting options are available?
It can be mounted using threaded or flange interfaces for secure and flexible installation.
Related Epro 型号s (Same Series or Function)
| 型号 | 描述 |
|---|---|
| PR6423/005-010 | 5 mm Eddy Current Displacement Sensor |
| PR6423/010-100 | 8 mm Standard Eddy Current Sensor |
| PR6423/015-050 | 15 mm Measurement Range Eddy Current Sensor |
| PR6424/010-040 | 8 mm High-Frequency Eddy Current Sensor |
| PR6425/008-100 | Compact 8 mm Industrial Eddy Current Sensor |
| CON042+PR6423/010 | Dual-Channel 8 mm Eddy Current Sensor |
Popular Epro 型号s
| 型号 | 描述 |
|---|---|
| MMS3120/022-100 | Standard Magnetic Pick-Up Sensor |
| MMS3125/022-020 | High-Precision Displacement Sensor |
| MMS3140/010-050 | 10 mm Vibration and Displacement Sensor |
| CON020+PR6423/005 | 5 mm Compact Eddy Current Sensor |
| MMS3130/015-100 | Medium-Range Eddy Current Sensor |
| CON021+PR6424/010 | High-Frequency 8 mm Eddy Current Sensor |
