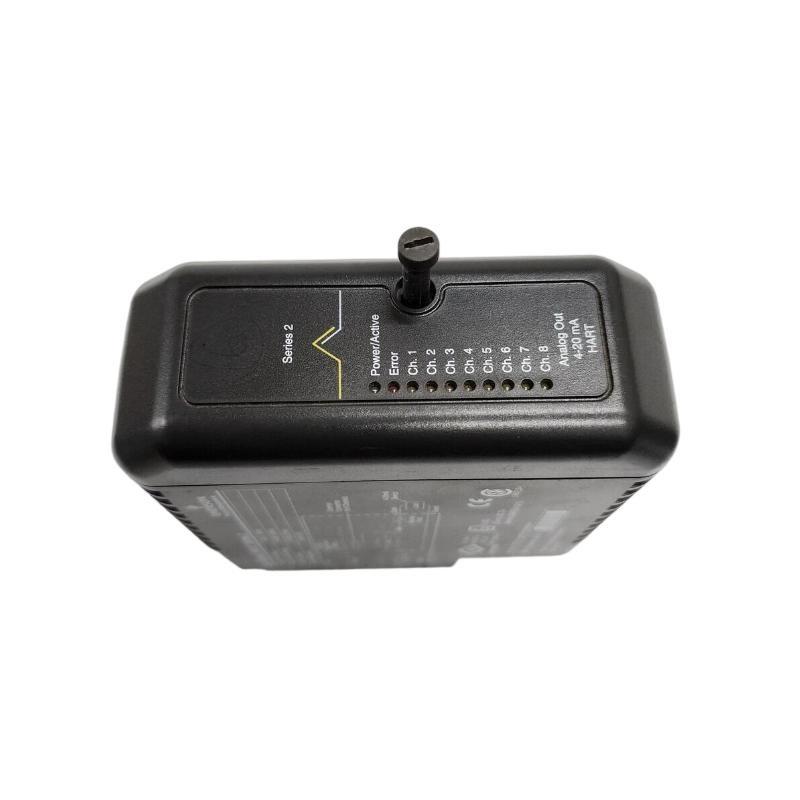

The Emerson VE4002S1T2B6 KJ3204X1-BA1 + KJ4001X1-CK1 output module with terminal blocks is an advanced solution designed for use with Emerson’s DeltaV control systems. It converts digital control signals from the DeltaV system into physical output signals that can operate field devices such as actuators, valves, and sensors. This output module is equipped with terminal blocks, simplifying wiring and providing secure connections to field devices.
With support for both analog (0-10 V, 4-20 mA) and digital outputs, this module can meet the diverse needs / industrial automation systems. The combination / modular design and communication flexibility makes it an ideal choice for a wide range / process control applications, ensuring reliable performance and ease / maintenance.
This module also supports multiple communication protocols including HART, Modbus, and Foundation Fieldbus, ensuring compatibility with various systems. It is designed for applications that require high precision, scalability, and efficient process control.
Product Parameters
| Parameter | Value |
|---|---|
| 型号 | VE4002S1T2B6 KJ3204X1-BA1 + KJ4001X1-CK1 |
| Packaging Dimensions | 250 x 150 x 125 mm |
| Packaging 重量 | 2 kg |
| Output Type | Digital and Analog Output |
| Number / Channels | 8 channels |
| Input Voltage Range | 24 VDC |
| Output Signal Range | 0-10 V, 4-20 mA |
| Communication Protocol | HART, Modbus, Foundation Fieldbus |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature Range | -20°C to 60°C |
| Relative Humidity Range | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Compliance | CE, UL, RoHS |
Product Applications
The Emerson VE4002S1T2B6 KJ3204X1-BA1 + KJ4001X1-CK1 output module is ideal for a variety / industrial applications where precision and reliable control are critical:
-
Process Control: Used in industries such as petrochemicals, chemicals, and power plants for controlling critical process variables like temperature, pressure, and flow.
-
Manufacturing Automation: Suitable for controlling machinery and equipment in manufacturing environments, helping streamline production and ensure safety.
-
Building Automation: Ideal for controlling HVAC systems, lighting, and other environmental systems in commercial and industrial buildings.
-
Water and Wastewater Treatment: Monitors and controls pumps, filtration systems, and valves in water treatment plants.
-
Energy Management Systems: Helps manage energy consumption and distribution in industrial setups, contributing to energy savings and system efficiency.
-
Mining and Minerals Processing: Provides reliable output control for mining equipment, ensuring safety and operational efficiency in challenging environments.
Product Advantages
-
Versatility in Output Options: The module supports both analog (0-10 V, 4-20 mA) and digital outputs, /fering flexibility to control a variety / field devices.
-
Ease / Integration: Designed to integrate seamlessly with Emerson DeltaV systems and other control systems that support HART, Modbus, and Foundation Fieldbus protocols.
-
Simplified Wiring: The module is equipped with terminal blocks, making installation and maintenance much easier compared to modules without terminal blocks.
-
Scalability: With the ability to add more channels as needed, the module can easily scale to accommodate larger and more complex control systems.
-
Reliability and Precision: Known for its precision and reliability, the module ensures that output signals are consistently accurate, contributing to stable process control.
-
Compact Design: The compact design / the output module ensures efficient use / space, making it ideal for installations in space-constrained environments.
-
Durability: The IP20 protection rating ensures that the module can withstand typical industrial environments, /fering long-lasting durability.
FAQ
1. What output types does the VE4002S1T2B6 KJ3204X1-BA1 + KJ4001X1-CK1 support?
This module supports digital and analog outputs (0-10 V, 4-20 mA), making it suitable for a wide range / field devices.
2. How many channels does the VE4002S1T2B6 module support?
The module supports 8 output channels, allowing for multiple devices to be controlled simultaneously.
3. What communication protocols does this module support?
The module supports HART, Modbus, and Foundation Fieldbus, which are common communication protocols for industrial systems.
4. What is the input voltage required for this output module?
The input voltage for this module is 24 VDC, which is standard for most industrial control systems.
5. What is the operating temperature range / the VE4002S1T2B6 KJ3204X1-BA1 + KJ4001X1-CK1 module?
This module operates in a temperature range from -20°C to 60°C, suitable for a wide range / industrial environments.
6. What is the protection rating / the VE4002S1T2B6 module?
The module has an IP20 protection rating, meaning it is protected from dust but not from water.
7. Can this module be used in hazardous environments?
While the module has an IP20 rating, additional enclosures may be needed for use in more hazardous environments where there is a risk / water or extreme conditions.
8. Does this module support multi-protocol communication?
Yes, the VE4002S1T2B6 supports HART, Modbus, and Foundation Fieldbus, making it versatile and compatible with various systems.
9. How does the terminal block feature benefit this module?
The terminal block feature simplifies wiring, reduces the likelihood / errors, and makes maintenance easier by allowing quick and secure connections to field devices.
10. Is the VE4002S1T2B6 module compatible with other Emerson control systems?
Yes, this output module is designed for seamless integration with Emerson’s DeltaV control system and other systems that support HART, Modbus, and Foundation Fieldbus protocols.
Recommended Related 型号s
| 型号 | 描述 |
|---|---|
| VE4002S1T2B7 KJ3204X1-BA2 | Output module with additional signal channels for large systems |
| VE4002S1T2B8 KJ3204X1-BA3 | Multi-protocol output module for advanced process control |
| VE4002S1T2B9 KJ3204X1-BA4 | Output module with extended temperature range for harsh environments |
| VE4002S1T2B10 KJ3204X1-BA5 | Compact output module for space-constrained environments |
| VE4002S1T2B11 KJ3204X1-BA6 | High-precision output module for critical control systems |
| VE4002S1T2B12 KJ3204X1-BA7 | Output module with high-frequency output for fast-response systems |
Popular 型号s from Emerson
| 型号 | 描述 |
|---|---|
| KJ3001X1-BG1 | Basic output module for general control applications |
| KJ3002X1-BG2 | Digital I/O module for control and monitoring systems |
| KJ3003X1-BG3 | Multi-protocol communication output module |
| KJ4001X1-CB1 | Compact digital output module with enhanced connectivity |
| VE4001S1T1A1 | Analog output module for precision control |
| KJ4002X1-CB2 | High-precision output module with advanced protection features |
