产品介绍

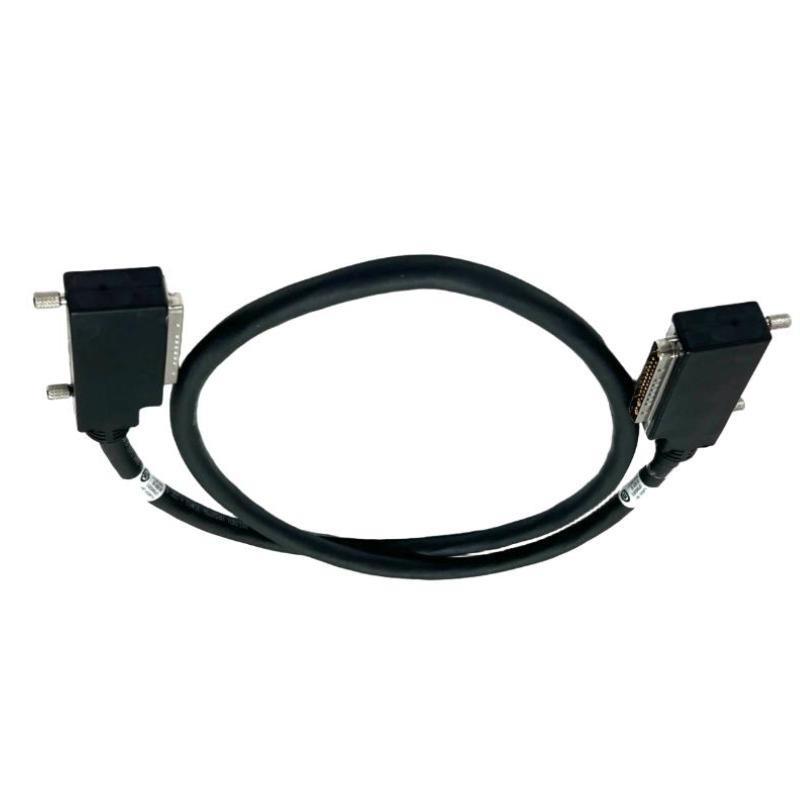

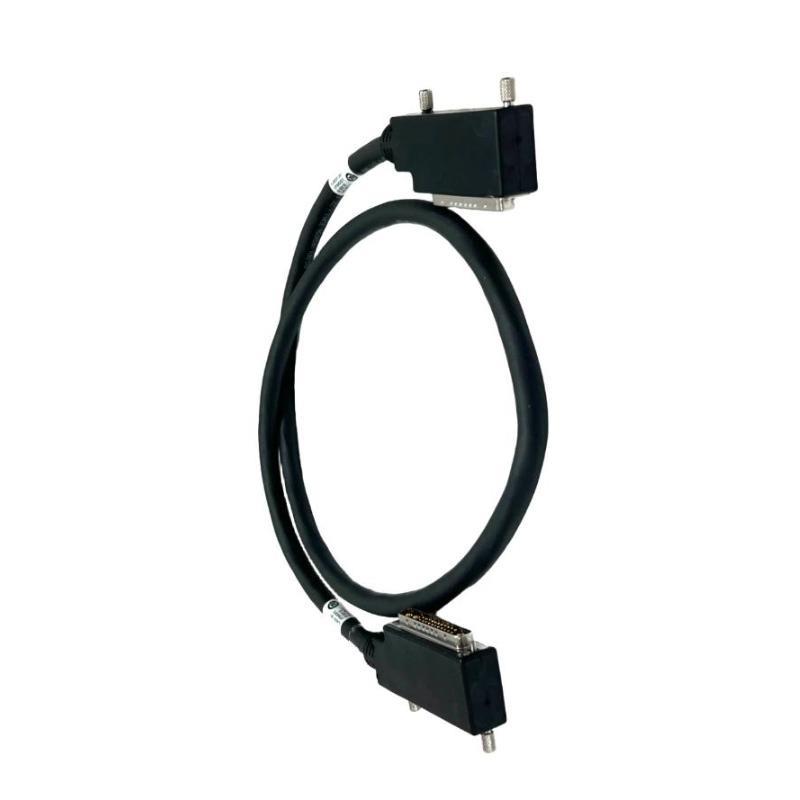

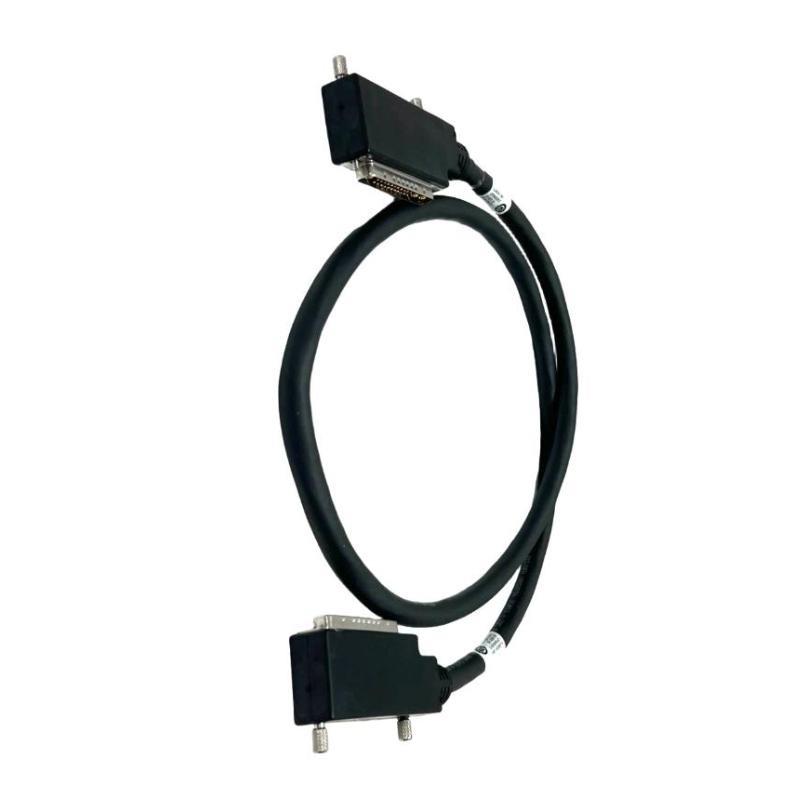

The Emerson SE4000L6P48 is a high-performance, 48-pin round ribbon cable engineered for critical data transmission and control applications in demanding environments. This cable combines the high-density connectivity / a ribbon cable with the durability, shielding, and ease / routing characteristic / a round cable. It is designed to provide a reliable interconnect solution where signal integrity, mechanical robustness, and EMI/RFI protection are paramount.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | SE4000L6P48 |
| Connector Type | 48-pin, Round Ribbon |
| Number / Conductors | 48 |
| Cable Length | 6 m |
| Shielding | Full Copper Braid Shield |
| Jacket Material | Flexible PVC / PUR (Optional) |
| Operating Temperature | -40°C to +85°C |
| 重量 | 3 kg |
| Rated Voltage | 300 V |
| 联系我们 Plating | Gold over Nickel |
Product Applications
-
Industrial Automation: Connecting PLCs, motor drives, and remote I/O modules within control cabinets and machinery.
-
Test and Measurement Equipment: Providing reliable interconnects for data acquisition systems and automated test racks.
-
Telecommunications Infrastructure: Used in networking and data communication equipment for backplane and board-to-board connections.
-
Medical Devices: Serving as an internal wiring harness in diagnostic and imaging systems where signal accuracy is critical.
-
Broadcast and Audio-Visual Systems: Interconnecting high-channel-count digital audio and video processing equipment.
Product Advantages
-
Enhanced Signal Integrity: The round construction with a full copper braid shield significantly reduces cross-talk and protects against electromagnetic and radio frequency interference (EMI/RFI).
-
Superior Durability: The robust outer jacket and round design provide excellent resistance to abrasion, crushing, and mechanical stress, outperforming flat ribbon cables.
-
Optimized Cable Management: The round pr/ile is easier to route through conduits and cable carriers, and it can be secured with standard cable ties and clamps.
-
High-Density Connectivity: It consolidates 48 individual conductors into a single, manageable cable, saving space and reducing clutter in complex systems.
-
Reliable Termination: The connectors are designed for secure mating and feature gold-plated contacts to ensure a stable, low-resistance connection and resist corrosion.
FAQ
Q1: What is the pitch spacing between conductors in this cable?
A1: The conductors are arranged with a standard pitch, typically 0.05 inches (1.27 mm), which is common for high-density ribbon connectors.
Q2: What is the gauge (AWG) / the individual wires inside the cable?
A2: The internal conductors are typically 28 AWG, which is standard for signal-level ribbon cable applications.
Q3: Is this cable suitable for continuous flexing applications?
A3: While durable, this specific model is not rated for continuous flexing in cable carrier systems. For dynamic applications, a specialized flex-rated variant would be recommended.
Q4: What is the level / shielding effectiveness provided?
A4: The full copper braid shield /fers high-frequency shielding effectiveness, typically greater than 90% coverage, providing excellent protection against EMI.
Q5: Can the cable be customized to a different length?
A5: Custom lengths are /ten available as a value-added service from Emerson or its authorized distributors, though the SE4000L6P48 is a standard 6-meter part.
Q6: What is the flame rating / the cable jacket?
A6: The standard jacket material complies with UL-rated flammability standards such as VW-1 or is available in a low-smoke zero-halogen (LSZH) version for specific safety requirements.
Q7: Are the connectors keyed to prevent mis-mating?
A7: Yes, the connectors are designed with a keying mechanism to ensure they can only be plugged in the correct orientation, preventing damage from incorrect installation.
Q8: What is the maximum data transfer rate supported by this cable?
A8: While dependent on the entire system, the cable’s construction supports high-speed data transmission, suitable for fast digital I/O and parallel data bus applications.
Q9: Is the cable oil-resistant?
A9: The standard PVC jacket /fers mild resistance. For environments with significant exposure to oils or chemicals, a jacket made / Polyurethane (PUR) is a recommended alternative.
Q10: What tools are required for field termination or repair?
A10: Field termination is not recommended. This is a factory-assembled cable, and the connectors require specialized crimping and assembly tools for a proper, reliable termination.
Recommended Related & Same Series 型号s
| 型号 Number | 描述 | Key Differentiator |
|---|---|---|
| SE4000L3P48 | 48-pin Round Ribbon Cable | Cable Length: 3 m |
| SE4000L12P48 | 48-pin Round Ribbon Cable | Cable Length: 12 m |
| SE4000L6P24 | 24-pin Round Ribbon Cable | Lower Pin Count (24-pin) |
| SE4000L6P64 | 64-pin Round Ribbon Cable | Higher Pin Count (64-pin) |
| SE4000L6P48-LSZH | 48-pin Round Ribbon Cable | Low-Smoke Zero-Halogen Jacket |
| SE4000FLEX6P48 | 48-pin Flex Round Ribbon Cable | Designed for Continuous Flexing |
Popular 型号s from Emerson
| 型号 Number | 分类 | Brief 描述 |
|---|---|---|
| NSV100072 | Power Supply | 2400W, Hot-Swap, Redundant Power Supply for Emerson Servers |
| 0163219 | Controller | Emerson PACSystems RX3i Redundant Controller |
| DCS200C100 | Drive | Emerson Unidrive M200 Advanced Modular Drive |
| F-CP10B2C | I/O Module | Emerson PACSystems VersaPoint I/O Module, 16-Channel |
| 140CPU65160 | PLC | Emerson Modicon M340 Standard CPU |
| KJB6X-08AJ | Connector | Emerson Brad® M12, 8-pin, Field Attachable Connector |
