产品介绍:

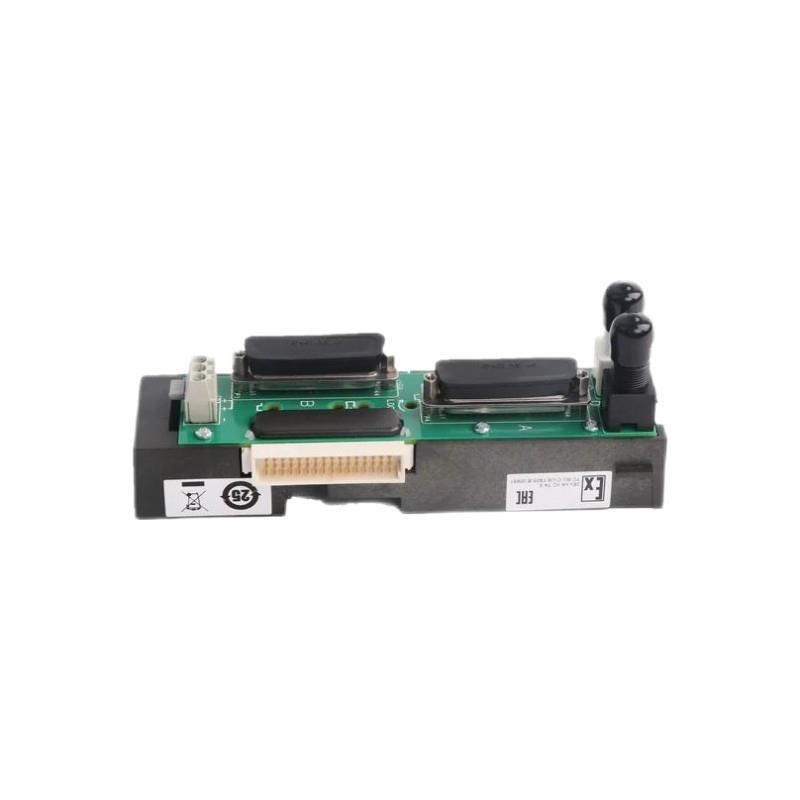

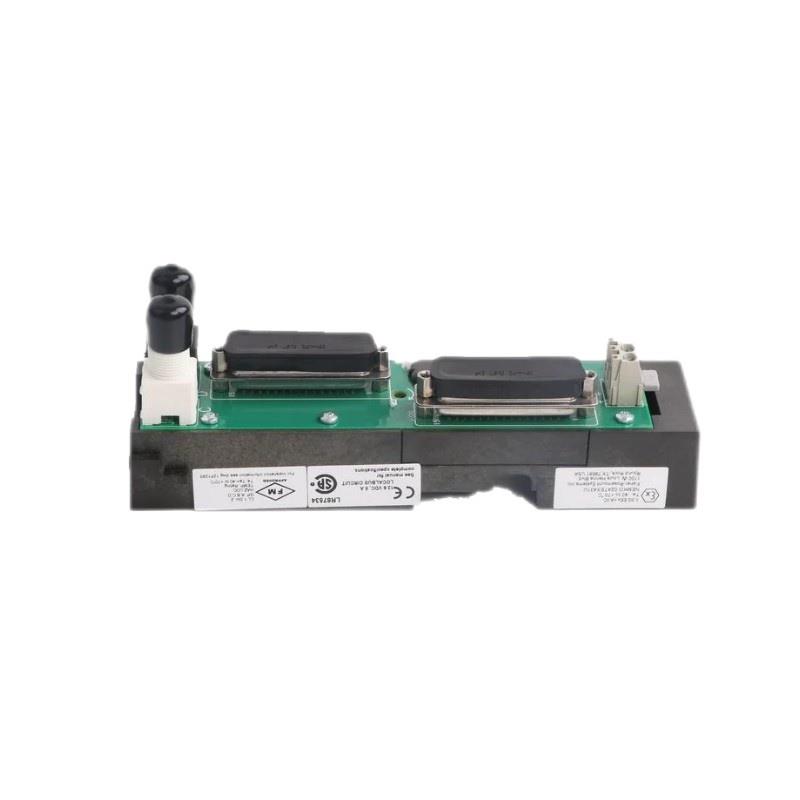

The Emerson KJ4001X1-NB1 LocalBus Dual Left Cable Extender is an essential accessory designed for use within Emerson’s DeltaV distributed control system architecture. It serves as a cable extender for the LocalBus network, specifically engineered to extend the connection distances between DeltaV modules while maintaining signal integrity and reliability.
This dual left cable extender features a robust build and a dual cable outlet on the left side, enabling efficient and organized cable management in control cabinets or racks. Its design simplifies the process / expanding system configurations, allowing engineers and maintenance teams to adjust and optimize module placement without requiring complex rewiring.
Manufactured to endure the demanding conditions / industrial environments, the KJ4001X1-NB1 ensures stable and consistent communication between modules, contributing to overall system reliability and uptime.
产品规格:
| Parameter | Details |
|---|---|
| Product Name | Emerson KJ4001X1-NB1 LocalBus Dual Left Cable Extender |
| 制造商 | Emerson |
| Product Type | LocalBus Cable Extender |
| Cable Orientation | Dual Left Cable Output |
| Compatible System | Emerson DeltaV Distributed Control System |
| Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% Non-condensing |
| Dimensions (L x W x H) | 35 x 55 x 155 mm |
| 重量 | 0.2 kg |
| Construction Material | Industrial-grade plastic and metal |
| Certifications | CE Certified |
Applications:
-
Extending LocalBus cable connections within Emerson DeltaV systems to facilitate flexible control cabinet configurations.
-
Allowing system designers to increase distance between modules without degrading signal quality.
-
Improving cable routing and organization within control racks.
-
Simplifying maintenance and future system upgrades by enabling modular system expansion.
-
Suitable for use in industries such as oil & gas, chemical processing, power generation, and manufacturing where DeltaV systems are deployed.
Product Advantages:
-
Extended Reach: Enables extension / LocalBus connections, supporting modular and flexible system architecture.
-
Signal Integrity: Maintains reliable data communication across extended cable lengths without signal loss.
-
Ease / Installation: Designed for plug-and-play operation; no specialized tools or complex setup required.
-
Durability: Constructed to operate reliably in harsh industrial environments with temperature extremes and humidity.
-
Improved Cable Management: Dual left cable design assists in organized routing and reduces cable clutter within control panels.
-
Compatibility: Fully compatible with DeltaV system components, ensuring seamless integration.
常见问题 (FAQ):
-
What is the main function / the KJ4001X1-NB1?
It extends the LocalBus cable connections in DeltaV systems, allowing greater distance between modules. -
Can this extender be used with all DeltaV modules?
It is compatible with modules designed to connect via LocalBus within the DeltaV system. -
What is the maximum recommended cable extension using this product?
Cable extension limits depend on system design, but Emerson guidelines specify the maximum allowed lengths for LocalBus cables. -
Does the product require any power supply?
No, it operates as a passive cable extender and does not require additional power. -
How does the dual left cable design benefit system installation?
It allows for efficient cable routing to the left side, enabling cleaner and more manageable wiring layouts. -
Is the extender suitable for use in extreme temperature environments?
Yes, it is rated for operation between -40°C and +70°C, suitable for most industrial settings. -
Does using the extender affect data transmission speed?
When used within specified limits, it maintains full data transmission speeds without degradation. -
Are there any certifications for this product?
Yes, the extender is CE certified, meeting European safety and performance standards. -
What materials are used in manufacturing the extender?
It is constructed from high-quality industrial-grade plastic and metal components for durability. -
How difficult is installation for maintenance personnel?
The installation process is straightforward and designed to be performed quickly without specialized tools.
Recommended Related 型号s:
| 型号 | 描述 | Key Feature |
|---|---|---|
| KJ4001X1-NA1 | Horizontal LocalBus Dual Right Cable Extender | Dual right cable orientation |
| KJ4001X1-NB2 | LocalBus Dual Left Cable Extender (Vertical) | Vertical orientation for cable routing |
| KJ4001X1-NC1 | LocalBus Single Cable Extender | Single cable extension capability |
| KJ4002X1-NB1 | LocalBus Right Angle Cable Extender | Right angle cable extension |
| KJ4003X1-NB1 | LocalBus Ribbon Cable Extender | 支持s ribbon cable types |
| KJ3100X1-NB1 | LocalBus Module Extension Kit | Kit for modular LocalBus expansions |
Popular Emerson 型号s:
| 型号 | 描述 | Application Area |
|---|---|---|
| KJ3102X1-BA1 | Analog Input Module with HART support | Process automation and signal acquisition |
| KJ3222X1-BA1 | Multi-channel Analog Input Module | Multi-channel analog processing |
| KJ3700X1-BA1 | Digital Output Module | Control / digital devices |
| KJ3740X1-BA1 | High-Speed Counter Module | Counting and timing applications |
| KJ3104X1-BA1 | Analog Output Module | Analog control signal output |
| KJ3705X1-BA1 | Communication Module | Protocol bridging and data exchange |
