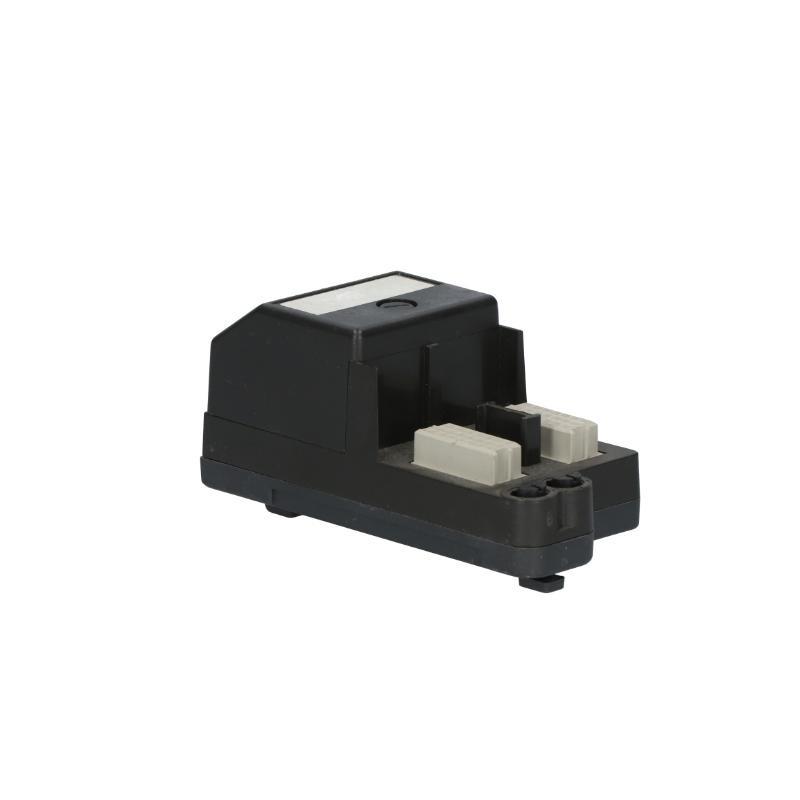

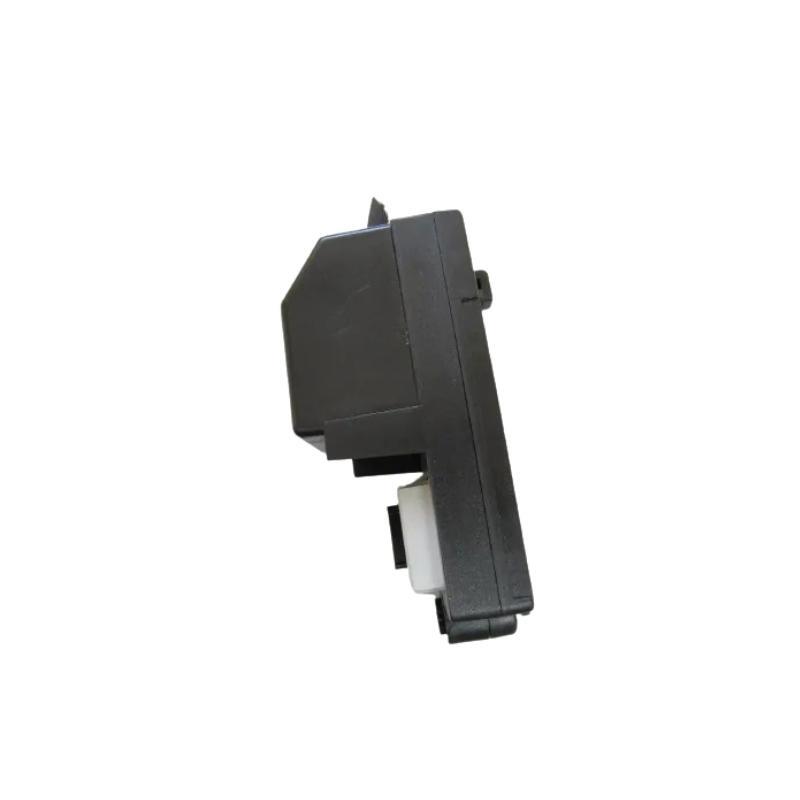

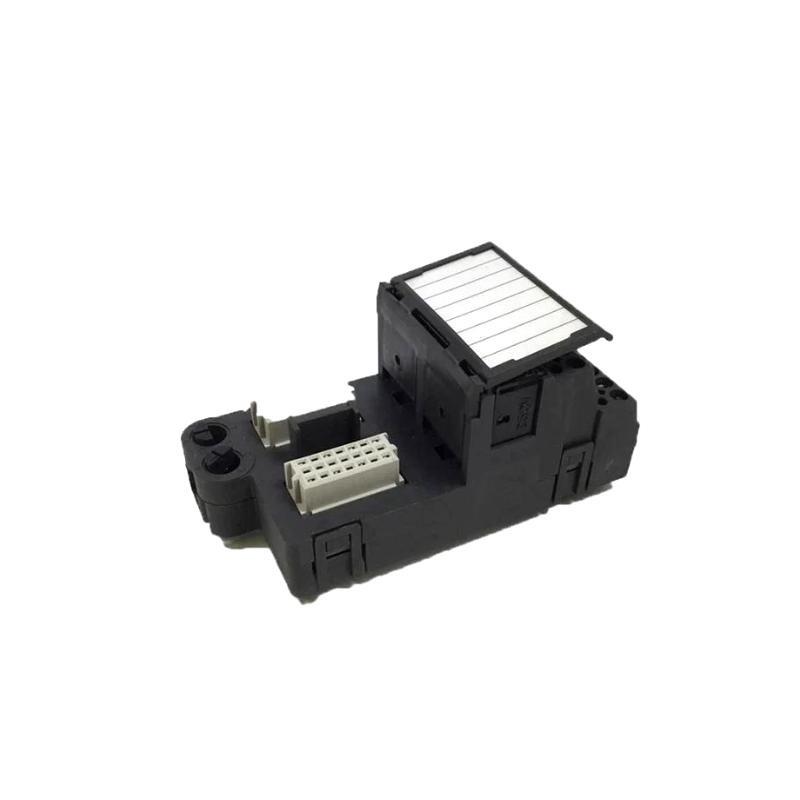

Product Overview
The Emerson KJ4001X1-CF1 is a large-capacity terminal block designed for use within Emerson’s DeltaV™ distributed control systems. It provides reliable and organized wiring connections for I/O modules, ensuring secure termination / field signals. With a large-capacity design, this terminal block accommodates more connections compared to standard terminal blocks, reducing cabinet space requirements and simplifying installation in complex automation environments.
Key Features
-
High-capacity terminal block design for expanded field wiring
-
Optimized for Emerson DeltaV™ I/O modules
-
Secure and reliable wiring terminations
-
Compact and modular form factor for efficient panel space usage
-
支持s easy installation and maintenance
-
Durable industrial-grade materials for long service life
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | KJ4001X1-CF1 |
| 制造商 | Emerson |
| Product Type | Large-capacity Terminal Block |
| System Compatibility | Emerson DeltaV™ control systems |
| Connection Type | Screw-type terminals |
| Capacity | Large-capacity design (supports higher density than standard TBs) |
| Operating Voltage | Up to 30 VDC (system dependent) |
| Current Rating | Up to 2 A per channel (typical for DeltaV I/O wiring) |
| Insulation Resistance | >100 MΩ |
| Mounting | Direct plug-in to I/O carriers or backplanes |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 120 x 70 x 25 mm |
| 重量 | 0.15 kg |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Power Generation – streamlined wiring for control cabinets
-
Oil & Gas – reliable field signal termination in hazardous environments
-
Petrochemical & Chemical – high-capacity wiring for process automation systems
-
Manufacturing – efficient control panel layout for complex processes
-
Water & Wastewater – secure terminations for SCADA and distributed I/O
Advantages
-
High-capacity design reduces number / required terminal blocks
-
Compact footprint saves cabinet space
-
Reliable and secure field wiring terminations
-
Compatible with DeltaV system architecture
-
Simplifies installation and maintenance
-
Durable build ensures long operational life
常见问题 (FAQ)
Q1: What is the primary purpose / the KJ4001X1-CF1?
It is a large-capacity terminal block for wiring field signals to Emerson DeltaV I/O modules.
Q2: How does it differ from standard terminal blocks?
It supports higher wiring capacity, reducing the number / blocks required.
Q3: Is it compatible with all DeltaV I/O modules?
Yes, it is designed to integrate seamlessly with DeltaV carriers and I/O cards.
Q4: What type / connections does it support?
Screw-type terminals for secure wiring terminations.
Q5: What is the maximum current rating?
Up to 2 A per channel, depending on the I/O configuration.
Q6: Can it be hot-swapped?
Yes, terminal blocks can be replaced without system shutdown in most cases.
Q7: What is the operating temperature range?
0 °C to +60 °C.
Q8: Does it require additional accessories for installation?
No, it plugs directly into DeltaV carriers or I/O modules.
Q9: Is it suitable for hazardous environments?
Yes, when used within DeltaV certified enclosures.
Q10: What certifications does it carry?
CE, UL, CSA, and RoHS.
