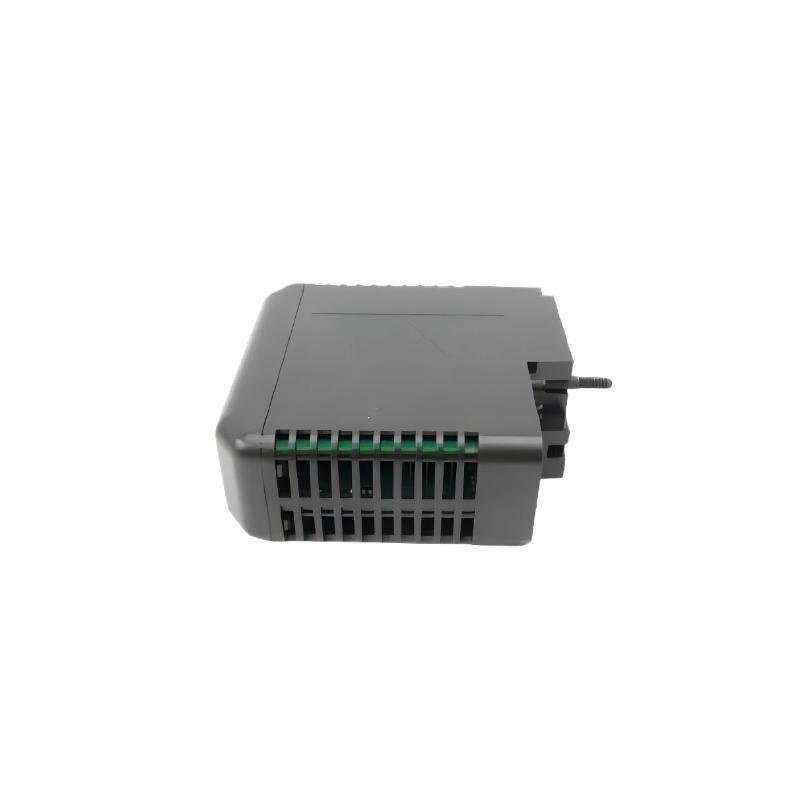

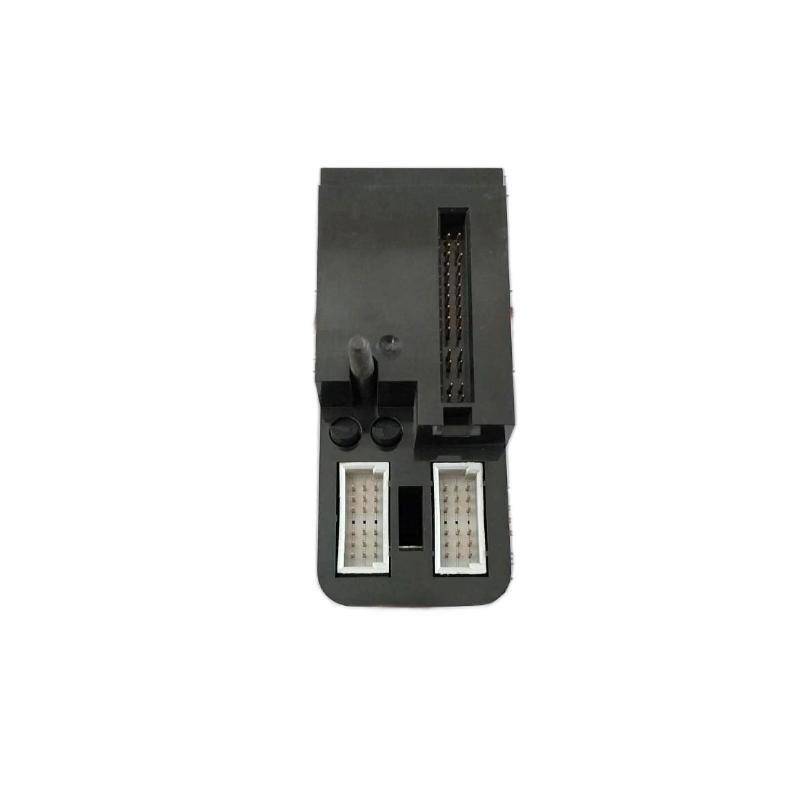

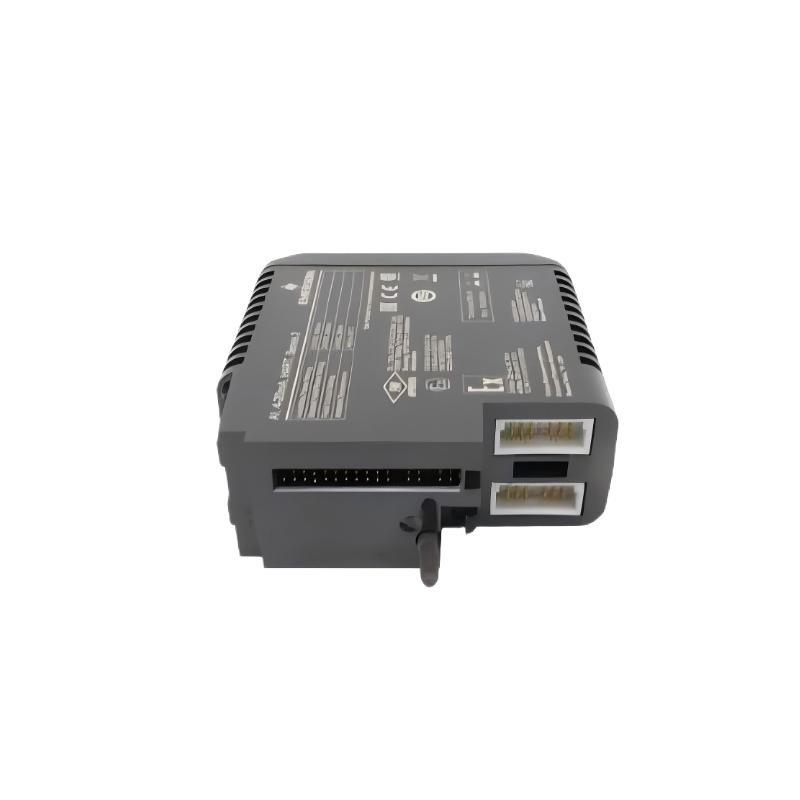

The Emerson KJ3222X1-BA1 12P2532X152 Input Module is a high-performance component used in industrial control systems, particularly for data acquisition and signal processing. This input module is designed to receive and process various input signals from field devices, converting them into standardized data that can be further processed by control systems. It is commonly used in applications requiring reliable and accurate input signal handling, ensuring that systems operate at optimal performance levels.
This module is a critical part / Emerson’s DeltaV™ system, which is known for its advanced process control capabilities. The KJ3222X1-BA1 12P2532X152 is designed to be easily integrated into these systems, /fering high-speed data processing and seamless communication between the field and control systems. It is built to handle a wide range / input signals, ensuring that it can be used in diverse industrial applications where precise signal acquisition is essential.
With its compact design and robust construction, the KJ3222X1-BA1 12P2532X152 Input Module ensures long-term reliability and minimal downtime. It is used in various industries such as manufacturing, power generation, chemical processing, and other industrial automation systems.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions | 44 x 108 x 127 mm |
| 重量 | 0.2 kg |
| Input Type | Analog/Digital Inputs |
| Signal Range | ±20mA, ±10V, Digital |
| Voltage Rating | 24 V DC (Typical) |
| Connector Type | Spring Clamp Terminals |
| Mounting Type | Panel-mounted |
| Operating Temperature | -20°C to +60°C |
| Material | Industrial-grade PCB |
| Environmental Protection | Industrial Grade |
| Application | Data Acquisition, Control Systems |
Product Applications
The Emerson KJ3222X1-BA1 12P2532X152 Input Module is designed for use in a variety / industrial automation and control systems. Its primary applications include:
-
Process Control Systems: The module is widely used in process industries such as chemical, petrochemical, and pharmaceutical manufacturing, where reliable signal processing from sensors and field devices is critical to maintain system performance and product quality.
-
Data Acquisition: The KJ3222X1-BA1 is used to acquire data from field devices, providing accurate and timely information to the control system for monitoring and analysis.
-
Automation Systems: In industrial automation, this module is used to connect various types / field instruments (such as temperature sensors, pressure transmitters, and flow meters) to the control system for real-time monitoring and control.
-
Power Generation: The module is deployed in power plants to interface with field sensors and actuators, supporting monitoring and control / various systems such as turbines, boilers, and auxiliary equipment.
-
Environmental Monitoring: In industries where environmental parameters must be closely monitored, the KJ3222X1-BA1 is used to acquire data from environmental sensors (e.g., air quality or emissions monitoring) to ensure regulatory compliance.
-
Manufacturing Systems: It is also utilized in factory automation to ensure efficient monitoring and control / production lines, helping optimize productivity, energy use, and system reliability.
Advantages / the Product
-
Reliable Data Processing: The KJ3222X1-BA1 ensures accurate signal processing, converting field signals into standardized data that can be easily interpreted by the control system, ensuring reliable operations.
-
Compact Design: With its compact dimensions / 44 x 108 x 127 mm, the module can be easily installed in space-constrained environments, saving valuable panel space in control systems.
-
Wide Signal Compatibility: The module supports a broad range / input signals, including analog and digital signals, /fering flexibility for use in various applications and with different field devices.
-
Robust Construction: Built with high-quality materials and industrial-grade PCB, the module is designed to withstand harsh industrial environments, ensuring longevity and minimizing the need for maintenance.
-
Cost-Effective: The module /fers a cost-effective solution for industrial signal acquisition, providing reliable performance without significant investment in more complex systems.
-
Wide Operating Temperature Range: The module operates in a wide temperature range / -20°C to +60°C, making it suitable for use in a variety / climates and harsh environments.
-
Easy Installation: Featuring spring clamp terminals for easy wiring, the module simplifies installation and ensures secure connections with field devices, minimizing installation time.
-
Enhanced System Integration: The KJ3222X1-BA1 is designed for seamless integration into Emerson’s DeltaV system, ensuring smooth communication and functionality across various components.
-
Low Maintenance: Due to its durable construction and reliable performance, the module requires minimal maintenance, reducing operational costs and downtime.
-
Improved Operational Efficiency: By providing accurate and timely data to control systems, the module helps improve operational efficiency and decision-making, resulting in optimized processes and system performance.
常见问题 (FAQs)
-
What are the dimensions / the Emerson KJ3222X1-BA1 module?
-
The module measures 44 x 108 x 127 mm.
-
-
What is the weight / the KJ3222X1-BA1?
-
The weight / the module is 0.2 kg.
-
-
What types / input signals does the module support?
-
The module supports analog signals (±20mA, ±10V) and digital inputs.
-
-
What is the typical voltage rating for the module?
-
The typical voltage rating is 24 V DC.
-
-
How is the module connected to field devices?
-
The module uses spring clamp terminals for easy and secure connections.
-
-
What is the temperature range for the KJ3222X1-BA1?
-
The module operates in temperatures ranging from -20°C to +60°C.
-
-
Can the KJ3222X1-BA1 be used in power generation systems?
-
Yes, it is commonly used in power generation systems to interface with field sensors and actuators.
-
-
What industries benefit from the KJ3222X1-BA1 module?
-
The module is used in various industries, including chemical, power generation, and manufacturing, among others.
-
-
How easy is it to install the KJ3222X1-BA1 module?
-
Installation is easy, as the module features spring clamp terminals for straightforward wiring.
-
-
What is the purpose / the KJ3222X1-BA1 module in process control systems?
-
It acquires data from field devices and transmits it to the control system, enabling accurate monitoring and control.
-
Related 型号s from the Emerson KJ3222 Series
| 型号 | 描述 |
|---|---|
| KJ3222X1-BA2 | A variant / the KJ3222X1-BA1 with additional inputs and features for complex applications. |
| KJ3222X1-BA3 | Offers more advanced signal processing capabilities for high-precision measurements. |
| KJ3222X1-BA4 | Designed for harsh environments with enhanced protection features. |
| KJ3222X1-BA5 | An advanced version with higher input signal handling capacity for industrial automation. |
| KJ3222X1-BA6 | A simplified version designed for cost-sensitive applications requiring basic signal processing. |
| KJ3222X1-BA7 | A high-performance version with extended operating temperature range for extreme conditions. |
Popular Emerson 型号s
| 型号 | 描述 |
|---|---|
| KJ2002X1-BA1 | A versatile signal conditioning module for various industrial systems. |
| KJ3001X1-BA1 | Input module for continuous monitoring in critical systems. |
| KJ6002X1-BA1 | Advanced input module for high-speed industrial data acquisition systems. |
| KJ1002X1-BA1 | Simple and cost-effective module for basic field data acquisition. |
| KJ4001X1-BA1 | High-performance output module for precision control in power generation. |
| KJ7001X1-BA1 | Multi-functional module used for integration with Emerson’s control platforms. |
