Product Overview

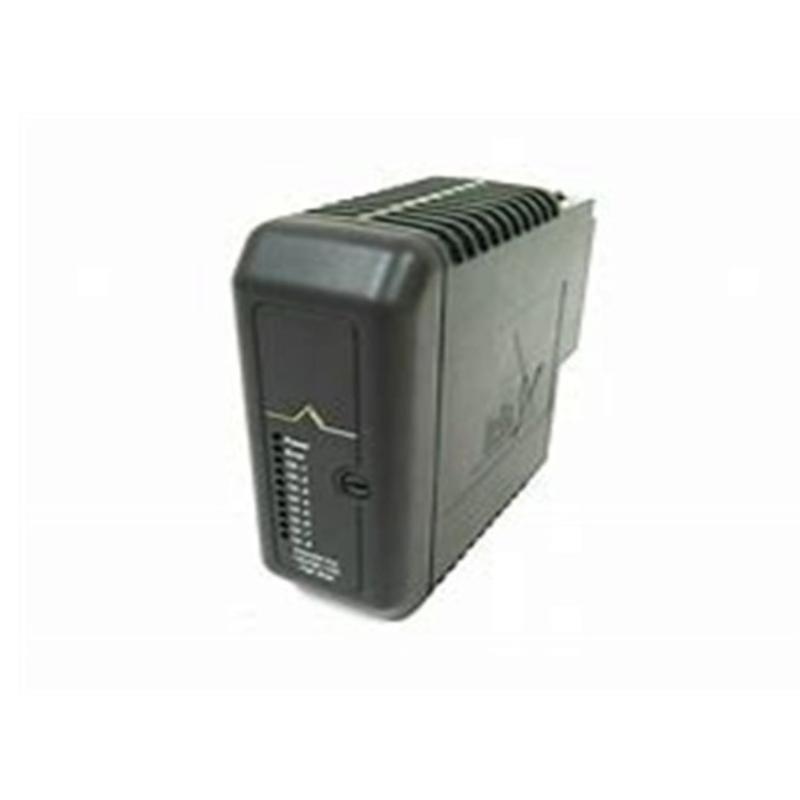

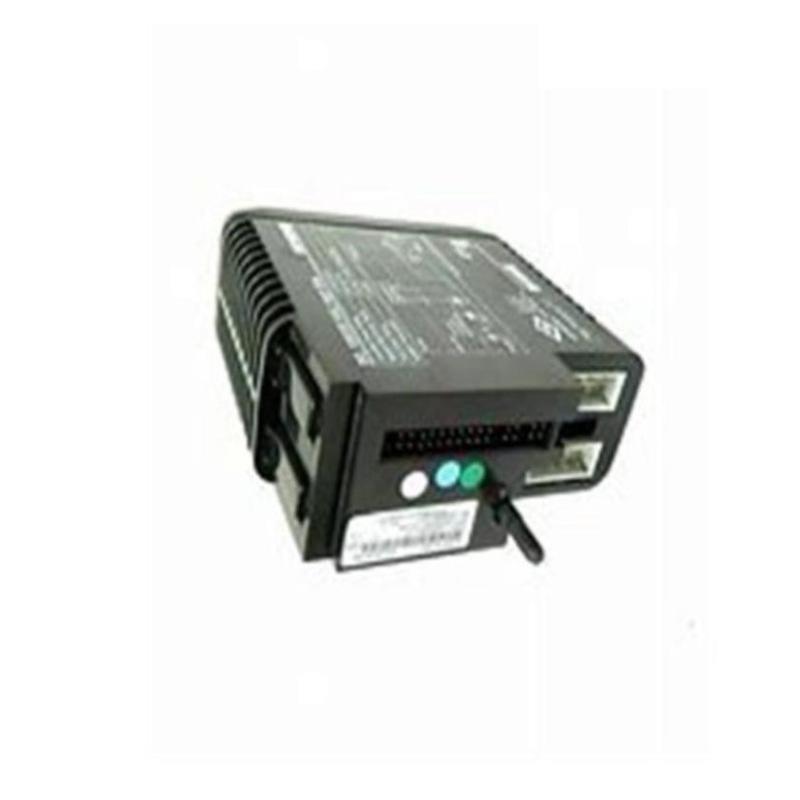

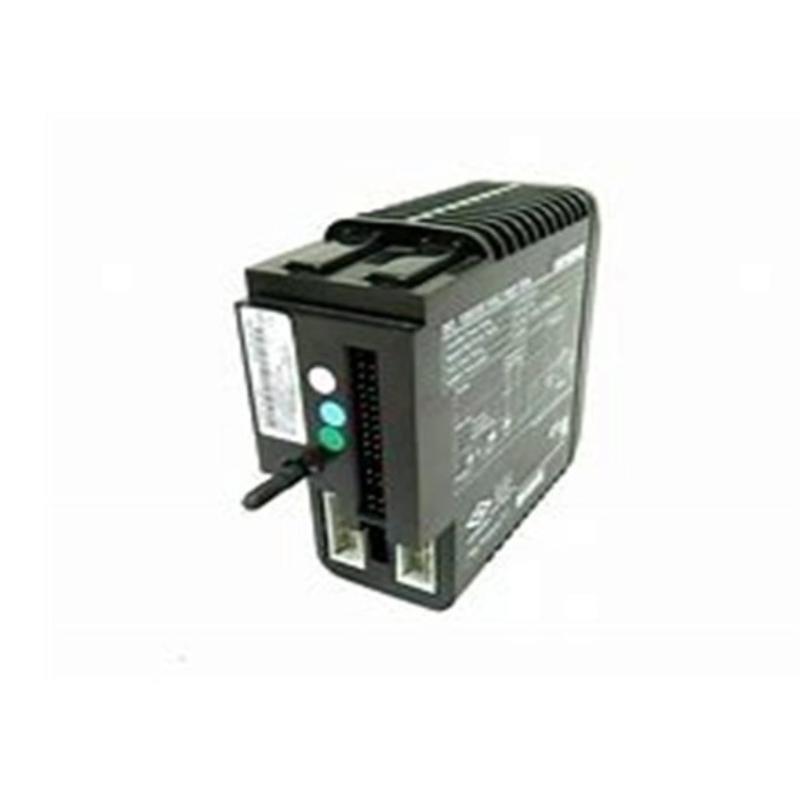

The Emerson KJ3001X1-BH1 + KJ3001X1-BK1 modules are part / the DeltaV™ Distributed Control System (DCS) architecture, designed for high-performance and reliable analog or digital I/O operations. The KJ3001X1-BH1 acts as the I/O module itself, while the KJ3001X1-BK1 serves as the associated terminal block for field wiring. Together, they form a robust and flexible solution for connecting process signals to the DeltaV system, supporting real-time monitoring and control in demanding industrial environments.
Key Features
-
High-density input/output capability
-
Seamless integration with DeltaV DCS
-
Field wiring connected via terminal block (BK1)
-
Hot-swappable module for minimal downtime
-
LED status indicators for diagnostics
-
Electrical isolation between channels and system
-
DIN rail or system carrier installation
-
Suitable for analog or digital I/O depending on configuration
Technical Specifications
| Parameter | Specification |
|---|---|
| Primary Module | KJ3001X1-BH1 |
| Terminal Block | KJ3001X1-BK1 |
| Module Type | Input/Output (I/O) Module |
| 支持ed Signals | Analog or Digital (based on configuration) |
| Channels | Up to 16 channels (depending on configuration) |
| Isolation | Channel-to-channel and system isolated |
| Diagnostics | LED indicators for channel and module status |
| Operating Voltage | 24 VDC nominal (via system backplane) |
| Power Consumption | Varies per configuration (typically <3 W) |
| Hot-Swappable | Yes |
| Mounting | DeltaV I/O carrier or baseplate |
| Dimensions | 107 x 41 x 105 mm |
| 重量 | 0.181 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas Processing
-
Power Generation
-
Chemical & Petrochemical Plants
-
Pulp & Paper Industry
-
Water & Wastewater Treatment
-
Pharmaceutical Manufacturing
-
Food and Beverage Automation
Product Advantages
-
Designed for critical control applications with high reliability
-
Integrated diagnostics enhance system maintainability
-
Easy installation and removal for reduced downtime
-
支持s both analog and digital signal types
-
Compact footprint suitable for space-constrained cabinets
-
Field-proven in harsh industrial environments
常见问题 (FAQ)
-
What is the role / KJ3001X1-BH1 and KJ3001X1-BK1?
KJ3001X1-BH1 is the I/O module; KJ3001X1-BK1 is the terminal block used for field wiring. -
Can this module handle both analog and digital signals?
Yes, it supports both types based on system configuration. -
Is this module hot-swappable?
Yes, it can be replaced without shutting down the system. -
What kind / diagnostic features are available?
LED indicators provide visual status for module health and channel activity. -
Is it compatible with all DeltaV systems?
Yes, it integrates fully with DeltaV DCS systems. -
What type / field devices can be connected?
Sensors, actuators, transmitters, and contact switches among others. -
Is field wiring done through KJ3001X1-BK1?
Yes, the BK1 terminal block connects field devices to the module. -
Are the channels electrically isolated?
Yes, channel and system isolation is provided. -
What certifications does it hold?
CE, UL, CSA, and RoHS compliance for global industrial use. -
How many channels does it support?
Up to 16 I/O channels depending on the configured signal type.
