产品介绍

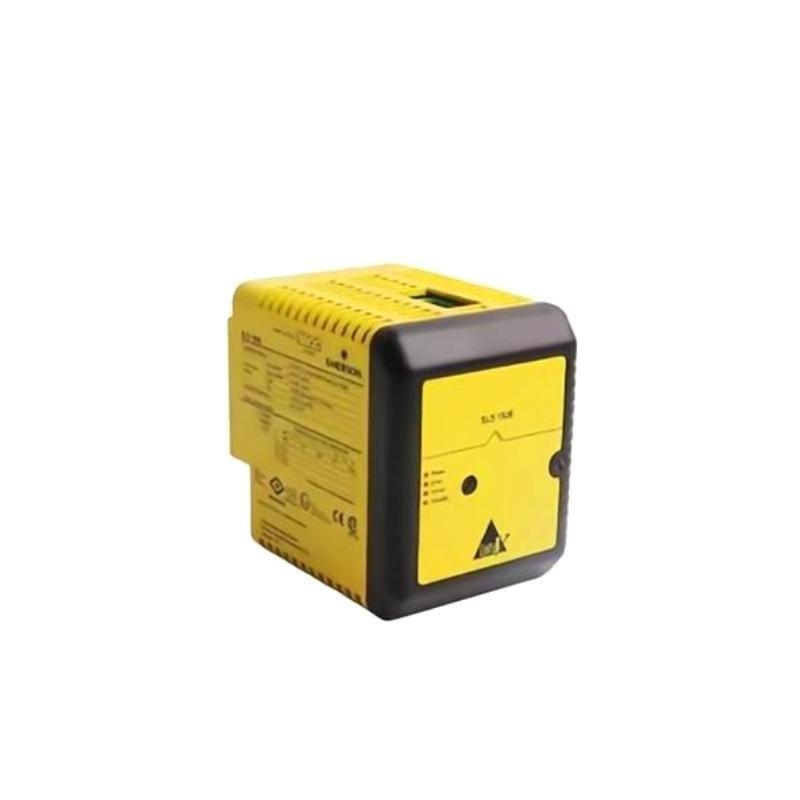

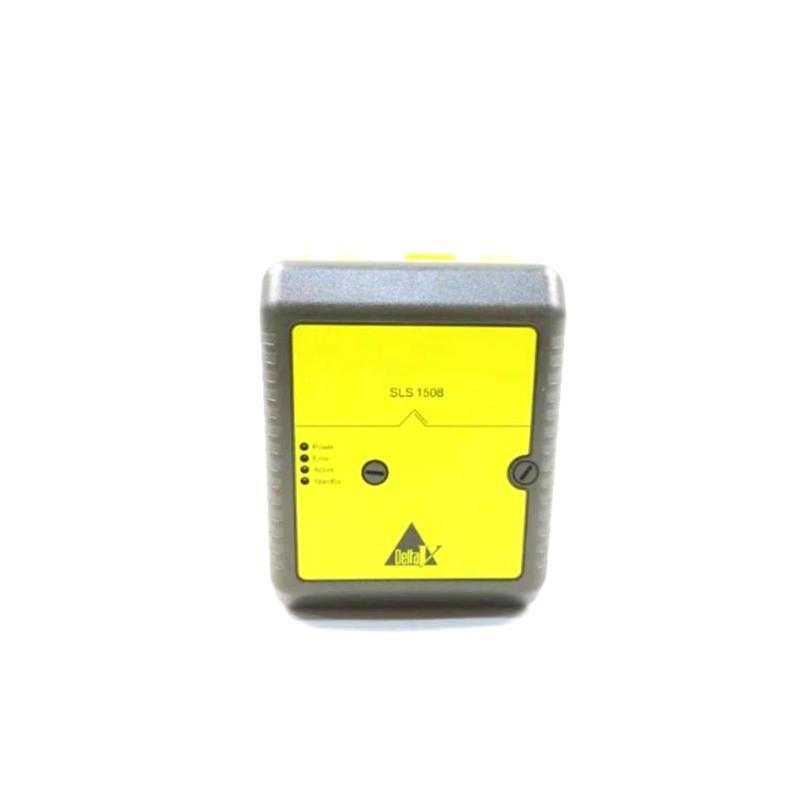

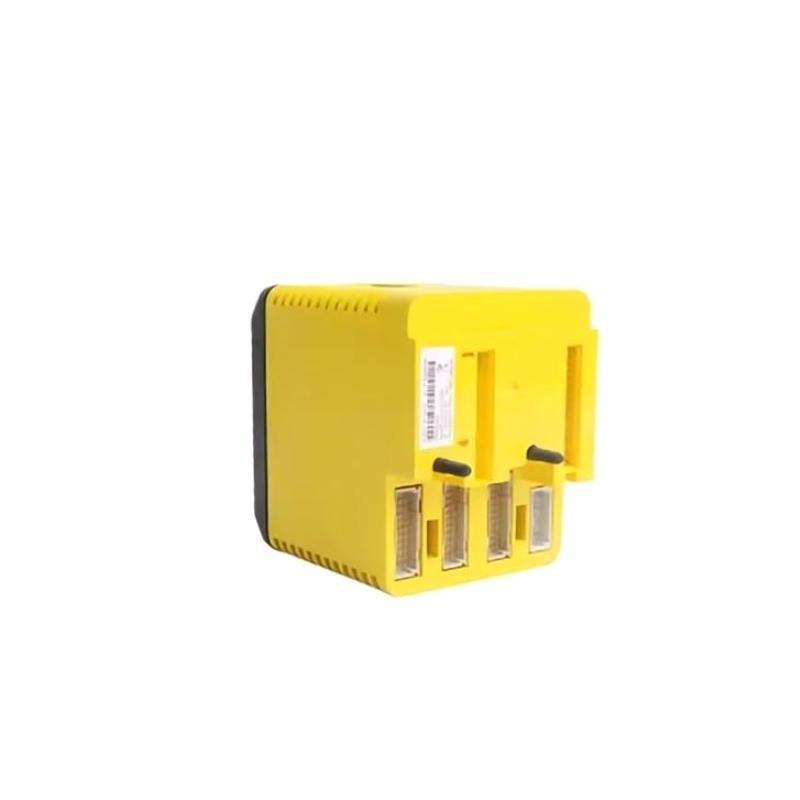

The Emerson KJ2201X1-PW1 is a Smart Logic Solver designed to deliver high reliability and safety performance for Safety Instrumented Systems (SIS) within process automation environments. As part / Emerson’s DeltaV SIS product family, this module /fers robust logic processing capabilities that comply with international safety standards, providing flexible and deterministic execution / safety-critical control logic.
This logic solver is engineered for applications requiring reliable, high-speed safety monitoring and emergency shutdown control. It supports SIL 3 (Safety Integrity Level 3) certification, making it suitable for environments where safety is paramount. The KJ2201X1-PW1 emphasizes ease / integration with Emerson’s DeltaV platform, featuring advanced diagnostics and secure communications to ensure operational integrity and system uptime.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | KJ2201X1-PW1 |
| Type | Smart Logic Solver |
| Safety Integrity Level (SIL) | SIL 3 certified |
| Power Supply Input | 24 V DC nominal |
| Number / Logic Channels | 16 discrete inputs/outputs |
| Communication Interface | Ethernet, FOUNDATION Fieldbus optional |
| Response Time | Less than 100 ms |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Dimensions (HxWxD) | 200 x 300 x 50 mm |
| 重量 | 2.5 kg |
| Mounting | Rack-mounted in DeltaV safety racks |
| Certifications | IEC 61508 SIL 3, CE, UL, CSA |
Applications
The KJ2201X1-PW1 Smart Logic Solver is designed for a wide range / industries where safety systems are crucial, including:
-
Oil and gas production and refining for emergency shutdown systems (ESD).
-
Chemical processing plants for safety interlocks and alarm handling.
-
Power generation facilities implementing safety critical control.
-
Water and wastewater treatment for regulatory safety compliance.
-
Pharmaceutical manufacturing to safeguard processes and personnel.
-
Fire and gas detection systems integration.
-
Any industrial automation requiring certified SIL 3 safety logic execution.
Advantages
-
Certified SIL 3 Performance: Meets the highest safety standards for critical process control.
-
High Channel Count: 支持s 16 discrete inputs and outputs, enabling comprehensive control.
-
Fast and Reliable Response: Ensures timely reaction to safety events with response times under 100 ms.
-
Robust Diagnostics: Continuous self-checks and diagnostics help reduce downtime and enhance safety.
-
Seamless Integration: Designed to work efficiently within Emerson DeltaV systems and supports common industrial communication protocols.
-
Compact and Modular: Fits into standard DeltaV racks, allowing easy maintenance and scalability.
-
Wide Operating Range: Suitable for diverse industrial environments with broad temperature tolerances.
-
Enhanced Security Features: 支持s secure network communications to guard against cyber threats.
-
Global Certifications: Complies with international safety and quality standards for worldwide deployment.
-
Extensive 支持: Backed by Emerson’s technical support and service network globally.
常见问题 (FAQ)
-
What type / logic does the KJ2201X1-PW1 execute?
It executes safety-critical logic for emergency shutdown and interlock functions certified to SIL 3. -
What are the power requirements for this module?
It operates on a nominal 24 V DC power supply, typically provided within a DeltaV safety rack. -
How many I/O channels does the logic solver support?
It supports 16 discrete input/output channels. -
Is this product suitable for hazardous areas?
Yes, when installed following Emerson’s guidelines and appropriate enclosures, it is suitable for hazardous environments. -
Which communication protocols are supported?
Ethernet is standard; FOUNDATION Fieldbus is optional for integration with field devices. -
What certifications does the KJ2201X1-PW1 hold?
It is certified to IEC 61508 SIL 3 and carries CE, UL, and CSA approvals. -
What is the expected response time for safety events?
The device reacts within less than 100 milliseconds, providing rapid safety intervention. -
What diagnostics capabilities does the module /fer?
It features continuous self-monitoring, fault detection, and diagnostic alerting to operators. -
What are the physical dimensions / the KJ2201X1-PW1?
It measures 200 x 300 x 50 mm. -
How should the module be maintained?
Regular inspections and firmware updates as per Emerson’s recommendations ensure continued performance and safety.
Recommended Related 型号s (Same Series or Functionality)
| 型号 | 描述 | SIL Level | Channels | Dimensions (HxWxD mm) | 重量 (g) |
|---|---|---|---|---|---|
| KJ2201X1-PW2 | Enhanced Smart Logic Solver | SIL 3 | 24 | 145 x 65 x 165 | 1100 |
| KJ2201X1-BA1 | Basic Logic Solver Module | SIL 3 | 8 | 130 x 50 x 160 | 950 |
| KJ2201X1-HA1 | Power Supply Module for SIS | N/A | N/A | 125 x 45 x 150 | 850 |
| KJ2201X1-PW3 | Compact Logic Solver for Small Applications | SIL 2 | 12 | 135 x 55 x 150 | 900 |
| KJ2201X1-BA2 | SIS Logic Solver with Redundancy | SIL 3 | 16 | 130 x 50 x 170 | 980 |
| KJ2201X1-PW4 | Advanced Logic Solver with Extended Diagnostics | SIL 3 | 20 | 140 x 60 x 170 | 1050 |
Popular Emerson SIS & Control Modules (Same 品牌)
| 型号 | 描述 | SIL Level | Channels | Dimensions (HxWxD mm) | 重量 (g) |
|---|---|---|---|---|---|
| KJ2201X1-BA3 | SIS Logic Solver with Enhanced Redundancy | SIL 3 | 16 | 135 x 55 x 165 | 980 |
| KJ2201X1-HA2 | High-Capacity Power Supply Module | N/A | N/A | 130 x 50 x 155 | 900 |
| KJ2201X1-PW5 | 下一页-Gen Smart Logic Solver | SIL 3 | 24 | 145 x 60 x 180 | 1100 |
| KJ2201X1-BA4 | Compact SIS Logic Solver | SIL 2 | 4 | 120 x 45 x 140 | 820 |
| KJ2201X1-HA3 | Power Supply with Enhanced Protection | N/A | N/A | 125 x 45 x 155 | 870 |
| KJ2201X1-BC1 | SIS Logic Solver with Enhanced Diagnostics | SIL 3 | 24 | 140 x 60 x 175 | 1020 |
