产品介绍

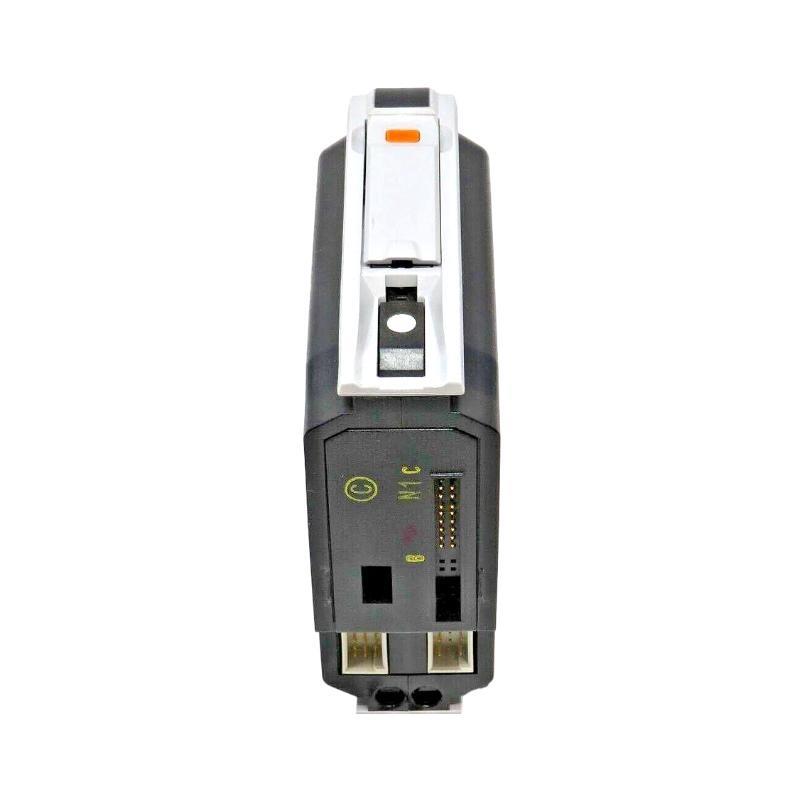

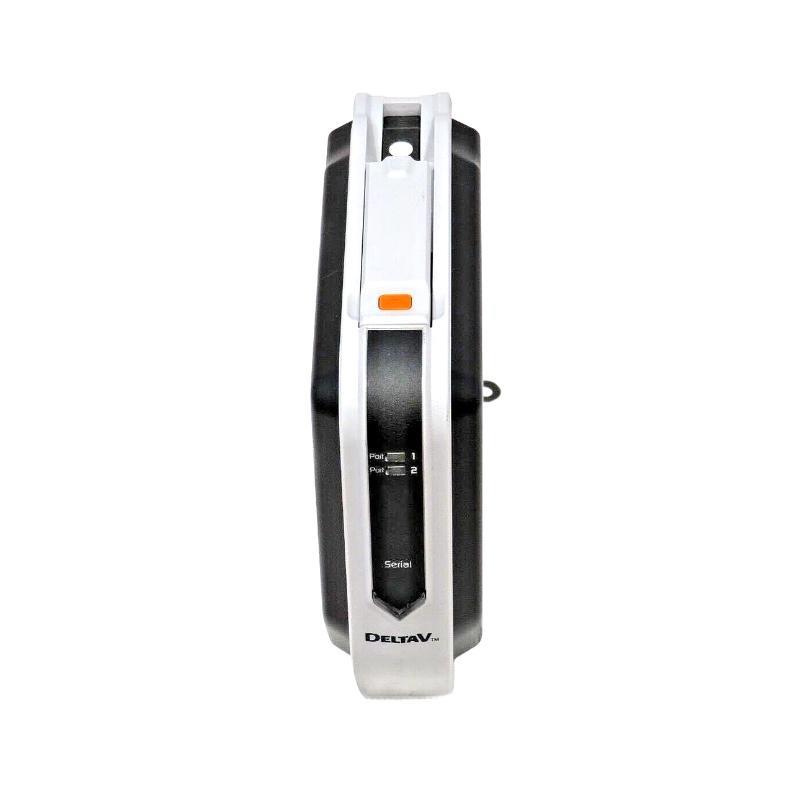

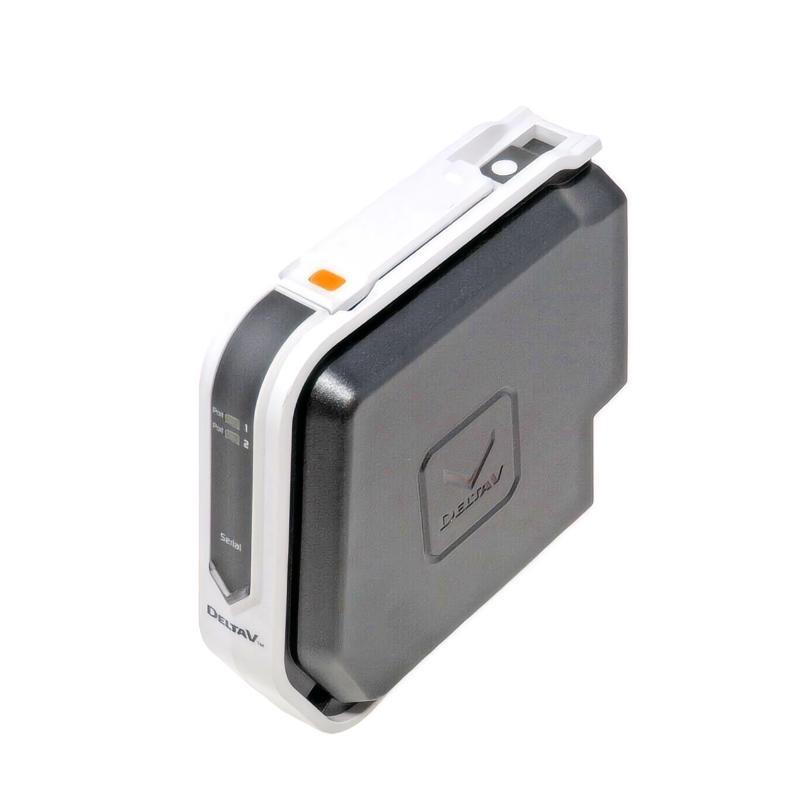

The Emerson KJ2005X1-BA2 MX Controller is a robust and versatile programmable logic controller (PLC) designed for industrial automation and control applications. As part / Emerson’s DeltaV™ Distributed Control System (DCS) family, the MX Controller delivers high-performance control capabilities with enhanced processing power and flexible communication options.
This controller is tailored to manage complex control algorithms, logic functions, and safety operations across a variety / industries including oil and gas, power generation, chemical processing, and manufacturing. Its modular architecture enables seamless integration with Emerson’s I/O modules, communication networks, and engineering tools, ensuring scalable and reliable control solutions.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | KJ2005X1-BA2 |
| 制造商 | Emerson Process Management |
| Product Type | MX Controller (Programmable Logic Controller) |
| System Compatibility | DeltaV DCS, DeltaV SIS |
| CPU Type | High-performance 32-bit microprocessor |
| Memory | Up to 512 MB program and data memory |
| I/O 支持 | Compatible with DeltaV CHARMs and external I/O modules |
| Communication Interfaces | Ethernet, serial RS-232/485, Modbus TCP/IP |
| Programming 语言 | IEC 61131-3 standard languages (Ladder Logic, Structured Text, Function Block) |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% RH non-condensing |
| Redundancy 支持 | Optional dual-redundant CPU configurations |
| Diagnostics | Built-in CPU diagnostics and event logging |
| Power Supply | 24V DC nominal |
| Certifications | CE, UL, ATEX (application dependent) |
| Dimensions (L x W x H) | 215 x 170 x 60 mm |
| 重量 | 0.5 kg |
Product Applications
The KJ2005X1-BA2 MX Controller is engineered for a wide range / automation and control scenarios requiring reliability, flexibility, and scalability:
-
Process Control in Oil and Gas
Executes complex process control logic for upstream, midstream, and downstream operations. -
Power Generation Management
Controls turbine, boiler, and auxiliary systems within power plants to optimize efficiency and safety. -
Chemical and Petrochemical Plants
Manages batch and continuous processes with high precision and integrated safety functions. -
Manufacturing Automation
Automates production lines, material handling, and quality control with real-time response. -
Safety Instrumented Systems (SIS)
Works in redundant configurations to maintain safety integrity levels (SIL) for critical operations. -
Water and Wastewater Treatment
Controls treatment processes with precise logic and data acquisition capabilities.
Product Advantages
-
High Processing Power
Equipped with a 32-bit CPU, the MX Controller handles complex control algorithms with speed and reliability. -
Modular and Scalable
支持s expansion via DeltaV CHARMs and external I/O, accommodating system growth and customization. -
Multiple Communication Protocols
Facilitates integration with various industrial networks, including Ethernet and Modbus TCP/IP. -
Redundancy Options
支持s dual-redundant CPU configurations for enhanced system availability and fault tolerance. -
Comprehensive Programming 支持
Compatible with IEC 61131-3 languages, enabling flexible and standardized control program development. -
Robust Diagnostics and Event Logging
Provides real-time CPU status, error reporting, and event logs to aid troubleshooting and preventive maintenance. -
Industry Certifications
Certified for use in hazardous environments, meeting stringent safety and compliance standards.
FAQ
-
What programming languages does the KJ2005X1-BA2 support?
It supports IEC 61131-3 standard languages, including Ladder Logic, Structured Text, and Function Block Diagram. -
Can the controller be used in redundant configurations?
Yes, it supports optional dual-redundant CPUs for fail-safe operation. -
What types / communication interfaces are available?
Ethernet, RS-232/485 serial ports, and Modbus TCP/IP are supported for flexible network integration. -
What is the maximum memory capacity / the controller?
The controller supports up to 512 MB / program and data memory. -
Is the KJ2005X1-BA2 compatible with DeltaV CHARMs?
Yes, it integrates seamlessly with DeltaV CHARMs for I/O expansion. -
Does it support safety instrumented system (SIS) applications?
Yes, it is suitable for SIS when configured with appropriate safety modules and redundancy. -
What environmental conditions can the controller operate under?
It operates reliably between -20°C and +60°C with 5–95% relative humidity, non-condensing. -
Are diagnostics and event logging available?
Yes, it includes built-in diagnostics and event logging for real-time status monitoring and troubleshooting. -
What power supply voltage is required?
The controller requires a nominal 24V DC power supply. -
Can the firmware be updated remotely?
Yes, firmware updates can be performed via network interfaces using DeltaV engineering tools.
Related 型号s (Same Series or Functionality)
| 型号 Number | 描述 | System | Functionality |
|---|---|---|---|
| KJ2005X1-BA1 | MX Controller with base configuration | DeltaV DCS | Programmable Logic Controller |
| KJ2005X1-BB1 | MX Controller with enhanced communication options | DeltaV DCS | Advanced Networking Controller |
| KJ2004X1-BA1 | Remote Interface 单位 (RIU) | DeltaV DCS | Remote Field Communication |
| KJ2002X1-MQ1 | SLS Logic Solver Module | DeltaV SIS | Safety Logic Computation |
| KJ3241X1-BA1 | Analog Output Module | DeltaV DCS | Analog Signal Control |
| KJ3002X1-BB1 | Digital Output Module | DeltaV DCS | Digital Actuator Control |
Popular Emerson 型号s (Same 品牌, High Usage)
| 型号 Number | 描述 | Application | Platform |
|---|---|---|---|
| KJ3221X1-BA1 | Analog Input Module with HART 支持 | Process Signal Acquisition | DeltaV |
| KJ2002X1-MQ1 | Safety Logic Solver Module | Safety Instrumented Systems | DeltaV SIS |
| VE4002S1T2B2 | CHARMs Baseplate with Terminal Blocks | Flexible I/O Infrastructure | DeltaV CHARMs |
| KJ3002X1-BB1 | Digital Output Module | Discrete Actuator Control | DeltaV |
| IS200DSPXH1D | Digital Signal Processor Module | Turbine Control Logic | Mark VIe |
| KJ3241X1-BA1 | 4-Channel Analog Output Module | Analog Control Output | DeltaV |
