产品介绍

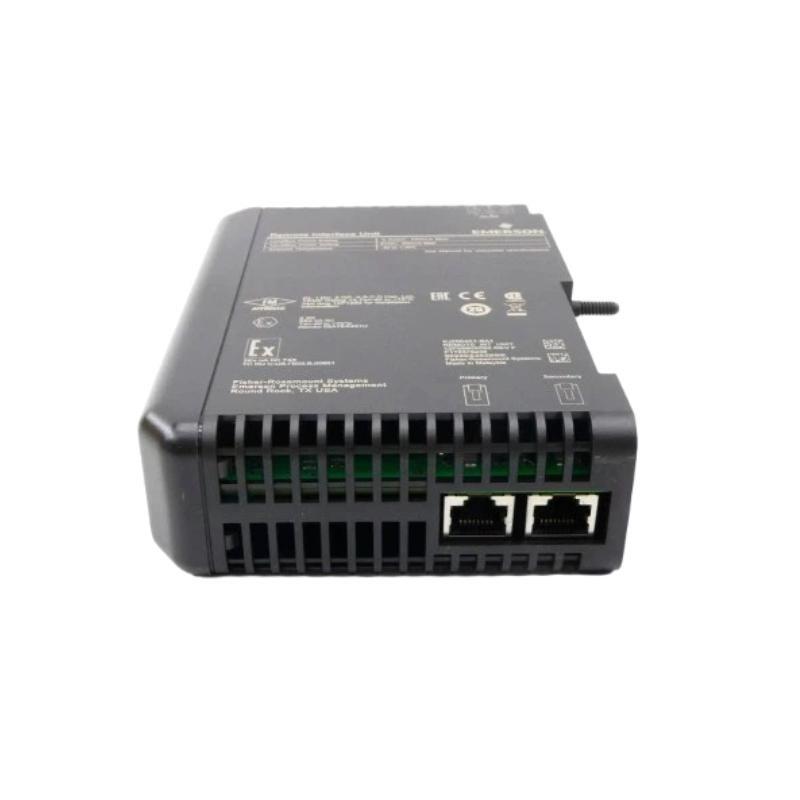

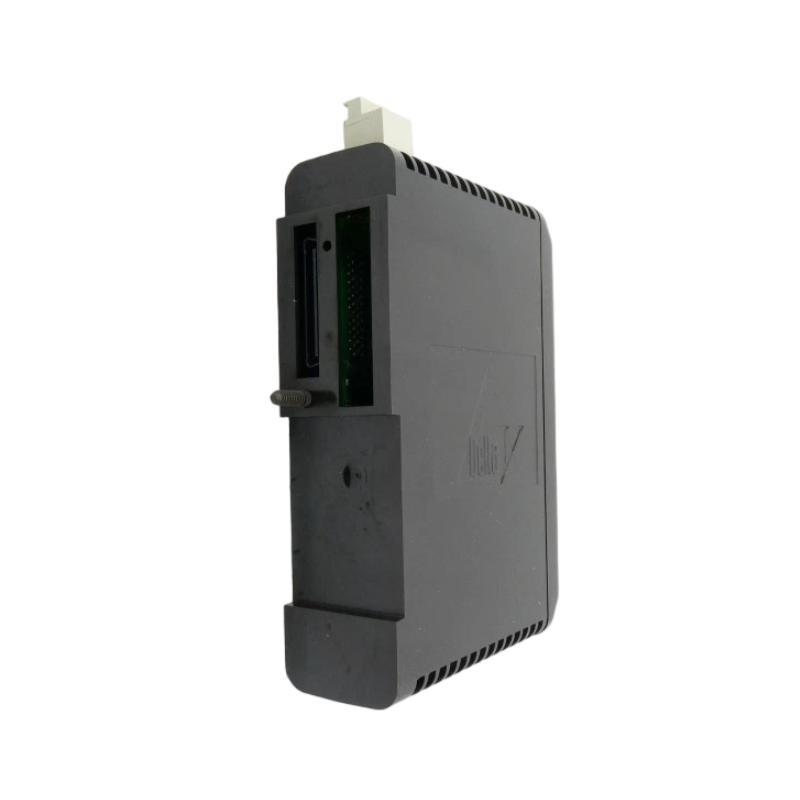

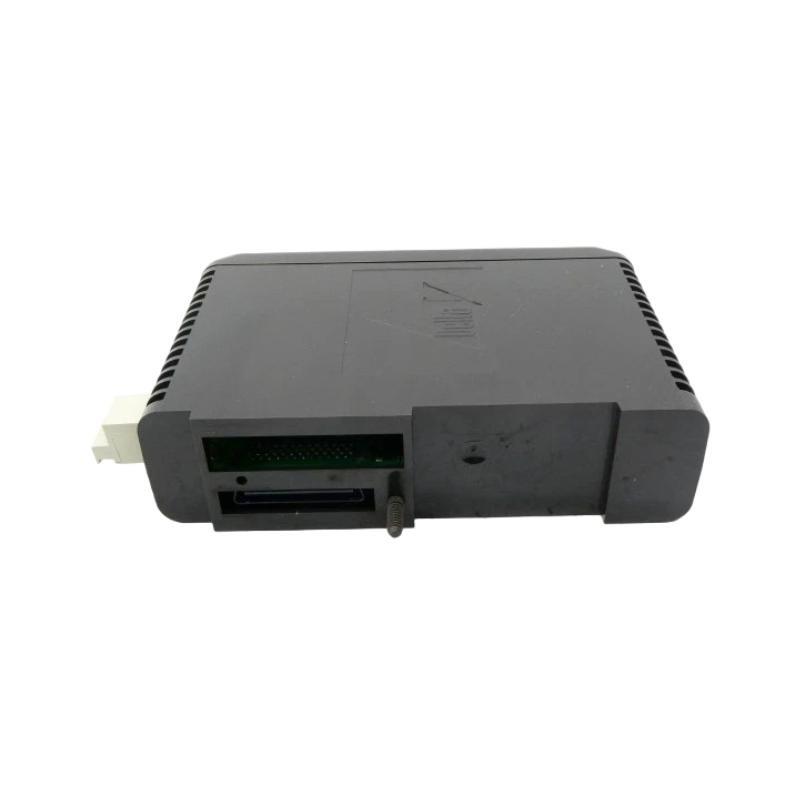

The Emerson KJ2004X1-BA1 VS3201 Remote Interface 单位 (RIU) is a versatile, rugged communication and interface device designed for integration with Emerson’s DeltaV™ Distributed Control System (DCS) and DeltaV™ Safety Instrumented System (SIS) platforms. It serves as a vital link between remote field instruments, control networks, and safety systems, enabling efficient data transmission and command execution over extended distances.
This Remote Interface 单位 supports multiple communication protocols and is engineered for use in harsh industrial environments, including oil and gas, power generation, and chemical processing plants. Its modular design, combined with robust diagnostics and redundancy capabilities, ensures continuous operation and easy maintenance, even in safety-critical applications.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | KJ2004X1-BA1 |
| 制造商 | Emerson Process Management |
| Product Type | Remote Interface 单位 (RIU) |
| System Compatibility | DeltaV DCS, DeltaV SIS |
| Communication Protocols | Modbus RTU, HART, FOUNDATION Fieldbus, Pr/ibus (optional modules) |
| Input/Output Channels | 支持s analog, digital, and serial signals |
| Redundancy 支持 | Yes, supports redundant communication paths |
| Interface Ports | Ethernet, serial RS-232/485, fieldbus connections |
| Mounting Type | Rack or panel mount |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Diagnostics | Built-in status LEDs, remote diagnostics via DeltaV s/tware |
| Power Supply | 24V DC nominal |
| Certifications | CE, UL, ATEX (depending on configuration) |
| Dimensions (L x W x H) | 107 x 41 x 105 mm |
| 重量 | 0.3 kg |
Product Applications
-
Remote Field Device Integration
Interfaces with instruments located at remote or hazardous sites, collecting process data for centralized control. -
Safety Instrumented Systems (SIS)
Provides a secure and redundant communication channel for safety devices, maintaining SIL-rated safety loops. -
Process Automation Networks
Enables communication between diverse fieldbus protocols and control systems, supporting multi-vendor environments. -
Oil and Gas Facilities
支持s hazardous area communications, including intrinsically safe signal connections for process safety. -
Power Generation Plants
Facilitates data acquisition and control for turbine and generator monitoring at distributed locations. -
Chemical and Petrochemical Plants
Interfaces with complex instrumentation setups to ensure seamless integration and process reliability.
Product Advantages
-
Multi-Protocol 支持
Accommodates multiple industrial communication standards, enabling versatile system integration. -
Redundancy and Reliability
支持s redundant communication paths to ensure continuous operation in safety-critical systems. -
Robust Diagnostics
Provides detailed real-time monitoring and fault detection, simplifying maintenance and troubleshooting. -
Rugged Design
Built to withstand harsh environmental conditions including wide temperature ranges and humidity. -
Flexible Installation
Suitable for rack or panel mounting, allowing easy integration in existing control infrastructure. -
Seamless DeltaV Integration
Fully compatible with Emerson DeltaV DCS and SIS platforms, enhancing system scalability.
FAQ
-
What communication protocols does the KJ2004X1-BA1 support?
It supports Modbus RTU, HART, FOUNDATION Fieldbus, and optionally Pr/ibus protocols. -
Can the RIU handle both analog and digital signals?
Yes, it supports multiple signal types including analog, digital, and serial communications. -
Is redundant communication supported by this 件?
Yes, the 件 supports redundant communication paths to enhance reliability. -
How does the RIU integrate with the DeltaV system?
It interfaces via Ethernet and serial ports and is configured through DeltaV s/tware tools. -
What diagnostic features are available?
The 件 /fers built-in LEDs for status, as well as detailed diagnostics accessible remotely via DeltaV. -
What is the operating temperature range / this device?
The 件 operates reliably between -40°C and +70°C. -
Does the KJ2004X1-BA1 support hazardous area certifications?
Yes, depending on configuration, it can be certified for ATEX hazardous locations. -
Can this 件 be panel mounted?
Yes, it supports both rack and panel mounting options. -
What power supply is required for operation?
It requires a nominal 24V DC power supply. -
Are firmware updates supported?
Yes, firmware can be updated through the DeltaV engineering station.
Related 型号s (Same Series or Functionality)
| 型号 Number | 描述 | System | Functionality |
|---|---|---|---|
| KJ2003X1-BB1 | Remote I/O interface module | DeltaV SIS | Remote Field Device Interface |
| KJ3002X1-BB1 | Digital I/O module | DeltaV SIS | Discrete Signal Processing |
| KJ3204X1-BA1 | Analog I/O interface | DeltaV SIS | Analog Signal 状态ing |
| KJ2004X1-BA2 | Enhanced RIU with additional protocol support | DeltaV DCS | Multi-protocol Field Interface |
| KJ4001X1-CA1 | HART-enabled interface module | DeltaV SIS | Smart Field Communication |
| KJ2002X1-MQ1 | Safety logic solver module | DeltaV SIS | Safety Instrumented Logic |
Popular Emerson 型号s (Same 品牌, High Usage)
| 型号 Number | 描述 | Application | Platform |
|---|---|---|---|
| KJ3221X1-BA1 | Analog input module with HART support | Process Signal Acquisition | DeltaV |
| KJ2002X1-MQ1 | Logic solver module | Safety Logic Processing | DeltaV SIS |
| VE4002S1T2B2 | CHARMs baseplate with terminal blocks | Flexible I/O Infrastructure | DeltaV CHARMs |
| KJ3002X1-BB1 | Digital output module | Discrete Actuator Control | DeltaV |
| IS200DSPXH1D | Digital Signal Processor Module | Turbine Control Logic | Mark VIe |
| KJ3241X1-BA1 | 4-channel analog output module | Analog Control Output | DeltaV |
