Product Overview

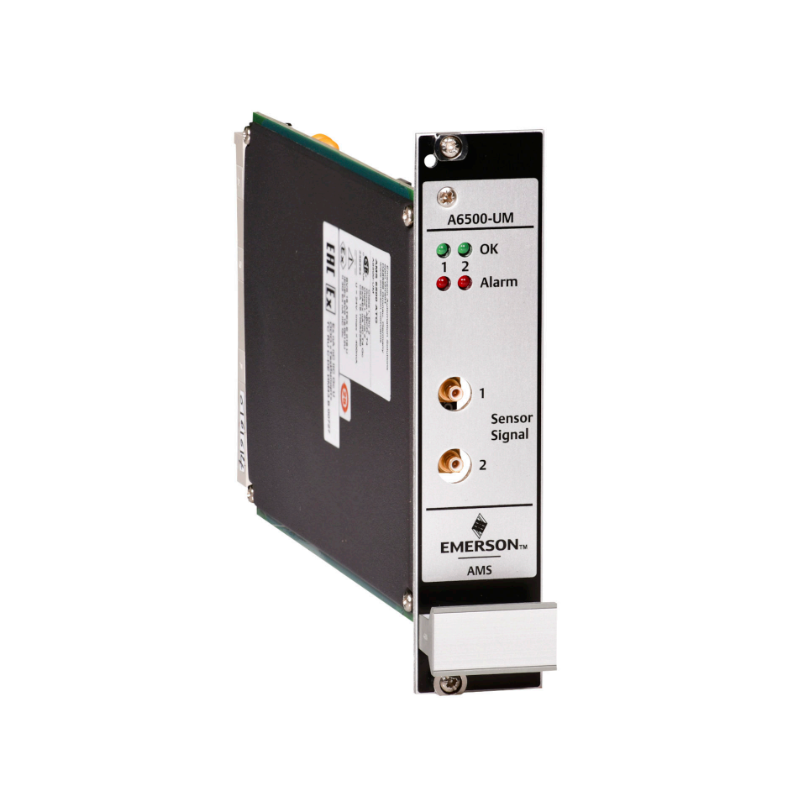

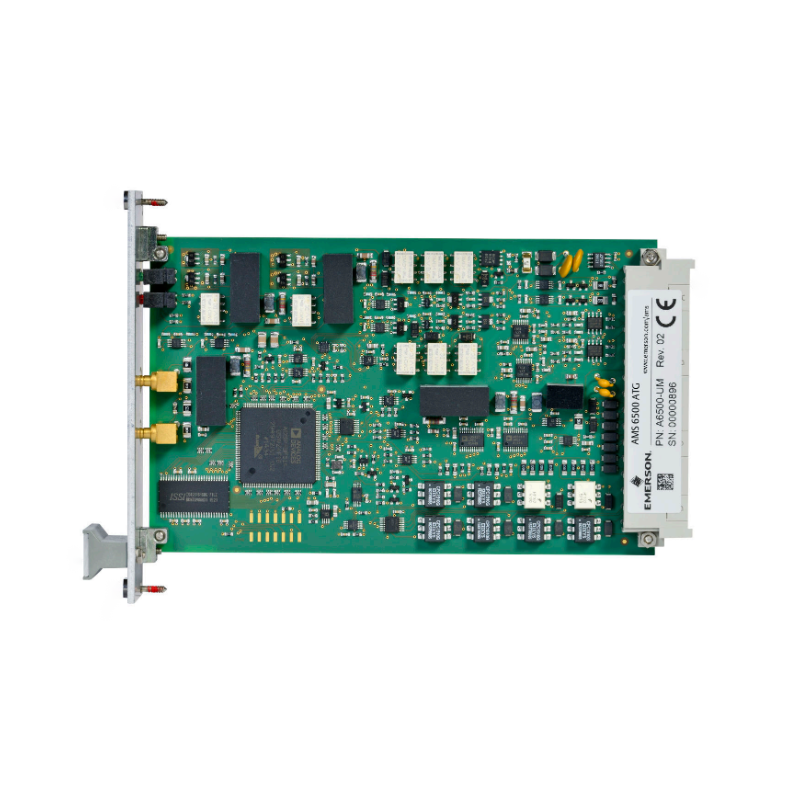

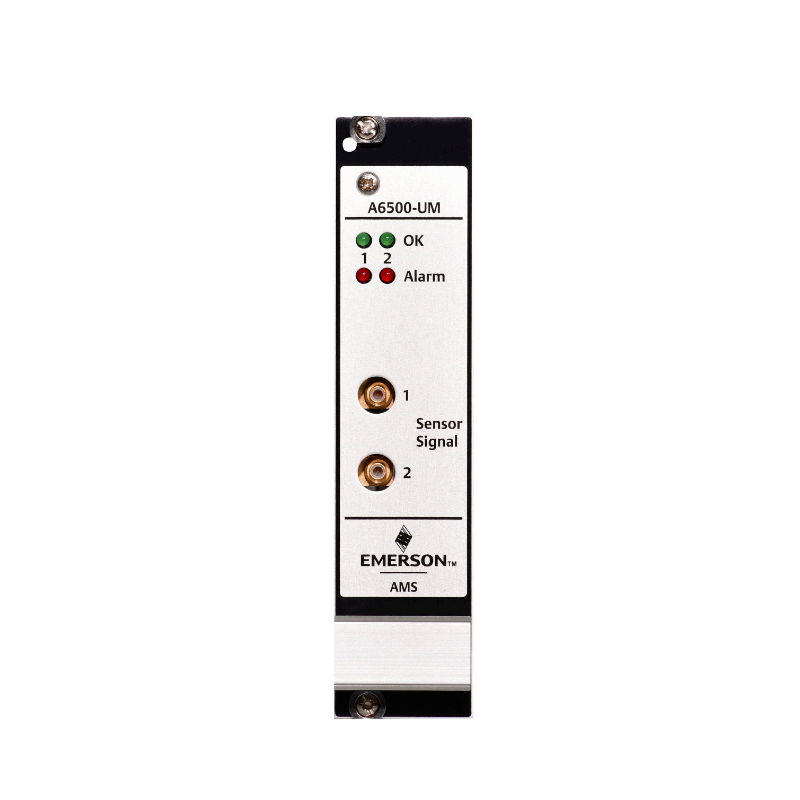

The A6500-UM Universal Measurement Card is engineered to interface with a wide array / sensor types, including eddy-current, piezoelectric (accelerometer or velometer), seismic (electro-dynamic), low-frequency bearing vibration (LF), Hall-effect, and Linear Variable Differential Transformer (LVDT) sensors (when combined with the A6500-LC). This flexibility allows it to effectively monitor parameters such as shaft vibration, casing vibration, displacement, and rotational speed, making it an essential tool for maintaining machinery health.
产品规格
Below is a detailed table outlining the key specifications / the A6500-UM Universal Measurement Card:
| Parameter | Specification |
|---|---|
| Input Channels | 2 (independent or combined, depending on measurement mode) |
| Compatible Sensors | Eddy-current, piezoelectric (accelerometer or velometer), seismic (electro-dynamic), LF (low-frequency bearing vibration), Hall-effect, LVDT (with A6500-LC) |
| Digital Inputs | 5 |
| Digital Outputs | 6 |
| Buffered Outputs | Front and rear |
| Proportional Outputs | 0/4–20 mA |
| Power Supply Voltage | 24 VDC |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -40°C to +95°C (-40°F to +203°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Tolerance | 0.03 inches peak-to-peak, 10 to 500 Hz |
| Shock Tolerance | 15 G, 11 ms, half-sine wave |
| Dimensions | 100 x 160 mm |
| 重量 | 0.2 kg |
Product Applications
The A6500-UM is utilized in various industrial settings, including:
- Rotating Machinery: Monitoring pumps, compressors, turbines, and generators to detect anomalies in vibration, displacement, and speed.
- Process Equipment: Ensuring the operational integrity / critical process machinery by monitoring vibration and other parameters.
- Manufacturing Systems: Overseeing the health / manufacturing equipment to prevent unexpected downtime and maintain product quality.
- Power Generation: Monitoring turbines and generators in power plants to ensure efficient and safe operation.
- Oil and Gas Operations: Supervising the condition / equipment used in extraction, refining, and transportation processes to prevent failures and enhance safety.
Product Advantages
The A6500-UM /fers several benefits:
- Enhanced Machinery Protection: Provides comprehensive monitoring to prevent equipment failures.
- Flexible Sensor Compatibility: 支持s various sensor types, allowing for tailored monitoring solutions.
- High Precision: Delivers accurate measurements, facilitating reliable data analysis.
- Scalability: Easily integrates into existing systems, accommodating future expansion.
- Cost Efficiency: By enabling predictive maintenance, it reduces downtime and maintenance costs.
Recent News Headlines
While specific recent news articles about the A6500-UM are not available in the provided sources, Emerson continues to innovate in machinery health monitoring, with the A6500-UM being a testament to their commitment to advancing industrial automation solutions.
常见问题 (FAQs)
-
What types / sensors are compatible with the A6500-UM?
- The card supports eddy-current, piezoelectric (accelerometer or velometer), seismic (electro-dynamic), low-frequency bearing vibration (LF), Hall-effect, and LVDT sensors (when combined with the A6500-LC).
-
Can the A6500-UM monitor multiple parameters simultaneously?
- Yes, it can monitor various parameters such as shaft vibration, casing vibration, displacement, and speed concurrently.
-
Is the A6500-UM suitable for high-temperature environments?
- It operates effectively within a temperature range / -40°C to +85°C (-40°F to +185°F).
-
How does the A6500-UM integrate with existing systems?
- It communicates via an internal RS485 bus to the A6500-CC communication card, which converts signals to Modbus RTU and Modbus TCP/IP protocols for integration with host or analysis systems.
-
What are the power requirements for the A6500-UM?
- The card requires a 24 VDC power supply.
-
Does the A6500-UM support remote configuration?
- Yes, it allows for remote selectable limit multiples and trip bypasses, facilitating flexible configuration.
-
What are the dimensions and weight / the A6500-UM?
- The card has a 3U size, single-slot plug-in module design, and weighs 0.2 kg.
-
How does the A6500-UM handle signal outputs?
- It provides front and rear buffered outputs, as well as proportional outputs ranging from 0/4–20 mA.
-
Is the A6500-UM compliant with industry standards?
- Yes, it is designed to meet industry monitoring hardware standards, ensuring reliability and compatibility.
-
What digital input and output capabilities does the A6500-UM have?
- The card includes 5 digital inputs and 6 digital outputs, enhancing its monitoring and control capabilities.
Related 型号s in the Same Series or 分类
| 型号 | 描述 |
|---|---|
| A6500-TP | Temperature Process Card designed to monitor temperature-related parameters in machinery. |
| A6500-RC | Relay Card used for managing relay outputs within the AMS 6500 ATG system. |
| A6500-CC | Communication and Rack Interface Module facilitating data transmission and system integration. |
| A6500-SR | System Rack capable / housing multiple protection cards, including the A6500-UM and A6500-TP. |
| A6500-LC | LVDT Converter Module enabling the use / LVDT sensors with the AMS 6500 system. |
| CSI 6500 | Machinery Health Monitor /fering comprehensive monitoring and protection features. |
| CSI 6300 | SIS Digital Overspeed Protection System designed for critical machinery protection. |
| CSI 2140 | Machinery Health Analyzer providing advanced vibration analysis and diagnostics. |
| CSI 9420 | Wireless Vibration Transmitter enabling remote monitoring / vibration parameters. |
| CSI 5200 | Machinery Health Protection System /fering scalable monitoring solutions for various applications. |
