产品介绍

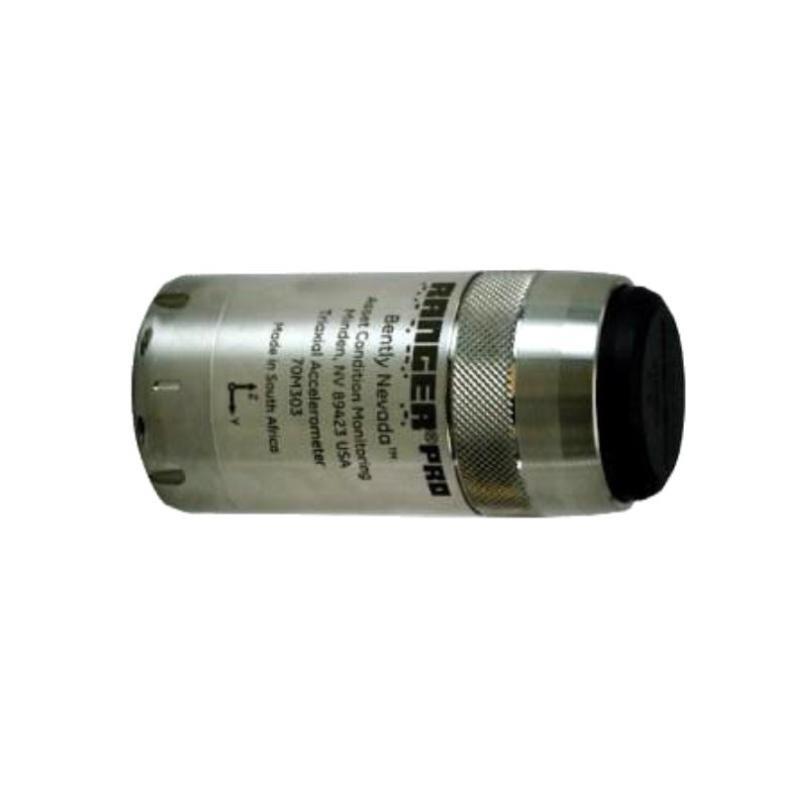

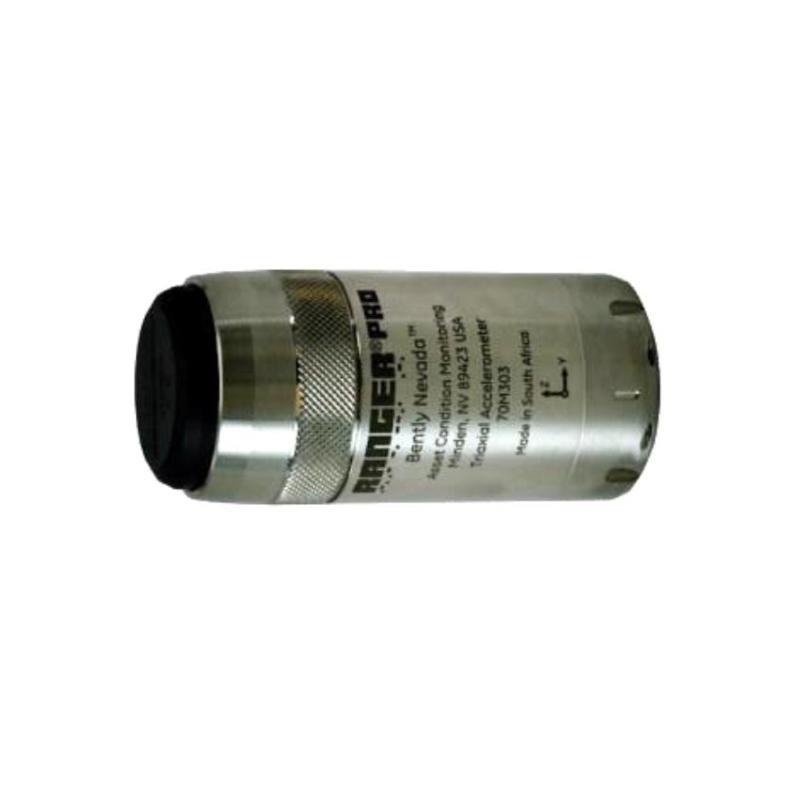

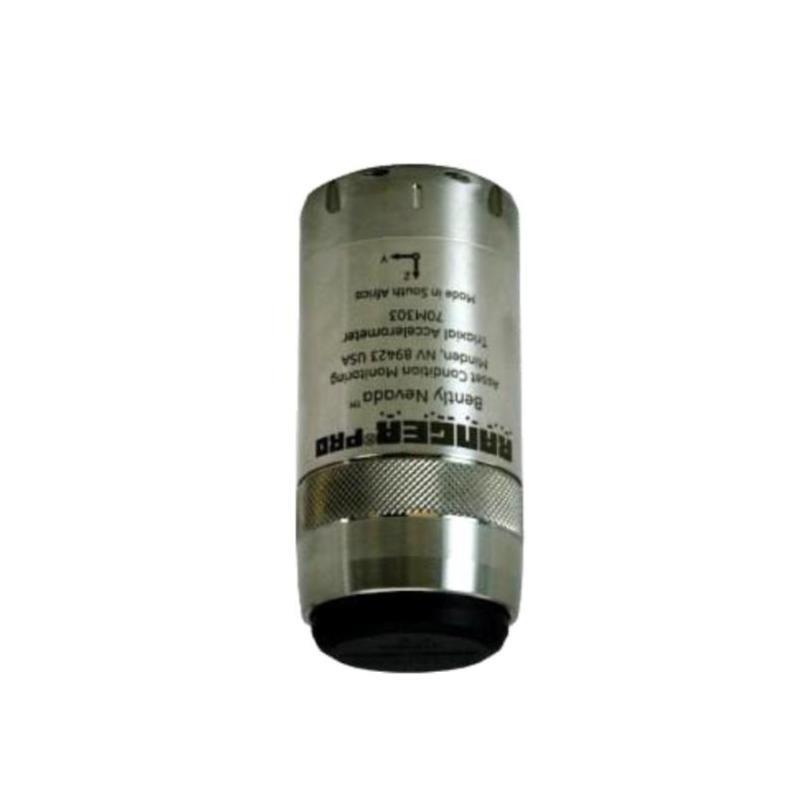

The Bently Nevada 70M301 Ranger Pro Wireless 状态 Monitoring Vibration Sensor is an advanced, industrial-grade device designed to continuously monitor the vibration condition / rotating and reciprocating machinery. As a member / the Ranger Pro Wireless family, the 70M301 extends the functionality / its predecessor (70M300) by /fering enhanced vibration measurement capability, greater wireless communication stability, and integrated multi-axis sensing for comprehensive machine diagnostics.
This sensor is a fully self-contained 件 that measures and transmits vibration data wirelessly, eliminating the need for extensive cabling or manual data collection. It operates using the ISA100 or WirelessHART industrial wireless standards, ensuring secure and reliable communication across complex industrial environments. The 70M301 is optimized for predictive maintenance and asset reliability programs, allowing maintenance engineers to detect early mechanical degradation, imbalance, misalignment, or bearing wear long before critical failures occur.
Built with a rugged stainless-steel enclosure and designed for harsh environmental conditions, the 70M301 /fers intrinsically safe operation, extended temperature capability, and long-term stability. It seamlessly integrates with Bently Nevada System 1† s/tware for real-time data visualization, trend analysis, and automated health alerts.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 70M301 |
| Product Type | Wireless Vibration Monitoring Sensor |
| Measurement Type | Vibration (Acceleration, Velocity, Envelope) |
| Vibration Range | ±50 g peak |
| Frequency Response | 2 Hz to 10 kHz |
| Resolution | 16-bit digital output |
| Sampling Rate | 25.6 kHz (typical) |
| Axes / Measurement | Single or dual-axis (configurable) |
| Temperature Range (Operating) | -40°C to +125°C |
| Temperature Sensor | Integrated RTD element |
| Communication Protocols | ISA100 Wireless / WirelessHART |
| Wireless Range | Up to 250 meters (line-/-sight) |
| Encryption | AES-128 bit data encryption |
| Power Supply | Replaceable lithium-thionyl chloride battery |
| Update Interval | Configurable, 1–60 minutes |
| Ingress Protection | IP67 / NEMA 4X |
| Material | Stainless steel housing with industrial polymer seal |
| Shock Limit | Up to 5000 g peak |
| Mounting Options | Stud mount, adhesive mount, or magnetic base |
| Certifications | CE, ATEX, IECEx, CSA (hazardous area compliant) |
| Integration Platforms | Bently Nevada System 1†, SCADA, and wireless gateways |
| Dimensions (H × W × D) | 88 x 40 mm |
| 重量 | 0.23 kg |
Product Applications
The Bently Nevada 70M301 Ranger Pro Wireless Vibration Sensor is engineered for industrial environments where continuous vibration monitoring is required, especially in areas where wired installations are costly or impractical. It provides a scalable and flexible monitoring solution suitable for a wide variety / rotating equipment.
Common application areas include:
-
Rotating Machinery Monitoring – Compressors, pumps, turbines, fans, blowers, and motors.
-
Oil & Gas Industry – Used in refineries and /fshore platforms for monitoring critical rotating assets.
-
Power Generation Plants – Continuous condition monitoring for turbines, cooling systems, and generators.
-
Pulp and Paper Industry – For the monitoring / rollers, dryers, and paper machine bearings.
-
Chemical and Petrochemical Plants – Ideal for hazardous and remote monitoring zones.
-
Mining and Cement Plants – Monitors crushers, mills, and conveyor systems in dusty, harsh environments.
-
Water and Wastewater Facilities – Ensures mechanical health / pumps and agitators.
By enabling wireless data collection and integration with centralized analytics, the 70M301 supports condition-based maintenance, helping operators minimize unplanned outages and extend machine lifespan.
Product Advantages
-
Wireless Flexibility: Eliminates the need for wired connections, simplifying installation and reducing maintenance costs.
-
Advanced Multi-Axis Sensing: Capable / measuring vibration in multiple directions for improved diagnostic accuracy.
-
High Precision and Stability: 16-bit digital resolution and low-noise electronics provide reliable, repeatable data.
-
Rugged and Durable Design: IP67-rated stainless steel housing withstands harsh industrial environments.
-
Extended Temperature Range: Operates reliably in both extreme cold and high-temperature applications.
-
Hazardous Area Certification: Certified for use in explosive and flammable environments under ATEX and IECEx.
-
Long Operational Life: Designed for years / continuous operation with replaceable battery support.
-
Seamless System Integration: Compatible with Bently Nevada System 1 and other condition monitoring platforms.
-
Predictive Maintenance Capability: Enables early fault detection for bearings, imbalance, and misalignment.
-
Secure Communication: Utilizes encrypted wireless transmission for data integrity and reliability.
FAQ
1. What type / vibration data can the 70M301 measure?
It can measure acceleration, velocity, and envelope vibration signals for comprehensive machine condition analysis.
2. What wireless protocol does the sensor use for communication?
It supports both ISA100 and WirelessHART industrial wireless standards.
3. Can the update or transmission interval be configured?
Yes, the update rate can be configured between 1 and 60 minutes, depending on application needs.
4. What is the maximum range / wireless communication?
The sensor can transmit data up to approximately 250 meters in open, unobstructed environments.
5. Does the 70M301 include a temperature sensing function?
Yes, it includes an integrated RTD temperature element for simultaneous vibration and thermal monitoring.
6. What type / battery is used in the 70M301 sensor?
It uses a replaceable lithium-thionyl chloride battery for long-term field operation.
7. Can the sensor be mounted on vertical or horizontal surfaces?
Yes, it supports multiple mounting options including stud, adhesive, and magnetic base mounting.
8. Is the 70M301 suitable for hazardous environments?
Yes, it is certified under ATEX, IECEx, and CSA for hazardous area use.
9. How does the sensor integrate with Bently Nevada monitoring systems?
It communicates wirelessly with Bently Nevada gateways and integrates seamlessly with System 1† s/tware for data processing.
10. What frequency range does the 70M301 cover?
It /fers a wide frequency range from 2 Hz up to 10 kHz, suitable for most rotating machinery applications.
Related 型号s (Same Series or Family)
| 型号 | 描述 |
|---|---|
| 70M300 | Standard Ranger Pro wireless sensor with single-axis vibration and temperature measurement |
| 70M302 | Dual-axis wireless vibration sensor for complex equipment monitoring |
| 70M303 | Wireless condition monitoring sensor with extended dynamic range |
| 70M304 | Compact version designed for space-constrained installations |
| 70M305 | Explosion-pro/ version for hazardous and /fshore environments |
| 70M306 | Long-distance communication variant with extended battery capacity |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 3500/40M | Proximitor Monitor for shaft vibration and position monitoring |
| 3500/42M | Dual-channel vibration and position monitor module |
| 3300 XL 8mm Probe | Industry-standard proximity probe for shaft vibration measurement |
| 3500/93 | High-reliability power supply module for 3500 rack systems |
| 330400 Velomitor Sensor | Velocity sensor for machine condition analysis |
| 3500/22M | Transient Data Interface for dynamic machinery diagnostics |
