产品介绍

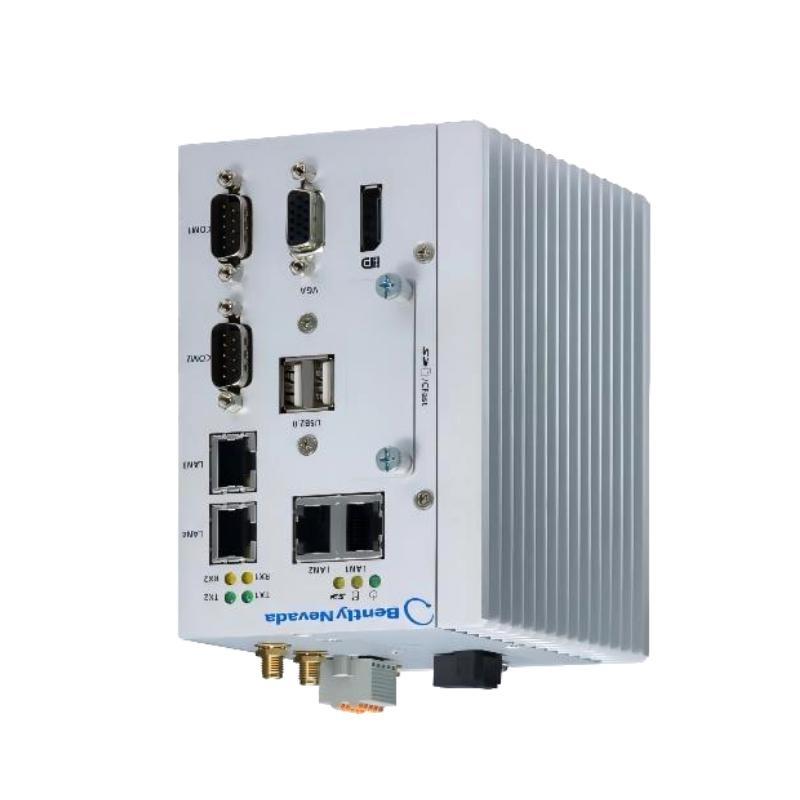

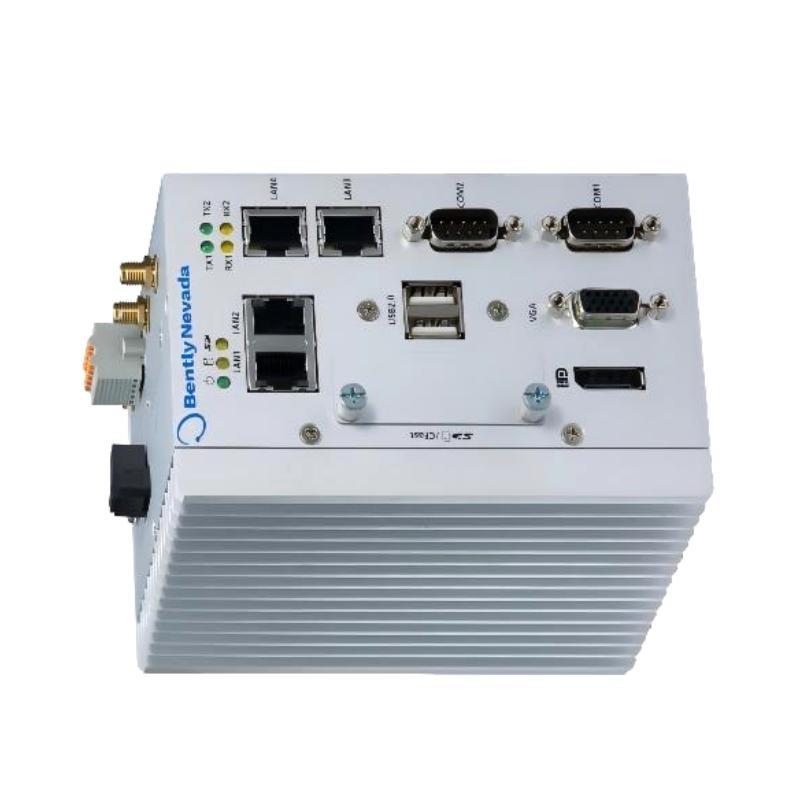

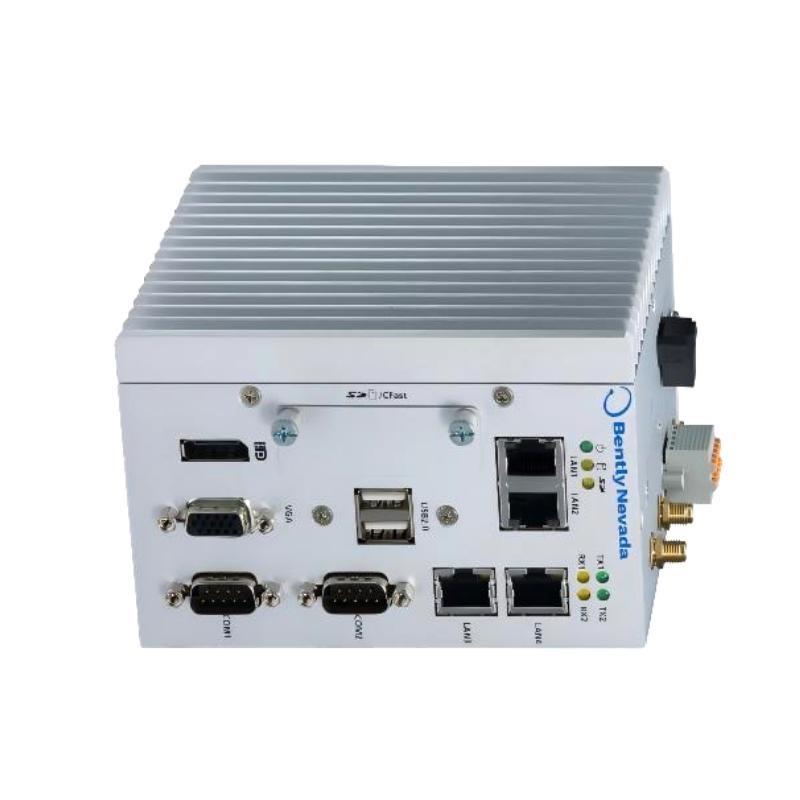

The Bently Nevada 60X/CMP01-00 Industrial Computer for Display is a rugged, high-performance computing platform engineered for demanding industrial environments. Designed to support real-time monitoring, data acquisition, and advanced visualization, this industrial-grade computer ensures seamless integration with Bently Nevada vibration and condition monitoring systems. Its fanless architecture, extended temperature tolerance, and versatile connectivity make it suitable for mission-critical applications such as process automation, turbine and compressor monitoring, and factory-floor control systems. Built with robust hardware, it delivers stable operation in environments where standard /fice PCs cannot survive.
Technical Specifications
| Parameter | 描述 |
|---|---|
| CPU | Intel Atom processor E3845, Quad-core, 1M cache, 1.91 GHz |
| System Memory | 4 GB |
| Storage | SD 3.0 (SDHC/SDXC) 128 GB |
| Display | Intel HD Graphics 4000 |
| USB Ports | 2 × USB 2.0 |
| VGA | Resolution up to 1920 × 1200 pixels at 75 Hz, HDDB-15F port |
| DisplayPort | Resolution up to 2560 × 1600 pixels at 60 Hz receptacle |
| Ethernet | 4 × Auto-sensing 10/100/1000 Mbps RJ45 ports, magnetic isolation protection 1.5 kV |
| Serial | 2 × RS-232/422/485 DB9M ports |
| Voltage | 12/24 VDC (11.4 to 36 VDC) |
| Power Consumption | Less than 30 W nominal |
| LEDs | System Power, Storage |
| LAN Indicators | 2 LEDs per port for 100/1000 Mbps |
| Serial Indicators | 2 LEDs per port (Tx and Rx) |
| 重量 | 1.75 kg |
| Dimensions (W × H × D) | 132 x 122 x 87 mm |
| Operating Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Storage Temperature | –45 °C to 75 °C (–49 °F to 167 °F) |
| Ambient Relative Humidity | 5 % to 95 % (non-condensing) |
| Anti-Vibration | 0.7 g @ DNV GL (Class A), sine wave, 2–100 Hz, 1 Oct/min, 1.5 hr per axis |
| Anti-Shock | 50 g, 11 ms ±X, ±Y, ±Z, 3 shocks each axis with SD |
| Certification | DNV GL, CE, RoHS |
Applications
-
Process Control and Automation: Ideal for plant-floor supervisory systems requiring continuous operation and high reliability.
-
状态 Monitoring: Seamlessly integrates with Bently Nevada monitoring hardware to display real-time vibration and machine health data.
-
Turbine and Compressor Monitoring: Handles high-speed data acquisition and visualization in rotating equipment applications.
-
Industrial HMI: Functions as a powerful human-machine interface in harsh factory and outdoor environments.
-
Data Logging and Analysis: Captures and stores operational data for predictive maintenance and performance optimization.
-
Transportation and Marine Systems: Rugged design and wide voltage input make it suitable for /fshore and shipboard installations.
Advantages
-
Fanless Design: Reduces maintenance needs and prevents dust ingress, ensuring silent and reliable operation.
-
Wide Temperature Tolerance: Operates from –40 °C to +70 °C for extreme industrial conditions.
-
High Connectivity: Multiple USB, Ethernet, serial, VGA, and DisplayPort interfaces for flexible integration.
-
Industrial-Grade Durability: Anti-shock and anti-vibration compliance for harsh environments.
-
Energy Efficient: Low power consumption (<30 W) reduces operational costs and heat generation.
-
Compact Footprint: Space-saving design simplifies installation in tight control cabinets.
-
Secure and Stable: Magnetic isolation on Ethernet ports provides extra protection against electrical surges.
FAQ
-
What type / processor is used in the 60X/CMP01-00?
It uses an Intel Atom E3845 quad-core processor with a 1M cache and 1.91 GHz clock speed. -
What is the maximum supported display resolution via DisplayPort?
Up to 2560 × 1600 pixels at 60 Hz. -
How many Ethernet ports are available and what are their speeds?
Four auto-sensing 10/100/1000 Mbps RJ45 ports with 1.5 kV magnetic isolation. -
What is the nominal power requirement for this computer?
12/24 VDC input with a consumption / less than 30 W. -
Does it include integrated graphics?
Yes, it is equipped with Intel HD Graphics 4000 for industrial visualization. -
How many serial communication ports are available?
Two RS-232/422/485 DB9M ports. -
What anti-vibration rating does the 件 meet?
0.7 g @ DNV GL (Class A), sine wave 2–100 Hz, 1 Oct/min, 1.5 hr per axis. -
What is the anti-shock specification?
50 g, 11 ms ±X, ±Y, ±Z, 3 shocks per axis with SD installed. -
Can it operate in marine environments?
Yes, it is certified to DNV GL standards for marine and /fshore applications. -
What is the operating humidity range?
5 % to 95 % relative humidity, non-condensing.
