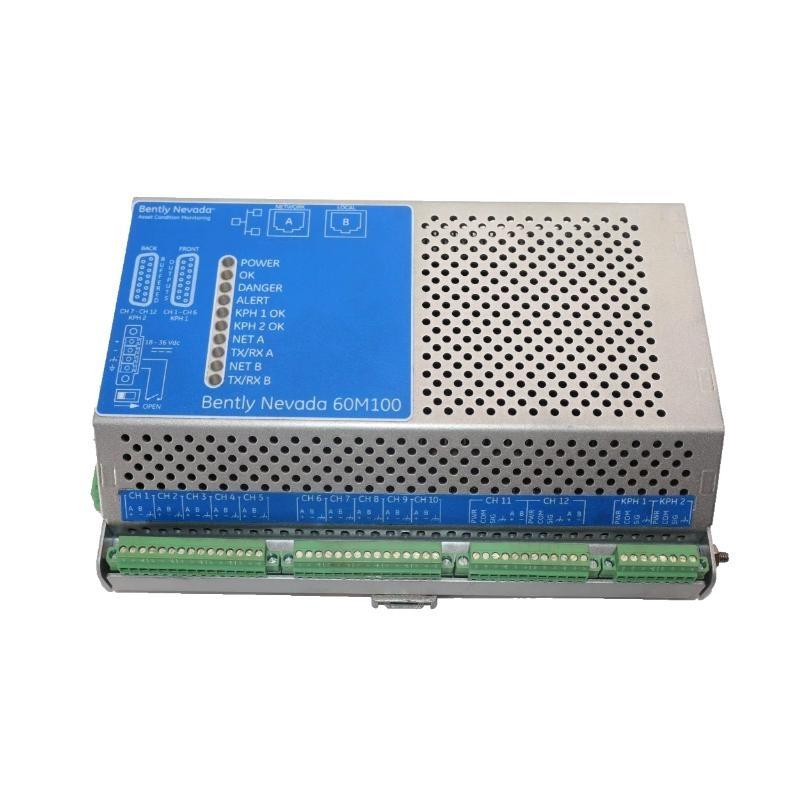

The Bently Nevada 60M100-00 状态 Monitoring System is a high-performance, industrial-grade platform designed to provide continuous and real-time surveillance / rotating machinery and critical plant assets. Developed for industries such as oil & gas, power generation, petrochemical, and heavy manufacturing, the 60M100-00 integrates advanced sensing, data acquisition, and diagnostics into a compact, rugged system. Its modular architecture allows scalable monitoring—from a few key points to a plant-wide network—while delivering precise vibration, temperature, and process data to predictive maintenance s/tware. This reduces unplanned downtime, lowers maintenance costs, and extends equipment life.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | 状态 Monitoring System |
| 型号 Number | 60M100-00 |
| System Architecture | Modular, multi-channel |
| Input Channels | Up to 12 vibration or mixed-signal inputs |
| Sensor Compatibility | Proximity probes, accelerometers, RTDs, and 4–20 mA process signals |
| Sampling Rate | 40 kHz per channel (configurable) |
| Dynamic Range | 90 dB |
| Data Interface | Ethernet (TCP/IP), Modbus, OPC UA |
| Alarm/Relay Outputs | 8 programmable relay outputs |

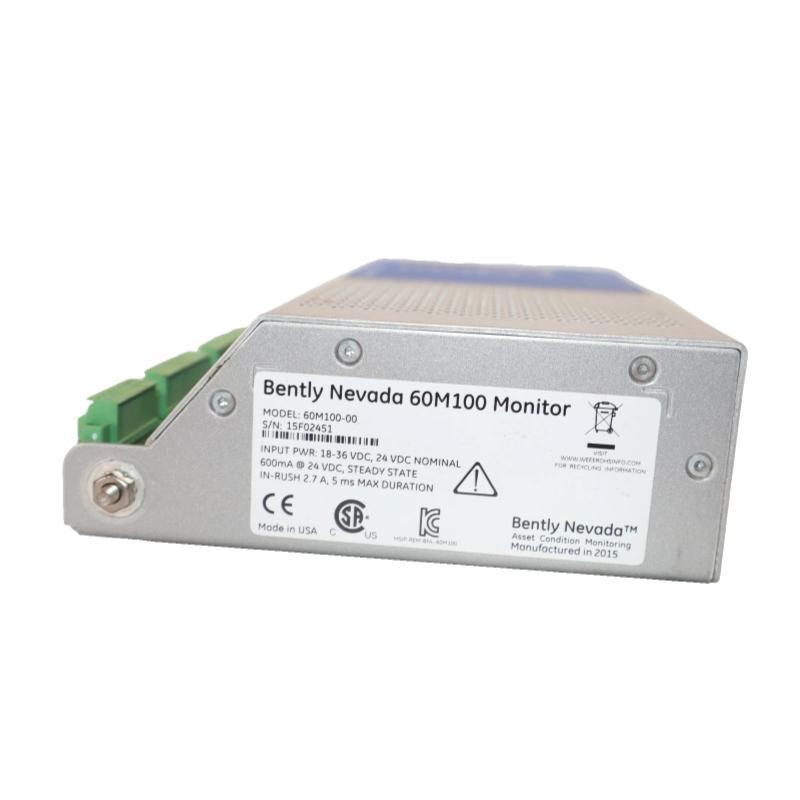

| Power Supply | 24 VDC nominal (range 18–36 VDC) |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Relative Humidity | 5%–95% non-condensing |
| Vibration Resistance | 5 g from 5–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| Enclosure Rating | IP65 / NEMA 4X |
| Dimensions (W × H × D) | 225 × 150 × 55 mm |
| 重量 | 1.4 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Power Generation: Continuous monitoring / turbines, generators, and auxiliary equipment to prevent costly forced outages.
-
Oil & Gas: Early detection / bearing wear, imbalance, and cavitation in pumps and compressors.
-
Petrochemical Plants: Supervises critical agitators, fans, and process motors under extreme temperatures.
-
Steel & Pulp Mills: Maintains the reliability / high-speed rolls and drives exposed to dust and vibration.
-
Marine & Offshore Platforms: Provides stable performance in salt-laden and humid environments.
-
Predictive Maintenance Programs: Integrates with enterprise s/tware for advanced analytics and machine-learning-driven diagnostics.
Advantages
-
Comprehensive Multi-Parameter Monitoring: Simultaneous measurement / vibration, temperature, and process signals for a holistic view / asset health.
-
High-Speed Data Acquisition: 40 kHz per channel sampling delivers fine-resolution vibration spectra for accurate fault detection.
-
Industrial Durability: Rugged IP65 enclosure protects electronics from moisture, dust, and corrosive agents.
-
Flexible Communication: Ethernet, Modbus, and OPC UA interfaces allow seamless integration into existing SCADA or DCS networks.
-
Advanced Alarming: Configurable alarm logic and 8 relay outputs support automated shutdown and early warnings.
-
Scalable and Modular: Expandable design accommodates future growth in channel count and monitoring requirements.
-
Energy Efficiency: Low 24 VDC power consumption reduces operating costs and simplifies field deployment.
-
Regulatory Compliance: Meets global standards for safety, EMC, and environmental protection.
FAQ
-
What types / sensors are supported by the 60M100-00 状态 Monitoring System?
The system accepts proximity probes, accelerometers, RTDs, and 4–20 mA process transducers for comprehensive machine health measurements. -
How many input channels can be configured simultaneously?
Up to 12 dynamic or mixed-signal channels can be monitored in real time, with each channel independently configurable. -
What is the maximum data sampling rate per channel?
Each channel supports a configurable sampling rate up to 40 kHz, enabling high-resolution vibration spectrum analysis. -
How is the system integrated into plant networks?
Communication options include Ethernet TCP/IP, Modbus, and OPC UA, allowing seamless connectivity to SCADA, DCS, or predictive maintenance platforms. -
What alarm capabilities are provided?
The 件 /fers eight programmable relay outputs and multiple alarm setpoints per channel to trigger warnings or automatic shutdowns. -
Does the system provide real-time condition diagnostics?
Yes, it continuously analyzes vibration and process data to detect imbalance, misalignment, bearing faults, and other mechanical issues. -
What is the recommended power supply specification?
The module operates at a nominal 24 VDC, with an acceptable input range / 18–36 VDC to accommodate different power conditions. -
Is the 60M100-00 suitable for harsh outdoor environments?
Its IP65/NEMA 4X enclosure provides excellent protection against dust, water, and corrosive atmospheres. -
Can the system be expanded for additional monitoring points?
Yes, the modular design allows future expansion by adding extra input cards or system modules. -
What vibration and shock ratings does the 件 meet?
It withstands continuous vibration / 5 g from 5–2000 Hz and shock up to 30 g for 11 ms without performance degradation.
Related 型号s (Same Series/Family)
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| 60M100-01 | 状态 Monitoring System with redundant power | Enhanced power reliability |
| 60M100-02 | High-Channel Count Monitoring System | 支持s up to 24 channels |
| 60M100-03 | Compact Monitoring System | Reduced enclosure size for tight spaces |
| 60M200-00 | Advanced 状态 Monitoring System | Higher processing speed and memory |
| 60M210-00 | Wireless-Ready 状态 Monitoring System | Integrated wireless data interface |
| 60M300-00 | Extended-Temperature 状态 Monitoring | Operation up to 85 °C (185 °F) |
