Product Overview

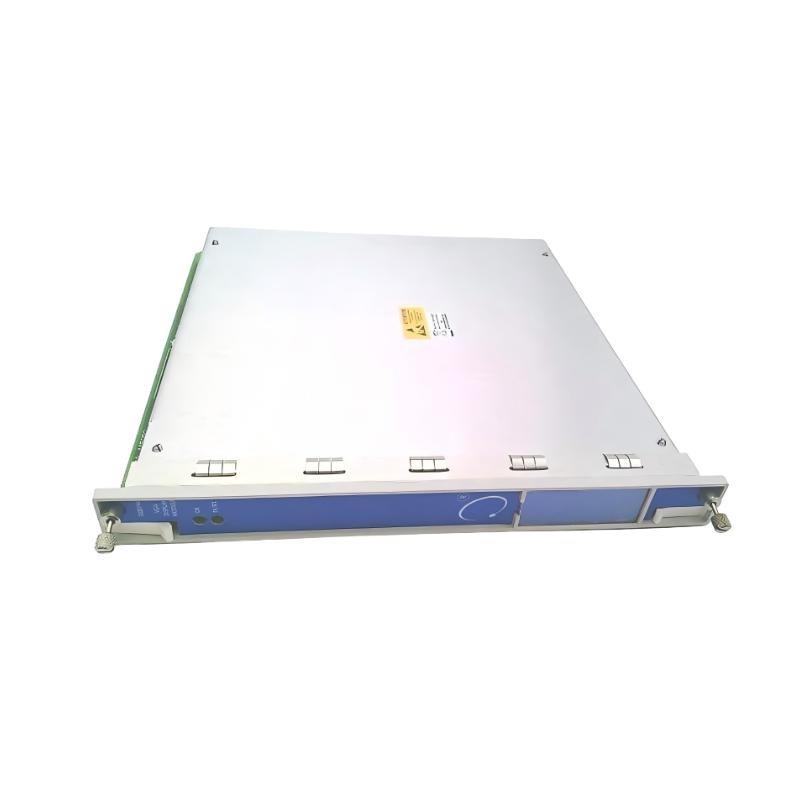

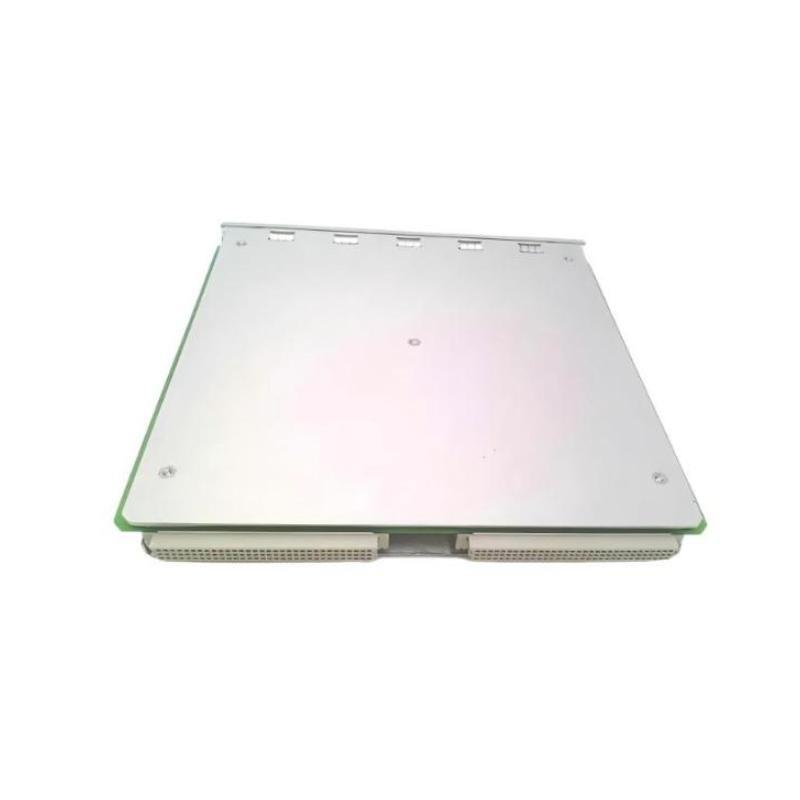

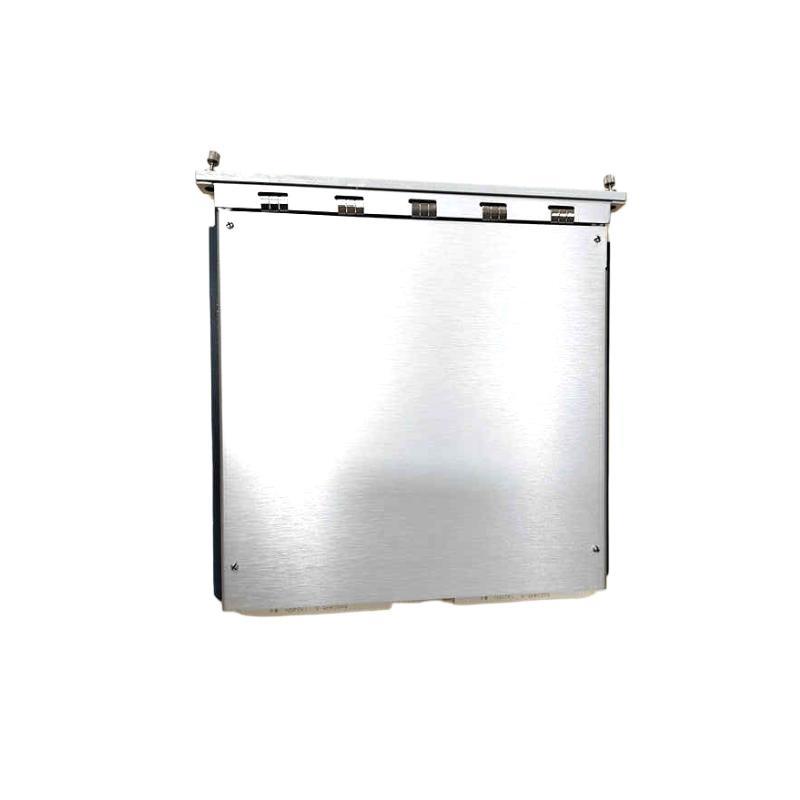

The Bently Nevada 3500/91-01-02-00 EGD Communication Gateway Module is an advanced device that facilitates communication between Bently Nevada 3500 Series Monitoring Systems and various external control systems, such as SCADA, DCS, and PLC systems. By connecting Bently Nevada’s machinery monitoring systems to broader control infrastructure, this communication gateway ensures real-time, accurate data transmission for continuous monitoring / machine health, performance, and diagnostics.
Designed for industries that require high-reliability data transfer, the 3500/91-01-02-00 model provides an essential link for integrating crucial data points such as vibration, temperature, pressure, and speed readings from rotating machinery into centralized monitoring systems. This real-time connectivity enhances the ability to detect faults early and make timely decisions that can extend the lifespan / equipment and reduce costly downtime.
Its versatile communication capabilities, which include support for Ethernet, Modbus, TCP/IP, and OPC protocols, ensure the 3500/91-01-02-00 is easily adaptable to a wide range / industrial environments, including oil & gas, power generation, mining, and manufacturing. By improving data visibility and supporting predictive maintenance strategies, the module ultimately helps enhance productivity and system efficiency.
产品规格:
| Specification | Details |
|---|---|
| 型号 | 3500/91-01-02-00 |
| Communication Protocol | Ethernet, Modbus, TCP/IP, OPC |
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.79 kg |
| Power Supply | 24 VDC |
| Mounting Type | DIN Rail Mounting |
| I/O Capacity | Up to 10 I/O points |
| Protection Class | IP20 |
| Operating Temperature | -40°C to 85°C |
| Protocols 支持ed | Modbus, TCP/IP, Ethernet, OPC |
Product Applications:
The 3500/91-01-02-00 EGD Communication Gateway Module plays a vital role in connecting Bently Nevada’s machinery monitoring systems with various SCADA, DCS, and PLC systems, enabling real-time communication for better decision-making and equipment maintenance. Below are several industries where the 3500/91-01-02-00 is used:
-
Power Generation: The module integrates real-time monitoring data from turbines, generators, and other equipment to SCADA systems for continuous health tracking and predictive maintenance.
-
Oil & Gas: It supports remote monitoring / equipment like pumps, compressors, and separators, ensuring that critical machinery is continually assessed to reduce unplanned downtime.
-
Heavy Manufacturing: It enables the integration / health data from various industrial machines such as motors, conveyors, and HVAC systems, facilitating operational efficiency and safety.
-
Mining: The module allows for real-time condition monitoring / large-scale machinery, including excavators, crushers, and drills, helping to prevent costly failures.
-
Industrial Equipment: It facilitates data transfer from equipment such as compressors, blowers, and fans, providing essential operational insights to maintenance teams and operators.
Product Advantages:
-
Real-Time Communication: The 3500/91-01-02-00 allows for real-time data transfer between Bently Nevada monitoring systems and external control systems, ensuring critical machinery data is readily available for analysis and decision-making.
-
Protocol Flexibility: 支持ing a variety / communication protocols like Ethernet, Modbus, TCP/IP, and OPC, the module is flexible and easily integrates with most industrial control systems.
-
Compact Design: The module features a compact form factor / 241.3 x 24.4 x 241.8 mm, making it easy to install and fit into existing control panels with minimal space usage.
-
Scalable I/O Capacity: With a capacity / up to 10 I/O points, the module can scale to meet the needs / both small and large systems, providing flexibility in deployment.
-
Reliable Performance: Featuring IP20 protection, the module /fers protection against dust and dirt, ensuring reliable and continuous operation in industrial environments.
-
Wide Operating Temperature Range: Operating efficiently between -40°C to 85°C, the 3500/91-01-02-00 is suitable for deployment in harsh environments with varying temperature conditions.
-
Ease / Installation: The DIN rail mounting design ensures simple and quick installation in control cabinets and industrial setups.
FAQ:
1. What communication protocols are supported by the 3500/91-01-02-00?
The 3500/91-01-02-00 supports Ethernet, Modbus, TCP/IP, and OPC protocols, /fering broad compatibility with various industrial control systems.
2. How many I/O points can the 3500/91-01-02-00 support?
The module supports up to 10 I/O points, allowing it to monitor multiple pieces / equipment within the system.
3. Can the 3500/91-01-02-00 be used for real-time monitoring?
Yes, the 3500/91-01-02-00 facilitates real-time monitoring / critical machinery health data, ensuring immediate corrective actions can be taken if necessary.
4. How is the module installed?
The 3500/91-01-02-00 uses DIN rail mounting, simplifying the installation process and making it compatible with a wide range / control panels.
5. Is the 3500/91-01-02-00 module suitable for use in harsh environments?
Yes, the module is built to withstand industrial environments and features IP20 protection, making it resistant to dust and dirt.
6. What is the operating temperature range for the 3500/91-01-02-00?
The module operates within a temperature range / -40°C to 85°C, making it suitable for use in both hot and cold environments.
7. Can the 3500/91-01-02-00 be used in industries like oil and gas?
Yes, the module is commonly used in the oil and gas industry to facilitate remote monitoring and ensure that critical machinery is continuously assessed.
8. What is the benefit / integrating the 3500/91-01-02-00 with SCADA systems?
Integrating the 3500/91-01-02-00 with SCADA systems allows for real-time monitoring, predictive maintenance, and rapid decision-making to prevent unexpected equipment failures.
9. Does the module support multiple communication devices?
Yes, the 3500/91-01-02-00 can communicate with various devices within a control system using the supported protocols like Modbus and TCP/IP, enabling comprehensive monitoring / multiple machines.
10. How does the 3500/91-01-02-00 improve system reliability?
By providing continuous data flow and real-time analysis, the 3500/91-01-02-00 enables early fault detection and ensures machinery health is continuously assessed, which minimizes downtime and extends equipment life.
