Product Overview

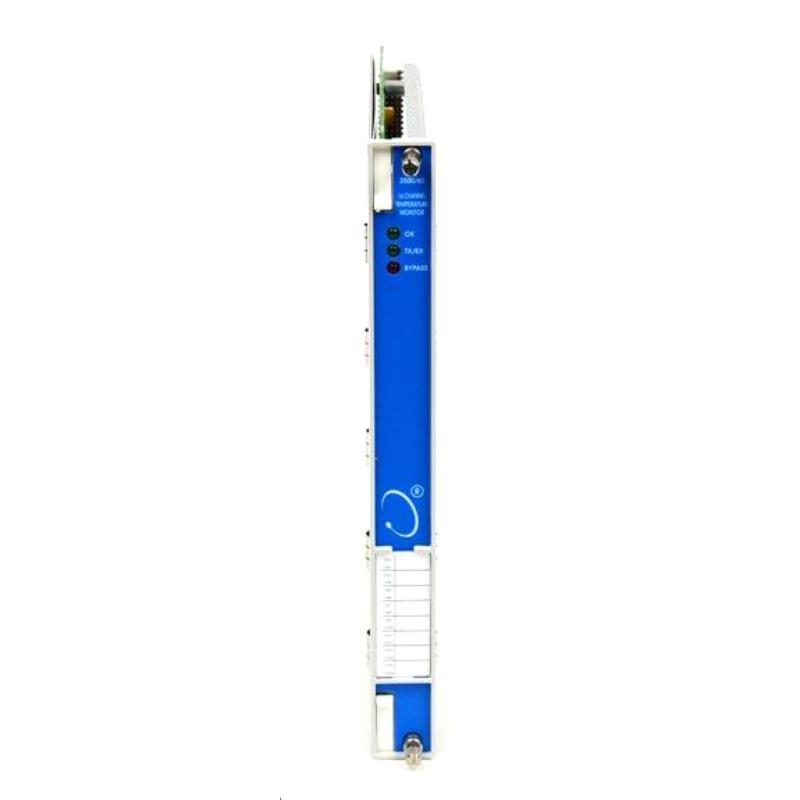

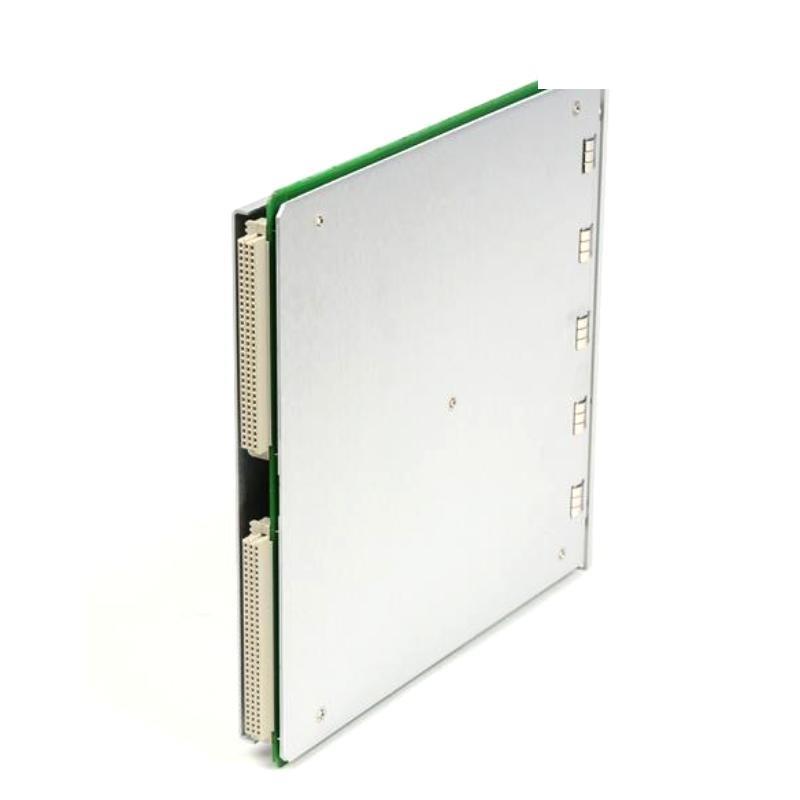

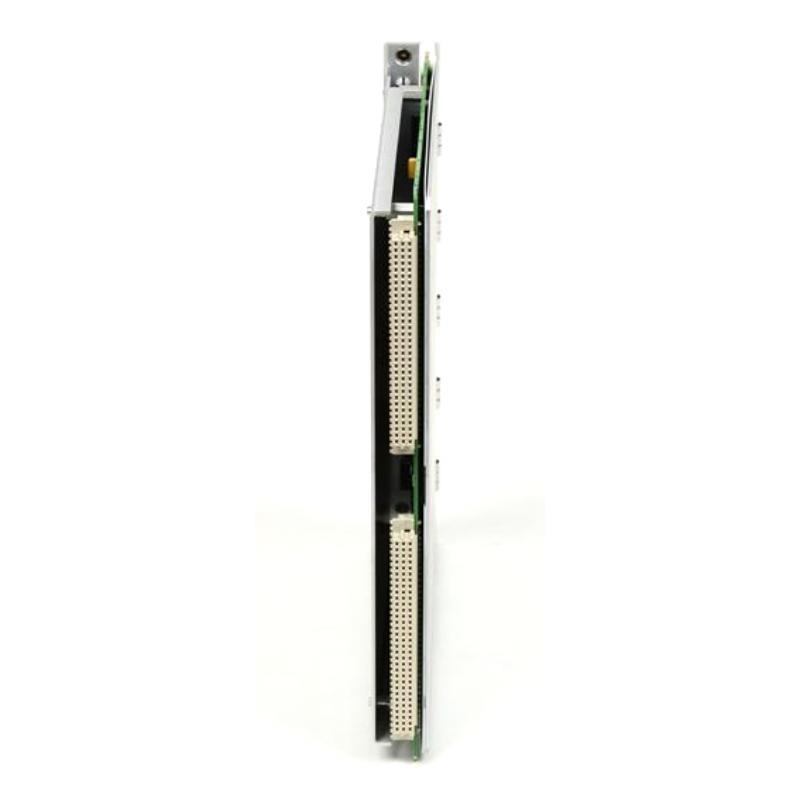

The Bently Nevada 3500/65-01-01 is a 16-channel temperature monitoring module that forms part / the 3500 machinery protection system. This module is designed to provide accurate, reliable, and continuous temperature measurements from multiple sensors in critical rotating machinery environments.
Capable / interfacing with RTDs and thermocouples, the 3500/65-01-01 /fers comprehensive temperature monitoring crucial for early detection / abnormal operating conditions. The module integrates into the 3500 rack system, enabling centralized data collection, alarm generation, and system diagnostics for enhanced machinery protection and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 3500/65-01-01 |
| Function | 16-Channel Temperature Monitor |
| Input Types 支持ed | RTDs (e.g., PT100, PT1000), Thermocouples |
| Number / Channels | 16 |
| Output | Digital data to 3500 rack system |
| Measurement Range | -200°C to +850°C (sensor dependent) |
| Accuracy | ±0.1°C typical |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approximately 2.5 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +105°C |
| Humidity | 0-95% non-condensing |
| Response Time | Sensor dependent, typically less than 1 second |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Mounting | 3500 Series Rack Mount |
| Safety Compliance | Complies with relevant industrial safety standards |
| Communication Interface | Proprietary 3500 rack communication |
Applications
The 3500/65-01-01 Temperature Monitor is ideal for:
-
Monitoring bearing temperatures in turbines and generators
-
Measuring winding and structural temperatures in rotating equipment
-
Temperature surveillance / compressors, pumps, and motors
-
状态 monitoring in petrochemical, power generation, and industrial plants
By providing timely temperature data, this module helps avoid overheating damage and unscheduled downtime.
Advantages
-
支持s simultaneous monitoring / 16 temperature points for comprehensive coverage.
-
High measurement accuracy enabling early fault detection.
-
Compatible with a variety / RTDs and thermocouples for flexible sensor options.
-
Designed for integration within the Bently Nevada 3500 rack system for centralized control.
-
Robust construction ensures reliable performance in harsh industrial environments.
-
Fast response allows rapid identification / temperature anomalies.
-
Contributes to reducing maintenance costs and improving machinery availability.
常见问题 (FAQ)
-
Which temperature sensor types are compatible with this module?
支持s RTDs such as PT100 and PT1000 as well as various thermocouples. -
How many channels does the module support?
It supports 16 independent temperature input channels. -
What is the accuracy / temperature measurements?
Typically ±0.1°C accuracy. -
Can this module be integrated with other 3500 system modules?
Yes, it is designed for seamless integration with the 3500 rack and system. -
What kind / output does the module provide?
Digital data transmission via the proprietary 3500 rack backplane. -
What are the operating environmental conditions for the module?
Suitable for -40°C to +85°C operating temperature and up to 95% non-condensing humidity. -
Is the module designed for harsh industrial environments?
Yes, it features robust construction for industrial use. -
How much power does the module consume?
Approximately 2.5 Watts. -
What maintenance is required?
Routine sensor calibration checks and periodic functional testing are recommended. -
What is the expected operational lifetime?
Typically more than 10 years with proper maintenance.
