Product 描述
The Bently Nevada 3500/61 Temperature Module is engineered for precise temperature monitoring in critical rotating machinery systems. It integrates seamlessly into the 3500 series monitoring platform, delivering accurate and reliable temperature data for turbine, compressor, and generator applications. The module supports both real-time monitoring and historical trend analysis, ensuring proactive maintenance and minimizing unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|

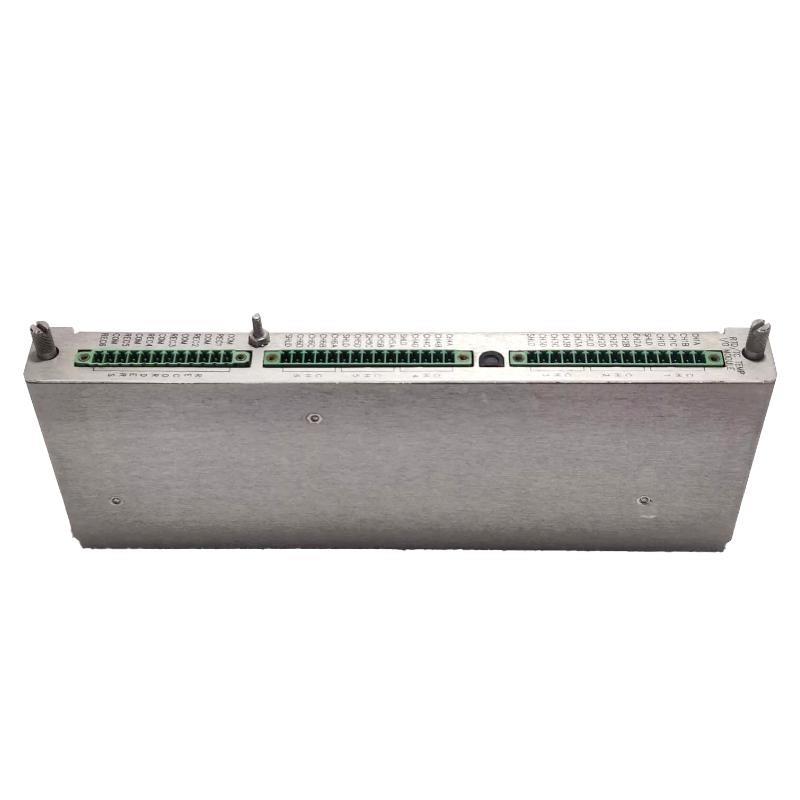

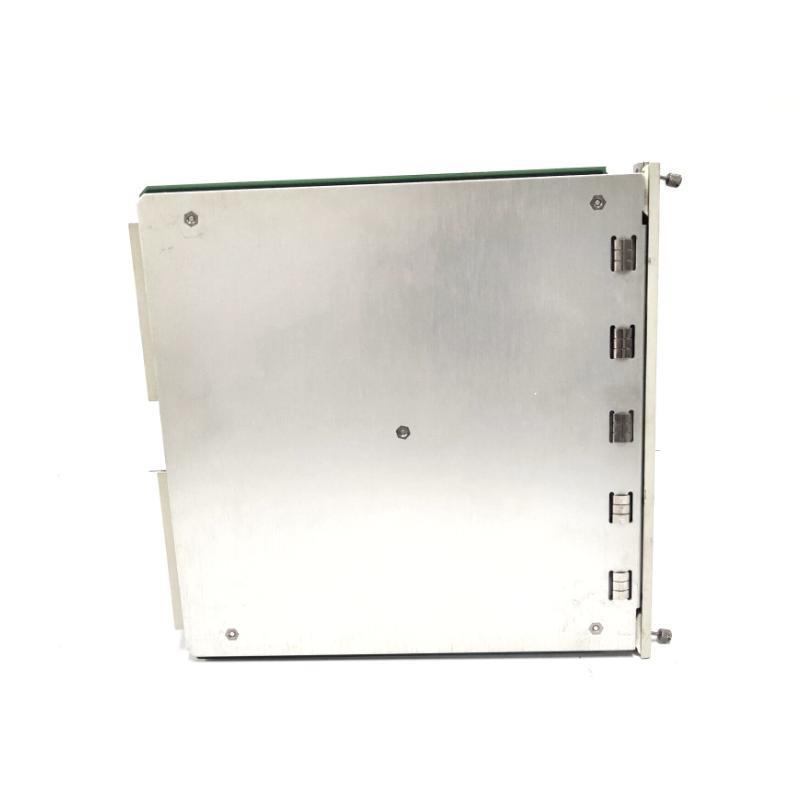

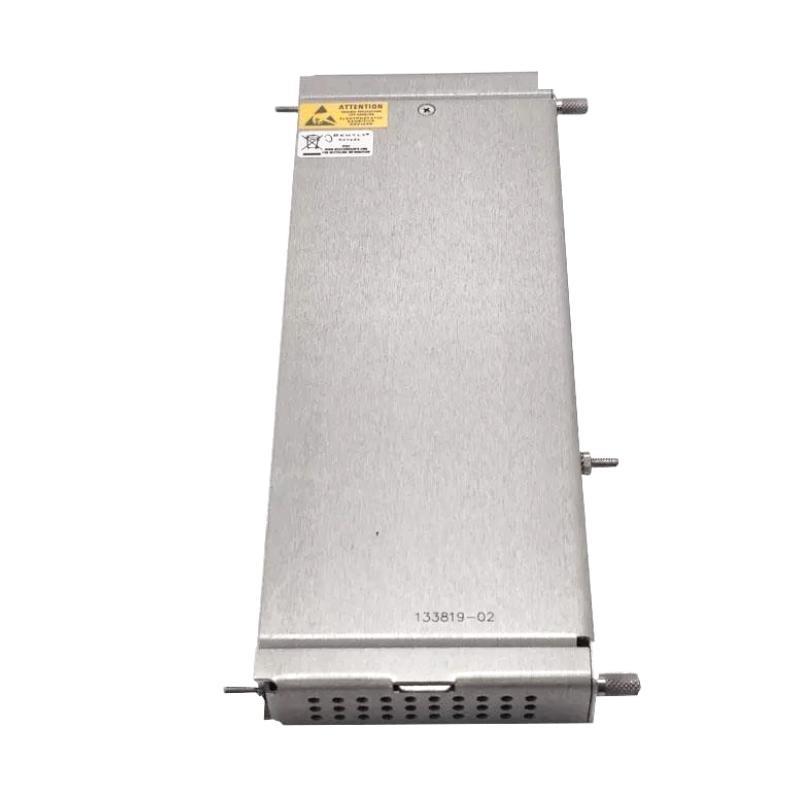

| 型号 Number | 3500/61 163179-02 + 133819-02 |
| Function | Temperature Measurement Module |
| Input Channels | 8 or 16 Channels (configurable) |
| Output | 4–20 mA analog output per channel |
| Accuracy | ±0.5 °C |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Mounting | DIN Rail / 3500 Series Chassis |
| Certification | CE, UL |
Applications
-
Gas and steam turbines
-
Compressors and pumps
-
Generators and power plants
-
Industrial temperature monitoring in rotating equipment
-
Process control and predictive maintenance systems
Advantages
-
High-precision temperature measurements for critical machinery
-
Compact design for easy integration into 3500 series racks
-
支持s multiple channels for centralized monitoring
-
Reliable under extreme operating conditions
-
Facilitates early fault detection and preventive maintenance
常见问题 (FAQ)
1. What is the purpose / the 3500/61 Temperature Module?
It monitors temperature in rotating machinery, ensuring early fault detection and reliable operation.
2. How many input channels does this module support?
It supports 8 or 16 configurable temperature input channels.
3. What types / sensors can it interface with?
It is compatible with standard RTD and thermocouple sensors.
4. Can it integrate with existing 3500 series systems?
Yes, it is fully compatible with the 3500 series monitoring platform.
5. What is the operating temperature range?
It operates reliably between -20 °C and 70 °C.
6. How precise is the module?
It delivers accuracy within ±0.5 °C.
7. Is it certified for industrial use?
Yes, it meets CE and UL certifications.
8. What is the module’s weight and dimensions?
It measures 241.3 x 24.4 x 241.8 mm and weighs 0.91 kg.
9. Can it be used in harsh environments?
Yes, it is designed to function reliably in challenging industrial conditions.
10. Does it support analog output?
Yes, each channel provides 4–20 mA analog output for integration with control systems.
Related 3500 Series / Temperature Modules
| 型号 Number | Channels | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/61 163179-01 | 8 | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/62 163180-01 | 16 | 241.3 x 24.4 x 241.8 | 0.95 |
| 3500/63 163181-02 | 8 | 241.3 x 24.4 x 241.8 | 0.92 |
| 3500/64 163182-02 | 16 | 241.3 x 24.4 x 241.8 | 0.96 |
| 3500/65 163183-03 | 8 | 241.3 x 24.4 x 241.8 | 0.93 |
| 3500/66 163184-03 | 16 | 241.3 x 24.4 x 241.8 | 0.97 |
Popular Bently Nevada 型号s
| 型号 Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330104-00-06-50-01-00 | 8 mm Proximity Probe | 100 x 30 x 30 | 0.2 |
| 330180-91-CN | 3300 XL Proximitor Sensor | 120 x 40 x 40 | 0.25 |
| 3300 XL 3300/55 | Speed/Phase Monitor | 241 x 24 x 241 | 0.9 |
| 3500/12-01 | Vibration Monitor Module | 241 x 24 x 241 | 0.92 |
| 3500/20-01 | Overspeed Relay Module | 241 x 24 x 241 | 0.91 |
| 7200/34-01 | System Display Panel | 300 x 100 x 50 | 1.2 |
