Product Overview

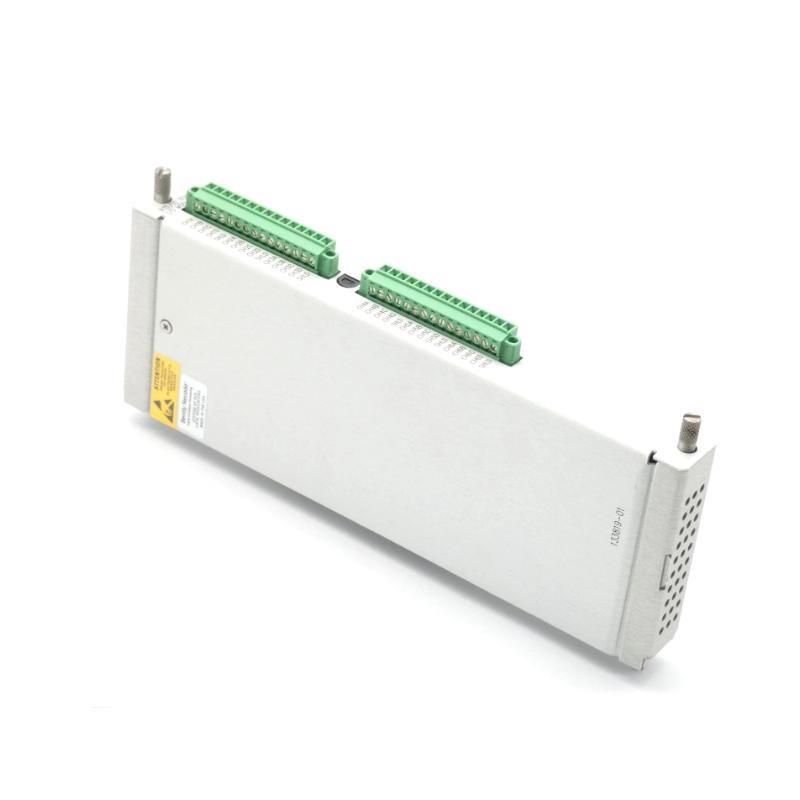

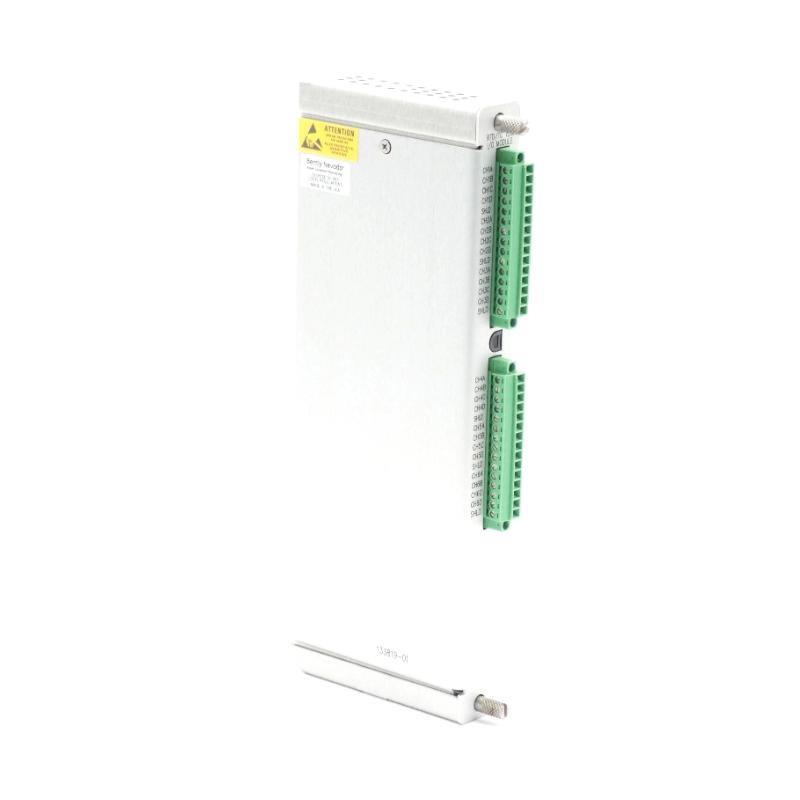

The Bently Nevada 3500/61 Temperature Module is engineered for precise temperature monitoring in industrial machinery. It provides reliable and accurate thermal measurement critical for vibration analysis and machinery protection systems. This module integrates seamlessly with the 3500 monitoring system, ensuring early detection / abnormal temperature conditions and enhancing overall equipment reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 3500/61 163179-01+133819-01 |
| Function | Temperature monitoring module |
| Input Channels | Multiple temperature sensors |
| Measurement Range | -50°C to 200°C |
| Accuracy | ±1% / reading |
| Communication Interface | 3500 Series Backplane |
| Power Supply | 24 VDC |
| Response Time | <1 second |
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Operating Temperature | 0°C to 70°C |
| Mounting | DIN rail / 19-inch rack compatible |
Applications
-
Monitoring bearing and machine housing temperatures in turbines, compressors, and generators.
-
Integration with 3500 series vibration monitoring systems for predictive maintenance.
-
Early warning / overheating to prevent machinery damage.
-
Suitable for oil & gas, power generation, and heavy industrial applications.
Advantages
-
High accuracy and fast response time for critical machinery monitoring.
-
Compact and lightweight design for flexible installation.
-
Seamless integration with existing 3500 system infrastructure.
-
Rugged and reliable for industrial environments.
-
Enables predictive maintenance, reducing downtime and operational costs.
常见问题 (FAQ)
1. What types / temperature sensors are compatible with this module?
The module supports standard RTD and thermocouple sensors used in industrial machinery.
2. Can it be integrated with older 3500 system modules?
Yes, it is backward-compatible with most 3500 series backplanes.
3. What is the maximum number / channels it supports?
It supports multiple channels depending on the system configuration; typical configurations include 8 or 16 channels.
4. How is the module powered?
The module operates with a 24 VDC power supply, standard for 3500 series modules.
5. What is the measurement accuracy?
The module provides ±1% / reading accuracy across the temperature range.
6. Is the module suitable for outdoor installations?
It is designed for indoor industrial environments; outdoor use requires appropriate enclosures.
7. How quickly does it respond to temperature changes?
The response time is less than 1 second for rapid detection.
8. What maintenance is required?
Periodic calibration / sensors and visual inspection are recommended; the module itself is maintenance-free.
9. Can the module trigger alarms?
Yes, it integrates with the 3500 system to provide alarm outputs when temperature thresholds are exceeded.
10. What are the mounting options?
It supports DIN rail and 19-inch rack mounting for flexible installation.
Related 型号s (Same Series / Related)
| 型号 Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/60 | Vibration Monitoring Module | 241 x 24 x 241 | 0.89 |
| 3500/62 | Proximitor Sensor Module | 241 x 24 x 241 | 0.92 |
| 3500/63 | Speed Sensor Module | 241 x 24 x 241 | 0.90 |
| 3500/64 | Relay Output Module | 241 x 24 x 241 | 0.95 |
| 3500/65 | Process Input Module | 241 x 24 x 241 | 0.93 |
| 3500/66 | Transient Data Module | 241 x 24 x 241 | 0.94 |
Popular Bently Nevada 型号s
| 型号 Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | 90 x 16 x 90 | 0.12 |
| 330180-91-CN | 3300 XL Proximitor Sensor | 83 x 19 x 83 | 0.15 |
| 3500/77-01 | Rack-Mounted Power Supply | 241 x 48 x 241 | 1.20 |
| 3500/23-01 | Speed/Phase Monitor Module | 241 x 24 x 241 | 0.88 |
| 3500/92-00 | Transient Data Acquisition | 241 x 24 x 241 | 0.94 |
| 7200 Series | Wireless Vibration Sensor | 120 x 50 x 50 | 0.20 |
