Product Overview

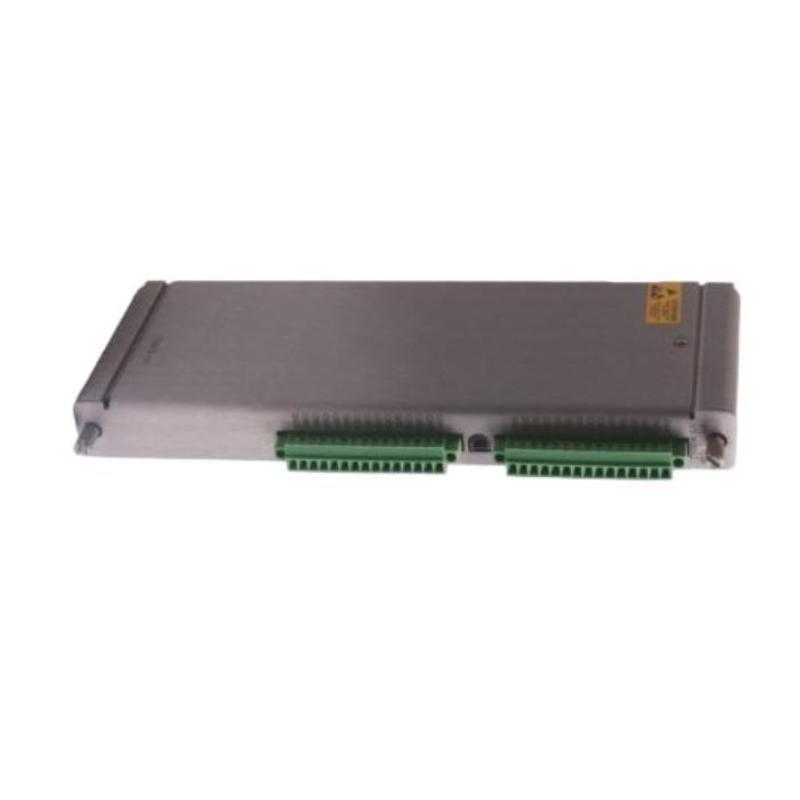

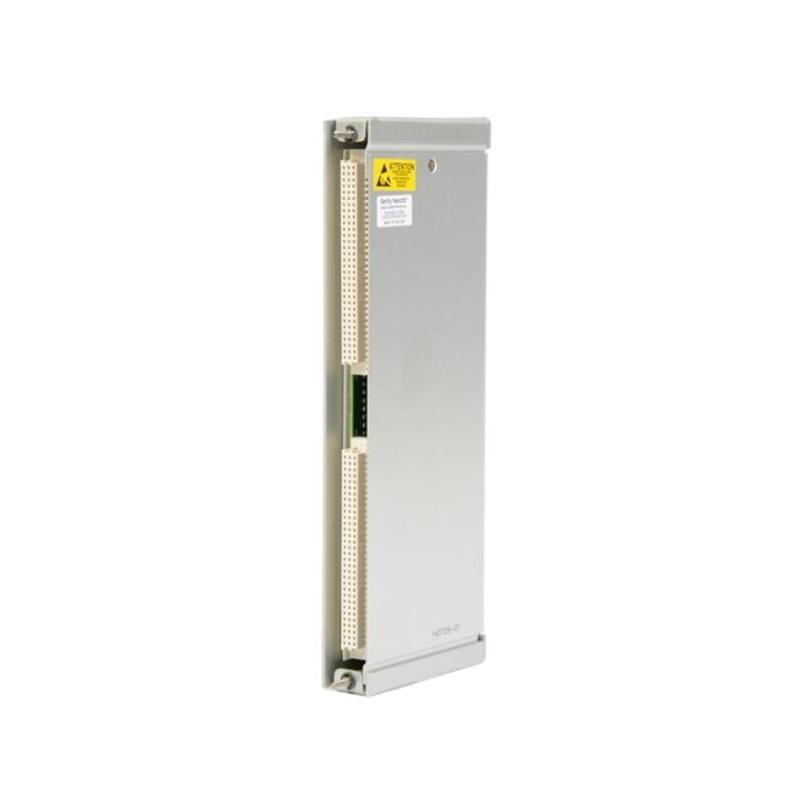

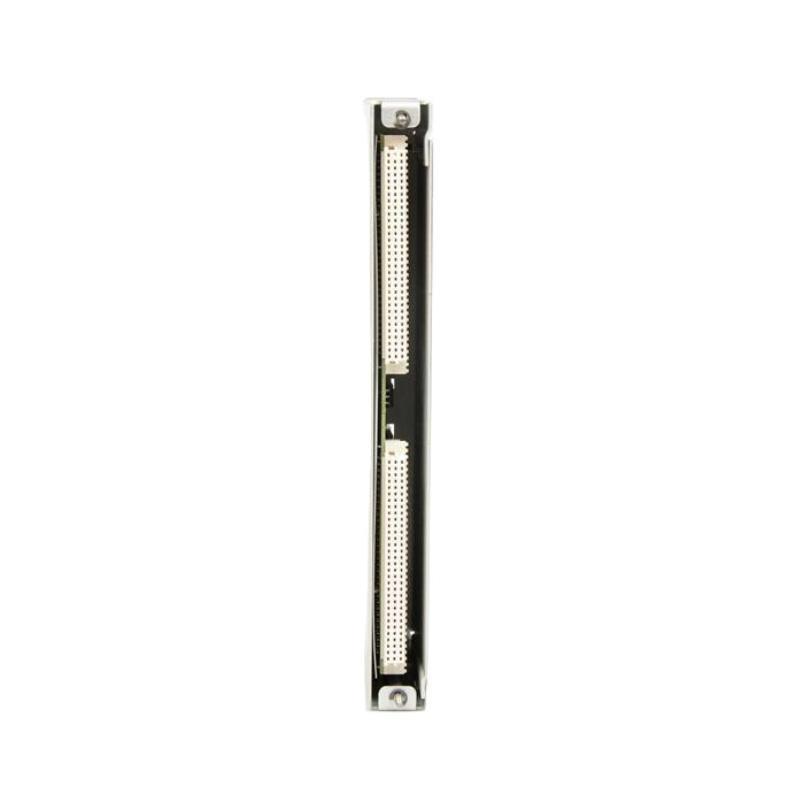

The Bently Nevada 3500/60 133819-01 RTD/TC Temperature I/O Module is designed for high-accuracy temperature monitoring / critical machinery and process equipment. 支持ing both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), this module ensures reliable measurement and protection against abnormal temperature conditions. It integrates seamlessly into the 3500 Machinery Protection System, providing real-time data to enhance predictive maintenance and operational safety in demanding industrial environments.
Key Features
-
支持s both RTD and thermocouple temperature sensors
-
High accuracy for precise machinery condition monitoring
-
Configurable alarm setpoints for protection and control
-
Fully compatible with Bently Nevada 3500 system architecture
-
Capable / channel-by-channel configuration
-
Hot-swappable for easy replacement without system shutdown
-
Rugged, industrial-grade design for harsh environments
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 3500/60 133819-01 |
| Module Type | RTD/TC Temperature I/O Module |
| 制造商 | Bently Nevada (Baker Hughes) |
| 支持ed Sensors | RTD (Pt100, Pt120, Pt200, Pt500, Pt1000), Thermocouples (Type E, J, K, T, B, R, S, N) |
| Channels | 6 temperature channels |
| Measurement Range | Dependent on sensor type |
| Accuracy | High-precision measurement, per sensor specs |
| Alarm Capabilities | Configurable per channel |
| Communication | Via 3500 rack backplane |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | Supplied from 3500 rack |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| 重量 | 0.45 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Temperature monitoring / turbines, compressors, and pumps
-
Oil and gas production facilities
-
Power generation plants
-
Petrochemical processing 件s
-
Industrial manufacturing machinery protection
常见问题 (FAQ)
Q1: What types / sensors does the 3500/60 module support?
It supports multiple RTD types and thermocouples including E, J, K, T, B, R, S, and N.
Q2: How many channels does it have?
It /fers six independent temperature measurement channels.
Q3: Can alarm limits be set individually?
Yes, each channel can have its own configurable alarm setpoints.
Q4: Is the module hot-swappable?
Yes, it can be replaced without shutting down the 3500 rack.
Q5: What is the measurement accuracy?
It delivers high-precision readings, subject to the accuracy / the sensor type used.
Q6: Is it compatible with all 3500 racks?
Yes, it is designed for integration into the Bently Nevada 3500 system.
Q7: How is it powered?
It receives power directly from the 3500 rack backplane.
Q8: Is it suitable for hazardous environments?
Yes, it holds ATEX, IECEx, and related certifications.
Q9: What are the dimensions and weight?
It measures 241.3mm x 24.4mm x 99.1 mm and weighs approximately 0.45 kg.
Q10: Does it require external signal conditioning?
No, the module directly accepts sensor connections.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 3500/61 | Temperature Monitor for RTDs only |
| 3500/65 | Velocity and Acceleration Monitor |
| 3500/72 | Process Variable Monitor |
| 3500/77 | Overspeed Detection System |
| 3500/22M | Enhanced Transient Data Interface |
