Product Overview

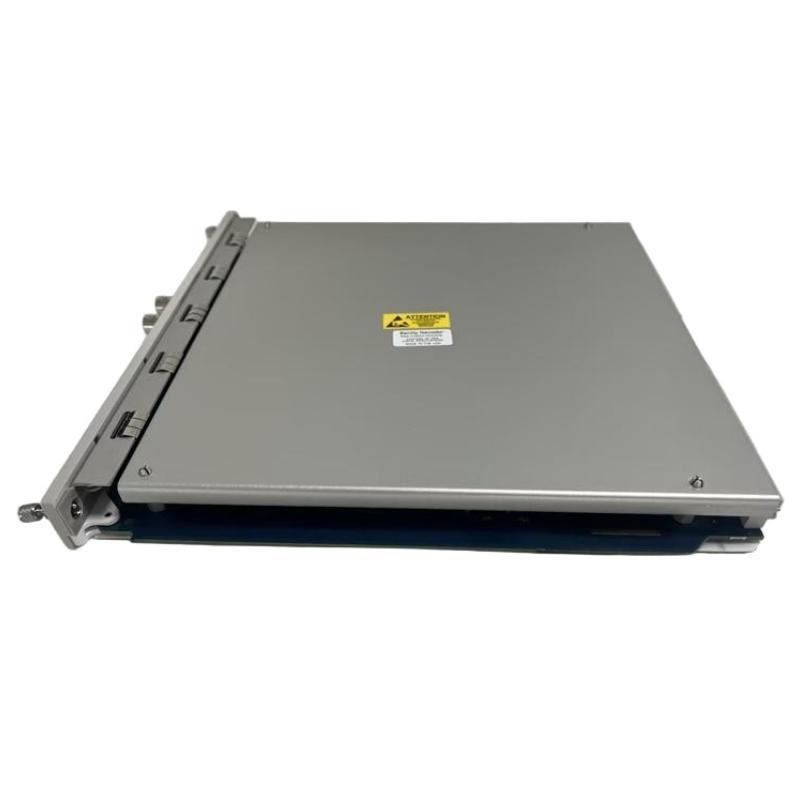

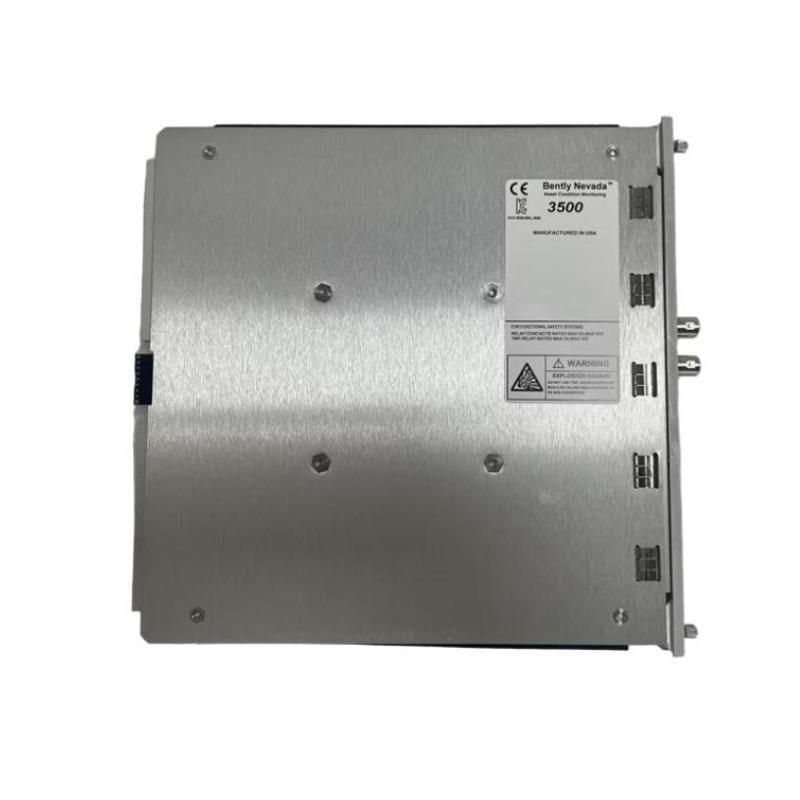

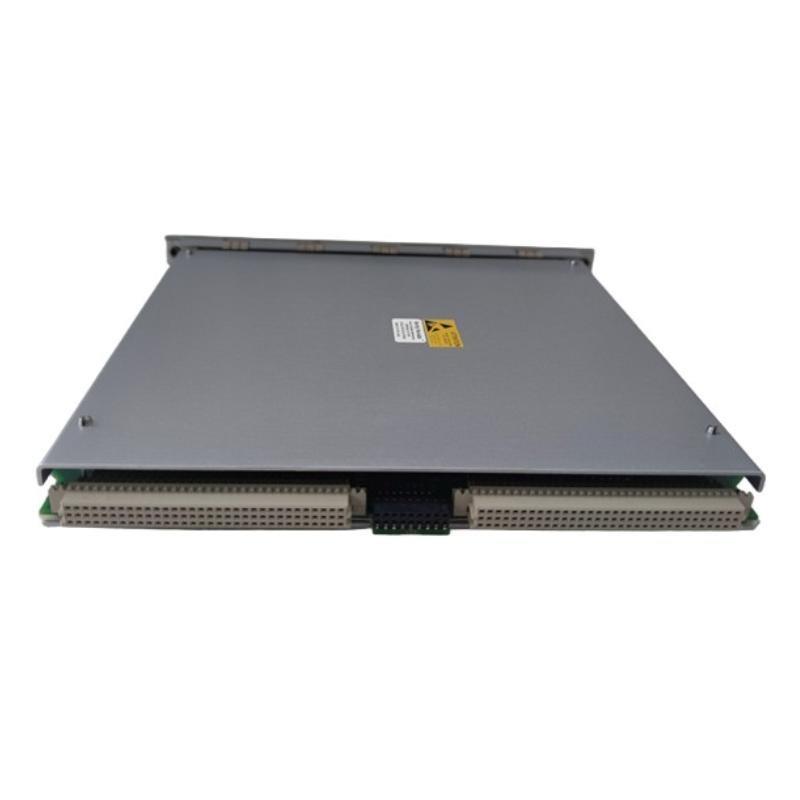

The Bently Nevada 3500/50 288062-02 Tachometer Module is an advanced monitoring module designed to provide precise speed and phase reference measurements for industrial rotating machinery. It is a critical part / the 3500 Machinery Protection System, ensuring reliable detection / shaft rotational speed and direction, as well as generating phase reference signals for vibration analysis modules.
This module is essential for protecting and controlling high-value assets such as turbines, compressors, pumps, and generators. With high accuracy and configurable alarm setpoints, it plays a vital role in preventing overspeed events, synchronizing monitoring systems, and maintaining machinery reliability.
Key Features
-
Two-channel tachometer inputs for redundant speed monitoring
-
Compatible with multiple sensor types including proximity probes and magnetic pickups
-
Overspeed and underspeed protection with fast trip response
-
Phase reference output for advanced vibration analysis
-
Full integration with the Bently Nevada 3500 rack
-
High measurement accuracy for reliable machinery protection
-
Configurable alarm thresholds for speed and acceleration events
Technical Specifications
| Item | 描述 |
|---|---|
| Module Type | Tachometer Module |
| 型号 Number | 3500/50 |
| 零件号 | 288062-02 |
| Channels | 2 |
| Measurement Type | Speed, phase reference |
| Input Signal | Proximity probes, magnetic pickups |
| Speed Range | 1 to 120,000 RPM (configurable) |
| Accuracy | ±0.01% / full scale |
| Power Supply | From 3500 rack |
| Alarm Outputs | Configurable overspeed and underspeed alarms |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 241.3 x 24.4 x 241.8mm |
| 重量 | 0.82 kg |
| Mounting | Rack-mounted in 3500 Series frame |
Industry Applications
-
Turbine overspeed detection and protection
-
Compressor speed monitoring and control
-
Generator rotational speed monitoring
-
Phase reference synchronization for vibration analysis systems
-
High-speed rotating equipment monitoring in oil, gas, and power generation industries
常见问题 (FAQ)
Q1: What is the primary function / the 3500/50 288062-02 Tachometer Module?
It measures machinery rotational speed and provides a phase reference signal for vibration monitoring.
Q2: How many channels does this module have?
It features two independent tachometer channels for redundancy.
Q3: Which sensors are supported?
It supports proximity probes and magnetic pickup sensors.
Q4: What is the speed range it can measure?
It can measure speeds from 1 to 120,000 RPM.
Q5: Can it provide overspeed protection?
Yes, it has configurable overspeed and underspeed alarm setpoints.
Q6: Is it compatible with other Bently Nevada 3500 modules?
Yes, it fully integrates with the 3500 rack system and works with other monitoring modules.
Q7: How accurate is its measurement?
It /fers an accuracy / ±0.01% / full scale.
Q8: Does it need an external power supply?
No, it is powered directly from the 3500 rack.
Q9: What is the operating temperature range?
It operates between -30°C and +65°C.
Q10: What is the part number for this module?
The part number is 288062-02.
