Overview

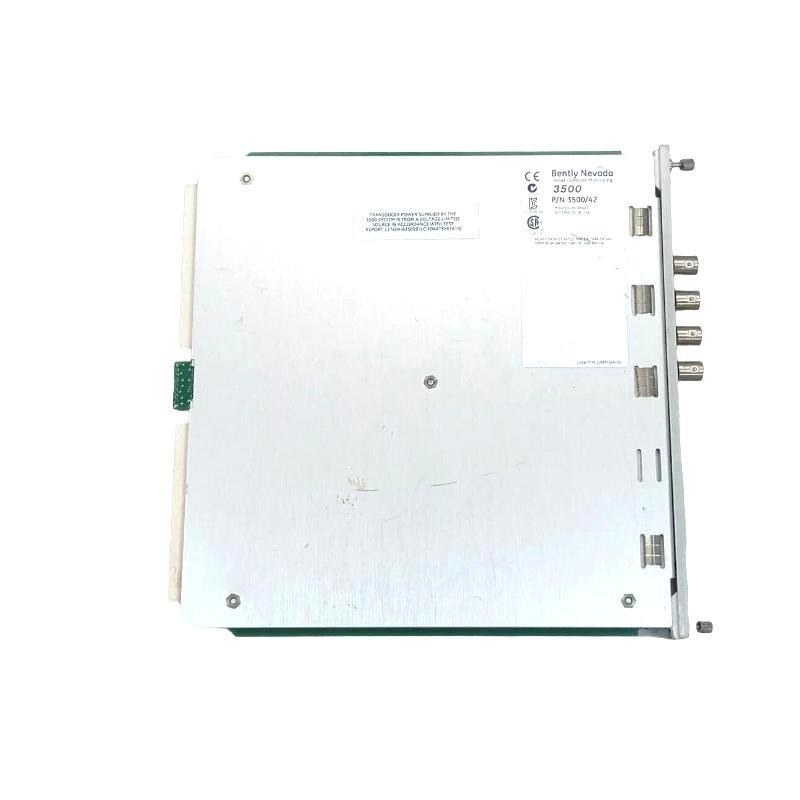

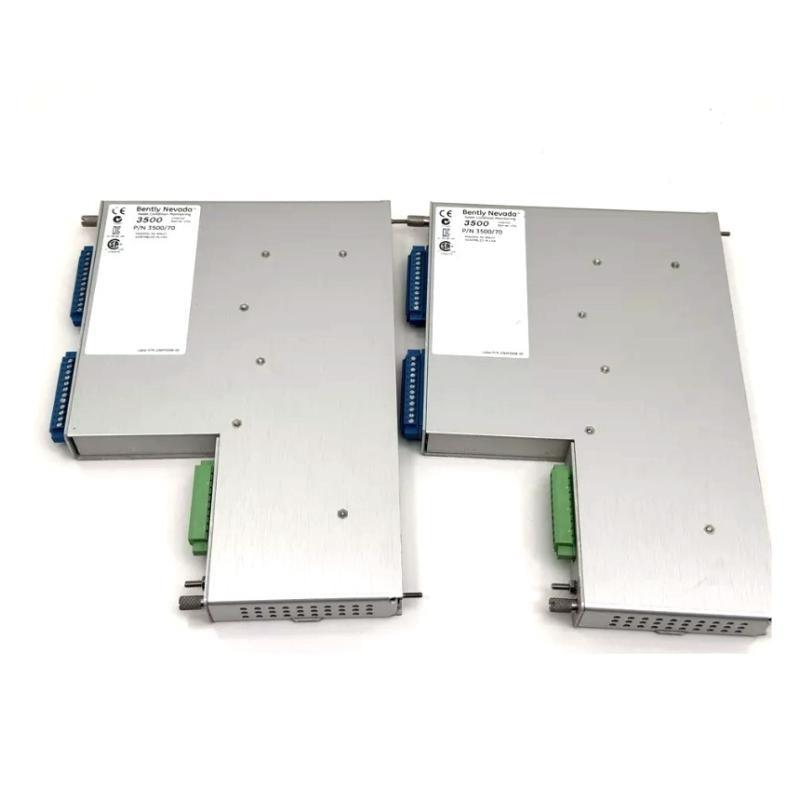

The Bently Nevada 3500/42M Proximitor Seismic Monitor is a high-performance four-channel condition monitoring module designed for continuous machinery protection and diagnostics. It processes input from proximity probes and seismic sensors, /fering real-time analysis / vibration, position, and acceleration with programmable alarm setpoints.
Applications
-
Steam turbines
-
Gas turbines
-
Compressors
-
Motors and generators
-
Critical rotating equipment in oil, gas, and power plants
-
Machinery requiring continuous vibration and position monitoring
Advantages
-
支持s proximity and seismic transducers on a single module
-
Programmable channel pairing allows versatile monitoring
-
High accuracy and configurable filters for precise signal conditioning
-
Advanced diagnostics with buffered outputs and static values
-
Compatible with internal barrier I/O for hazardous areas
-
Alarm delays and thresholds programmable per channel
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 4 input channels (pair-configurable) |
| 支持ed Inputs | Proximitor, Velomitor, Seismic transducers |
| Static Measurements | Vibration, thrust, eccentricity, shaft absolute, velocity, REBAM |
| Frequency Range | 3 Hz to 30 kHz (varies by configuration) |
| Accuracy | ±0.33% typical; ±1% maximum |
| Output | 4-20 mA recorder outputs, buffered outputs per channel |
| Alarm Setpoints | User-configurable alert & danger setpoints (0–100% full-scale) |
| Power Consumption | 7.7 W typical |
| Communication | TX/RX LEDs for status; rack-integrated |
| Operation Temperature | -30°C to +65°C (standard), 0°C to +65°C (barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Module Dimensions | 241.3 x 24.4 x 241.8 mm |
| Module 重量 | 0.91 kg |
常见问题 (FAQ)
Q1: What types / sensors does the 3500/42M support?
A1: It supports proximity probes, Velomitor velocity sensors, and seismic accelerometers.
Q2: Can the module monitor both vibration and position simultaneously?
A2: Yes, channels are configured in pairs to monitor two functions simultaneously, such as vibration and thrust.
Q3: What is the sensitivity range / the module?
A3: Sensitivity varies by input type, with standard proximity input sensitivities at 3.94 mV/µm or 7.87 mV/µm.
Q4: Is this module suitable for hazardous area installations?

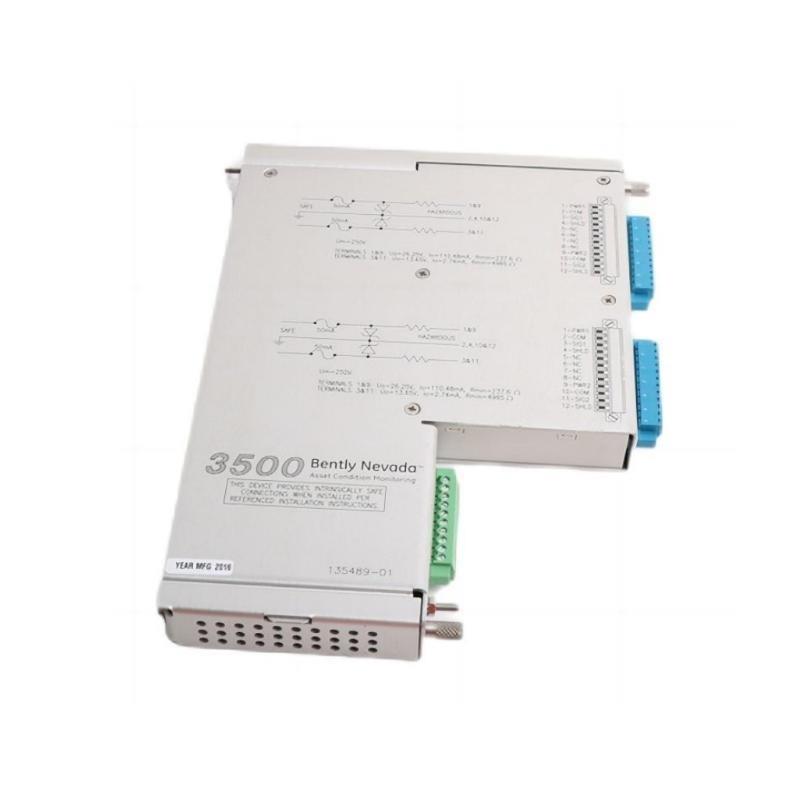

A4: Yes, the 135489-02 I/O module includes internal barriers for Class I, Div 2, and ATEX Zone 2 compliance.
Q5: What is the output format / the module?
A5: Each channel provides a 4–20 mA current loop output and coaxial buffered output.
Q6: Does the module support alarm configuration?
A6: Yes, configurable alert and danger alarms are available for each measurement channel via rack configuration s/tware.
Q7: What is REBAM and does this module support it?
A7: REBAM is Rolling Element Bearing Analysis Monitoring, and the 3500/42M supports it on selected channels.
Q8: What environmental limits does the module meet?
A8: It operates from -30°C to +65°C (non-barrier I/O) or 0°C to +65°C (barrier I/O), with 95% RH non-condensing.
Q9: Are channels hot-swappable?
A9: No, the system must be powered down before module replacement.
Q10: How is communication handled within the rack?
A10: The monitor uses TX/RX communication within the 3500 rack and integrates with system s/tware.
Related 型号s (Same Series or Compatible)
| 型号 Number | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 128229-01 | Prox/Seismic I/O with internal termination | 241.3 x 24.4 x 99.1 | 0.20 |
| 128240-01 | Prox/Seismic I/O with external termination | 241.3 x 24.4 x 99.1 | 0.20 |
| 135489-01 | I/O with barriers, 4x Prox/Accel | 241.3 x 24.4 x 163.1 | 0.46 |
| 135489-03 | I/O with barriers, 4x Velomitor | 241.3 x 24.4 x 163.1 | 0.46 |
| 138708-01 | Shaft Absolute I/O with internal termination | 241.3 x 24.4 x 163.1 | 0.46 |
| 140471-01 | Prox/Velom I/O Module with internal termination | 241.3 x 24.4 x 99.1 | 0.20 |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/20 | Rack Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/25 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/32M | 4-Channel Relay Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/93 | Display Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/94 | VGA Display Module | 241.3 x 24.4 x 241.8 | 0.91 |
