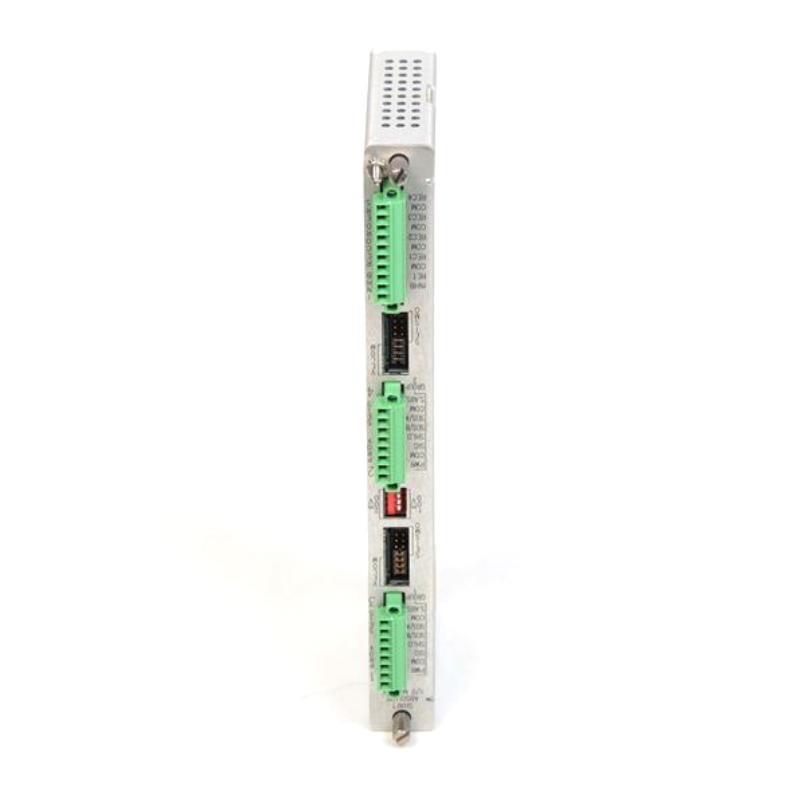

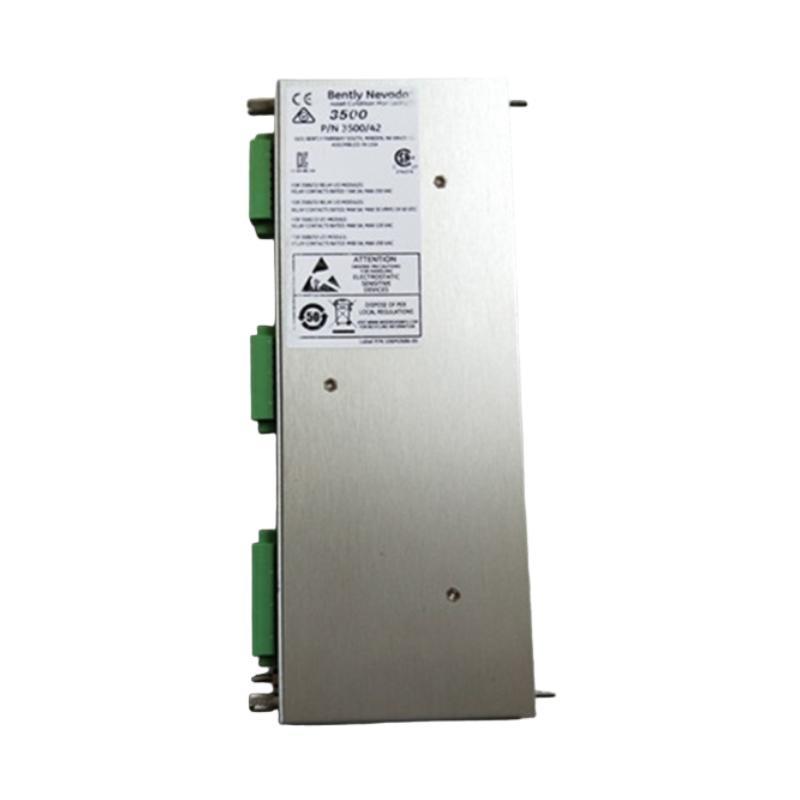

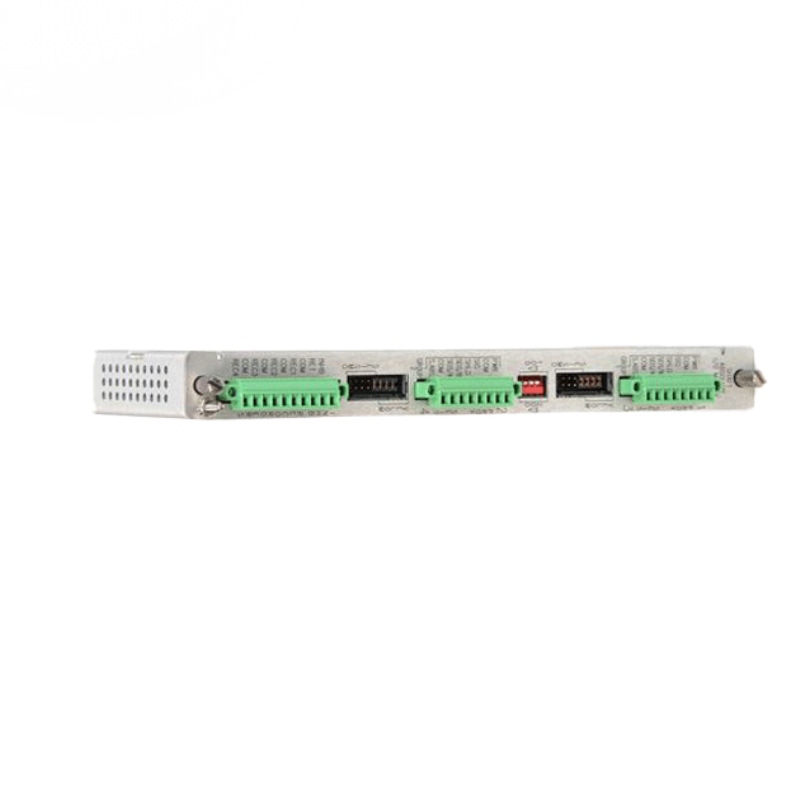

Bently Nevada 3500/42 138708-01 产品介绍
The Bently Nevada 3500/42 138708-01 is a high-performance vibration monitor module designed for critical machinery protection and condition monitoring. It is part / the renowned Bently Nevada 3500 series, which is widely used in industries such as oil & gas, power generation, and chemical processing. This module provides reliable and accurate vibration measurements, ensuring the safe and efficient operation / rotating equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | 3500/42 138708-01 |
| Input Channels | 2 (supports multiple sensor types) |
| Measurement Range | 0-20 mA or 0-10 VDC (configurable) |
| Frequency Response | 0.5 Hz to 10 kHz |
| Accuracy | ±1% / full scale |
| Operating Voltage | 18-32 VDC |
| Power Consumption | <5 W |
| Dimensions (HxWxD) | 241.3 x 24.4 x 163.1mm |
| 重量 | 0.46 kg |
| Operating Temp. | -30°C to +70°C (-22°F to +158°F) |
| Certifications | ATEX, IECEx, CSA, FM (optional) |
Product Applications
The 3500/42 module is primarily used for:
-
Machinery Protection: Monitors vibration levels in turbines, compressors, pumps, and motors to prevent catastrophic failures.
-
状态 Monitoring: Provides real-time data for predictive maintenance, reducing downtime and repair costs.
-
Industrial Processes: Ensures operational safety in oil refineries, power plants, and chemical facilities.
-
API Compliance: Meets industry standards such as API 670 for machinery protection systems.
Product Advantages
-
High Reliability: Engineered for 24/7 operation in harsh environments.
-
Flexible Configuration: 支持s multiple sensor types (accelerometers, velocity sensors, proximity probes).
-
Advanced Diagnostics: Built-in self-test and fault detection capabilities.
-
Easy Integration: Compatible with the 3500 series rack and third-party systems.
-
Global Certifications: Complies with international safety and performance standards.
常见问题 (FAQ)
-
What sensors are compatible with the 3500/42 module?
It supports accelerometers, velocity sensors, and proximity probes (e.g., Bently Nevada 3300 series). -
Can the module be used in hazardous areas?
Yes, it is available with ATEX and IECEx certifications for hazardous environments. -
How is the module powered?
It operates on 18-32 VDC and consumes less than 5 W. -
What is the typical response time for alarm triggers?
Alarm response time is <10 ms. -
Is the module hot-swappable?
Yes, it can be replaced without shutting down the entire system. -
How do I configure the 3500/42?
Configuration is done via the 3500/20 or 3500/22 framework s/tware. -
What is the warranty period?
Standard warranty is 12 months, extendable upon request. -
Can it integrate with DCS or PLC systems?
Yes, it supports 4-20 mA outputs and Modbus communication. -
What maintenance is required?
Periodic calibration and firmware updates are recommended. -
Is the module certified for industrial compliance?
Yes, it meets CE, UL, CSA, and RoHS standards.
Recommended Related & Popular 型号s
| Related 型号s (Same Series) | 描述 |
|---|---|
| 3500/22M 138704-01 | Dual-channel vibration monitor with enhanced diagnostics |
| 3500/25 138711-01 | Keyphasor module for phase reference signals |
| 3500/32M 138702-01 | 4-channel temperature monitor |
| 3500/40M 138700-01 | Single-channel vibration monitor |
| 3500/50 138712-01 | Relay module for alarm outputs |
| 3500/92 138715-01 | Communication gateway for system integration |
| Popular Bently Nevada 型号s | 描述 |
|---|---|
| 3300 XL 8mm Proximity Probe | Industry-standard shaft vibration sensor |
| 1900/65A Accelerometer | High-temperature vibration sensor |
| 3701/46 Transient Data Interface | Captures high-speed machinery data |
| 2300/20 Dual-Channel Monitor | Compact vibration monitoring solution |
| 4400 Series Thrust Position Monitor | Designed for axial displacement measurement |
| 2600T Proximity Transducer System | Complete kit for radial vibration monitoring |
