Product Overview

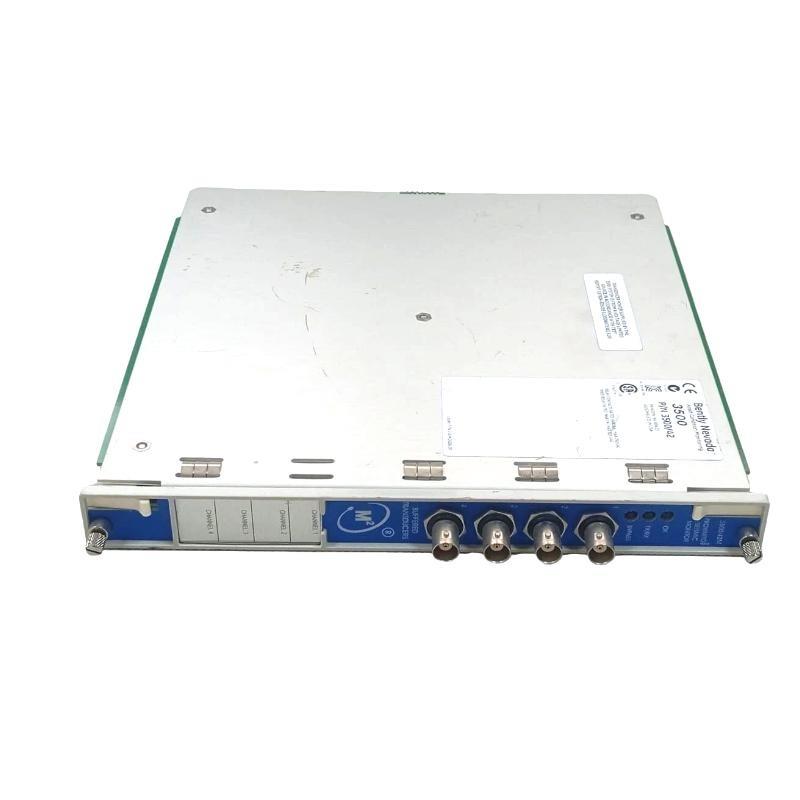

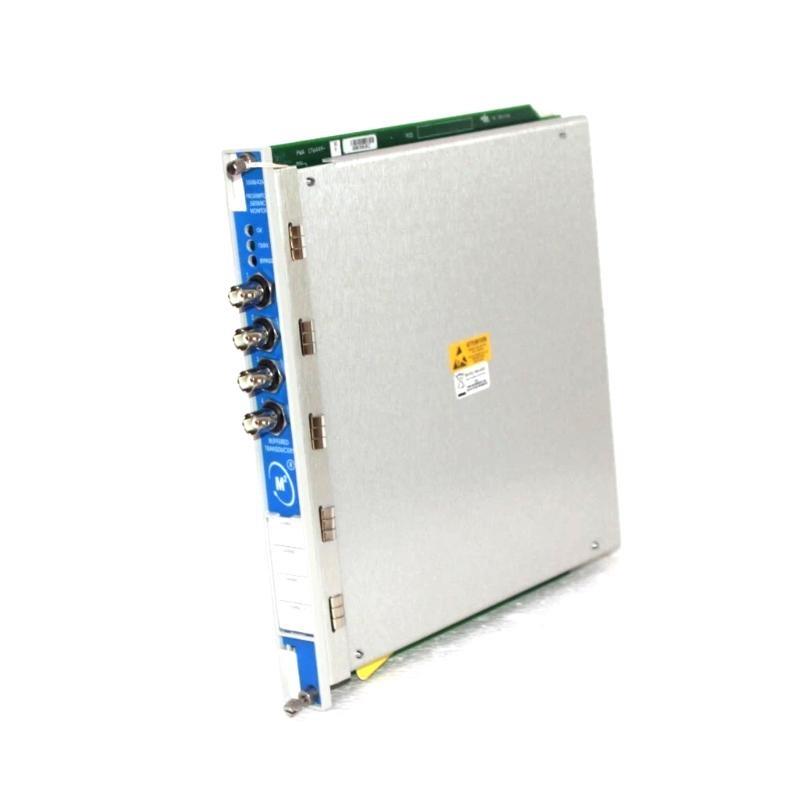

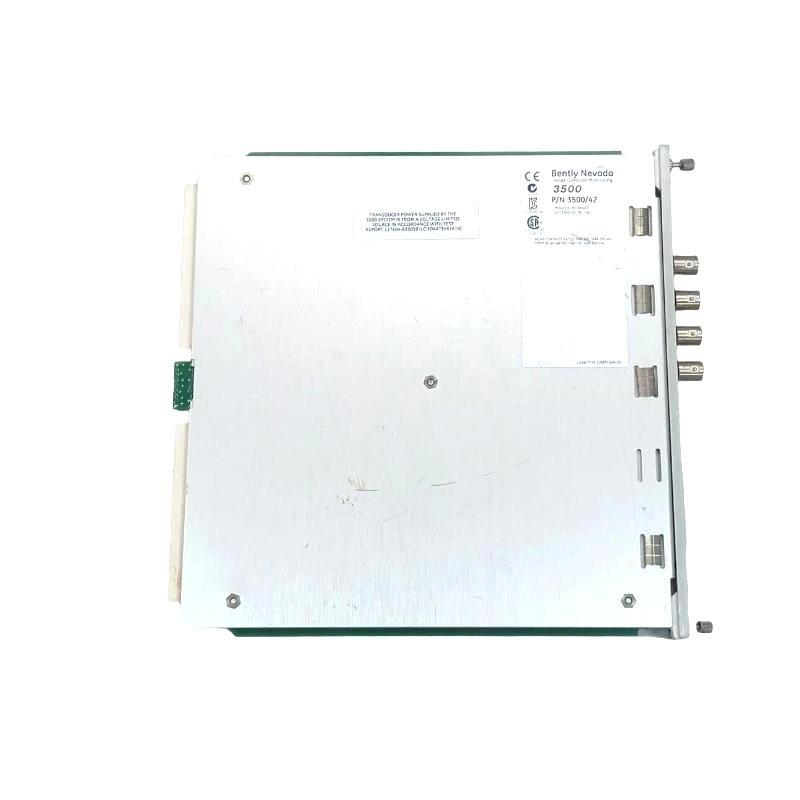

The Bently Nevada 3500/42-10-00 Proximitor Seismic Monitor is a high-reliability monitoring module designed for continuous vibration and seismic measurements in critical rotating machinery. It integrates advanced proximitor sensing technology to detect shaft relative vibration, position, and seismic activity, enabling predictive maintenance and protection / assets. Its robust design and proven accuracy make it suitable for harsh industrial environments, including power generation, petrochemical, and manufacturing sectors.
Technical Specifications
| Parameter | 描述 |
|---|---|
| Module Type | Proximitor Seismic Monitor |
| Channels | 2 independent monitoring channels |
| Measurement Types | Shaft relative vibration, position, seismic |
| Input Signal | Proximitor®/Seismic transducers |
| Measurement Range | Configurable per application |
| Frequency Response | Wide-band, suitable for machinery protection |
| Alarms | 2 levels per channel (Alert & Danger) |
| Outputs | 4–20 mA proportional output, relay contacts |
| Communication | Integration with 3500 Rack and System Communications Processor |
| Power Supply | Provided through 3500 rack |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Environmental | Industrial-grade, high EMI/RFI imm件y |
Applications
-
Continuous vibration monitoring in turbines, compressors, and motors
-
Seismic and casing vibration detection in high-value assets
-
Shaft position measurement for alignment and bearing health analysis
-
Machine protection in hazardous process environments
-
Predictive maintenance programs to prevent unplanned downtime
Key Advantages
-
High Accuracy & Reliability — Proven proximitor sensing for critical machinery
-
Dual-Channel Redundancy — Ensures monitoring even in the event / single channel failure
-
Fast Response Time — Immediate detection / abnormal vibration or seismic events
-
Flexible Integration — Compatible with a wide range / sensors and control systems
-
Industry Proven — Used globally in power, oil & gas, and heavy industry applications
FAQ
-
Q: What is the main function / the 3500/42-10-00?
A: It measures shaft relative vibration, position, and seismic activity for machinery protection. -
Q: How many channels does it support?
A: It has two fully independent monitoring channels. -
Q: Can it be used with any proximitor or seismic sensor?
A: Yes, it supports Bently Nevada Proximitor® and Seismic transducers. -
Q: What alarm levels are available?
A: Two per channel—Alert and Danger. -
Q: How is the module powered?
A: Through the Bently Nevada 3500 rack power supply. -
Q: Is the frequency range adjustable?
A: Yes, configuration options allow optimization for specific machinery. -
Q: Can it output 4–20 mA signals?
A: Yes, proportional outputs are available for integration with control systems. -
Q: What industries typically use this monitor?
A: Power generation, petrochemical, oil & gas, and manufacturing. -
Q: How does it integrate with other systems?
A: Via the 3500 rack and System Communications Processor. -
Q: Is it suitable for hazardous areas?
A: Yes, with appropriate sensor and rack certifications.
Recommended Related 型号s (Same Series)
| 型号 | 描述 | Channels | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 3500/42M | Proximitor/Seismic Monitor, enhanced version | 2 | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/40M | Proximitor Monitor | 2 | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/44M | Aeroderivative Vibration Monitor | 4 | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/46M | Hydro Monitor | 4 | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/50 | Keyphasor Module | 2 | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/45 | Position Monitor | 4 | 241.3 x 24.4 x 241.8 | 0.91 |
Popular 型号s from Bently Nevada (其他 Series)
| 型号 | 描述 | Application | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface | System data capture | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/32M | Relay Module | Alarm relay outputs | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/60 | Temperature Monitor | Thermal protection | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/61 | Temperature Monitor | Advanced thermal analysis | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/93 | System Communications Gateway | Data communication | 241.3 x 24.4 x 241.8 | 0.91 |
| ADRE 408 | Data Acquisition System | Portable diagnostics | Varies | Varies |
