Product Overview

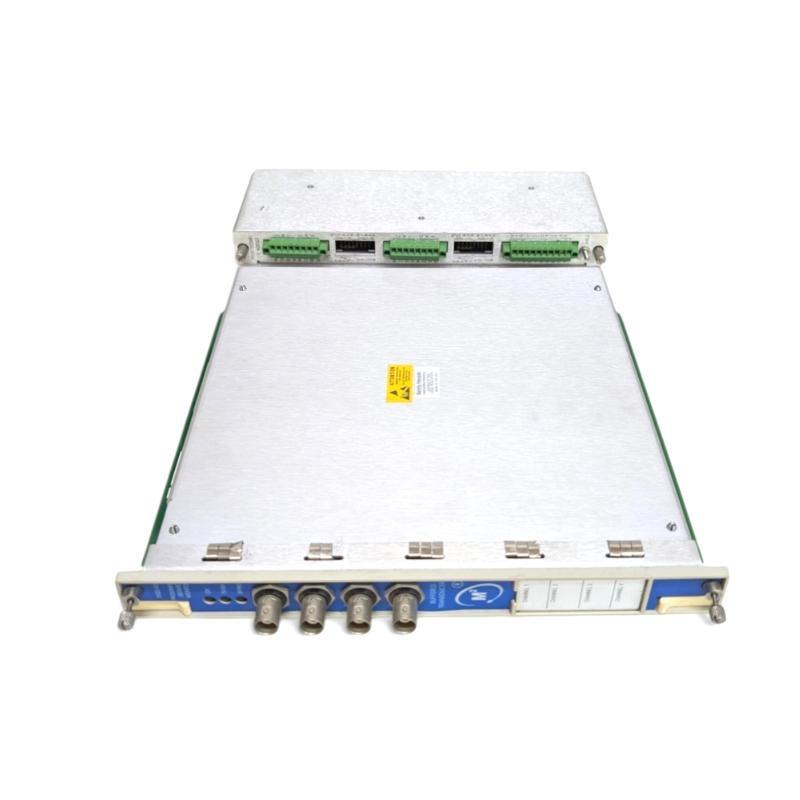

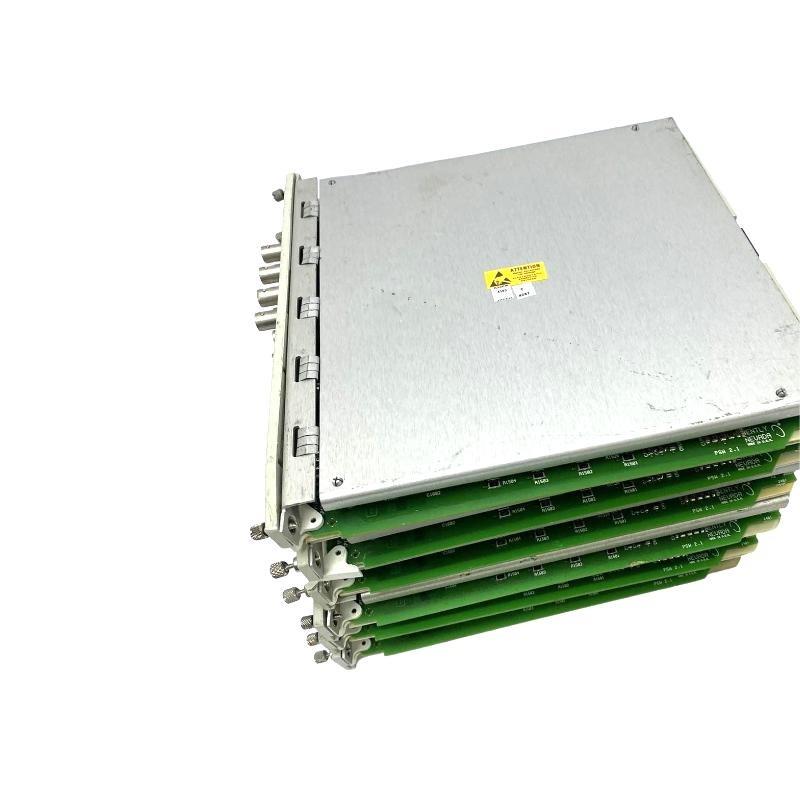

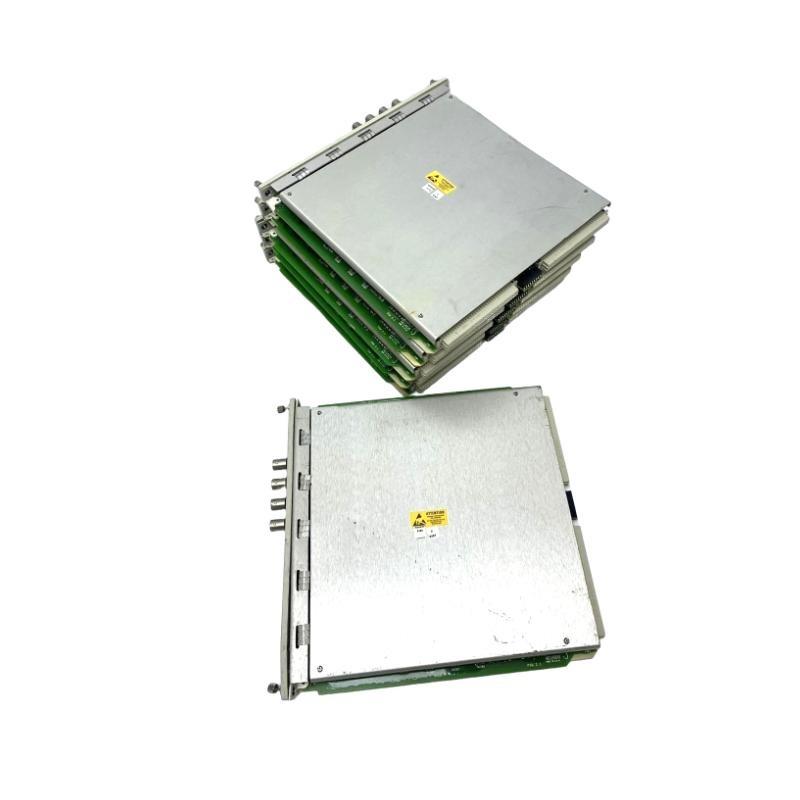

The Bently Nevada 3500/42-06-00 Proximitor Seismic Monitor is a high-performance monitoring module designed for critical vibration and position measurements in industrial rotating machinery. It provides continuous surveillance / shaft vibration, position, and phase reference signals, enabling predictive maintenance and operational safety in demanding environments.
产品规格
| Parameter | Value |
|---|---|
| 型号 | 3500/42-06-00 |
| Measurement Type | Proximitor Seismic |
| Input Channels | 2 |
| Frequency Response | 4 Hz to 60 kHz |
| Power Supply | From 3500 Rack Backplane |
| Output Signal | 4-20 mA proportional to measurement |
| Communication | System Configuration via 3500 Rack |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Mounting | 3500 Series Rack |
| Operating Temperature | -30°C to +65°C |
| Compliance | CE, CSA, ATEX, IECEx |
Applications
-
Turbomachinery Monitoring: Detects shaft vibration and displacement in turbines, compressors, and pumps.
-
Seismic Event Detection: Monitors low-frequency vibration from foundation or structural movement.
-
Critical Asset Protection: Ensures machinery protection by triggering alarms and shutdown sequences.
-
状态-Based Maintenance: Integrates with plant control systems for predictive diagnostics.
Advantages
-
High Accuracy: Delivers precise measurements with minimal drift over time.
-
Modular Integration: Fits seamlessly into the 3500 Series Monitoring System.
-
Dual-Channel Design: Provides simultaneous monitoring for multiple parameters.
-
Comprehensive Diagnostics: Detects sensor and wiring faults for reliability.
-
Wide Environmental Tolerance: Operates reliably in harsh industrial conditions.
FAQ
-
Q: What types / sensors are compatible?
A: Proximity probes, velocity transducers, and accelerometers designed for 3500 Series systems. -
Q: Can it monitor both radial and axial vibration?
A: Yes, it supports multiple vibration and position measurement configurations. -
Q: How is it configured?
A: Through the 3500 rack using the System Configuration S/tware. -
Q: What is the update rate for measurements?
A: Measurements are updated in milliseconds for real-time monitoring. -
Q: Does it support redundant configurations?
A: Yes, dual modules can be used for redundancy. -
Q: Can it trigger machine shutdown?
A: Yes, via relay modules integrated into the 3500 system. -
Q: What certifications does it have?
A: CE, CSA, ATEX, and IECEx. -
Q: Is field calibration required?
A: It is factory calibrated; periodic verification is recommended. -
Q: Can it store historical data?
A: Historical trending is handled through the 3500 System and connected s/tware. -
Q: What industries use it most?
A: Oil & gas, power generation, petrochemical, and heavy manufacturing.
Related 型号s (Same Series or Similar)
| 型号 | Measurement Type | Channels | Frequency Response | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 3500/42-01-00 | Proximitor Seismic | 2 | 4 Hz–60 kHz | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42-02-00 | Proximitor Seismic | 2 | 4 Hz–60 kHz | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42-03-00 | Proximitor Seismic | 2 | 4 Hz–60 kHz | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42-04-00 | Proximitor Seismic | 2 | 4 Hz–60 kHz | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42-05-00 | Proximitor Seismic | 2 | 4 Hz–60 kHz | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42-07-00 | Proximitor Seismic | 2 | 4 Hz–60 kHz | 241.3 x 24.4 x 241.8 | 0.91 |
Popular 型号s from Bently Nevada
| 型号 | Function | Channels | Key Features | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 3500/22M | Transient Data Interface | 0 | High-speed dynamic data capture | 241.3 x 24.4 x 241.8 | 0.90 |
| 3500/32M | Relay Module | 0 | Alarm and shutdown relay logic | 241.3 x 24.4 x 241.8 | 0.88 |
| 3500/50 | Tachometer Module | 2 | Speed and phase reference monitoring | 241.3 x 24.4 x 241.8 | 0.89 |
| 3500/60 | Temperature Monitor | 6 | Multiple thermocouple/RTD inputs | 241.3 x 24.4 x 241.8 | 0.92 |
| 3500/92 | Communication Gateway | 0 | Modbus/TCP & Ethernet integration | 241.3 x 24.4 x 241.8 | 0.87 |
| 3500/94M | VGA Display Module | 0 | Rack status and data visualization | 241.3 x 24.4 x 241.8 | 0.95 |
