产品介绍

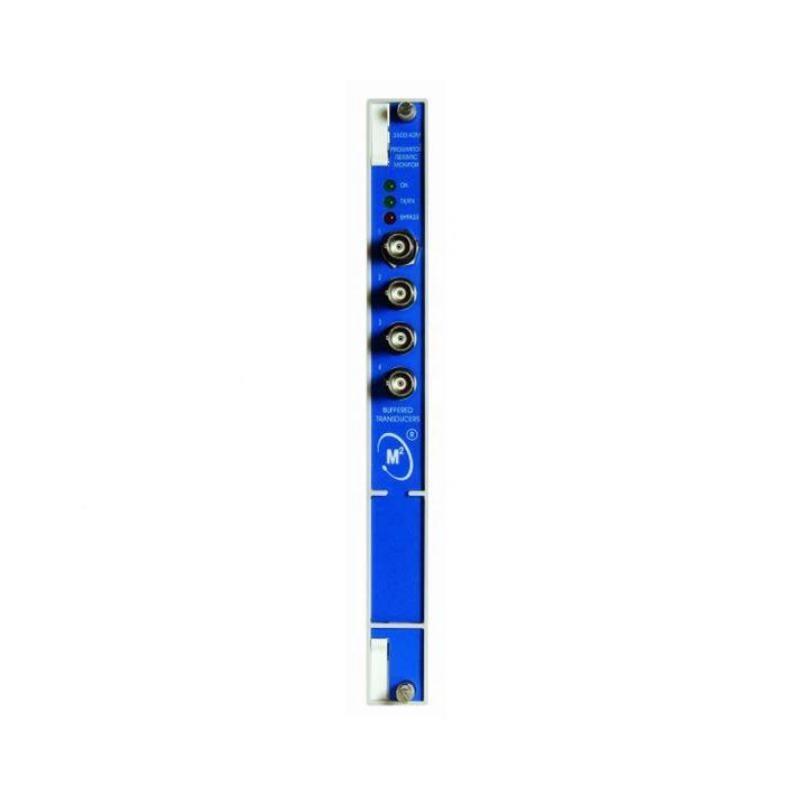

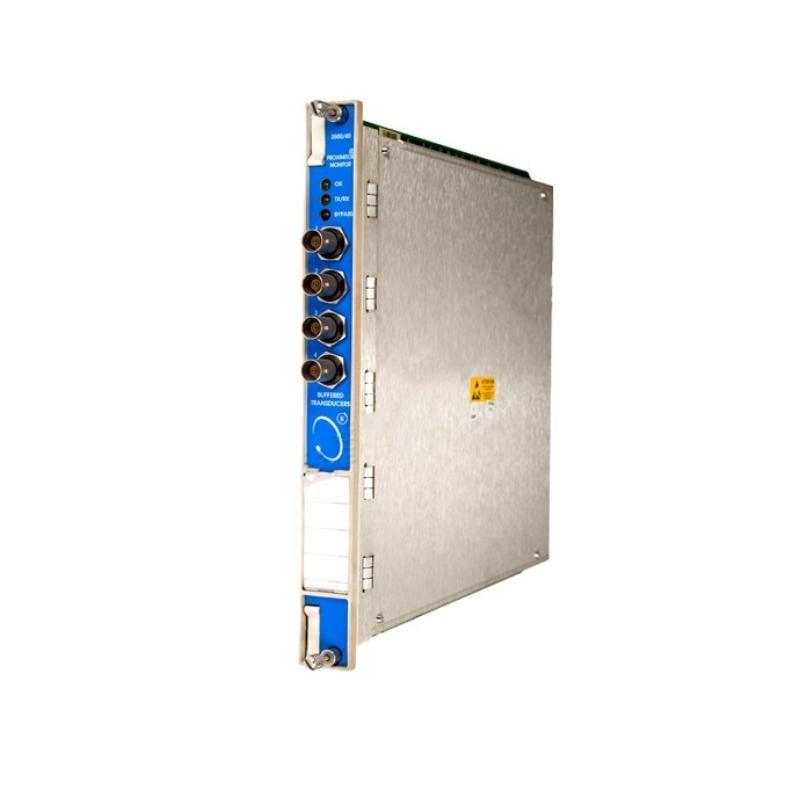

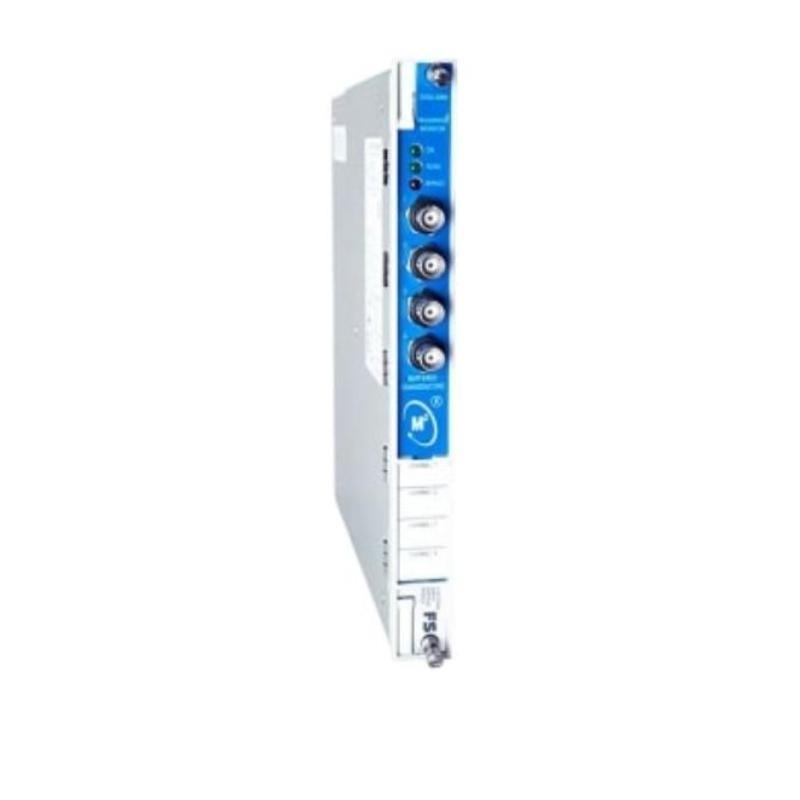

The Bently Nevada 3500/40M-01-01 Pre-Amplifier Monitor is a high-performance signal conditioning module designed to amplify and process signals from vibration, proximity, and acceleration transducers. It is a critical component in the Bently Nevada 3500 Series / machinery monitoring systems, providing high-precision amplification and signal conditioning for accurate monitoring / critical rotating machinery.
The module /fers superior signal quality and noise imm件y, enabling precise detection / mechanical faults like imbalance, misalignment, bearing damage, and other issues that could lead to unplanned downtime. By conditioning the signals from transducers, the 3500/40M-01-01 ensures reliable and stable data for continuous monitoring and early detection / potential issues, supporting predictive maintenance strategies.
With its robust design and ability to operate in challenging industrial environments, the 3500/40M-01-01 module is suitable for a variety / applications in industries such as power generation, petrochemical, manufacturing, and heavy machinery, where operational reliability is critical.
Product Parameters
The technical specifications / the Bently Nevada 3500/40M-01-01 Pre-Amplifier Monitor are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Power Supply | 24V DC ± 20% |
| Input Type | Vibration, proximity, or acceleration transducers |
| Output Type | Analog output, conditioned signals |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, compatible with Bently Nevada 3500 Series |
| Power Consumption | 5W |
| Signal 状态ing | High-gain signal amplification and filtering |
| Compatibility | Compatible with Bently Nevada 3500 Series modules |
Product Applications
The 3500/40M-01-01 Pre-Amplifier Monitor is designed for applications requiring precise amplification and conditioning / signals from vibration, proximity, and acceleration transducers. Common uses include:
-
Turbine Monitoring: In turbine applications, the 3500/40M-01-01 module amplifies and conditions signals from vibration sensors, enabling the early detection / imbalance, misalignment, and bearing failure.
-
Compressor Systems: Used in compressors to monitor vibration and proximity transducers, the module helps identify faults like cavitation or mechanical wear before they cause significant damage.
-
Pump Systems: The pre-amplifier ensures proper signal conditioning for pump systems, enabling accurate detection / early signs / cavitation, misalignment, and other mechanical issues.
-
Motor Health Monitoring: In motors, the module processes signals from vibration and proximity sensors to detect issues such as bearing faults, imbalance, or misalignment.
-
Power Generation: The 3500/40M-01-01 module plays an essential role in power plants, where it amplifies signals from turbines, generators, and other equipment to detect failures early and ensure continuous operation.
-
Industrial Equipment: Ideal for various types / industrial machinery, this module enables efficient and reliable machinery health monitoring to support predictive maintenance strategies.
Product Advantages
-
High-Quality Signal 状态ing: The 3500/40M-01-01 module provides high-gain signal amplification and noise filtering, ensuring high-quality and accurate signal data from vibration and proximity transducers.
-
Reliable Performance in Harsh Environments: With an operating temperature range / -40°C to +70°C and resistance to high humidity, the module is designed for reliable performance in the most demanding industrial conditions.
-
Compact Design: At 241.3 x 24.4 x 241.8 mm and weighing just 0.91 kg, the module is compact and space-efficient, making it easy to integrate into existing control systems without adding unnecessary bulk.
-
Energy Efficient: Operating at just 5W / power, the 3500/40M-01-01 is an energy-efficient solution for continuous machinery health monitoring.
-
Easy Integration: The module is fully compatible with the Bently Nevada 3500 Series, ensuring easy integration with other components / the system for a comprehensive monitoring solution.
-
Enhanced Diagnostics: By conditioning and amplifying sensor signals, the module improves diagnostics, helping operators identify mechanical issues early and minimize downtime.
-
Wide Transducer Compatibility: The 3500/40M-01-01 works with a wide range / vibration, proximity, and acceleration transducers, making it a versatile solution for many industrial applications.
-
Long-最后一页ing Durability: Built with high-quality materials and a robust design, the 3500/40M-01-01 ensures long-lasting durability, even in challenging operational environments.
FAQs
-
What is the main function / the Bently Nevada 3500/40M-01-01 Pre-Amplifier Monitor?
The module amplifies and conditions the signals from vibration, proximity, and acceleration transducers, providing accurate machinery health monitoring and diagnostics. -
What types / transducers are compatible with the 3500/40M-01-01?
The module works with vibration, proximity, and acceleration transducers, making it versatile for a variety / industrial applications. -
What is the input signal type for the 3500/40M-01-01?
The module accepts input signals from vibration, proximity, and acceleration transducers. -
How is the 3500/40M-01-01 mounted?
The module is rack-mounted and is compatible with other components / the Bently Nevada 3500 Series. -
What is the power supply requirement for the 3500/40M-01-01?
The module requires a 24V DC power supply with a ± 20% tolerance. -
What is the temperature range for the 3500/40M-01-01?
The module operates in temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments. -
What is the power consumption / the 3500/40M-01-01?
The module consumes 5W / power, providing an energy-efficient solution for continuous monitoring. -
How does the 3500/40M-01-01 help with predictive maintenance?
By amplifying and conditioning sensor signals, the module enables the early detection / mechanical issues, helping operators plan maintenance activities more effectively. -
What is the weight / the 3500/40M-01-01?
The module weighs 0.91 kg, making it easy to handle and integrate into existing systems. -
What is the output type / the 3500/40M-01-01?
The module provides analog output with conditioned signals that can be used for further analysis and diagnostics.
Related 型号s (Same Series or Related)
| 型号 | 描述 |
|---|---|
| 3500/42-04-CN | Vibration monitoring system with Chinese language interface. |
| 3500/42-06-00 | Standard vibration monitoring module for high-performance applications. |
| 3500/42-06-RU | Vibration monitoring system with Russian language interface. |
| 3500/25-01-01-02 | Standard vibration monitoring module for industrial applications. |
| 3500/40M-01 | Modular vibration monitoring system designed for flexible applications. |
| 3500/40-03-01 | High-precision vibration monitoring system with extended frequency response. |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 3500/42-09-01 | Vibration monitoring module designed for high-accuracy measurements. |
| 3500/42-09-02 | Advanced vibration module with enhanced diagnostic capabilities. |
| 3500/42-09-AE | Special edition with additional features for extreme environmental conditions. |
| 3500/25-01-01-02 | Standard vibration monitoring module for industrial applications. |
| 3500/40-01-02 | Vibration monitoring system designed for high-load applications. |
| 3500/22-01-01-00 | Compact vibration monitoring 件 for medium-scale operations. |
