产品介绍

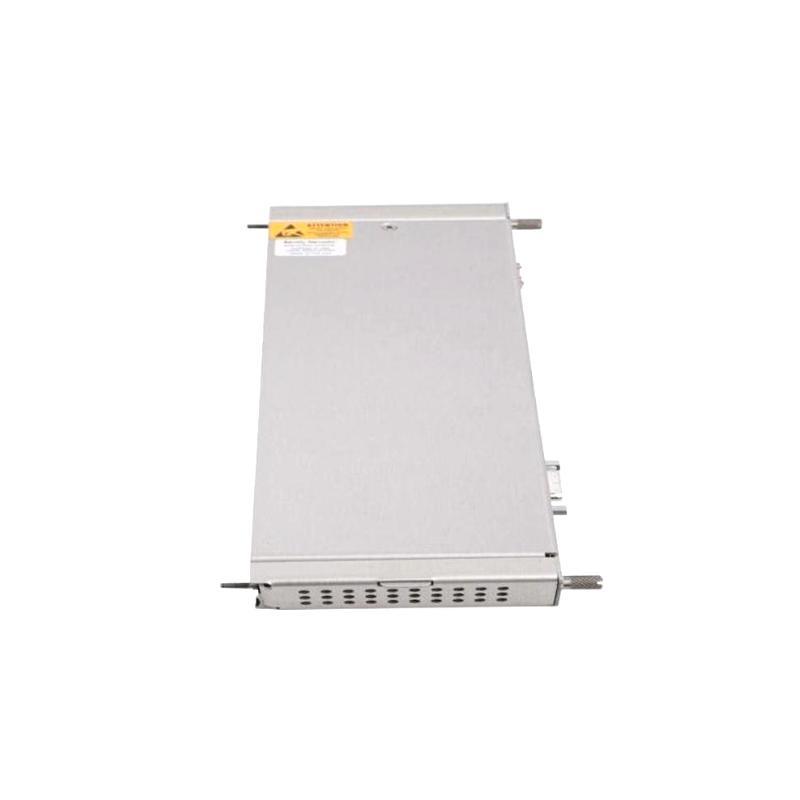

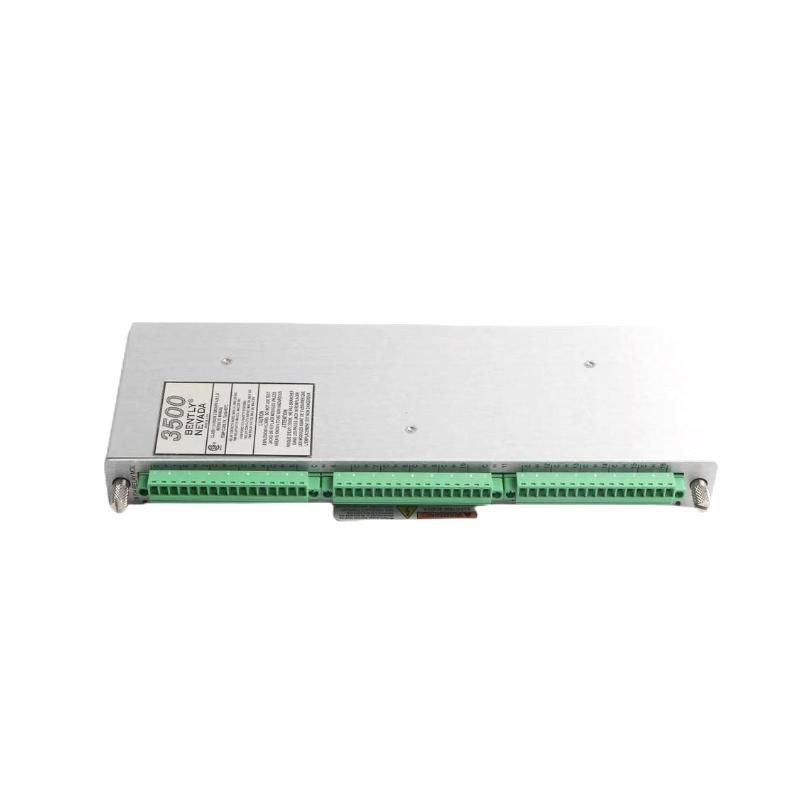

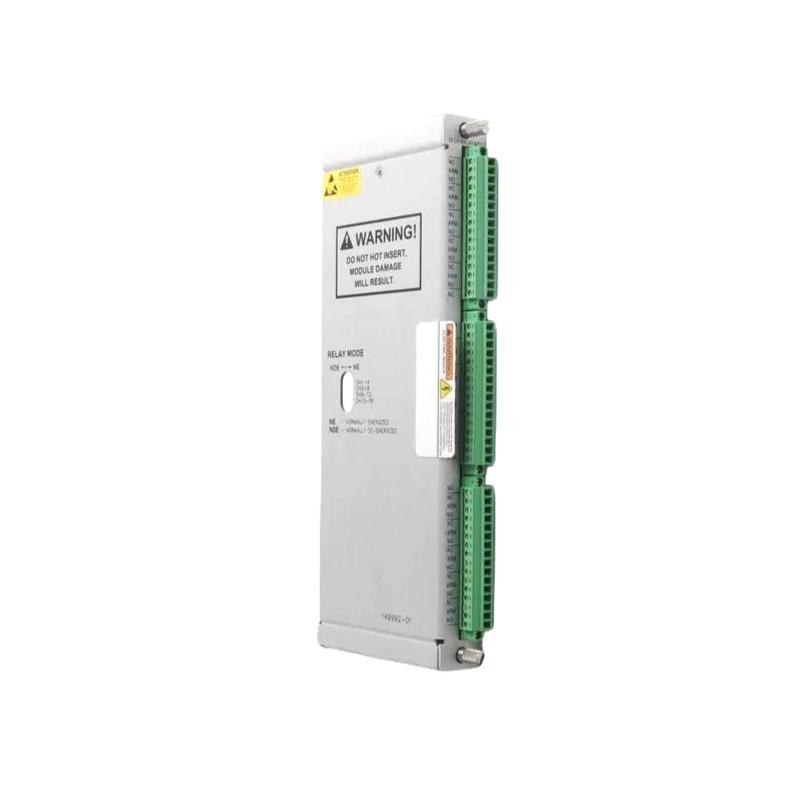

The Bently Nevada 3500/33-01-00 149992-01 is a full-height, 16-channel relay output module designed for the 3500 Machinery Protection System. It provides 16 relay outputs, each / which can be independently programmed to perform voting logic and alarm drive logic. This module enhances machinery protection by enabling complex control strategies and ensuring reliable operation.
产品规格
| Parameter | Details |
| 型号 Number | 3500/33-01-00 |
| 零件号 | 149992-01 |
| 描述 | 16-Channel Relay Output Module |
| Relay Channels | 16 independent SPDT relays |
| Relay 联系我们 Rating | 5 A @ 24 VDC / 250 VAC resistive load |
| Relay Life | ≥10,000 operations (resistive load) |
| Alarm Drive Logic | Configurable using AND/OR logic |
| Voting Logic | 支持ed for each relay output |
| Mounting Position | Any slot to the right / the TDI Module in the 3500 rack |
| Power Consumption | 5.8 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 0% to 95% non-condensing |
| Certifications | CE, CSA, ATEX, IECEx, GOST |
| Dimensions | 241 x 24.4 x 99.1 mm |
| 重量 | 0.4 kg |
Product Applications
-
Machinery Protection Systems: Provides relay outputs for alarms and shutdowns in turbines, compressors, and pumps.
-
Process Control Integration: Interfaces with DCS and PLC systems for comprehensive process monitoring.
-
Safety Systems: Implements voting logic for critical safety applications requiring high reliability.
-
Industrial Automation: Used in various industries including oil and gas, power generation, and manufacturing for equipment protection.
Product Advantages
-
Flexible Configuration: Each relay can be independently programmed for specific alarm conditions.
-
Voting Logic 支持: Enhances system reliability by requiring multiple conditions before triggering actions.
-
High Reliability: Designed for long operational life with over 10,000 relay operations.
-
Seamless Integration: Easily integrates into existing 3500 rack systems without additional hardware.
-
Global Certifications: Meets international standards for use in hazardous environments.
Latest News Headlines
-
Bently Nevada Enhances 3500 Series with Advanced Relay Module Features
-
New 16-Channel Relay Module Improves Machinery Protection Systems
-
Industry Leaders Adopt Bently Nevada’s 3500/33 for Enhanced Safety
-
Bently Nevada’s Relay Module Receives ATEX and IECEx Certifications
-
Upgraded Relay Module Offers Improved Voting Logic Capabilities
常见问题 (FAQ)
-
What is the function / the 3500/33-01-00 149992-01 module?
-
It provides 16 programmable relay outputs for alarms and shutdowns in machinery protection systems.
-
-
Can each relay be configured independently?
-
Yes, each relay can be programmed separately for specific alarm conditions and logic.
-
-
Does the module support voting logic?
-
Yes, it supports voting logic to enhance decision-making reliability.
-
-
What are the contact ratings for the relays?
-
Each relay is rated at 5 A for 24 VDC or 250 VAC resistive loads.
-
-
Is the module compatible with hazardous environments?
-
Yes, it has certifications including ATEX, CSA, IECEx, and GOST for use in hazardous areas.
-
-
Where is the module installed in the 3500 rack?
-
It can be placed in any slot to the right / the Transient Data Interface (TDI) Module.
-
-
What is the power consumption / the module?
-
It consumes approximately 5.8 Watts / power.
-
-
What is the operational temperature range?
-
The module operates between -30°C and +65°C (-22°F to +150°F).
-
-
Can the module be used in redundant configurations?
-
Yes, multiple modules can be used to provide redundancy in critical applications.
-
-
Is the module compatible with all 3500 series systems?
-
Yes, it is designed to integrate seamlessly with the entire 3500 series.
-
Related 型号s from the Same Series (3500 Series)
| 型号 Number | 描述 | Main Function |
| 3500/32M 149986-02 | 4-Channel Relay Module | Provides 4 programmable relays for machinery shutdown and alarm logic |
| 3500/33-02-00 | 16-Channel Relay Module | Alternative version / 3500/33 with expanded configuration options |
| 3500/34 | TMR Relay Module | Triple Modular Redundant output for critical relay logic |
| 3500/42M | Temperature Monitor | Monitors thermocouple and RTD sensors for thermal protection |
| 3500/40M | Proximitor Seismic Monitor | Measures vibration and axial position for rotating machinery |
| 3500/22M | Transient Data Interface (TDI) Module | Acts as a communications gateway and system monitor |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Main Function |
| 330103-00-05-10-02-00 | 3300 XL Proximity Probe | Measures shaft vibration and position |
| 330180-91-05 | Extension Cable for Proximity Probes | Connects proximity probes to drivers/monitors |
| 330130-040-00-00 | 3300 XL NSv Proximity Probe | Designed for small target applications (narrow-gap) |
| 3500/15 | Power Supply Module | Supplies power to all 3500 modules in the rack |
| 3701/55 | System 1 Turbine Supervisory Instrumentation | Advanced system for monitoring and diagnostics in turbines |
| 1900/65A | Compact Monitor | Affordable, two-channel vibration monitor for general machinery |
