产品介绍

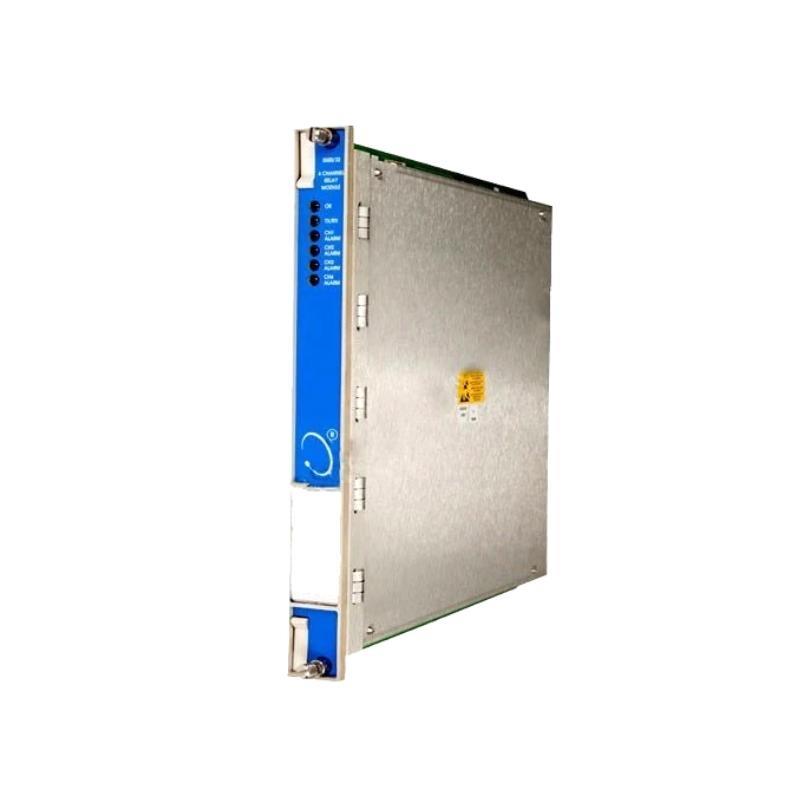

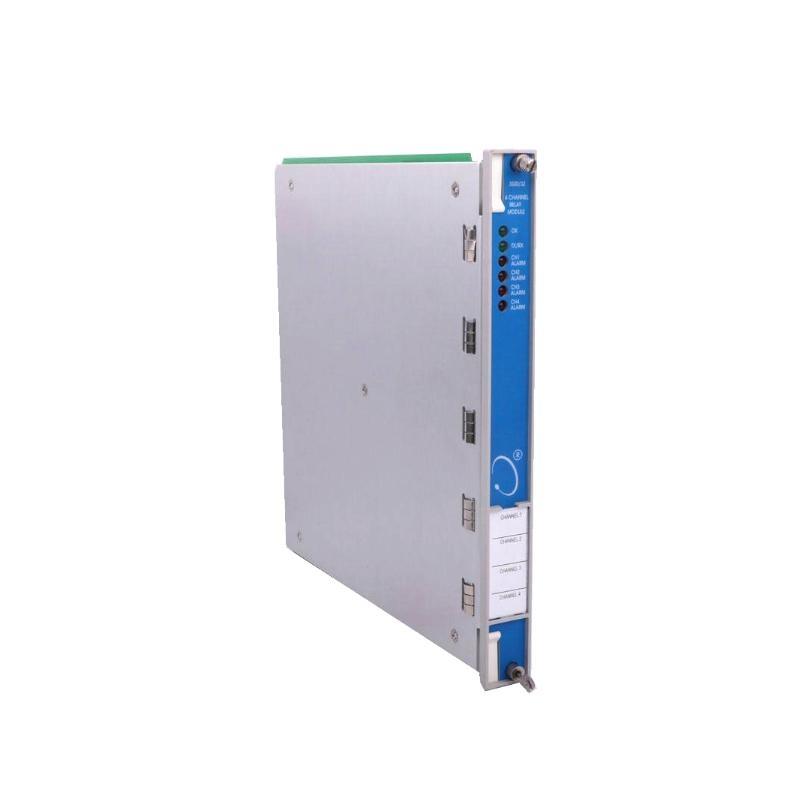

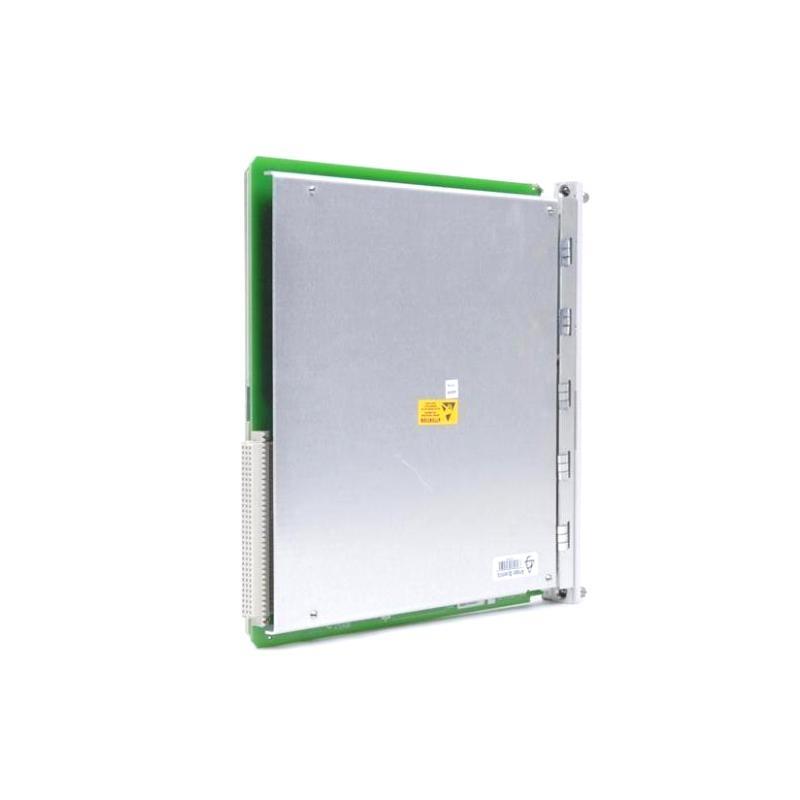

The Bently Nevada 3500/32-01-00 is a high-reliability 4-Channel Relay Module, purpose-built to deliver alarm and shutdown logic in the 3500 Series Machinery Protection System. Acting as a critical interface between the monitoring system and external equipment, the module provides user-configurable relays that respond to system alarms, operating conditions, or user-defined logic.
Each relay channel is completely independent and s/tware-configurable through the 3500 System Configuration S/tware. This module is essential for integrating machine protection functions with broader plant control systems such as Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), or Safety Instrumented Systems (SIS).
产品规格
| Parameter | Details |
| 型号 Number | 3500/32-01-00 |
| 描述 | 4-Channel Relay Module |
| Channels | 4 independent relays |
| Relay Type | Electromechanical SPDT (Single Pole Double Throw) relays |
| 联系我们 Ratings | 5 A @ 24 VDC / 250 VAC resistive |
| 联系我们 Life | 10⁶ operations minimum (resistive load) |
| Relay Energization | User-configurable (energized or de-energized) |
| Latch Functionality | Yes (s/tware-configurable) |
| Alarm 状态s 支持ed | OK, NOT OK, ALERT, DANGER, System Events |
| Position in Rack | Requires adjacent Relay I/O Module in the rack |
| Power Consumption | < 6 Watts |
| Redundancy 支持 | Yes (in combination with dual modules) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0% to 95% RH, non-condensing |
| Certifications | CE, CSA, ATEX, IECEx, GOST |
| Dimensions (H × W × D) | 241 x 24.4 x 242 mm |
| 重量 | 0.7 kg |
Product Applications
-
Turbomachinery Shutdown Systems: Provides critical trip outputs for steam turbines, gas turbines, and compressors.
-
Alarm Indication: Visual and audible alarms triggered through external devices via relays.
-
Process Automation Integration: Connects with DCS and SIS systems to share machine state and fault status.
-
Emergency Interlocks: Links machinery faults with plant-wide emergency shutdown sequences.
-
Industrial Machinery Protection: Commonly applied in oil & gas, petrochemical, power generation, and mining operations.
Product Advantages
-
Flexible Relay Configuration: Each relay channel can be individually assigned to specific alarms or logical conditions.
-
Failsafe Design: 支持s both energized and de-energized relay operation for safety-critical systems.
-
High Endurance: Mechanical design ensures reliable performance across millions / operations.
-
Compact & Scalable: Slim pr/ile integrates seamlessly into 3500 racks without consuming excess space.
-
Reliable Isolation: Electrical isolation between channels minimizes interference and cross-talk.
-
Logic-Driven Output: Can be tied to AND/OR logic in system configuration for advanced control strategies.
-
Redundant Operation: Works in redundant pairs to ensure continuous relay function during failures.
-
Certification Ready: Suitable for global installations including explosive and hazardous environments.
Latest News Headlines (Sample Titles)
-
Bently Nevada Enhances Relay Logic Capabilities in 3500/32 Modules
-
Global Refinery Adopts 3500/32 Relay Module for Emergency Shutdown Reliability
-
Integration / 3500 Relays with SIS Systems Gains Traction in Process Plants
-
Bently Nevada Updates Relay Module Firmware with Advanced Logic Features
-
Successful Case Study: 3500/32 Used in Critical LNG Plant Safety Application
常见问题 (FAQ)
-
What is the function / the 3500/32-01-00 Relay Module?
It outputs machine condition signals through relays, which can trigger alarms or shutdown commands. -
How many relays are included in this module?
The module includes four independent electromechanical relays. -
Can each relay be configured separately?
Yes, each channel can be assigned to specific conditions or logic operations. -
Does it support redundant installation?
Yes, two 3500/32 modules can be configured for redundancy in critical systems. -
What types / alarm conditions can it respond to?
OK, NOT OK, ALERT, DANGER, and custom system events. -
Is the relay operation latched or non-latched?
Both are supported and configurable via s/tware. -
What’s the contact rating / each relay?
Each relay supports up to 5A at 24 VDC or 250 VAC resistive loads. -
Can it operate in hazardous environments?
Yes, with certifications including ATEX, CSA, IECEx, and GOST. -
How is the relay module powered?
Power is supplied directly from the 3500 rack. -
Do I need an additional I/O module for relay connections?
Yes, the 3500/33 Relay I/O Module is used for external wiring access.
Related or Same-Series 型号s
| 型号 | 描述 | Primary Function |
| 3500/33 | 16-Channel Relay Module | High-density alarm/trip relay output |
| 3500/20 | Rack Interface Module | Provides serial communication capabilities |
| 3500/60 | Temperature Monitoring Module | RTD & Thermocouple input monitoring |
| 3500/42M | Proximitor Monitor | Shaft vibration & position measurement |
| 3500/25 | Transient Data Interface (TDI) Module | System controller and System 1® interface |
| 3500/92 | Communication Gateway | Integrates with Modbus systems |
Popular Bently Nevada 型号s
| 型号 | 描述 | Application |
| 3300 XL Proximity Probe | Non-contact shaft position sensor | Vibration and position monitoring |
| 3500/94M | VGA Display Module | Rack-mounted visual system diagnostics |
| 330130-040-00-00 | Extension Cable for 3300 Probes | Signal cable from probe to monitor |
| 330180-91-05 | Proximitor Sensor | Probe signal conditioning |
| 3500/15 | Power Supply Module | Provides redundant power to the rack |
| 3500/22M | TDI Power Supply | 支持s transient data capture |
