Product Overview

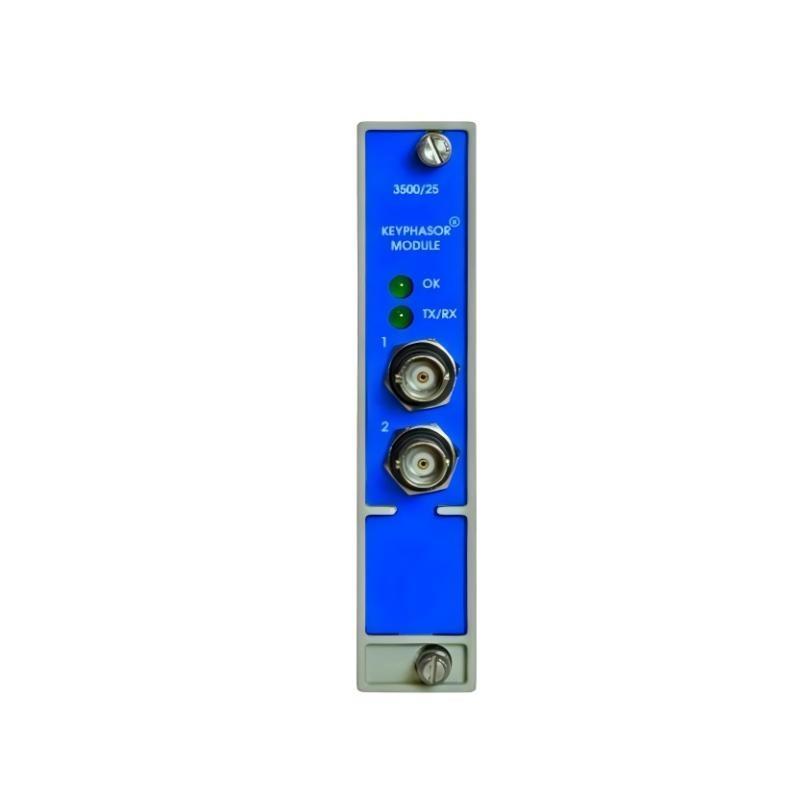

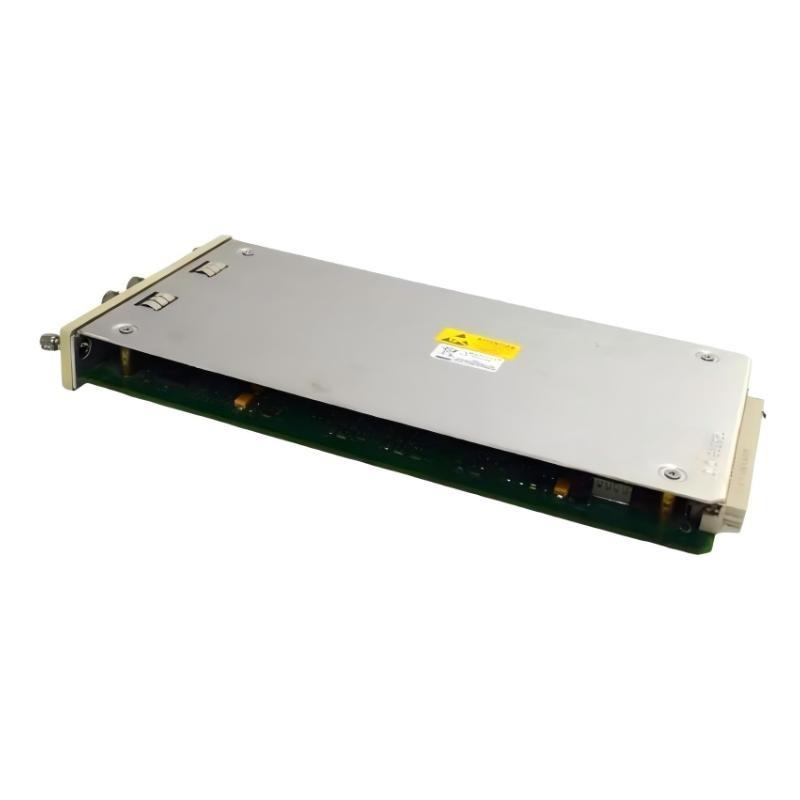

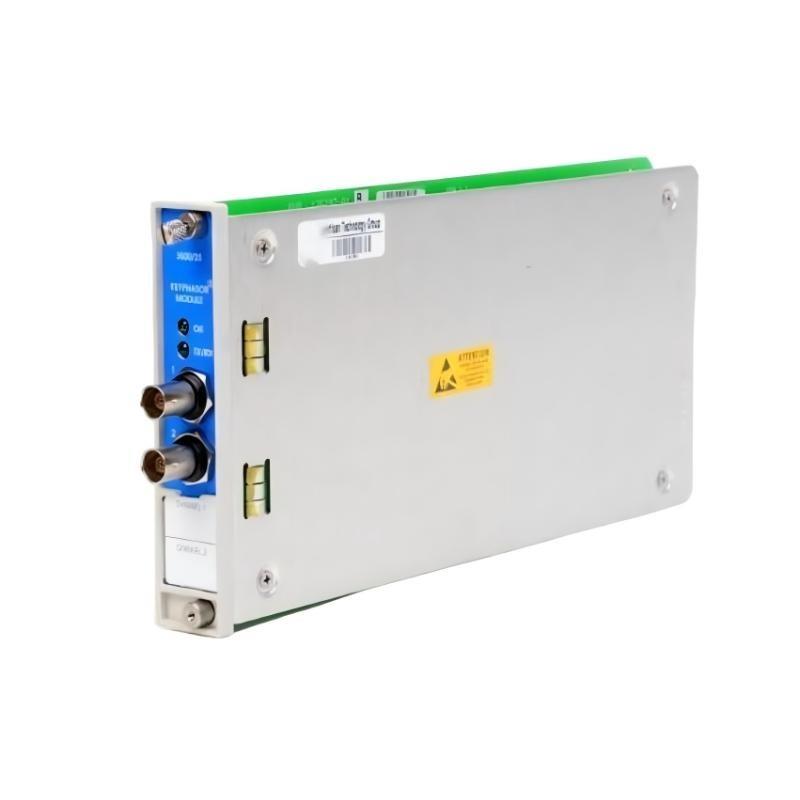

The Bently Nevada 3500/25-02-03-RU Enhanced Key Phase Module is a high-performance module for the 3500 Series Machinery Protection System. It provides advanced keyphasor input processing for shaft vibration and speed monitoring, ensuring accurate machinery protection and reliable operation.
Key Features
-
Advanced keyphasor input processing for shaft vibration and speed detection
-
Part / the 3500 Series Machinery Protection System
-
High reliability for critical rotating machinery applications
-
支持s integration with multiple 3500 series modules
-
Enhanced signal filtering and pulse shaping for precise measurements
-
Compact, rack-mounted design for easy installation
-
Suitable for harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| 型号 | 3500/25-02-03-RU |
| Type | Enhanced Key Phase Module |
| Compatible System | Bently Nevada 3500 Series Machinery Protection System |
| Input Signal Type | Keyphasor / Tachometer input |
| Number / Channels | 1 |
| Signal Processing | Enhanced filtering and pulse shaping |
| Output | Processed keyphasor pulses for system use |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Module OK, Input Fault |
| Mounting | 3500 series rack |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| 重量 | 0.34 kg |
常见问题 (FAQ)
1. What is the main function / the 3500/25-02-03-RU module?
It provides advanced keyphasor input processing for shaft vibration and speed monitoring.
2. Which system is this module compatible with?
It is designed for the Bently Nevada 3500 Series Machinery Protection System.
3. How many channels does it support?
It supports a single keyphasor input channel.
4. What type / input signal does it process?
It processes keyphasor or tachometer input signals.
5. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
6. Can this module integrate with other 3500 series modules?
Yes, it can fully integrate with other 3500 series modules.
7. What output does the module provide?
It outputs processed keyphasor pulses for use in the 3500 system.
8. Does it have diagnostic indicators?
Yes, it includes Module OK and Input Fault LEDs.
