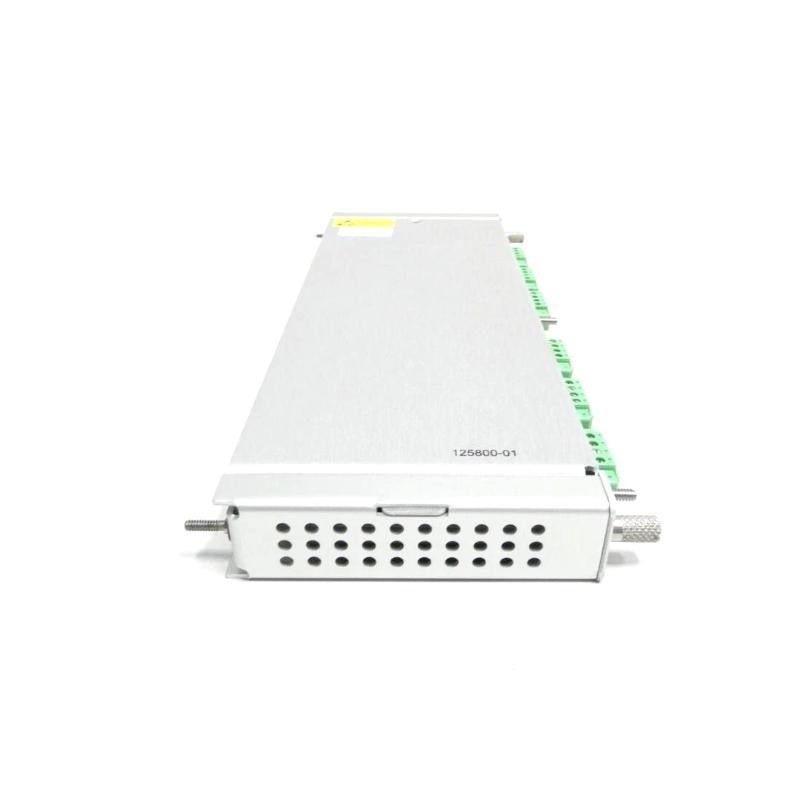

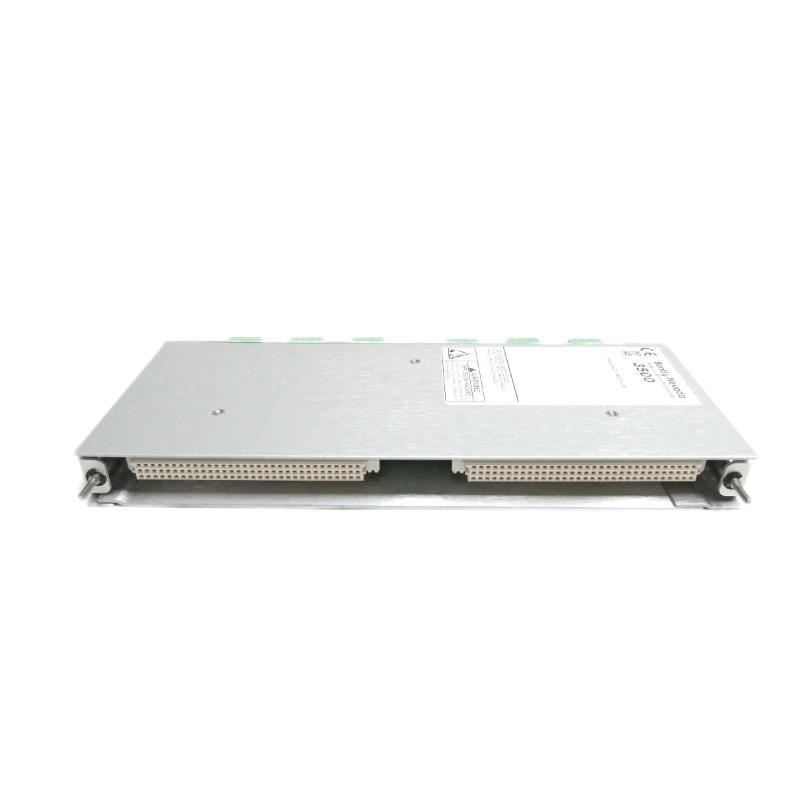

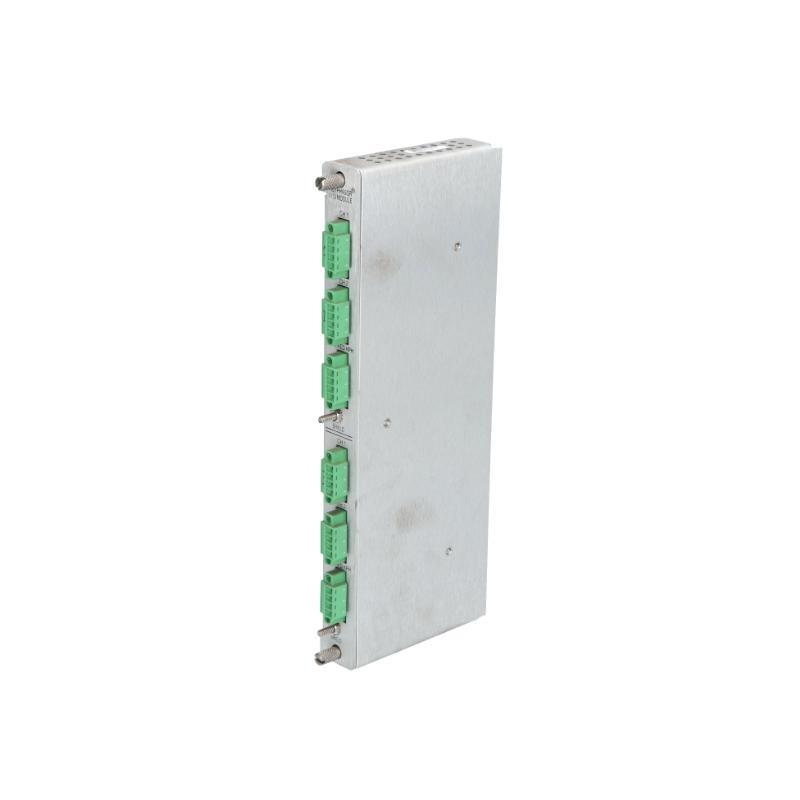

Bently Nevada 3500/25-01-01-00 125800-01 Enhanced Keyphasor Module

产品介绍

The Bently Nevada 3500/25-01-01-00 Enhanced Keyphasor Module is a half-height, two-channel module designed to provide Keyphasor signals to the monitor modules in a 3500 rack. It receives input signals from proximity probes or magnetic pickups and converts them into digital Keyphasor signals. These signals indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer, allowing for precise timing measurements essential for monitoring shaft rotative speed and vector parameters such as 1X vibration amplitude and phase.

产品规格

Applications

• Machinery 状态 Monitoring: Suitable for gas turbines, steam turbines, compressors, pumps, fans, and motors.

• Transient Data Acquisition: Captures and stores transient vibration events such as startups, shutdowns, trips, and other anomalies.

• Integration with System 1®: Seamless data streaming into Bently Nevada’s predictive analytics platform.

• Plantwide Monitoring Infrastructure: Acts as a centralized data gateway across multiple machinery systems.

• Diagnostics & Root Cause Analysis: Ideal for engineers seeking detailed, timestamped event data.

• Critical Asset Protection: Used across oil & gas, petrochemical, power generation, marine, and mining industries.​

Advantages

• Enhanced Signal Processing: Employs advanced signal processing algorithms for improved noise imm件y and accuracy.

• Dual-Channel Capability: Processes signals from two proximity probes or magnetic pickups simultaneously.

• Compact Design: Fits into a standard 19-inch rack, optimizing space utilization.

• High-Precision Keyphasing: Accurately determines the rotational position / a shaft relative to a fixed reference point.

• Broad Compatibility: 支持s a range / Proximitors and advanced monitoring systems, ideal for diverse industrial applications.​

Latest News Headlines

1. “Bently Nevada Introduces Enhanced Keyphasor Module for Improved Machinery Monitoring”

2. “New Developments in Keyphasor Technology Boost Rotating Equipment Analysis”

3. “Enhanced Keyphasor Module Receives CSA/NRTL/C Certification for Hazardous Locations”

4. “Bently Nevada’s 3500 Series Modules Gain Popularity in Power Generation Sector”

5. “Advancements in Keyphasor Signal Processing Enhance Predictive Maintenance Strategies”

常见问题 (FAQ)

1. What exactly does the Enhanced Keyphasor Module do in the 3500 system?
The 3500/25 Enhanced Keyphasor Module serves a critical role by generating digital Keyphasor signals used to establish timing references for other modules within the Bently Nevada 3500 Series system. These signals are essential for performing speed measurements, phase tracking, and vector vibration analysis. It essentially converts analog pulses from proximity probes or magnetic pickups into a digital signal that pinpoints shaft rotational position, making it a fundamental part / any rotating equipment condition monitoring setup.

2. Can I install the 3500/25 module in any slot in the 3500 rack?
No, the module must be installed in designated slots according to Bently Nevada’s configuration rules. Typically, Keyphasor modules are installed in slot positions specifically intended for timing input, which are usually to the left / the first monitor module. Additionally, configuration in the 3500 s/tware is mandatory to assign the Keyphasor logic properly, ensuring that the timing signals are routed to the correct modules.

3. What’s the advantage / using the Enhanced Keyphasor module over the standard version?
The “Enhanced” version / the Keyphasor module /fers improved noise imm件y, extended input signal ranges, and greater compatibility with various transducers. It also supports dual redundant outputs and faster signal response time, which enhances performance in high-speed rotating equipment where precision timing is vital. These enhancements make it especially suitable for critical applications like gas turbines or high-speed compressors.

4. Is the module compatible with all types / proximity probes?
The 3500/25 module is designed to be compatible with most Bently Nevada proximity probes (e.g., 3300 XL series). However, it is important to ensure that the probe and driver configuration is properly matched and calibrated. Certain custom or third-party sensors may not be fully compatible without signal conditioning or hardware modification, so always verify probe specifications against the module’s electrical input requirements.

5. What kind / input signals does this module accept?
The module can accept signals from both proximity probe systems and magnetic pickups. For proximity probes, it can handle signals in the range / approximately +0.8V to -21V for non-isolated configurations. For isolated input modules, it supports a narrower range (approximately +5V to -11V). This allows flexibility in the types / rotating assets being monitored.

6. How do I configure the Keyphasor module after installation?
Configuration is done via the Bently Nevada 3500 Rack Configuration S/tware. Users must define the number / channels, input source (proximity or magnetic), and the logic for zero crossing or pulse detection. Signal thresholds and channel assignments to monitors like 3500/42M or 3500/50 are also handled within the s/tware. It’s important that the configuration be verified during commissioning to ensure all parameters are correctly assigned.

7. Does this module support redundant Keyphasor signals?
Yes. The module is equipped to support two independent channels, which can be used for redundancy or dual-signal tracking. This is particularly useful in applications where safety, high-speed rotation, or backup measurements are critical. When configured in redundant mode, it ensures continuous operation even if one input fails.

8. What is the recommended maintenance or calibration cycle for this module?
The module itself requires very little maintenance. However, calibration / the connected proximity probes should be performed periodically—typically every 1 to 2 years, depending on site environmental conditions and asset criticality. It’s also good practice to check signal integrity and system diagnostics through the 3500 System 1® s/tware or via manual verification with an oscilloscope.

9. What is the environmental tolerance / the module? Can it handle extreme conditions?
The 3500/25 is designed for industrial environments. It operates in temperatures ranging from -20°C to +65°C and has a storage range from -40°C to +85°C. It can tolerate humidity levels up to 95% non-condensing. For hazardous environments, the module is certified Class 1, Division 2 (CSA/NRTL/C), making it suitable for most petrochemical or /fshore applications.

10. How do I know if the module is functioning properly once installed?
The module features onboard LED indicators that show OK, TX/RX, and Channel status. Additionally, system diagnostics within the 3500 Monitoring S/tware or System 1® will display live status, errors, or configuration mismatches. These tools should always be used during system startup or periodic inspections to ensure the module is functioning as expected.
