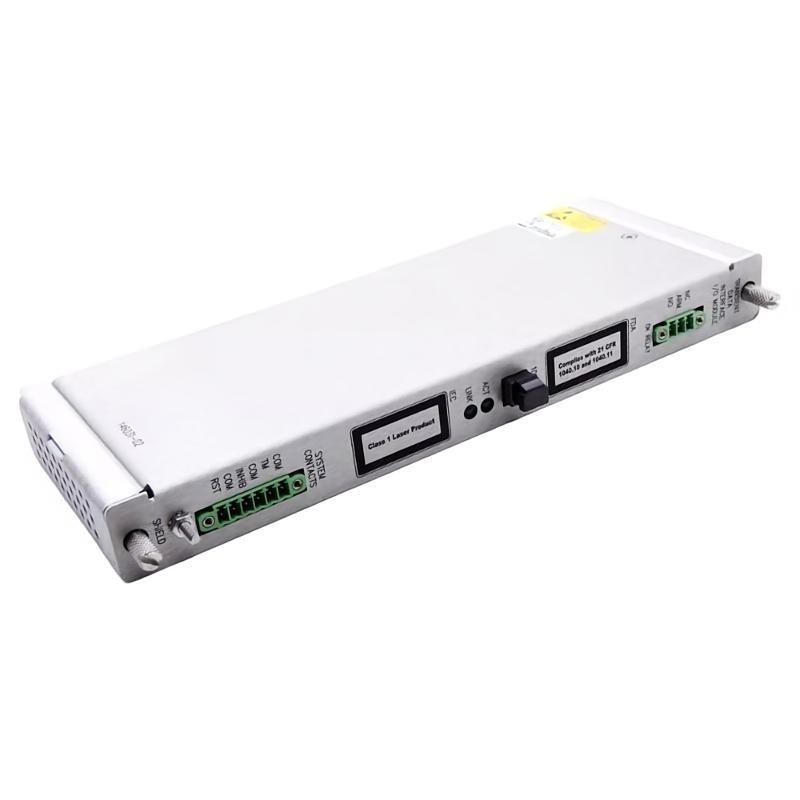

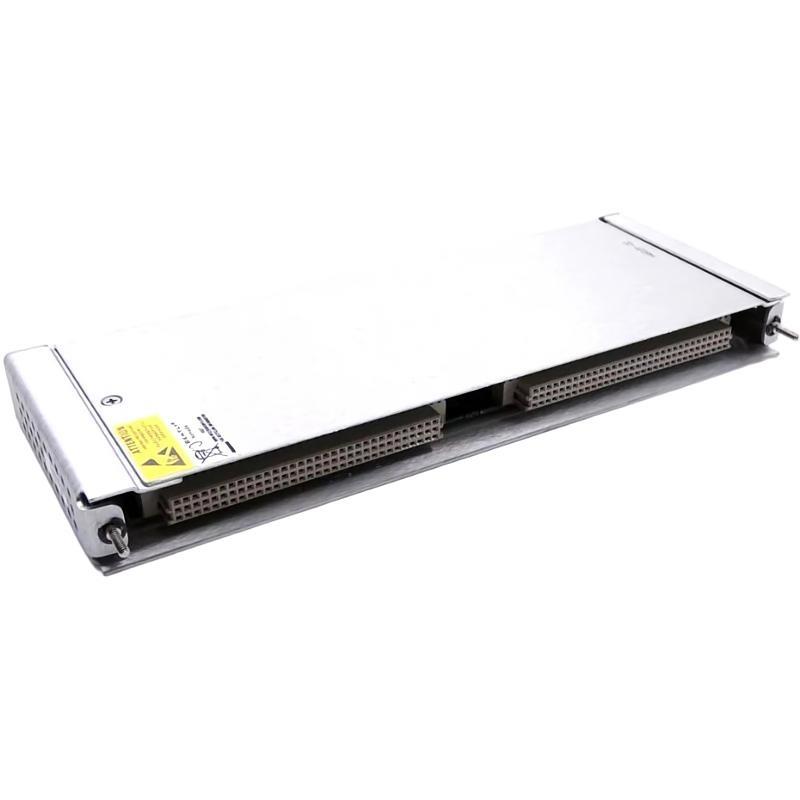

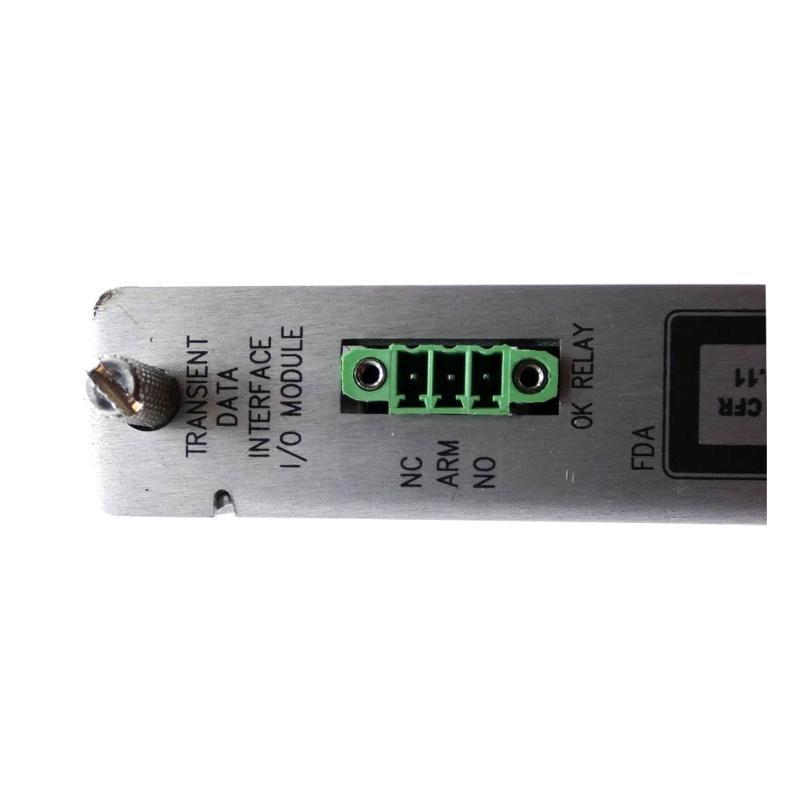

Bently Nevada 3500/22M 146031-02 100Base-FX Fiber Optic I/O Module

产品介绍

The Bently Nevada 3500/22M 146031-02 100Base-FX Fiber Optic I/O Module is a high-performance communication interface module designed for use within the Bently Nevada 3500 Series machinery protection and condition monitoring system. This particular variant is equipped with a 100Base-FX fiber optic communication interface, enabling high-speed, noise-resistant data transfer between the 3500 rack and external monitoring or control systems.

By using fiber optic transmission, the 3500/22M 146031-02 ensures reliable, long-distance communication even in electrically noisy industrial environments. It plays a pivotal role in transmitting high-resolution transient vibration data—critical for early fault detection—especially in applications where electromagnetic interference (EMI) can compromise traditional copper-based links.

This module is ideal for demanding industrial environments such as power generation plants, /fshore oil platforms, petrochemical facilities, and heavy manufacturing, where high-speed data integrity and equipment protection are paramount.

产品规格

Product Applications

The 3500/22M 146031-02 module is widely deployed in high-noise or long-distance monitoring environments, supporting both machinery protection and advanced diagnostics:

• Power Generation Plants
  For monitoring turbines, boilers, and generators where EMI protection is crucial.

• Oil & Gas Exploration and Refining
  Used on /fshore rigs, pipelines, and compressors to ensure data integrity over fiber links.

• Petrochemical Processing
  Enables fast, accurate diagnostics in corrosive and high-temperature environments.

• Mining and Metallurgy
  Ideal for vibration signal capture from conveyors, crushers, and mills in remote locations.

• Marine and Naval Applications
  Ensures vibration monitoring / shipboard equipment under harsh maritime conditions.

• Industrial Automation and Robotics
  Provides real-time, interference-free monitoring / fast-moving automated systems.

Product Advantages

• Fiber Optic Communication
  Immune to electrical noise, ideal for EMI-heavy environments and long-distance data transmission.

• High-Speed Data Transfer
  100Base-FX allows for rapid and accurate transmission / vibration data to monitoring systems.

• Early Fault Detection
  Captures transient mechanical events like rubbing, imbalance, and bearing wear at early stages.

• Rugged Industrial Design
  Built to endure harsh conditions including temperature extremes and high humidity.

• System Compatibility
  Fully compatible with the Bently Nevada 3500 Series rack and protection modules.

• Energy Efficient
  Low power consumption while providing high-speed, high-integrity data transfer.

• Enhanced Safety
  Certified for use in potentially hazardous environments (ATEX where applicable).

• Space-Saving Format
  Compact design for seamless integration into existing 3500 system racks.

• Diagnostic Reliability
  Ensures the delivery / clean, undistorted transient data critical for predictive maintenance.

• Field Proven
  Trusted across industries for dependable operation and long service life.

常见问题 (FAQ)

1. What is the primary role / the 3500/22M 146031-02 module?
   It transmits transient vibration data via fiber optics from the Bently Nevada 3500 system to external systems.

2. What type / fiber optic connection does this module use?
   It uses 100Base-FX multimode ST-style fiber optic connectors for communication.

3. Why choose fiber optic over traditional copper interfaces?
   Fiber is immune to EMI, supports longer distances, and /fers greater data integrity in industrial environments.

4. What equipment can this module help monitor?
   Turbines, compressors, motors, pumps, and other rotating machinery requiring high-speed diagnostics.

5. Is this module compatible with all 3500 racks?
   Yes, it is fully compatible with all standard 3500 monitoring system racks.

6. How does it support predictive maintenance strategies?
   It provides high-resolution data on transient events that are critical to diagnosing developing mechanical faults.

7. Can the fiber optic link be extended over long distances?
   Yes, 100Base-FX supports longer distances than copper—typically up to 2 km with multimode fiber.

8. Is any special s/tware required to use this module?
   It integrates with Bently Nevada System 1 and other compatible vibration monitoring platforms.

9. What safety certifications does it meet?
   It meets CE, UL, and optionally ATEX standards for use in hazardous environments.

10. Does this module require regular calibration or maintenance?
    It is low-maintenance; routine inspection / fiber links and basic cleaning is typically sufficient.
