产品介绍

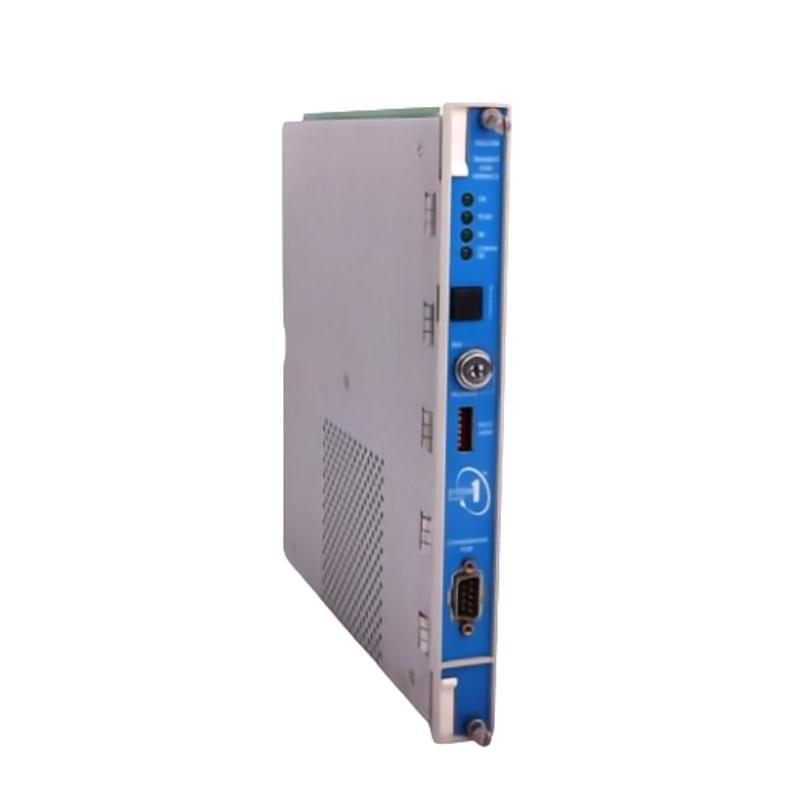

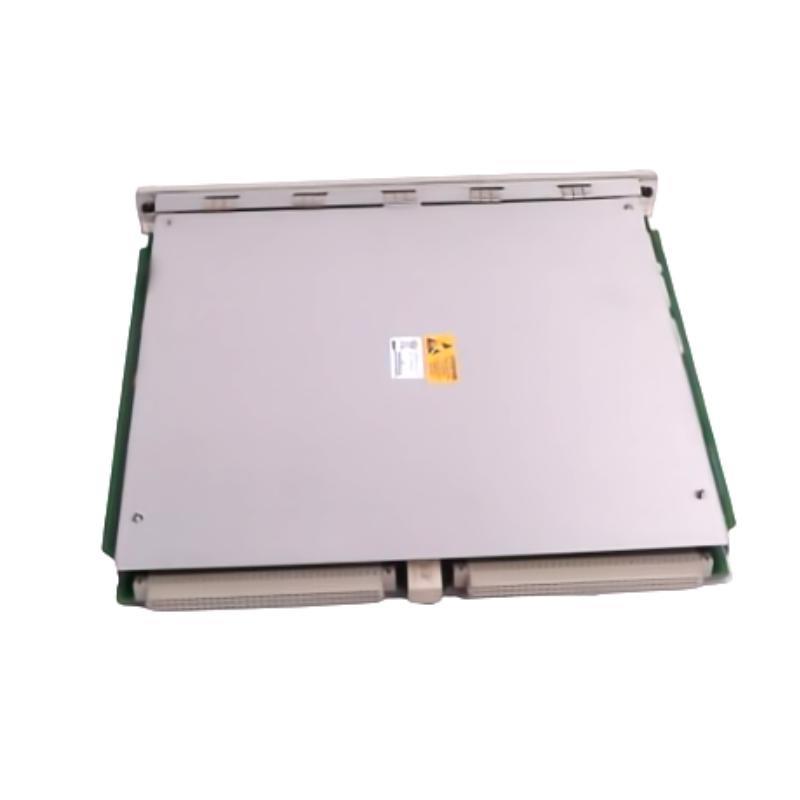

The Bently Nevada 3500/22 288055-01 Transient Data Interface Module (TDI) is a core communication and data acquisition module used in the Bently Nevada 3500 Machinery Protection System.
It combines the functionality / the 3500/20 Rack Interface Module (RIM) with advanced communication processing, providing a streamlined solution for transmitting static and transient machinery data to external s/tware platforms such as System 1 状态 Monitoring.
Installed exclusively in Slot 1 / the rack, adjacent to the power supply module, the 288055-01 TDI collects input from all rack monitoring modules, consolidates this data, and transmits it over Ethernet or fiber-optic connections.
When used with an optional Channel Enabling Disk, it enables high-resolution transient waveform capture for in-depth diagnostic evaluation / machinery events such as startups, shutdowns, and trip conditions.
The 3500/22 288055-01 is widely recognized for its robust design, ease / integration, and ability to handle high-speed data communication without impacting the protection functions / the system.
Product Parameters
| Parameter | Specification |
|---|---|
| 零件号 | 288055-01 |
| Series | Bently Nevada 3500 |
| Module Type | Transient Data Interface Module |
| Slot Position | Slot 1 (next to rack power supply) |
| Power Consumption | Approx. 10.5 W |
| Input Signal Range | –10 V DC to +10 V DC |
| Ethernet Interface | 10Base-T / 100Base-TX (copper) or 100Base-FX (fiber) |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 0% to 95% non-condensing |
| Front Panel Interface | USB-B port |

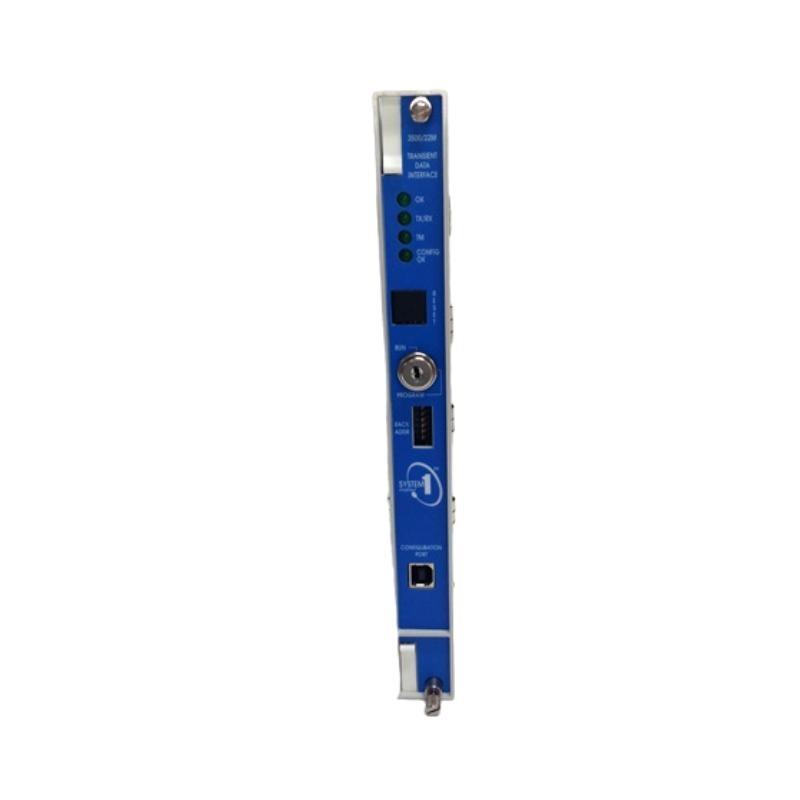

| Indicators | OK, TX/RX, TM, CONFIG OK LEDs |
| Dimensions (W × H × D) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Mounting | 3500 rack slot |
Product Applications
The 288055-01 TDI is deployed in industrial environments where machinery protection and advanced condition monitoring are critical.
Its applications include:
-
Real-time machine condition monitoring: Gathering both steady-state values and transient waveform data for analysis.
-
Predictive maintenance integration: Seamless data transfer to System 1 for continuous health monitoring.
-
Transient event capture: Detecting and recording startup, coast-down, trip, and load-change events.
-
TMR (Triple Modular Redundancy) support: Comparing outputs from three redundant monitors for fault voting and isolation.
-
Secure remote configuration: Allowing remote setup while ensuring protection through hardware keylock security.
-
Alarm and event correlation: Linking transient waveforms to alarm timestamps for accurate diagnostics.
Product Advantages
-
Integrated functionality – Combines RIM and communication processor roles, reducing hardware count.
-
Non-intrusive to protection path – Data communication failures do not compromise the protective trip logic.
-
Versatile communication – 支持s both copper Ethernet and fiber-optic links for flexible deployment.
-
High-resolution event recording – Captures pre- and post-event transient data with optional enabling disk.
-
Rugged industrial design – Operates reliably in extended temperature and humidity ranges.
-
Instant status visibility – LED indicators and OK relay for fast health diagnostics.
-
Seamless integration – Designed for compatibility with M-series monitors and 3500 rack systems.
FAQ
-
What functions does the TDI provide compared to a standard RIM?
It adds communication processing and transient data capture capabilities to the RIM’s basic rack interface role. -
Can the 288055-01 TDI be used without an enabling disk?
Yes, but only static data will be transmitted—transient waveform capture requires the disk. -
How does the module handle redundant system configurations?
In TMR systems, it compares readings from three redundant monitors and flags inconsistencies for voting logic. -
What networking standards does it support?
It supports 10Base-T / 100Base-TX copper Ethernet and 100Base-FX fiber-optic connections. -
Does it process all rack data channels?
Yes, it aggregates inputs from all installed monitor and I/O modules in the rack. -
How are transient events triggered?
Through alarms, speed windows, or operator-initiated capture via System 1 or configuration s/tware. -
What happens if the TDI fails?
Data transmission may stop, but protective functions remain intact as it is not part / the trip chain. -
Can it be configured remotely?
Yes, provided the rack is in PROGRAM mode; RUN mode locks configuration changes. -
Is the front USB port required for normal operation?
No, it is used mainly for direct configuration and diagnostics, not routine communication. -
What LED indicators are provided?
OK (module health), TX/RX (network traffic), TM (trip multiply), CONFIG OK (valid configuration).
