产品介绍

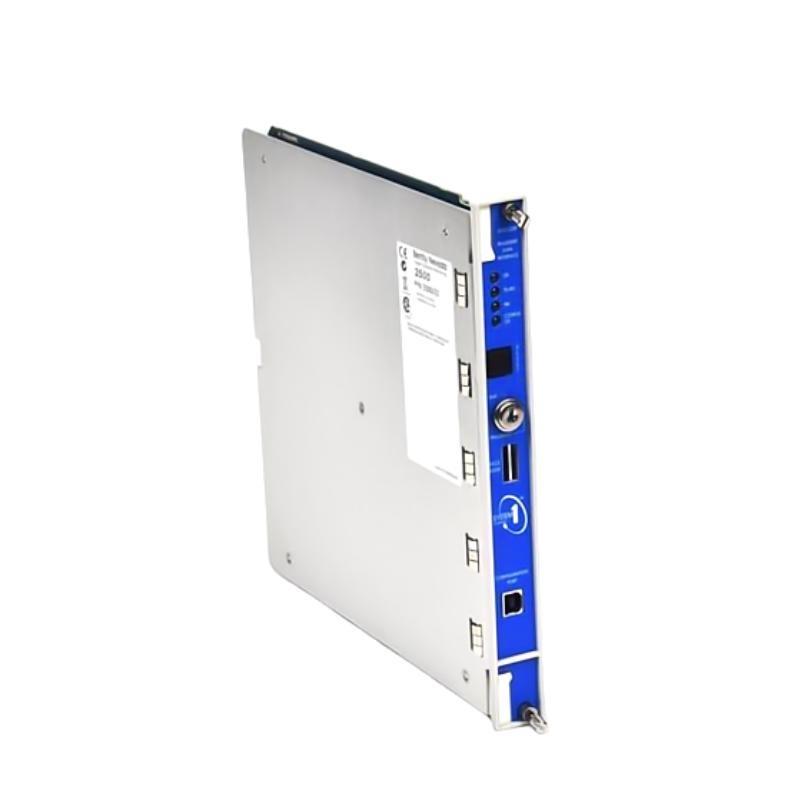

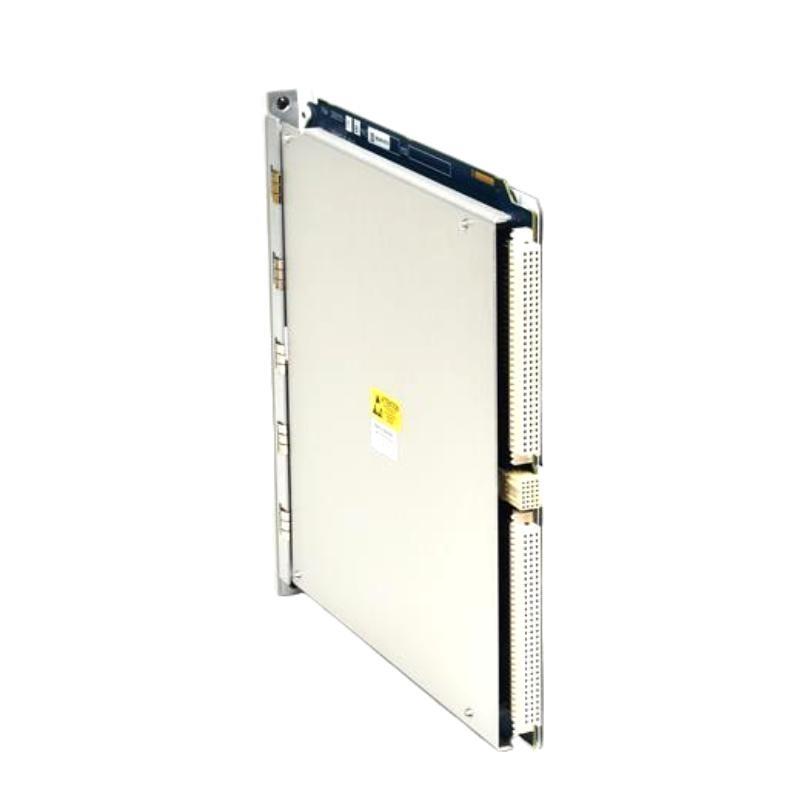

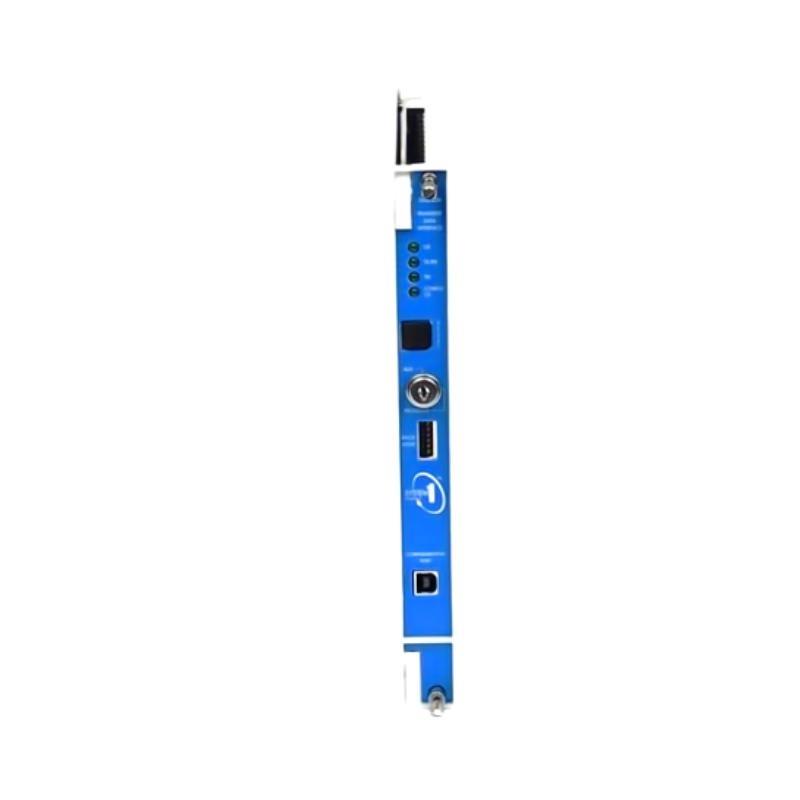

The Bently Nevada 3500/22-01-02-00 Transient Data Interface Module is a key component in the Bently Nevada 3500 Series machinery protection system. This module specializes in capturing transient vibration events — short, rapid changes in vibration that indicate early-stage faults such as bearing defects, shaft rubbing, or impacts. The ability to monitor these fleeting signals allows maintenance teams to detect mechanical issues before they escalate into costly failures.
Designed to seamlessly integrate into the 3500 Series platform, the 3500/22-01-02-00 module ensures accurate data capture and reliable communication between vibration sensors and control systems. Its robust build and proven performance make it well-suited for demanding industries like power generation, oil and gas, petrochemical, and manufacturing, where early fault detection is critical for maintaining equipment uptime and operational safety.
产品规格
| Specification | Details |
|---|---|
| 型号 Number | 3500/22-01-02-00 |
| Function | Transient Data Interface Module |
| Compatible System | Bently Nevada 3500 Series |
| Input Signal Type | Transient vibration signals |
| Data Acquisition | High-speed transient event capture |
| Communication Interface | Proprietary 3500 bus |
| Power Supply | 24 V DC |
| Power Consumption | Approximately 5 W |
| Dimensions (WxHxD) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Certifications | CE, UL, ATEX (where applicable) |
Product Applications
The 3500/22-01-02-00 module finds its place in environments where transient vibration data is essential for machinery health monitoring:
-
Power Plants: Monitors turbines, generators, and auxiliary equipment for early fault detection.
-
Oil and Gas: Provides detailed transient vibration data from compressors, pumps, and rotating machinery.
-
Petrochemical Industry: 支持s predictive maintenance by detecting incipient faults before failures occur.
-
Mining: Monitors heavy equipment to improve reliability and prevent unscheduled downtime.
-
Marine and Offshore: Used in propulsion and auxiliary systems exposed to harsh conditions.
-
Manufacturing: Protects production equipment by identifying mechanical issues early.
Product Advantages
-
Detects Early Faults: Captures short transient vibration events that can signal developing issues.
-
High-Speed Data Capture: Ensures detailed and accurate transient vibration recording.
-
Durable Design: Operates reliably in extreme temperatures and humid conditions.
-
Seamless System Integration: Fully compatible with the Bently Nevada 3500 Series system.
-
Reduces Downtime: Enables predictive maintenance to avoid unexpected failures.
-
Compact Size: Easily fits into existing control racks and panels.
-
Energy Efficient: Low power consumption supports sustainable operation.
-
Certified for Safety: Complies with international safety and hazardous location standards.
-
Simplifies Diagnostics: Provides clear data for maintenance decision-making.
-
Trusted Worldwide: Proven in demanding industrial environments.
常见问题 (FAQ)
-
What faults can the 3500/22-01-02-00 detect?
It identifies early-stage issues such as bearing faults, rubbing, and transient impacts. -
How does transient vibration monitoring improve machinery protection?
It captures brief events that standard continuous monitoring might miss, allowing earlier intervention. -
Is this module compatible with other Bently Nevada equipment?
Yes, it integrates exclusively with the Bently Nevada 3500 Series. -
How /ten should transient data be reviewed?
Regular review during maintenance is recommended for effective fault detection. -
Can this module operate in hazardous environments?
Versions with ATEX certification can be used safely in explosive atmospheres. -
What does installation involve?
The module is installed into the 3500 system rack and connected to the sensor and communication buses. -
Is the data from the module available in real time?
It captures data rapidly; however, detailed analysis usually happens during scheduled diagnostics. -
How reliable is the module under harsh industrial conditions?
It is designed to perform consistently in high humidity, temperature extremes, and vibration-heavy environments. -
What maintenance does this module require?
Routine cleaning and inspection are sufficient due to its robust design. -
Can the module’s data be accessed remotely?
Yes, integration with compatible systems allows remote access for monitoring and analysis.
Related and Recommended 型号s
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| 3500/20-01-01-00 | Proximitor Sensor Interface Module | Interface for primary sensors |
| 3500/25-01-00-00 | Speed/Phase Interface Module | Speed and phase signal handling |
| 3500/32-00-00-00 | Display Module | Operator display interface |
| 3500/45-01-00-00 | Proximitor Sensor | Non-contact vibration sensing |
| 3500/22-01-01-00 | Transient Data Interface Module | Earlier version transient data module |
| 3500/23-01-00-00 | Vibration Processing Module | Signal conditioning and analysis |
Popular Bently Nevada 型号s from the Same 品牌
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| 3500/55M-22-00-10 | Monitor Rack | Central rack for 3500 Series |
| 3300 XL | Proximitor Sensor | High precision vibration sensing |
| 3500/05-01-05-00 | System Diagnostics Module | Monitoring system health |
| 3300 XL Proximitor | Proximity Probe | Accurate displacement sensing |
| 3500/62-01-00-00 | Speed Reference Module | Speed signal measurement |
| 7200 System | Advanced 状态 Monitoring | Comprehensive machine protection |
