产品介绍

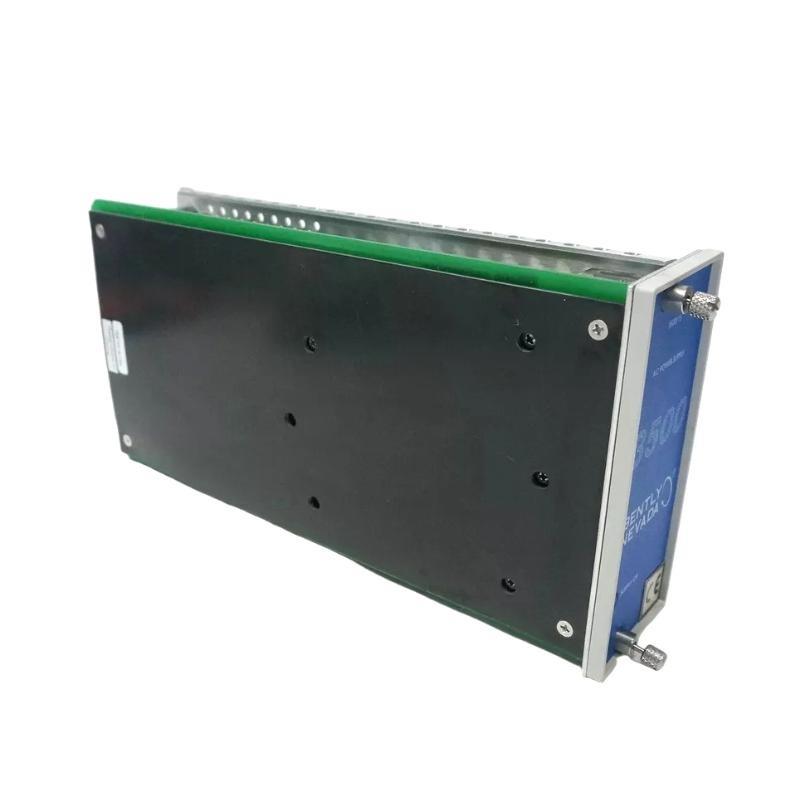

The Bently Nevada 3500/15 AC Power Supply Module (model numbers 106M2686-00 and 127610-01) is a vital power component within the Bently Nevada 3500 Series Machinery Protection System. This module is designed to provide stable and reliable AC power to various monitoring and protection modules installed in the 3500 rack system. Its robust design supports consistent power delivery with integrated protections, ensuring the continuous and fault-free operation / critical machinery monitoring equipment. The module accommodates a broad range / input voltages, making it adaptable to many industrial environments worldwide. Built for high performance and durability, the 3500/15 module plays a key role in safeguarding rotating machinery in sectors such as power generation, oil and gas, and heavy industry.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Numbers | 106M2686-00, 127610-01 |
| Product Type | AC Power Supply Module |
| Input Voltage Range | 85 VAC to 264 VAC |
| Frequency | 47 Hz to 63 Hz |
| Output Voltage | +5 VDC (regulated) |
| Output Current | Up to 5 A |
| Power Rating | Approximately 25 Watts |
| Efficiency | Greater than 85% |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -55°C to 85°C |
| Dimensions (W × H × D) | 120.7 x 50.8 x 251.5 mm |
| 重量 | 1.39 kg |
| Mounting | Compatible with 3500 Series Rack Modules |
Applications
The 3500/15 AC Power Supply Module is engineered to deliver dependable power to essential machinery protection system components. Its key applications include:
-
Powering vibration monitoring and proximity probe modules in turbines, compressors, and pumps
-
支持ing generator and motor protection in power generation facilities
-
Ensuring consistent power delivery to machinery health monitoring equipment in petrochemical plants
-
Providing power to condition monitoring modules in heavy manufacturing environments
-
Integration within safety instrumented systems for critical process control
-
Assisting in monitoring rotating equipment in water and wastewater treatment plants
Advantages
-
Universal Voltage Input: Operates efficiently across a wide voltage range (85 VAC to 264 VAC), suitable for global installations.
-
Stable Power Output: Supplies a regulated +5 VDC output at currents up to 5 A, ensuring reliable module operation.
-
Energy Efficient: Maintains efficiency above 85%, reducing power consumption and heat output.
-
Durable Construction: Designed to withstand harsh industrial environments with a broad temperature operating range.
-
Rack Compatible: Fits standard 3500 Series rack module slots, simplifying system integration.
-
Built-in Protections: Includes over-voltage, short circuit, and thermal overload protection to safeguard connected devices.
-
Ease / Maintenance: Modular design facilitates quick replacement and reduces downtime.
-
Proven Reliability: Trusted worldwide in critical machinery protection applications for continuous and dependable performance.
常见问题 (FAQ)
-
What input voltage range is supported by this power supply module?
The module accepts input voltages from 85 VAC to 264 VAC. -
What are the output voltage and current specifications?
It provides a regulated +5 VDC output with up to 5 A current capacity. -
Is the module compatible with different power grid frequencies?
Yes, it supports input frequencies ranging from 47 Hz to 63 Hz. -
Can this module be installed in all 3500 Series racks?
Yes, it is fully compatible with standard 3500 Series rack modules. -
What protection features does this power supply /fer?
It incorporates over-voltage protection, short circuit protection, and thermal overload protection. -
How efficient is the 3500/15 power supply?
It achieves an efficiency greater than 85%. -
What operating temperature range does the module support?
It operates reliably within -40°C to 70°C. -
Is the module hot-swappable?
Yes, it supports hot-swapping according to proper maintenance procedures. -
Can the module be used in redundant power configurations?
While the module itself is single, it can be integrated into systems designed with redundant power supplies. -
How does the module maintain stable output during voltage fluctuations?
It includes voltage regulation circuitry to maintain a consistent output voltage despite input variations.
Recommended Related 型号s (Same Series or Similar Functionality)
| 型号 Number | 描述 | Input Voltage Range | Output Voltage | 重量 (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| Bently Nevada 3500/15-01 | Universal AC Power Supply Module | 85 VAC to 264 VAC | +5 VDC | 0.8 | 35 × 175 × 220 |
| Bently Nevada 3500/16 | DC Power Supply Module | 24 VDC nominal | +5 VDC | 0.9 | 35 × 175 × 220 |
| Bently Nevada 3500/17 | Redundant Power Supply Module | 85 VAC to 264 VAC | +5 VDC | 1.0 | 35 × 175 × 220 |
| Bently Nevada 3500/18 | Power Supply Monitoring Module | 85 VAC to 264 VAC | +5 VDC | 1.1 | 35 × 175 × 220 |
| Bently Nevada 3500/19 | DC Backup Power Supply | 24 VDC nominal | +5 VDC | 0.85 | 35 × 175 × 220 |
| Bently Nevada 3500/20 | Power 状态ing Module | 85 VAC to 264 VAC | +5 VDC | 0.95 | 35 × 175 × 220 |
Popular Bently Nevada 型号s (其他 Hot 产品)
| 型号 Number | Application Area | Key Features | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| Bently Nevada 3500/22 | Vibration Monitoring Module | Advanced signal processing | 35 × 175 × 220 | 1.5 |
| Bently Nevada 3500/42 | Proximity Probe Interface | Multi-probe support | 35 × 175 × 220 | 1.4 |
| Bently Nevada 3500/62 | Speed and Phase Monitor | High accuracy and reliability | 35 × 175 × 220 | 1.3 |
| Bently Nevada 3500/92 | Temperature Monitoring Module | Multi-channel temperature inputs | 35 × 175 × 220 | 1.2 |
| Bently Nevada 2300 | Portable Vibration Monitoring System | Handheld condition monitoring tool | Portable | 2.0 |
| Bently Nevada Orbit 60 | Wireless 状态 Monitoring System | Real-time remote data and alarm reporting | Varies | 1.8 |
