Product Overview

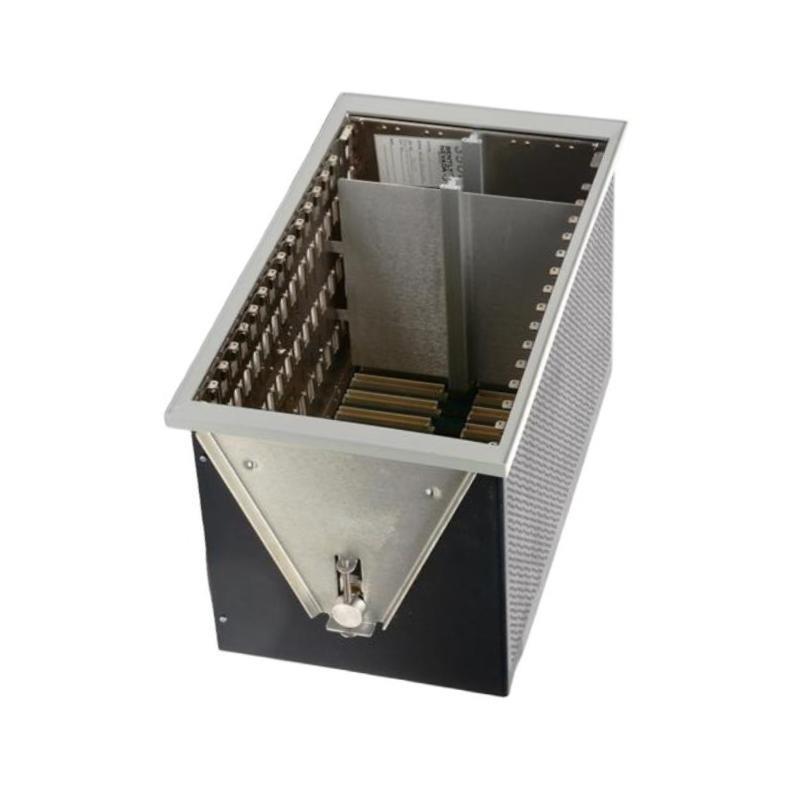

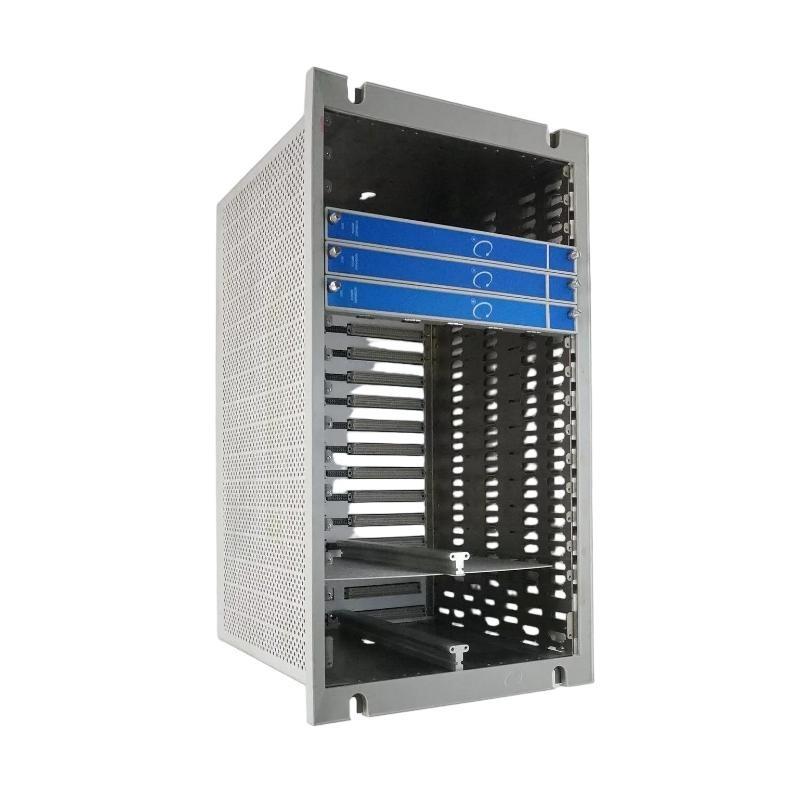

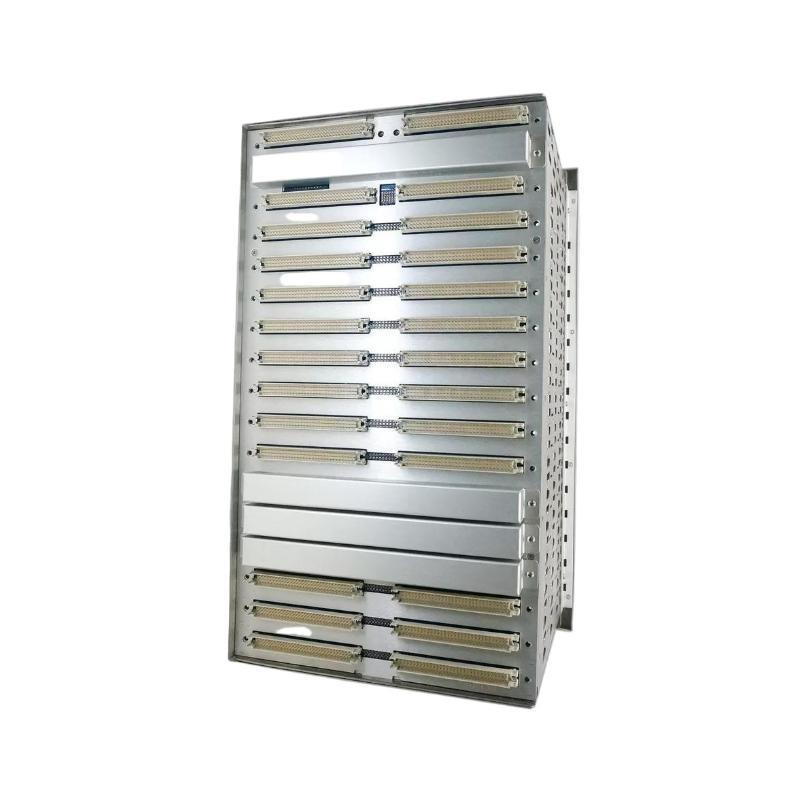

The Bently Nevada 3500/05-02-05-02-00-01 System Rack is a rugged, modular enclosure designed to support the Bently Nevada 3500 Machinery Protection and 状态 Monitoring System. It provides up to 14 module slots and supports redundant power supplies to ensure continuous operation and high reliability. Engineered for demanding industrial environments, this system rack enables effective monitoring and protection / rotating machinery in industries such as power generation, oil and gas, petrochemical, and mining.
Key Features
-
Modular design supporting up to 14 modules
-
Dual redundant power supply slots for increased system reliability
-
Durable aluminum construction for harsh industrial environments
-
Efficient ventilation for optimal cooling
-
Full compatibility with Bently Nevada 3500 series modules
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 3500/05-02-05-02-00-01 |
| Product Type | System Rack |
| Number / Slots | Up to 14 module positions |
| Power Supply Slots | 2 redundant power supply slots |
| Mounting Type | 19-inch rack or panel mount |
| Dimensions | Rack Size : 12-inch (7 module slots) |
| 重量 | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Construction | Aluminum frame with protective coating |
| Compatibility | Bently Nevada 3500 Series modules |
Industry Applications
-
Power generation machinery protection
-
Oil & gas rotating equipment monitoring
-
Petrochemical process machinery protection
-
Mining and metals equipment condition monitoring
-
Pulp and paper industry machinery monitoring
-
Marine and /fshore rotating machinery systems
常见问题 (FAQ)
Q1: How many modules can the rack hold?
Up to 14 Bently Nevada 3500 series modules.
Q2: Does the rack support redundant power supplies?
Yes, it supports two redundant power supply slots.
Q3: What is the operating temperature range?
-30°C to +65°C (-22°F to +149°F).
Q4: Can the rack be installed in a standard 19-inch rack?
Yes, it supports both 19-inch rack and panel mounting.
Q5: Is the rack compatible with all 3500 series modules?
Yes, it is compatible with all Bently Nevada 3500 series modules.
Q6: What is the weight / the rack?
Approximately 4.5 kg .
Q7: Is the rack designed for harsh environments?
Yes, it features rugged construction to withstand industrial conditions.
Q8: Are the modules hot-swappable?
Yes, modules can be replaced without powering down the system.
Q9: Are power supplies included?
No, power supplies are sold separately.
Q10: Is the rack rated for hazardous locations?
The rack itself is not certified for hazardous locations but can be used with certified modules.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 3500/05-01-01-00-00-00 | Standard 3500/05 System Rack |
| 3500/05-01-02-00-00-01 | Redundant Power Supply 3500/05 System Rack |
| 3500/05-02-05-00-00-01 | 3500/05 System Rack with Extended Features |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/40-01-01-00 | Vibration Monitoring Module |
Popular Bently Nevada Modules
| 型号 Number | 描述 |
|---|---|
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/60 | Temperature Monitor Module |
| 3500/44 | Shaft Vibration Monitor Module |
