Product Overview

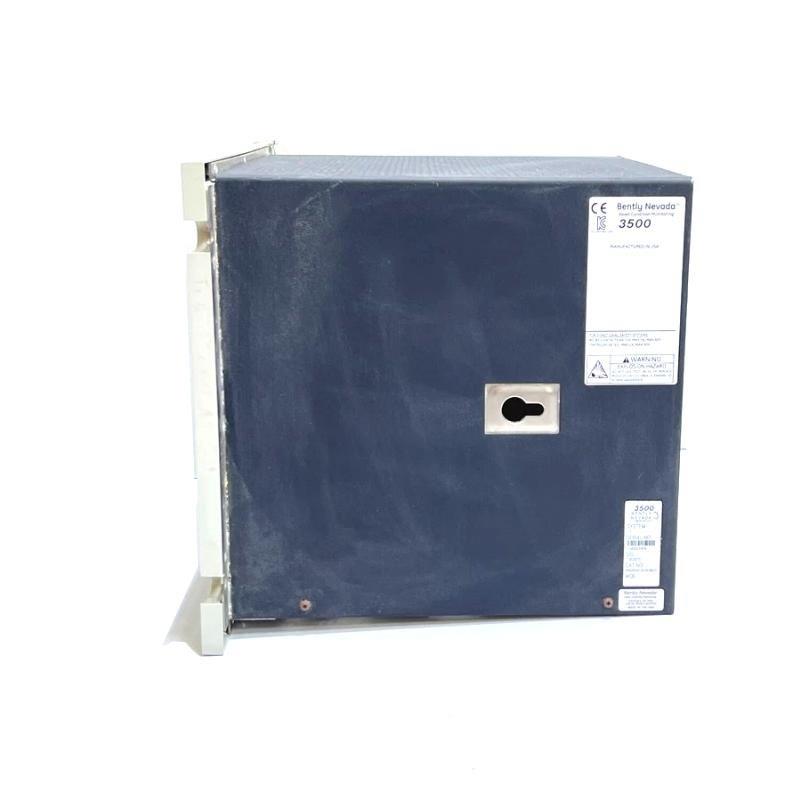

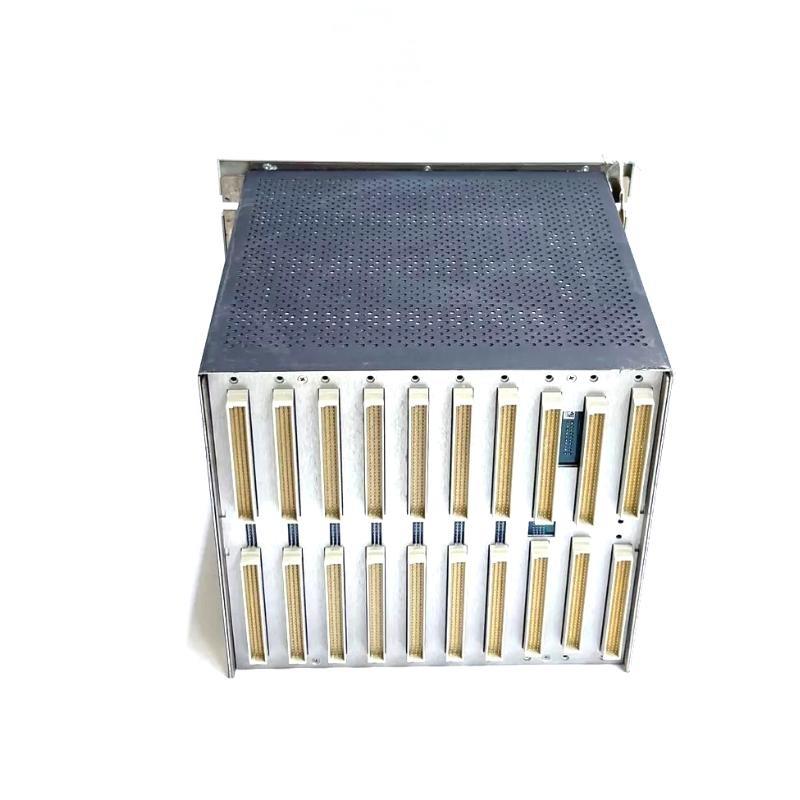

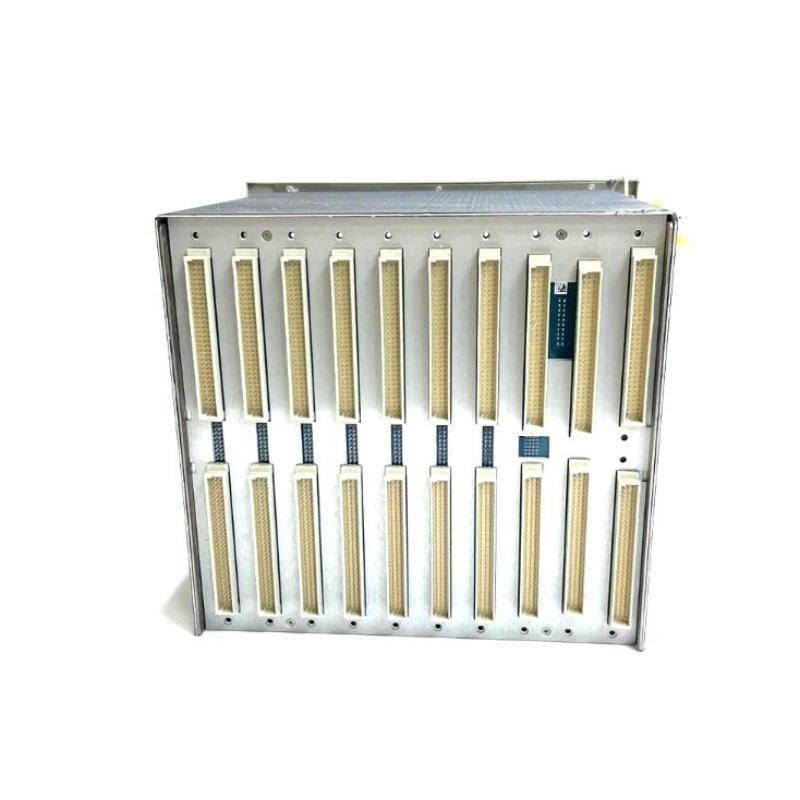

The Bently Nevada 3500/05-02-04-00-00 is a compact and robust 3500/05 system rack designed to accommodate machinery protection monitoring modules within the Bently Nevada 3500 series system. With a 12-inch rack size and support for 7 module slots, this rack provides a space-efficient solution for applications where limited panel space is available without compromising on performance or expandability.
This rack is engineered to provide a reliable foundation for vibration monitoring and machinery protection in critical industrial environments. It /fers integrated power and communication buses that ensure stable operation / installed monitoring modules. Its design supports hot-swappable modules, which facilitates easy maintenance and system upgrades, minimizing downtime. Ideal for smaller systems or where space constraints exist, the 3500/05-02-04-00-00 delivers proven Bently Nevada performance in a compact footprint.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | 3500/05-02-04-00-00 |
| Rack Size | 12-inch (7 module slots) |
| Module Slots | 7 |
| 重量 | 4.5 kg |
| Dimensions (approx.) | 12-inch standard width, compatible with 19-inch racks |
| Power Distribution | Integrated power and communication backplane |
| Mounting | Rack-mounted |
| Compatibility | Bently Nevada 3500 series modules |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Construction Material | Heavy-duty metal chassis |
| Cooling | Passive ventilation |
| Certifications | CE, UL, CSA |
Applications
The 3500/05-02-04-00-00 rack is well suited for industrial environments where space is at a premium but reliable machinery protection is essential. Typical applications include:
-
Small to medium-sized power plants – Protecting turbines, generators, and motors with limited panel space.
-
Oil & Gas facilities – Compact control panels for monitoring pumps, compressors, and rotating equipment.
-
Chemical processing plants – Machinery protection in limited space control rooms.
-
Mining operations – Monitoring critical equipment such as crushers and mills in tight control cabinets.
-
Manufacturing plants – Protecting assembly line motors and equipment where space constraints exist.
-
Marine vessels – Machinery protection systems on ships with compact automation panels.
Key Advantages
-
Compact Size: 12-inch rack footprint ideal for applications with space limitations.
-
Modular Flexibility: 支持s up to 7 monitoring modules for tailored system configurations.
-
Robust Construction: Heavy-duty chassis built for industrial environments with high reliability.
-
Integrated Power and Communication: Ensures stable and clean power distribution to all installed modules.
-
Passive Cooling Design: Reliable heat dissipation without moving parts, reducing maintenance needs.
-
Hot-Swappable Modules: Enables maintenance or upgrades without system downtime.
-
Wide Operating Range: Suitable for extreme temperatures and high humidity industrial conditions.
-
Standard Compatibility: Designed to accommodate the full range / 3500 series monitoring modules.
常见问题 (FAQ)
-
What is the module capacity / the 3500/05-02-04-00-00 rack?
It supports up to 7 monitoring modules. -
What is the physical size / this rack?
The rack size is 12 inches wide, suitable for smaller panel installations. -
Is this rack compatible with all Bently Nevada 3500 series modules?
Yes, it supports the full range / 3500 series modules. -
Can the modules be replaced without shutting down the system?
Yes, the rack supports hot-swappable modules to minimize downtime. -
Does the rack include active cooling?
No, it uses passive ventilation for cooling. -
What are the environmental operating conditions?
The rack operates between -40°C to +70°C and tolerates up to 95% relative humidity (non-condensing). -
How is power supplied to the modules?
The rack includes an integrated power backplane for module power supply. -
Is this rack certified for use in marine environments?
Yes, it meets industry standards suitable for marine and industrial use. -
What is the weight / the rack?
The rack weighs approximately 4.5 kg. -
What certifications does this rack have?
It is CE, UL, and CSA certified for industrial safety and compliance.
Recommended Related or Series 型号s
| 型号 | 描述 |
|---|---|
| 3500/05-01-03-00-00-00 | 19-inch rack with 14 module slots |
| 3500/05-02-07-00-00 | 12-inch rack with 7 module slots (variant) |
| 3500/10 | Larger 19-inch rack with 10 module slots |
| 3500/15 | Extended rack supporting up to 15 modules |
| 3500/05-06-00 | Rack with integrated fan cooling |
| 3500/05-01-04 | Rack with enhanced EMI shielding |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 3500/05-01-03-00-00-00 | 3500 rack with standard panel, no display |
| 3500/05-01-03-00-00-01 | 3500 rack with standard panel, with display |
| 3500/05-01-03-00-01 | 3500 rack with back panel, high-density mounting |
| 3500/05-02-03-00-00-00 | 19” rack mount chassis, standard configuration |
| 3500/05-02-03-00-00-01 | Rack mount with integrated display window |
| 3500/05-02-04-00-01 | High-capacity rack with front and rear access |
