Product Overview

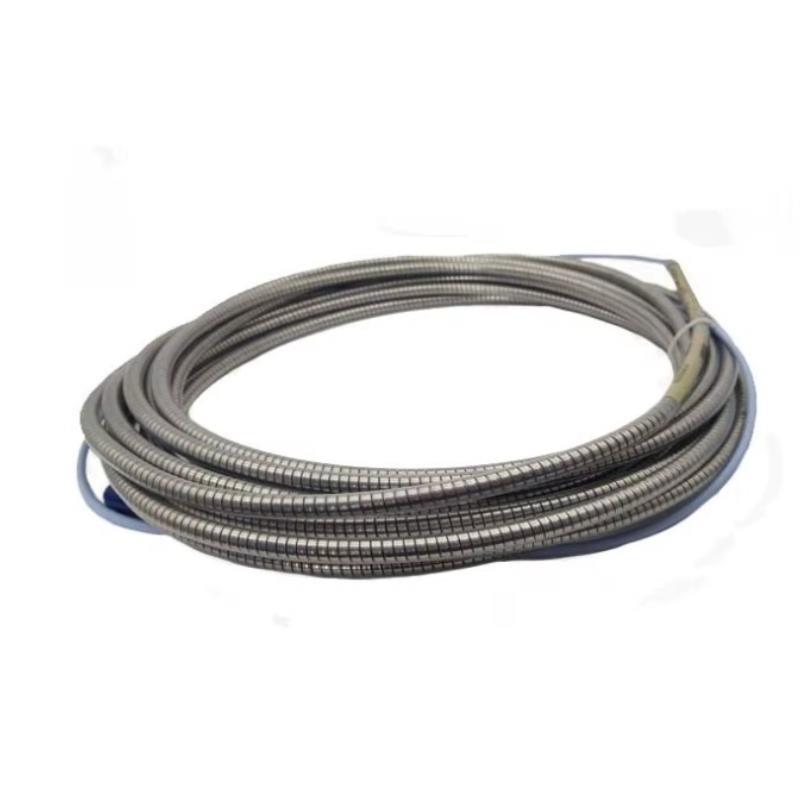

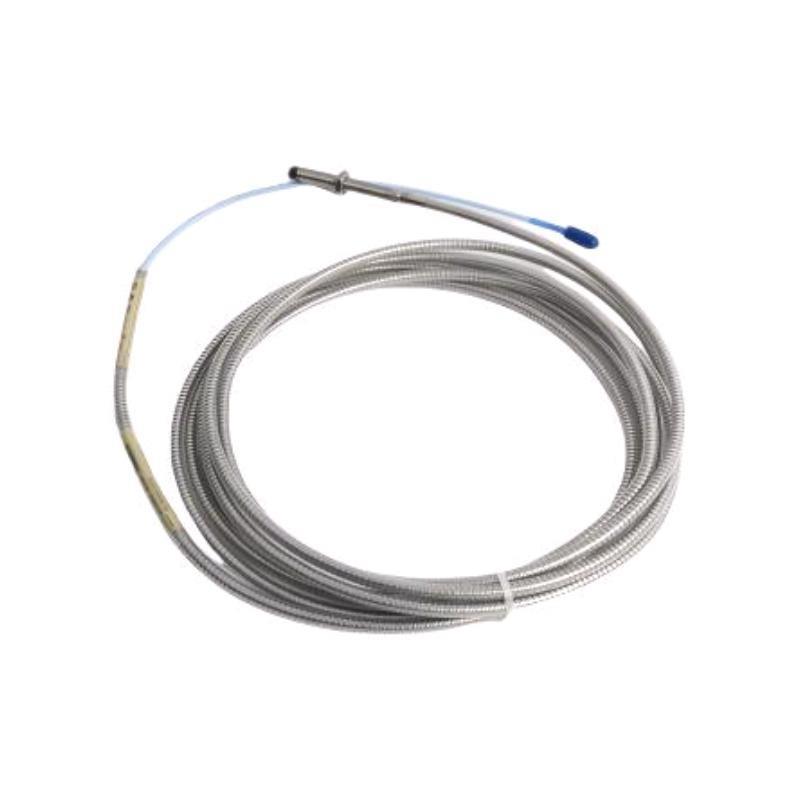

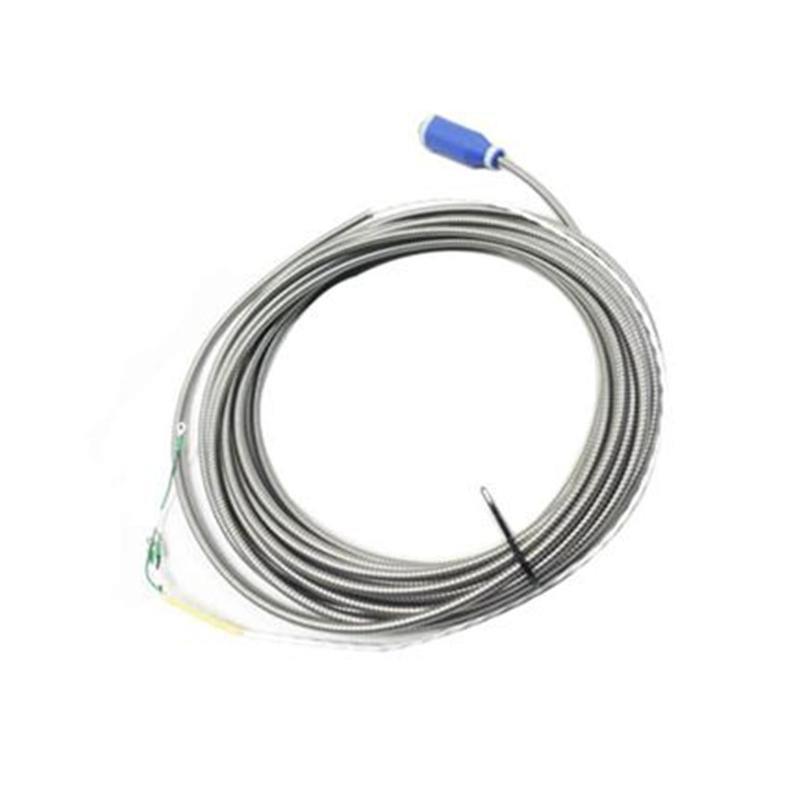

The Bently Nevada 330930-060-00-05 is a 6.0-meter standard extension cable used in the 3300 XL NSv Proximity Transducer System. It links the proximity probe to the Proximitor Sensor, ensuring accurate signal transmission in tight-space and high-temperature environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 330930-060-00-05 |
| Cable Length | 6.0 meters (19.7 feet) |
| 重量 | 0.27 kg |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Armor Option | 可用 (Stainless Steel, with/without FEP jacket) |
| Connector Type | Miniature coaxial ClickLoc connectors |
| Capacitance | ~69.9 pF/m |
| DC Resistance (Center) | 0.220 Ω/m |
| DC Resistance (Shield) | 0.066 Ω/m |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Pull Strength | 220 N (50 lb) |
| Certifications | CE, FCC, RoHS, ATEX, IECEx, cNRTLus |
Applications
-
Radial vibration and position measurements on compact rotating shafts
-
Axial (thrust) position detection in compressors and turbines
-
Keyphasor signal transmission
-
Monitoring in confined or recessed mounting areas
-
Systems requiring long field wiring and high EMI/RFI imm件y
Product Advantages
-
Compact Design: Ideal for machines with restricted access
-
Secure Connection: ClickLoc connectors prevent vibration-induced disconnection
-
Robust Material: High resistance to temperature and chemicals
-
Backward Compatibility: Works with legacy Bently Nevada 3300 RAM systems
-
Certified for Hazardous Areas: 支持s global deployment
-
优秀 Signal Fidelity: Maintains data integrity across extended wiring lengths
常见问题 (FAQ)
Q1: What is the total cable length / the 330930-060-00-05?
A1: The cable length is 6.0 meters.
Q2: Is this cable compatible with older Bently Nevada systems?
A2: Yes, it is compatible with legacy 3300 RAM proximity systems.
Q3: What is the weight / the 330930-060-00-05 cable?
A3: Approximately 0.27 kg.
Q4: Can this cable be used in high-temperature environments?
A4: Yes, it supports operation from -52°C to +177°C.
Q5: Does the cable come with armor protection?
A5: Armor is optional based on selected configuration.
Q6: What connector type is used?
A6: ClickLoc miniature coaxial connectors with locking mechanism.
Q7: How resistant is it to bending?
A7: Minimum bend radius is 25.4 mm (1 inch).
Q8: Is this cable shielded against EMI?
A8: Yes, it is fully shielded for high EMI/RFI imm件y.
Q9: Can this cable be used in wet or oily environments?
A9: Yes, but connector protectors or silicone tape should be applied.
Q10: What standards does the cable comply with?
A10: CE, FCC, RoHS, ATEX, IECEx, and cNRTLus certifications.
Related 型号s from the Same Series
| 型号 Number | 描述 | Cable Length | 重量 |
|---|---|---|---|
| 330930-040-00-05 | Standard Extension Cable, 4.0 m, no armor | 4.0 m | 0.18 kg |
| 330930-045-01-05 | Armored Cable with FEP Jacket, 4.5 m | 4.5 m | 0.25 kg |
| 330930-065-04-05 | Armored, FEP Jacket, Connector Protector, 6.5 m | 6.5 m | 0.30 kg |
| 330930-060-06-05 | FluidLoc Cable, no armor, 6.0 m | 6.0 m | 0.28 kg |
| 330930-060-07-05 | Armored FluidLoc Cable with FEP, 6.0 m | 6.0 m | 0.29 kg |
| 330930-060-10-05 | Armored FluidLoc Cable with Connector Protector, 6.0 m | 6.0 m | 0.30 kg |
Popular 型号s from Bently Nevada
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Radial Vibration Monitoring | 0.14 kg |
| 330180-91-00 | 3300 XL Proximitor Sensor | Signal 状态ing | 0.26 kg |
| 3500/42M | Proximitor Seismic Monitor | Vibration/Position Monitoring | 0.45 kg |
| 3500/22M | Transient Data Interface | Advanced System Monitoring | 0.50 kg |
| 3500/15E | Power Supply Module | Power Supply for 3500 Rack | 0.40 kg |
| 330980-50-05 | NSv Proximitor Sensor, 5 m system, panel mount | DIN/Panel Mount Installations | 0.26 kg |
