Product 描述

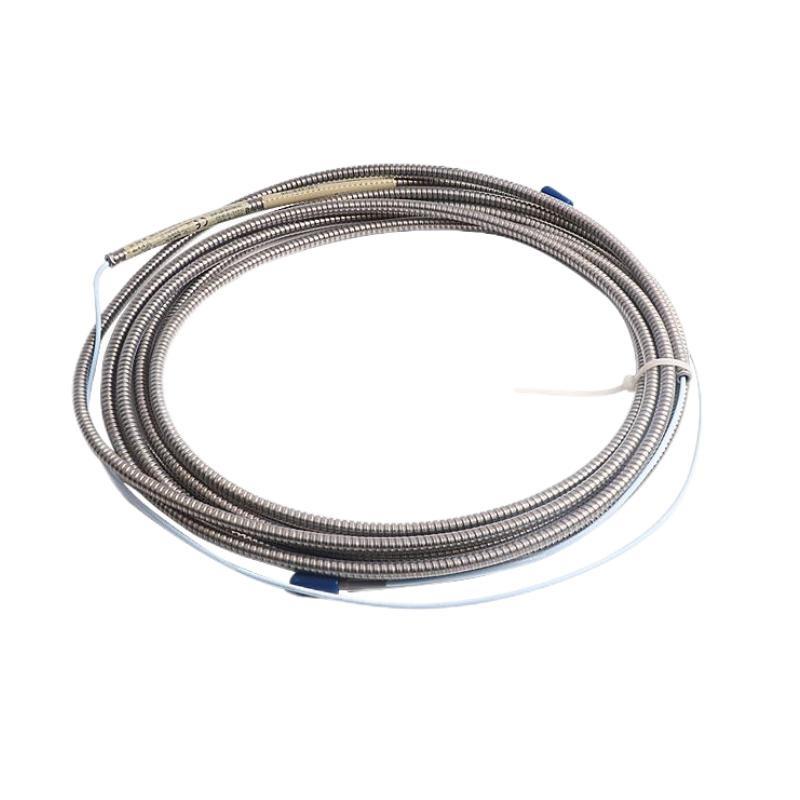

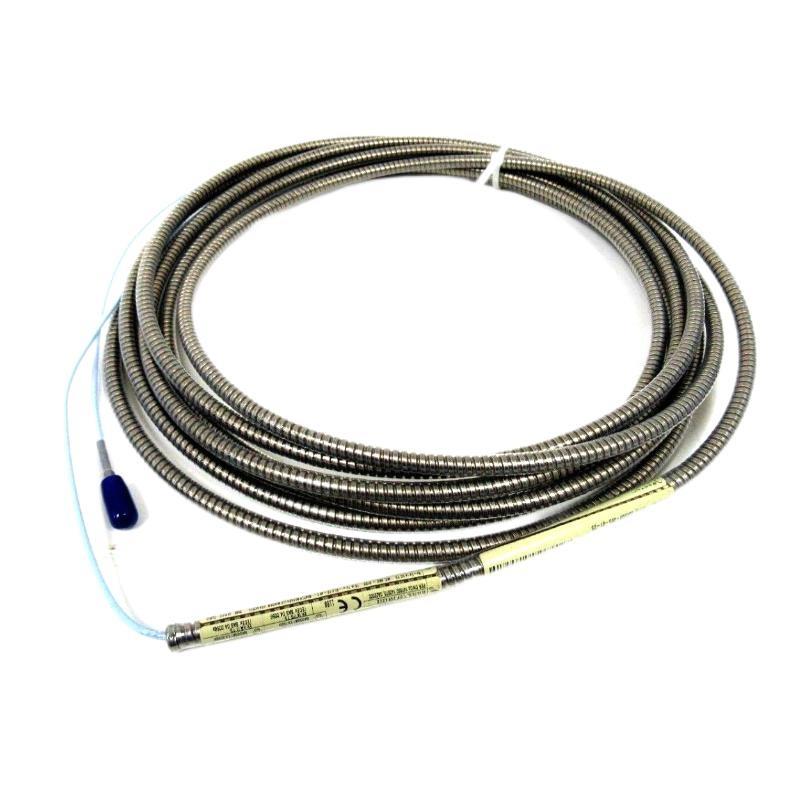

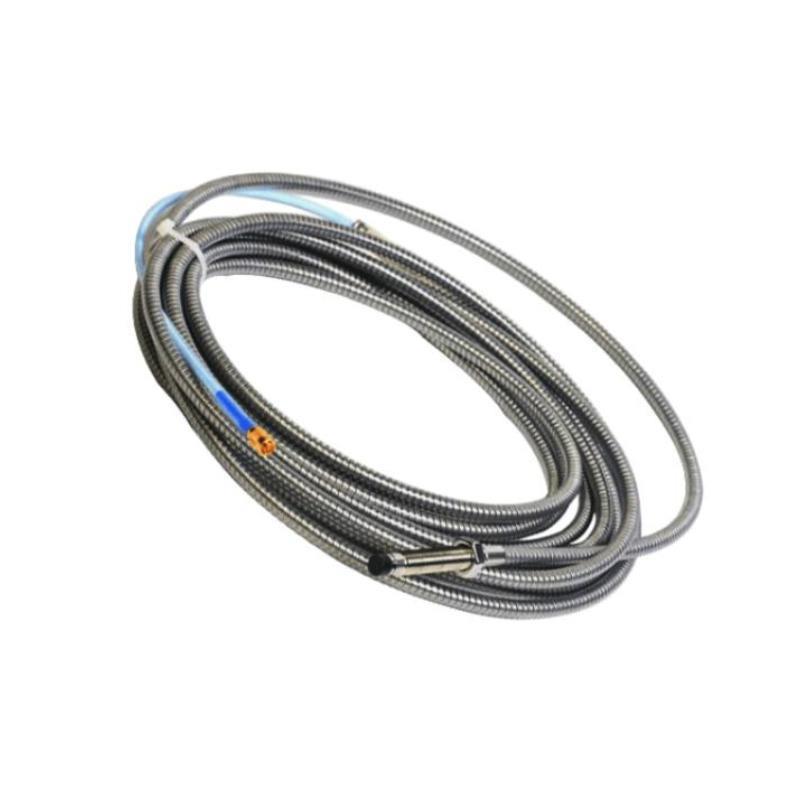

The Bently Nevada 330930-040-02-00 is a 4.0-meter extension cable that forms part / the 3300 XL NSv Proximity Transducer System. Designed specifically for space-constrained applications, it connects the 3300 NSv proximity probe to the NSv Proximitor Sensor, /fering robust signal transmission in high-vibration and high-temperature environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 330930-040-02-00 NSv Extension Cable |
| Cable Length | 4.0 meters |
| 重量 | 0.256 kg |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Connector Type | ClickLoc miniature coaxial connector |
| Cable Jacket | With stainless steel armor, no FEP jacket |
| Capacitance | 69.9 pF/m typical |
| DC Resistance (center) | 0.220 Ω/m |
| DC Resistance (shield) | 0.066 Ω/m |
| Temperature Range | -52°C to +177°C |
| Minimum Bend Radius | 25.4 mm |
| Tensile Strength | 220 N (50 lb) |
Product Applications
-
Radial vibration measurements on small shafts
-
Axial (thrust) position monitoring
-
Tachometer and zero speed detection
-
Keyphasor® reference signal transmission
-
Compressor and turbine machinery monitoring
-
Compact machinery or limited-clearance environments
Product Advantages
-
Compact Compatibility: Ideal for tight installations where standard systems can’t fit
-
Interchangeability: Fully compatible with legacy 3300 RAM systems
-
Mechanical Robustness: ClickLoc and CableLoc connectors ensure secure, vibration-resistant connections
-
Chemical Resistance: Enhanced durability in harsh process environments
-
High Reliability: Optimized electrical shielding minimizes signal interference
常见问题 (FAQs)
Q1: What is the main function / the 330930-040-02-00 cable?
A1: It extends the connection between the 3300 NSv probe and Proximitor Sensor, maintaining signal integrity.
Q2: Is the cable suitable for high-temperature environments?
A2: Yes, it operates reliably from -52°C to +177°C.
Q3: Can this extension cable be used with older Bently Nevada systems?
A3: Yes, it’s compatible with 3300 RAM transducer systems.
Q4: What type / connector does it use?
A4: ClickLoc miniature coaxial connectors ensure secure, locked-in connections.
Q5: What is the tensile strength / the cable?
A5: The cable supports up to 220 N (50 lb) / pull strength.
Q6: Is this cable armored?
A6: Yes, this variant includes stainless steel armor without an FEP jacket.
Q7: How is signal integrity maintained over 4 meters?
A7: Low resistance and optimized shielding help maintain signal quality.
Q8: Can this be installed in flexible routing paths?
A8: Yes, the minimum bend radius is 25.4 mm, allowing flexible installation.
Q9: Is it resistant to chemical exposure?
A9: Yes, the materials are chosen for increased chemical resistance.
Q10: Does the cable require additional protection?
A10: Connector protectors or silicone tape are recommended for harsh environments.
Related 型号 Recommendations
| 型号 Number | 描述 | Cable Length | Armored | 重量 |
|---|---|---|---|---|
| 330930-045-01-00 | Extension Cable with FEP jacket + armor | 4.5 m | Yes | 0.288 kg |
| 330930-060-02-00 | Extension Cable, armored, no FEP jacket | 6.0 m | Yes | 0.384 kg |
| 330930-065-04-00 | Extension Cable with FEP jacket and protector | 6.5 m | Yes | 0.416 kg |
| 330930-040-06-00 | FluidLoc cable, unarmored | 4.0 m | No | 0.256 kg |
| 330930-040-09-00 | FluidLoc, connector protector, unarmored | 4.0 m | No | 0.256 kg |
| 330930-040-11-00 | FluidLoc cable, protector, armored, no jacket | 4.0 m | Yes | 0.288 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Type | Key Feature |
|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe | Probe | Standard industrial use |
| 330106-05-30-10-02-00 | 3300 XL Reverse Mount Probe | Probe | Reverse mount, armored |
| 330130-080-00-00 | 3300 XL Extension Cable | Cable | 8 m armored cable |
| 330180-91-CN | 3300 XL Proximitor Sensor | Sensor | China-certified version |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitor Module | For seismic vibration monitoring |
| 3500/22M | Transient Data Interface (TDI) | Communication Interface | Advanced machinery diagnostics |
