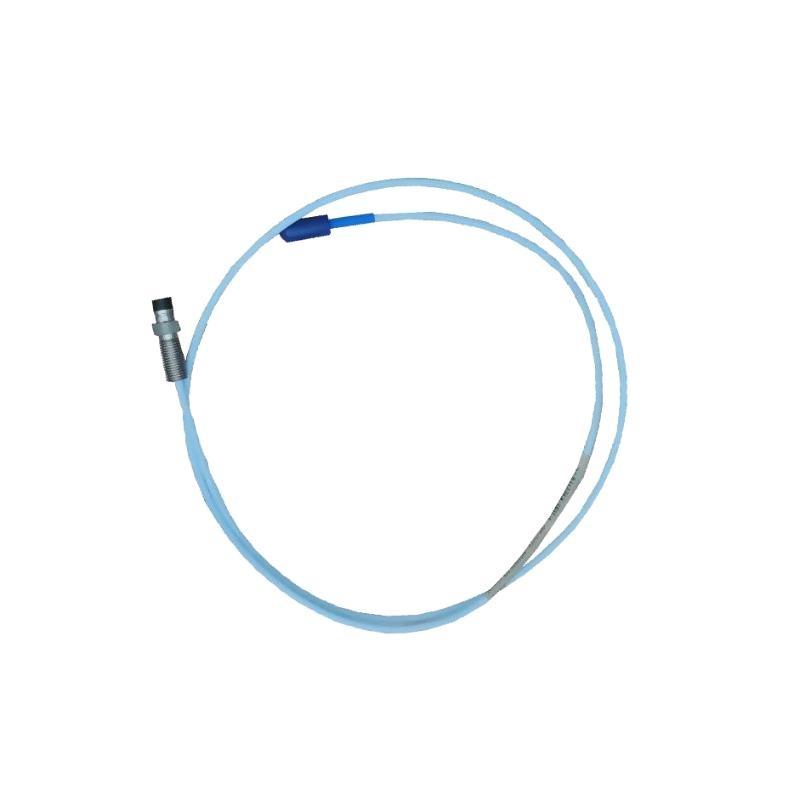

The Bently Nevada 330909-00-60-50-02-05 3300 NSv Proximity Probe is a high-precision eddy-current sensor designed for measuring shaft vibration and position in industrial rotating machinery. Part / the 3300 NSv series, this model is engineered for applications requiring extended cable lengths and reliable performance in challenging operating environments. Its robust stainless-steel construction, advanced electromagnetic shielding, and precision tip design ensure accurate and repeatable measurements for critical machinery.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | 330909-00-60-50-02-05 |
| Series | 3300 NSv |
| Probe Tip Diameter | 8 mm |
| Total Length | 5 meters |
| Measurement Range | 0 – 2.0 mm nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Linear Range | ±1.0 mm around nominal probe-to-target gap |
| Frequency Response | 0 – 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –50 °C to +200 °C |
| Housing Material | Industrial-grade stainless steel |
| Mounting Thread | 1/4–28 UNF or compatible clamp |
| Cable Insulation | PTFE shielded |
| 重量 | 0.15 kg |
| Compatible Drivers | 3300 NSv Proximitor and other Bently Nevada 3300 systems |
Applications
-
Gas and Steam Turbines – Continuous monitoring / shaft vibration for predictive maintenance.
-
Compressors and Pumps – Measurement / radial vibration to protect bearings and reduce downtime.
-
Motors and Generators – Real-time shaft position monitoring for operational stability.
-
Fans and Gearboxes – Detection / misalignment, imbalance, and mechanical looseness.
-
Petrochemical Equipment – Suitable for high-temperature and corrosive environments.
-
Long-Distance Installation – Extended cable design allows flexible routing in large machinery layouts.
Advantages
-
Extended Cable Length (5 m) – Enables installation in large or complex machinery systems.
-
High Measurement Accuracy – Provides precise and repeatable readings for dynamic and static conditions.
-
Robust Stainless-Steel Housing – Resistant to corrosion and mechanical wear.
-
Wide Operating Temperature – Performs reliably from –35 °C to +177 °C.
-
EMI/RFI Resistant – Maintains signal integrity in electrically noisy industrial environments.
-
Compact 8 mm Probe Tip – Fits into tight or restricted mounting spaces.
-
Easy Integration – Compatible with Bently Nevada 3300 NSv Proximitor systems.
-
Wide Frequency Response – Captures machine dynamics up to 10 kHz.
-
Low Maintenance – Minimal calibration needed after initial setup.
FAQ
-
What technology does the 330909-00-60-50-02-05 probe use for measurements?
It uses eddy-current technology to accurately measure shaft vibration and displacement without physical contact. -
What is the typical sensitivity / this proximity probe?
The probe provides a typical sensitivity / 7.87 V/mm (200 mV/mil), ensuring precise displacement measurements. -
Which systems can this probe be connected to?
It is fully compatible with Bently Nevada 3300 NSv Proximitor drivers and the broader 3300 monitoring platform. -
How is the probe mounted in machinery?
The probe is installed using a 1/4–28 UNF threaded hole or compatible clamp to maintain an accurate probe-to-target gap. -
What is the linear range for measurements?
The probe maintains a linear range / ±1.0 mm around the nominal probe-to-target distance. -
What is the frequency response / this model?
It supports dynamic measurement frequencies from 0 up to 10 kHz, suitable for high-speed machinery monitoring. -
Does the probe require recalibration after installation?
Only initial calibration is necessary with the Proximitor driver; ongoing recalibration is minimal under normal operating conditions. -
How well does it handle electromagnetic interference?
It is equipped with robust EMI/RFI shielding to ensure accurate signal transmission even in noisy environments. -
Can this probe measure both static and dynamic shaft signals?
Yes, it provides data on both static shaft position and dynamic vibration for comprehensive machinery monitoring. -
What type / cable insulation is used for this extended-length probe?
The 5-meter cable is PTFE-shielded, providing excellent chemical and thermal resistance while maintaining signal integrity.
