产品介绍

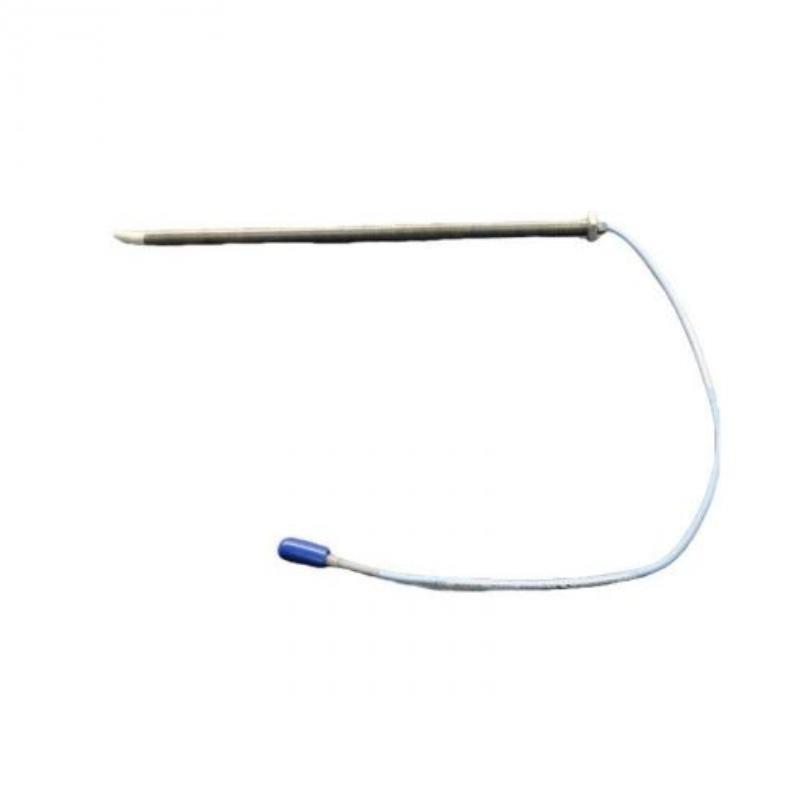

The Bently Nevada 330905-05-25-05-02-00 3300 NSv Proximity Probe is a high-precision, non-contact sensor designed for industrial machinery monitoring. It is part / the 3300 NSv series, widely recognized for its reliability and accuracy in measuring shaft vibration and displacement in critical rotating equipment. This probe ensures early detection / mechanical issues, helping prevent unplanned downtime and costly equipment failures.
产品规格
| Parameter | Specification |
|---|---|
| Probe Type | 3300 NSv Proximity Probe |
| Total Length | 0.5 m |
| 重量 | 0.15 kg |
| Sensor Tip Diameter | 5 mm |
| Target Material | Ferromagnetic metals |
| Cable Type | Coaxial shielded |
| Operating Temperature | -40°C to 120°C |
| Probe Output | AC Voltage (proportional to gap) |
| Measurement Range | 0.5 mm to 2.5 mm |
| Gap Setting | Factory preset |
| Frequency Response | 0–10 kHz |
| Insulation Resistance | >100 MΩ at 50 VDC |
Applications
-
Monitoring vibration and displacement in turbines, compressors, and pumps
-
Early detection / rotor imbalance, misalignment, and bearing wear
-
状态 monitoring in power generation plants, oil & gas facilities, and heavy industrial machinery
-
Integration with 3300 XL and 3300 8-Series monitoring systems
-
Critical machinery protection for safety and operational efficiency
Advantages
-
High-precision, repeatable measurements for critical machinery
-
Non-contact design minimizes wear and maintenance requirements
-
Robust construction for operation in harsh industrial environments
-
Compatible with a wide range / monitoring systems and analyzers
-
Factory-calibrated to ensure optimal performance from installation
-
Fast response time, enabling real-time condition monitoring
FAQ
Q1: What type / output does this probe provide?
A1: The probe provides an AC voltage output that is proportional to the distance between the probe tip and the target.
Q2: Can this probe measure non-ferromagnetic materials?
A2: No, the 3300 NSv probes are optimized for ferromagnetic targets only.
Q3: What is the recommended cable length for accurate measurements?
A3: Standard factory configuration comes with a 0.5 m cable. For longer runs, use Bently Nevada approved extension cables.
Q4: What is the operating temperature range / this probe?
A4: The probe operates reliably between -40°C and 120°C.
Q5: How is the probe calibrated?
A5: Calibration is performed at the factory and the probe comes with a preset gap. No field calibration is required for typical applications.
Q6: Can this probe be used in explosive environments?
A6: Only if paired with certified intrinsic safety barriers or housings according to industry standards.
Q7: What is the typical frequency response / the probe?
A7: The probe supports a frequency range / 0–10 kHz.
Q8: Is the probe compatible with the standard 3300 XL monitoring system?
A8: Yes, it is fully compatible with 3300 XL and other 3300 series monitoring systems.
Q9: How should the probe be installed relative to the target shaft?
A9: The probe tip should be aligned with the shaft surface according to the preset gap specified by Bently Nevada.
Q10: Can the probe detect rotor rubs or shaft eccentricities?
A10: Yes, the probe detects displacement and vibration signals that can indicate rubbing or shaft eccentricity when analyzed with appropriate monitoring equipment.
Recommended Same-Series or Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330905-01-10-05-02-00 | 3300 NSv, 10 mm probe tip |
| 330905-02-25-05-01-00 | 3300 NSv, 25 mm probe tip |
| 330905-03-25-05-02-00 | 3300 NSv, 25 mm, extended cable |
| 330905-04-05-05-01-00 | 3300 NSv, 5 mm probe tip |
| 330905-06-10-05-02-00 | 3300 NSv, 10 mm probe tip, high-temp |
| 330905-07-25-05-02-00 | 3300 NSv, 25 mm probe tip, high-temp |
Popular Bently Nevada 型号s
| 型号 Number | 描述 |
|---|---|
| 3300 XL Proximity System | Complete vibration monitoring system |
| 3300 XL Vibration Monitor | Turbine and compressor monitoring |
| 3300 XL 8-Series Monitor | High-channel count monitoring |
| 3300 MXL Probes | Standard proximity probe |
| 3500/22M/21M Monitor | Machinery protection module |
| 3300/72M/B Probe | High-temp shaft vibration probe |
