产品介绍

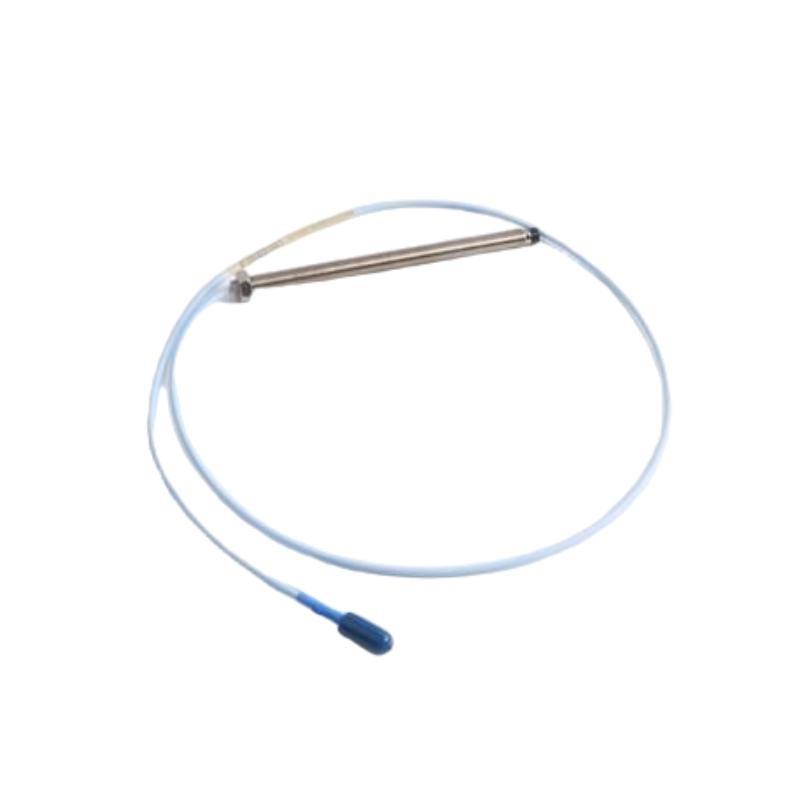

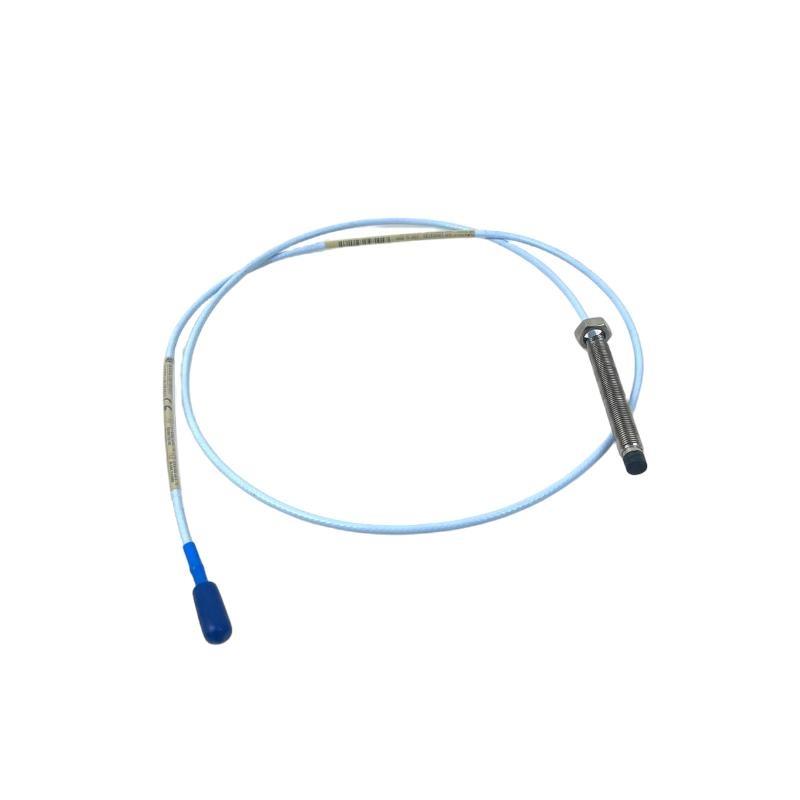

The Bently Nevada 330905-00-06-50-12-00 3300 NSv Proximity Probe is a high-precision non-contact displacement and vibration sensor designed for critical machinery monitoring and protection. As part / the 3300 NSv (Narrow Side View) series, this probe is engineered for installations requiring extended cable lengths without compromising signal integrity or measurement accuracy. Its advanced eddy-current technology provides real-time detection / shaft vibration and positional changes, allowing early fault detection and predictive maintenance for turbines, compressors, pumps, motors, and other rotating equipment. The probe features a robust stainless-steel body with hermetic sealing, ensuring durability and consistent performance in harsh industrial environments with extreme temperature and environmental conditions.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330905-00-06-50-12-00 |
| Series | 3300 NSv Proximity Probe |
| Total Length | 5 meters |
| 重量 | 0.15 kg |
| Sensing Principle | Eddy current, non-contact displacement measurement |
| Tip Diameter | 5 mm (nominal) |
| Linear Range | 0.25 mm to 2.0 mm (material dependent) |
| Sensitivity | 7.87 V/mm ±5% |
| Frequency Response | 0 to 10 kHz (typical) |
| Operating Temperature | –35 °C to +177 °C |
| Probe Material | Hermetically sealed stainless steel |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Power Requirement | Requires compatible Bently Nevada proximitor |
| Connector Type | Standard Bently Nevada miniature coaxial |
| Mounting Thread | M10 × 1.0 or 3/8-24 UNF (varies by configuration) |
| Compliance | CE, RoHS, and ATEX certified for hazardous areas |
Applications
The 330905-00-06-50-12-00 proximity probe is widely used in industries requiring precise vibration and displacement monitoring for high-value rotating machinery:
-
Steam and Gas Turbines – Continuous shaft position and vibration monitoring to prevent imbalance and misalignment.
-
Compressors and Pumps – Early detection / bearing wear, cavitation, and mechanical looseness.
-
Motors and Generators – Provides accurate rotor dynamics measurement for predictive maintenance programs.
-
Gearboxes and Fans – Monitors gear mesh and mechanical looseness for stable and reliable operation.
-
OEM Machinery – Designed for integration in large-scale machinery where long cable lengths are required.
Advantages
-
High Measurement Accuracy – Eddy-current sensing ensures precise and reliable displacement and vibration readings.
-
Extended Cable Capability – 5-meter integral cable maintains signal integrity for remote installations.
-
Compact NSv Design – Narrow Side View construction allows installation in tight or confined spaces.
-
Rugged Construction – Stainless steel housing and hermetic sealing protect against moisture, dust, and corrosive environments.
-
Seamless Integration – Fully compatible with Bently Nevada 3300 series monitoring systems for straightforward installation and calibration.
-
Low Maintenance – Non-contact operation eliminates mechanical wear and reduces downtime.
FAQ
-
Which target material ensures optimal calibration accuracy?
Factory calibration is done for AISI 4140 steel; other ferromagnetic materials may require recalibration. -
What is the maximum extension supported beyond the 5-meter cable?
Extensions up to 9 meters are supported with a compatible proximitor and extension cables. -
Can this probe be used in hazardous environments?
Yes, it meets ATEX and CE Zone 1 requirements when installed with certified accessories. -
How does temperature variation affect measurement accuracy?
Integrated temperature compensation minimizes drift across the full operating range. -
What is the typical output sensitivity when connected to a proximitor?
Standard output is 200 mV per mil (7.87 V/mm) with ±5% tolerance. -
Does this probe measure both vibration and static shaft position?
Yes, it provides simultaneous dynamic and static measurement signals. -
What is the recommended minimum bend radius for installation?
A minimum bend radius / 25 mm is recommended to protect cable integrity. -
Is recalibration required under normal operation?
Recalibration is generally only necessary after system reconfiguration or replacement / components. -
Is the probe resistant to electromagnetic interference (EMI)?
Yes, the coaxial cable design and internal shielding provide excellent EMI resistance. -
Is it compatible with older Bently Nevada monitoring systems?
Yes, when used with the correct proximitor and following proper calibration procedures.
Related 型号s in the Same Series
| 型号 | 描述 |
|---|---|
| 330904-08-15-10-02-05 | NSv probe, 1 m cable length |
| 330904-00-10-10-01-05 | Standard NSv probe with 1 m cable |
| 330905-00-05-50-02-00 | Long cable NSv probe, 5 m integral cable |
| 330904-05-14-05-02-00 | NSv probe, 0.5 m cable length |
| 330909-00-05-05-02-00 | High-temperature NSv probe |
| 330930-040-01-00 | Extended linear range NSv probe for larger shafts |
Popular Bently Nevada 型号s
| 型号 | Application |
|---|---|
| 3500/22M | Rack Interface Module for advanced machine monitoring |
| 330105-02-12-10-02-00 | Standard proximity probe for general industrial use |
| 330400 | High-performance accelerometer for vibration detection |
| 330500 | Velocity transducer for rotating equipment |
| 330780-91-05 | Proximitor sensor for precision displacement monitoring |
| 3500/42M | Advanced vibration monitor with diagnostics |
