产品介绍

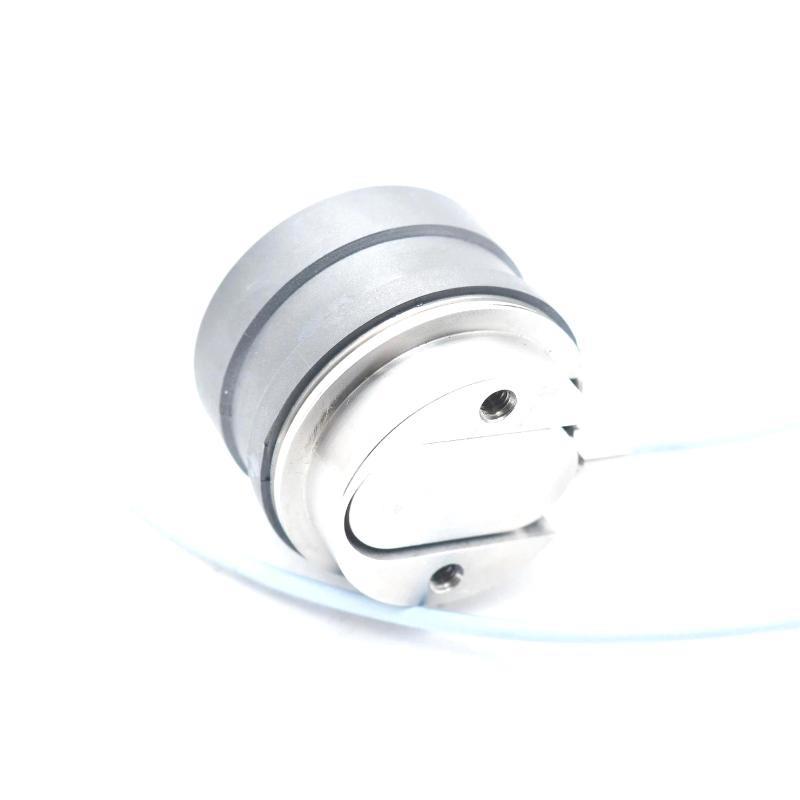

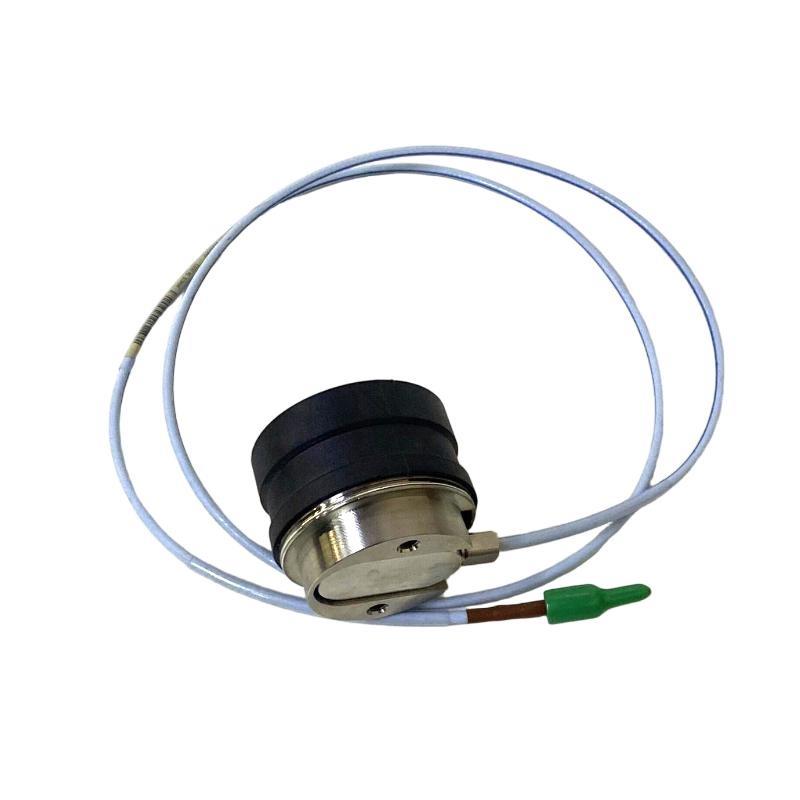

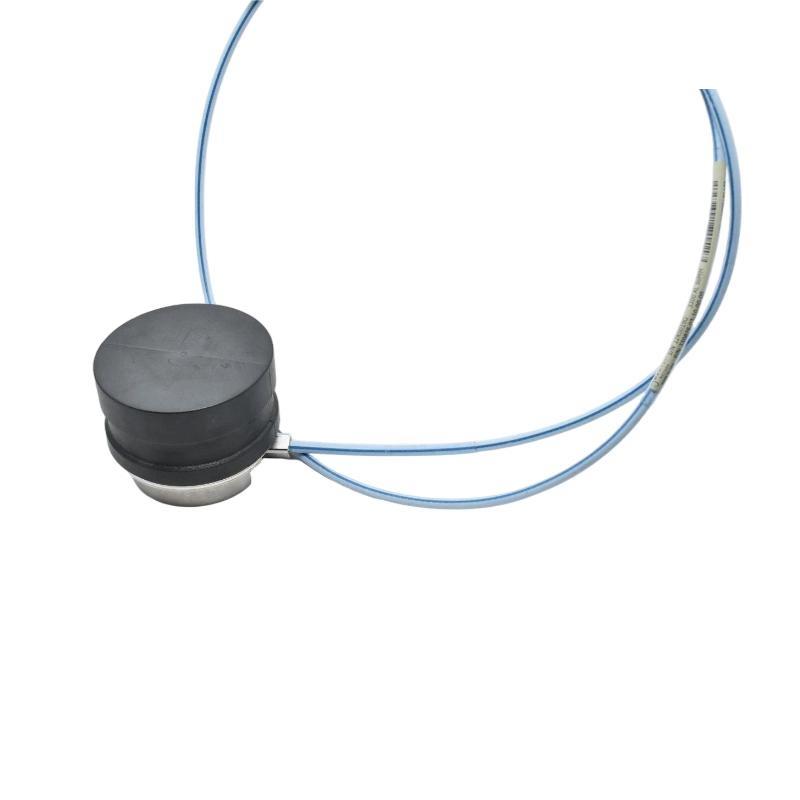

The Bently Nevada 330876-03-90-00-00 is a 50mm Eddy Current Probe from the 3300 XL series, /fering highly accurate non-contact measurement capabilities for displacement and vibration monitoring in rotating machinery. The probe uses eddy current technology, which allows for precise measurement / the shaft displacement or vibration without physical contact, making it ideal for high-speed and high-temperature applications where traditional probes may fail or be unsuitable.
This model is widely used in industries that rely on large and critical rotating equipment, such as power generation, oil & gas, mining, and manufacturing. The 3300 XL 50mm Eddy Current Probe provides reliable, continuous monitoring, helping prevent unplanned downtime and extend the life / equipment. Its robust design, along with the ability to measure up to 50mm displacement, ensures it can monitor larger machines with high sensitivity, /fering valuable insights into machinery condition.
产品规格
| Specification | Value |
|---|---|
| 型号 | Bently Nevada 330876-03-90-00-00 |
| Probe Type | Eddy Current Probe (50 mm) |
| Probe Size | 50 mm diameter |
| Total Length | 9.0 meters |
| 重量 | 3 kg |
| Material | Stainless Steel |
| Temperature Range | -40°C to +120°C |
| Mounting Type | Surface Mount |
| Signal Type | 4-20mA Output |
| Operating Voltage | 10-30 VDC |
| Measurement Range | 0-50 mm |
| Accuracy | ±0.05 mm |
Applications
The 3300 XL 50mm Eddy Current Probe is versatile and effective for a wide range / industrial applications where precise monitoring / rotating machinery is required:
-
Vibration Monitoring: This probe is used to monitor the vibration levels / rotating shafts, turbines, motors, and compressors, providing early warnings / imbalance, misalignment, or other faults.
-
状态 Monitoring: As part / a broader condition monitoring system, it tracks displacement, allowing for real-time detection / machine anomalies and enabling operators to act quickly.
-
Predictive Maintenance: The Eddy Current Probe contributes to predictive maintenance strategies by identifying potential failures before they occur, reducing downtime and preventing costly repairs.
-
Machinery Protection: In high-stakes industries such as oil & gas or power generation, the probe plays a critical role in protecting machinery from damage due to shaft misalignment or bearing wear.
-
Rotating Equipment Monitoring: Perfect for monitoring large rotating equipment like gas turbines, steam turbines, motors, and pumps, ensuring these critical assets are operating within safe limits.
-
Process Industries: Widely used in industries like chemical manufacturing, metallurgy, and energy production, where continuous machine monitoring is essential to prevent costly failures.
Advantages
-
Non-联系我们 Measurement: The Eddy Current Probe utilizes a non-contact measuring principle, reducing wear and tear on the probe and eliminating potential damage to sensitive rotating machinery.
-
High Precision: Offering ±0.05 mm accuracy, the probe provides extremely precise measurements / displacement, enabling detection / minor variations that could lead to mechanical failure.
-
Durable and Reliable: Made from stainless steel, the probe is built to withstand harsh environments and extreme temperatures, making it highly durable and reliable over long periods / use.
-
Wide Temperature Range: The probe operates effectively within a temperature range / -40°C to +120°C, making it suitable for both extremely hot and cold industrial environments.
-
Real-Time Data: Provides real-time displacement and vibration data, allowing operators to monitor machinery health continuously and take immediate action when needed.
-
Flexible Integration: The 4-20 mA output allows the probe to be easily integrated into existing monitoring systems, providing flexibility and ease / use for operators.
-
Cost-Effective Maintenance: By identifying potential faults early, this probe enables proactive maintenance, reducing the risk / catastrophic failures and minimizing unplanned downtime.
FAQ
1. How does the 3300 XL Eddy Current Probe measure displacement?
The 3300 XL Eddy Current Probe measures displacement by inducing an electromagnetic field that creates eddy currents. The probe detects changes in the magnetic field caused by the movement / the shaft or other monitored components, converting this information into displacement data.
2. What types / faults can the probe detect?
This probe is designed to detect a variety / mechanical faults, including misalignment, imbalance, bearing wear, shaft displacement, and other anomalies in rotating machinery.
3. How is the probe mounted on the machinery?
The 3300 XL Eddy Current Probe is mounted on the surface / the rotating equipment. It does not require direct contact with the machinery, making it ideal for situations where traditional contact probes would be unsuitable.
4. What is the output signal / the probe?
The 3300 XL 50mm Eddy Current Probe provides a 4-20 mA output signal, which is compatible with most industrial monitoring systems for easy integration.
5. What is the measurement range / this probe?
The 3300 XL Eddy Current Probe has a measurement range / 0-50 mm, which makes it suitable for measuring displacement in larger rotating equipment.
6. How does the probe handle extreme temperatures?
The 3300 XL Eddy Current Probe is designed to operate in extreme temperatures, ranging from -40°C to +120°C, making it suitable for use in both high and low-temperature environments.
7. How does the probe help in predictive maintenance?
By providing real-time displacement and vibration data, the probe helps detect anomalies early, enabling maintenance teams to address potential issues before they lead to equipment failure.
8. Can the probe be used in high-speed applications?
Yes, the Eddy Current Probe is ideal for high-speed applications because it provides non-contact measurements, preventing issues such as wear or damage that might occur with contact-based sensors.
9. What is the significance / the non-contact measurement?
Non-contact measurement eliminates the risk / probe wear and prevents potential damage to rotating machinery, /fering longer lifespan and more accurate data.
10. Can this probe be used for both displacement and vibration monitoring?
Yes, the 3300 XL 50mm Eddy Current Probe can be used to monitor both displacement and vibration, making it highly versatile for various machinery monitoring applications.
