产品介绍

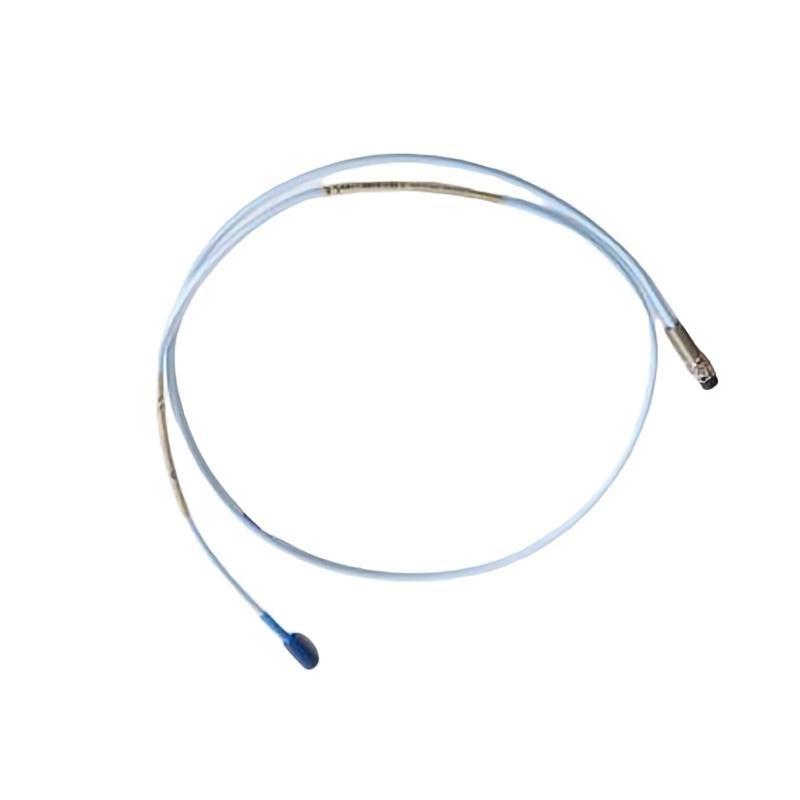

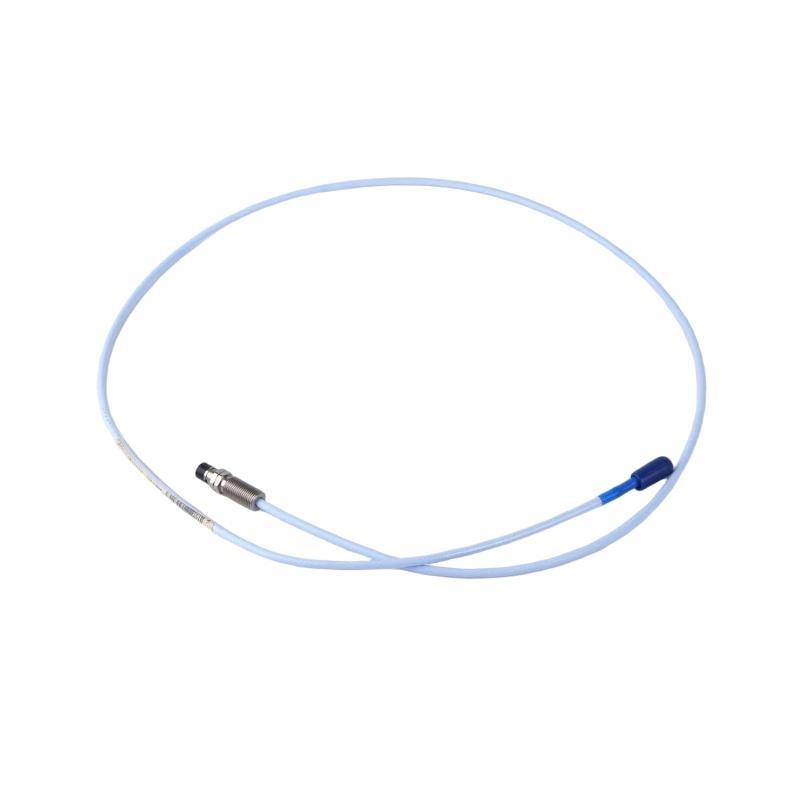

The Bently Nevada 330703-005-040-10-01-00 3300 XL 11 mm Proximity Probe is a precision-engineered non-contact sensor designed to measure vibration, displacement, and shaft position in critical rotating machinery. Developed as part / the Bently Nevada 3300 XL Series, this probe provides highly accurate and stable measurement performance even in the harshest industrial environments.
With an 11 mm probe tip, the 330703-005-040-10-01-00 delivers exceptional sensitivity, linearity, and temperature stability. It is used primarily with Bently Nevada 3300 XL Proximitor Sensors and extension cables to form a complete transducer system that complies with API 670 standards for machinery protection.
The probe uses advanced shielding and coaxial cable design to resist electromagnetic interference (EMI), ensuring signal integrity in applications involving high electrical noise. Its rugged, corrosion-resistant construction allows long-term, maintenance-free operation in oil-filled, vibration-prone, and high-temperature industrial environments.
This model is ideal for turbine, compressor, and pump monitoring systems where precise shaft vibration or position data are critical for predictive maintenance and system protection.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330703-005-040-10-01-00 |
| Series | 3300 XL 11 mm Proximity Probe |
| Probe Tip Diameter | 11 mm |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Measurement Range | 0.25 mm to 2.0 mm (linear range) |
| Linearity | ±1% / full-scale output |
| Frequency Range | 0 to 10 kHz |
| Probe Thread | M14 × 1.5 or ¾-20 UNF |
| Mounting Type | Threaded with locknut for secure installation |
| Target Material | AISI 4140 steel (calibrated standard) |
| Power Supply | Provided via 3300 XL Proximitor Sensor |
| Electrical Isolation | Between probe tip and cable shield |
| Temperature Range | -35°C to +177°C |
| Environmental Protection | Oil-resistant, sealed stainless steel housing |
| Shock Limit | 500 g peak |
| Vibration Limit | 50 g peak-to-peak |
| Cable Type | Coaxial, double-shielded cable |
| EMI Protection | Advanced double shielding against interference |
| Compliance | API 670 and CE compliant |
| Insulation Resistance | >10⁹ Ω |
| 重量 | 0.07 kg |
Applications
The Bently Nevada 330703-005-040-10-01-00 is widely used in heavy industrial sectors that rely on rotating machinery performance. It plays a crucial role in vibration monitoring, machinery protection, and predictive maintenance programs.
Typical applications include:
-
Steam and Gas Turbines: Monitoring shaft vibration and displacement to prevent catastrophic failure.
-
Compressors and Pumps: Tracking shaft movement and bearing condition for early fault detection.
-
Electric Generators: Measuring rotor vibration and alignment for improved stability and longevity.
-
Industrial Fans and Blowers: Detecting imbalance or mechanical looseness.
-
Gearboxes: Monitoring dynamic shaft behavior and misalignment.
-
Process Control Systems: Integration with Bently Nevada 3500 and 3700 systems for comprehensive machine health analysis.
This probe provides dependable performance even in environments with extreme temperatures, oil contamination, or electrical noise.
Product Advantages
The Bently Nevada 330703-005-040-10-01-00 Proximity Probe /fers numerous technical advantages that make it the global standard for industrial machinery monitoring.
-
High Accuracy and Linearity: Ensures consistent measurement across the entire operational range.
-
Robust Mechanical Design: Stainless steel housing and sealed construction for harsh industrial conditions.
-
Enhanced Signal Integrity: Double-shielded cable structure minimizes electrical noise and interference.
-
Temperature Stability: Maintains accuracy across a wide temperature range (-35°C to +177°C).
-
API 670 Compliance: Fully meets international machinery protection standards.
-
Modular Compatibility: Interchangeable with all 3300 XL Proximitors and extension cables.
-
Oil and Vibration Resistance: Suitable for continuous operation in contaminated environments.
-
Long-Term Reliability: Non-contact sensing eliminates wear and reduces maintenance needs.
-
Ease / Installation: Threaded mounting with locknut enables secure, repeatable positioning.
-
Comprehensive Integration: Works seamlessly with Bently Nevada 3500 monitoring platforms.
FAQ
-
What is the function / the Bently Nevada 330703-005-040-10-01-00 proximity probe?
It measures vibration and displacement by detecting the distance between the probe tip and a conductive target surface on rotating machinery. -
Which proximitor sensor is compatible with this probe?
It is designed to work with the Bently Nevada 3300 XL Proximitor Sensors for full system compatibility. -
What is the system sensitivity / the probe?
The standard sensitivity is 200 mV/mil (7.87 mV/μm). -
Does this probe comply with API 670 standards?
Yes, the probe and its associated system fully comply with API 670 standards. -
What is the linear operating range / the 330703-005-040-10-01-00?
The probe has a linear range / 0.25 mm to 2.0 mm. -
Can it be used in high-vibration environments?
Yes, it can withstand vibrations up to 50 g peak-to-peak without loss / accuracy. -
What materials are compatible as target surfaces?
It is calibrated for AISI 4140 steel or equivalent conductive materials. -
How does it protect against electromagnetic interference?
The probe features a double-shielded coaxial cable that minimizes EMI impact. -
What is the probe’s temperature tolerance?
The operating temperature range is from -35°C to +177°C, suitable for most industrial conditions. -
Can this probe be used in oil-contaminated areas?
Yes, it is designed to operate reliably in oil-filled and moisture-prone environments.
Related or Similar 型号s
| 型号 | 描述 |
|---|---|
| 330703-000-100-10-02-00 | 3300 XL 11 mm proximity probe, 1.0-meter system length |
| 330703-000-120-10-02-00 | 3300 XL 11 mm proximity probe, 1.2-meter version |
| 330703-005-020-10-01-00 | 3300 XL 11 mm probe, shorter range configuration |
| 330703-005-060-10-01-00 | 3300 XL 11 mm probe, extended system length |
| 330703-005-080-10-01-00 | 3300 XL 11 mm probe, high-temperature version |
| 330703-005-100-10-01-00 | 3300 XL 11 mm probe, special calibration type |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 330130-040-00 | 3300 XL extension cable, 4-meter configuration |
| 330180-91-05 | 3300 XL Proximitor Sensor, 5-meter system length |
| 3500/42M | Dual-channel vibration and position monitor |
| 3500/22M | System communications interface module |
| 3500/15 | Rack power supply module for Bently Nevada systems |
| 330400 | Accelerometer sensor for general vibration monitoring |
